Locker Identification Help Needed.

Long story short. Bought a locker for a d35. Ridiculously cheap. ($17 to be exact) and need help identifying it. Any help would be great.

Reply Like

08-15-2015, 10:29 AM

JeepStephie99

Member

Thread Starter

Join Date: Feb 2015

Location: Three Rivers Mi

Posts: 283

Likes: 0

Received 1 Like on 1 Post

Year: 1999

Model: Cherokee

Engine: 4.0

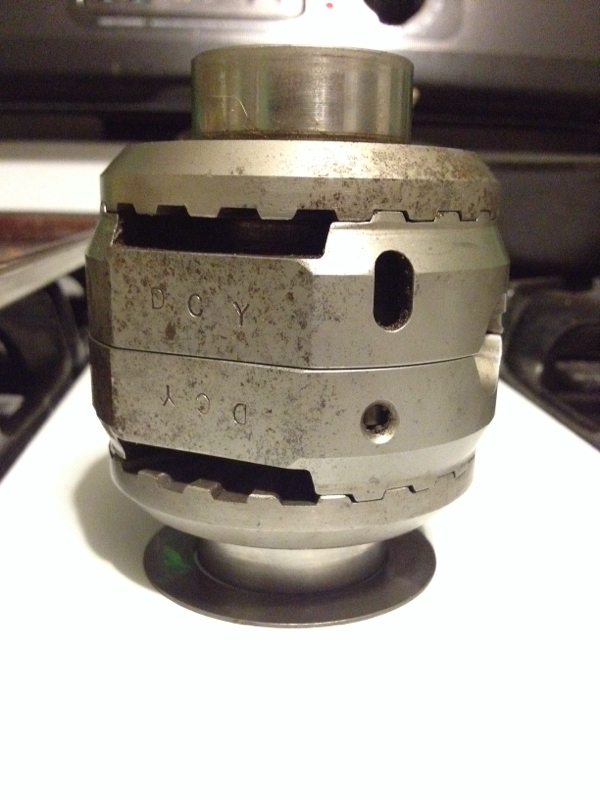

Locker Identification Help Needed.-image-2559307122.jpg

Reply Like

08-15-2015, 10:30 AM

JeepStephie99

Member

Thread Starter

Join Date: Feb 2015

Location: Three Rivers Mi

Posts: 283

Likes: 0

Received 1 Like on 1 Post

Year: 1999

Model: Cherokee

Engine: 4.0

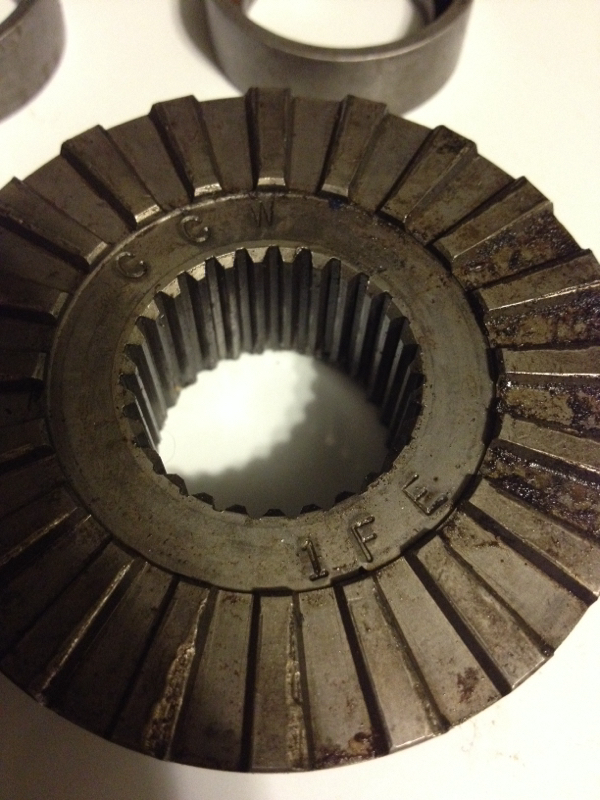

Locker Identification Help Needed.-image-3410927603.jpg

Reply Like

08-15-2015, 11:39 AM

ZJMAX

Seasoned Member

Join Date: May 2014

Location: Nor Cal

Posts: 371

Likes: 0

Received 2 Likes on 2 Posts

Year: 1993 & 1994

Model: Grand Cherokee

Engine: 4.0

It's toast, The teeth are worn, it will slip if you try to use it. Looks like a Lock-rite for a c-clip style rearend.

Max

Reply Like

08-15-2015, 12:00 PM

JeepStephie99

Member

Thread Starter

Join Date: Feb 2015

Location: Three Rivers Mi

Posts: 283

Likes: 0

Received 1 Like on 1 Post

Year: 1999

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by ZJMAX

It's toast, The teeth are worn, it will slip if you try to use it. Looks like a Lock-rite for a c-clip style rearend. Max

That's what I was curious on. One side looked kinda rugged.

Reply Like

08-16-2015, 01:02 PM

xjmarc

CF Veteran

Join Date: Feb 2010

Location: Soddy Daisy TN

Posts: 5,420

Likes: 0

Received 0 Likes on 0 Posts

Year: 97

Model: Cherokee

Engine: 4.0L

Looks like either a lockright or a Detroit EX locker. Either way it's done and would be a waste of time to install.

Reply Like

08-16-2015, 03:00 PM

SeriousOffroad

CF Veteran

Join Date: Apr 2008

Posts: 13,952

Likes: 0

Received 15 Likes on 13 Posts

Model: Cherokee

Looks like a $17 paper weight.
Don't bother installing it.

Reply Like

Trending Topics

22

1.7k
Electric Fan not working

19

3.6k
99 XJ 4.0 - Yet another no crank thread - specifics for NSS bypass

6

424
Parking brake adjuster mechanism 1999

5

248
99 Cheokee keeps blowing O2 heater fuse

16

780

08-16-2015, 05:14 PM

outkast

Senior Member

Join Date: Dec 2009

Location: Elk River, Minnesota

Posts: 682

Likes: 0

Received 0 Likes on 0 Posts

Year: 1989

Model: Cherokee

Engine: 4.0

The chipped teeth are a no go, but the teeth being rounded off a little bit are not a problem. The way these lunchbox lockers work is by pushing out on the cam with the center pin. It doesn't take much "teeth" to engage. When there is torque applied to the diff and its pushing out on the gears it's going to take a ton more wear than that to not work. At low torque application however it could fail to engage.
