Issues with extended front brake line clearance
#1
Member
Thread Starter
Join Date: Jun 2013
Location: Campbell, Mo
Posts: 211
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Issues with extended front brake line clearance

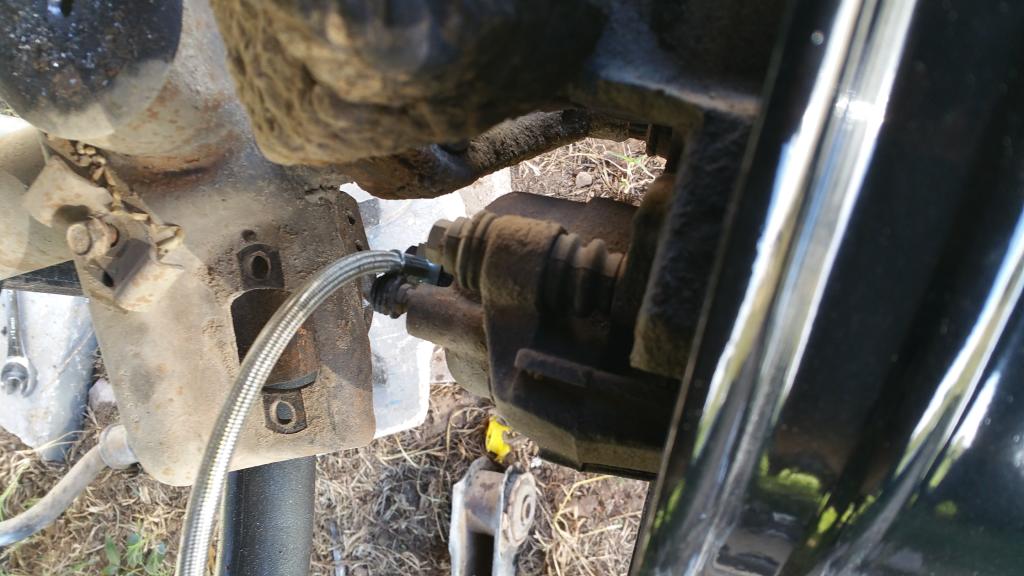

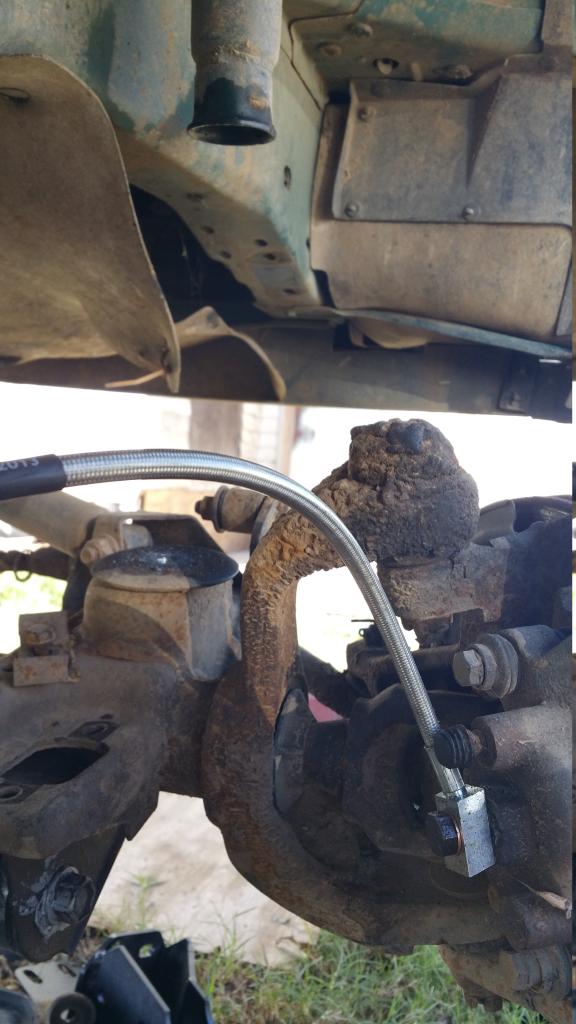

4.5 RE lift I'm using RC extended SS brake lines. if I point them Up they rest against the bleeder. If I point them back like the stock lines pointed then they want to bow which brings them close to the tire.
is that resting against it in too bad of a way? I can see it being a slight PITA when bleeding. if I point them back the only thing I can think of is to find some sort of spring with a rubberized gromet on the hook to put tension on the line. I feel uncomfortable risking my brakes so I thought I'd ask rather than doing something I may regret
is that resting against it in too bad of a way? I can see it being a slight PITA when bleeding. if I point them back the only thing I can think of is to find some sort of spring with a rubberized gromet on the hook to put tension on the line. I feel uncomfortable risking my brakes so I thought I'd ask rather than doing something I may regret
#4
CF Veteran
Join Date: Jul 2011
Location: Warren, Pa
Posts: 2,164
Likes: 0
Received 1 Like
on
1 Post
Year: 97
Model: Cherokee
Engine: 4.0L
4.5 RE lift I'm using RC extended SS brake lines. if I point them Up they rest against the bleeder. If I point them back like the stock lines pointed then they want to bow which brings them close to the tire.
is that resting against it in too bad of a way? I can see it being a slight PITA when bleeding. if I point them back the only thing I can think of is to find some sort of spring with a rubberized gromet on the hook to put tension on the line. I feel uncomfortable risking my brakes so I thought I'd ask rather than doing something I may regret
is that resting against it in too bad of a way? I can see it being a slight PITA when bleeding. if I point them back the only thing I can think of is to find some sort of spring with a rubberized gromet on the hook to put tension on the line. I feel uncomfortable risking my brakes so I thought I'd ask rather than doing something I may regret
Trending Topics
#8
Member
Thread Starter
Join Date: Jun 2013
Location: Campbell, Mo
Posts: 211
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
I started laughing so hard at that... in all fairness I remember older ones had different calipers with the bleeders located differently.
I think I have them lined out. there is actually no other way for them to bolt on unless I grind down the lip on the calipers which I refuse to do. I have them tweaked to where it's not resting right against the bleeder but it is a littler closer than I'd like. Only because bleeding will be a PITA.
I think I have them lined out. there is actually no other way for them to bolt on unless I grind down the lip on the calipers which I refuse to do. I have them tweaked to where it's not resting right against the bleeder but it is a littler closer than I'd like. Only because bleeding will be a PITA.
#9
Can you flip the block over so that the slight angle that the line comes out of the block points slightly toward the caliper instead of away from it?
Or would the line be too close to rubbing on the wheel?
Or would the line be too close to rubbing on the wheel?
Last edited by Firehawk068; 10-31-2014 at 10:27 PM.
#10
Member
Thread Starter
Join Date: Jun 2013
Location: Campbell, Mo
Posts: 211
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
it still had a tilt which kept it close to the bleeder valve. I actually can't turn it to face towards the rear either because of the lip on the caliper. I managed to get it bolted in with maybe 2mm of clearance from the bleeder. It shouldn't be a problem rubbing but it's going to be harder to bleed it for sure. I'll just live with it for now.
