Fanned Springs twisted outward
#1
Junior Member
Thread Starter
Join Date: Jul 2013
Location: Los Angeles, California
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, 6cyl., performance chipped
Fanned Leaf Springs - Please don't ignore my questions ty

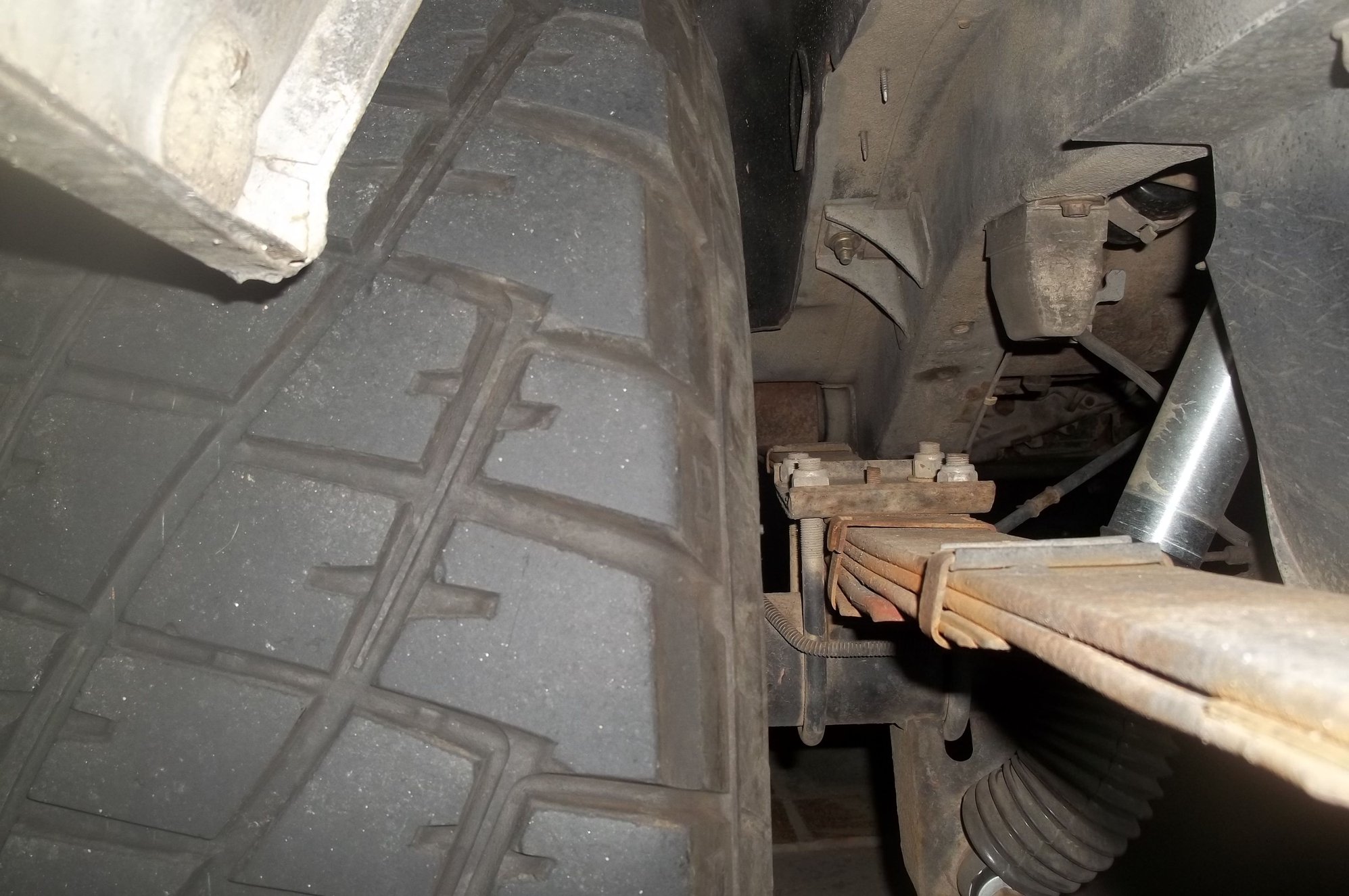

Hi guys, This is behind my driver's side back seat. Wow sorry for the huge pictures. I know it has a lot of rust and dirt, I plan to wash under there, but california has laws. So, can this be why I hear a drivers side squeakie noise on turns up into the driveways? I guess I heard it for a while. Is this fixable? Or is this slight fanning or twisting gonna get worse? PS photos don't show the fanning like I hoped that they would. I can get more if you like to see it.
Last edited by kick_rocks; 07-24-2015 at 07:53 AM. Reason: My posts are being ignored and adding another shot
#2
Junior Member
Thread Starter
Join Date: Jul 2013
Location: Los Angeles, California
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, 6cyl., performance chipped
Still waiting for someone to help with an answer. Its like I just don't exist in these forums and why because I am female? Nor is this the first time I have gotten ignored on every single post just about?
A better shot of the problem and noises I hear coming from back there. You can see the twisting and can I keep driving it this way or not?
Last edited by kick_rocks; 07-24-2015 at 07:46 AM. Reason: add another shot
#3
Senior Member
I had a the same problem with my skyjacker leaf packs. Loosen up your u bolts beat the springs strait with a hammer and re tighten your u bolts really tight. That should get it done.
#4
Junior Member
Thread Starter
Join Date: Jul 2013
Location: Los Angeles, California
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, 6cyl., performance chipped
#5
Beach Bum
I also had Skyjacker soft-ride leaf springs that did the same thing. Beat them into submission with a wooden mallet after loosening u-bolts a bit.
#6
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
My suggestion would to be use only a "Dead Blow" hammer for beating those back they are cheap and no metal flying around.
BTW I had no idea you were a female and had nothing to do with any answers given, or not at any time.
BTW I had no idea you were a female and had nothing to do with any answers given, or not at any time.
#7
Senior Member
Join Date: Dec 2009
Location: Elk River, Minnesota
Posts: 682
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Still waiting for someone to help with an answer. Its like I just don't exist in these forums and why because I am female? Nor is this the first time I have gotten ignored on every single post just about?
A better shot of the problem and noises I hear coming from back there. You can see the twisting and can I keep driving it this way or not?
These guys are spot on though, loosen u-bolts tap back into place. Tighten like hell. Then get better spring clamps. The clamps that have a small bolt through the top.
Trending Topics
#8
Seasoned Member
Join Date: Mar 2014
Location: Central Texas
Posts: 498
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Does it seem to anyone else like there's too much gap between the U-bolts? Am I just seeing things? Going out to look at mine...
Edit: disregard previous, mine are the same way.
Edit: disregard previous, mine are the same way.
Last edited by Crash_Course; 07-24-2015 at 07:38 PM.
#9
Junior Member
Thread Starter
Join Date: Jul 2013
Location: Los Angeles, California
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L, 6cyl., performance chipped
fanned springs
Thank you for all your help, finally (sigh) but I will go and fix them up probably tomorrow as today has gotten late. If it happens again, I was wondering if I could weld them perhaps? Another thing is I noticed that they are flat flat flat and shouldnt they be curved upwards even a little bit? just curious. thanks again
Oh one last thing, not sure should i jack it up some to relieve the pressure in order to beat them in? wasn't quite sure.
Oh one last thing, not sure should i jack it up some to relieve the pressure in order to beat them in? wasn't quite sure.
Last edited by kick_rocks; 07-25-2015 at 08:02 PM. Reason: forgot something
#11
Junior Member
Join Date: Dec 2014
Location: rockinham VT
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: stock I6
Thank you for all your help, finally (sigh) but I will go and fix them up probably tomorrow as today has gotten late. If it happens again, I was wondering if I could weld them perhaps? Another thing is I noticed that they are flat flat flat and shouldnt they be curved upwards even a little bit? just curious. thanks again
Oh one last thing, not sure should i jack it up some to relieve the pressure in order to beat them in? wasn't quite sure.
Oh one last thing, not sure should i jack it up some to relieve the pressure in order to beat them in? wasn't quite sure.
Welding your springs will ruin them. If your springs are flat and you don't have a lot of extra weight like huge bumper/tire carrier your springs may be worn out.
#13
CF Veteran
Join Date: Feb 2010
Location: Missoula, MT
Posts: 3,353
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: Golen 4.6 Stroker, AFE Headers, 62mm TB, 24 LB Injectors, Brown Dog kit, HF Cat, 3" Exhaust
Straightening them out is easy but I doubt it will fix your noise. I would buy some lithium grease and lube up the bushings. The squeaking noise could be anything though- there are a bunch of moving parts. Have someone jump on the rear bumper a few times while you are laying under there. See if you can pin-point it.
