Old 04-10-2012, 10:35 PM   #1
CF Veteran

Jeepxj1234's Avatar

Join Date: Sep 2010
Location: NC
Posts: 1,800

View Jeepxj1234's Photo Album My Photos
1998 Cherokee
Default

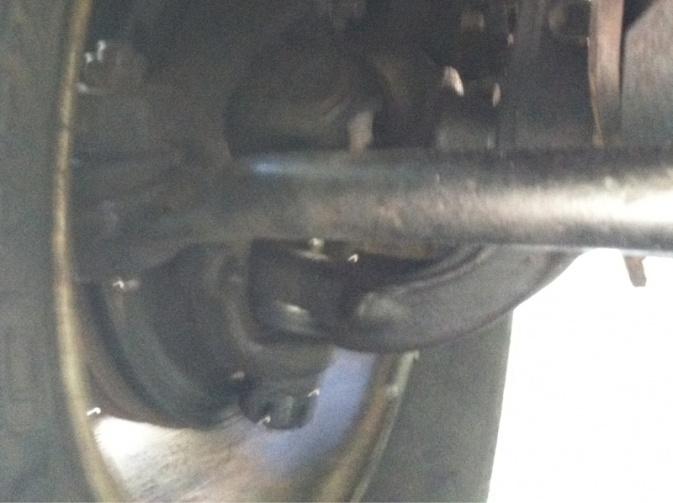

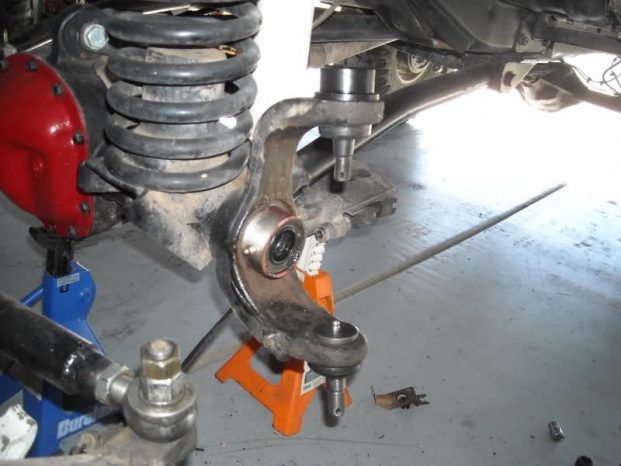

So the lower ball joints I got came with this threaded sleeve thing (as seen in pic 1) and I didnt know what it was so I didn't put it on and left it like this (pic 2) . I then noticed that there was a fairly large gap between the knuckle and the axle where the lower ball joints are and my camber is was off (pic 4) so I figure that if I put the sleeve thing on like this (pic 3), with the sleeve being between the lower joint and the knuckle, I should be good to go (?).These lower ball joints are the duralast ones from autozone, if anyone has installed them before.
Attached Thumbnails
Duralast/autozone lower ball joint problem. Please help!-image-2354097188.jpg   Duralast/autozone lower ball joint problem. Please help!-image-497575694.jpg
Attached Images

Jeepxj1234 is offline   Reply With Quote
Old 04-10-2012, 10:55 PM   #2
CF Veteran

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501

View TheJerm's Photo Album My Photos
1995 Cherokee
Default

Thats a cheap chinese part. Should of gone with quality parts like moog. Sorry but couldnt get autozone.com for some reason and these are from advance for reference and these look like all the ones Ive done

Link1

Link2
TheJerm is offline   Reply With Quote
Old 04-10-2012, 11:28 PM   #3
Member

Join Date: Feb 2012
Posts: 218

View meancherokee's Photo Album My Photos
Cherokee
Default

you sure you got the correct ones? i just did mine with autozone bj a couple weekends ago and they didnt come with that spacer thing and installed easily.
meancherokee is offline   Reply With Quote
Old 04-11-2012, 02:10 PM   #4
CF Veteran

Jeepxj1234's Avatar

Join Date: Sep 2010
Location: NC
Posts: 1,800

View Jeepxj1234's Photo Album My Photos
1998 Cherokee
Default

Yeah I checked the numbers and they are correct. I also looked on rock auto and many of their ball joints had the sleeve thing as well. I'm getting confused ha. Might have to switch them out for the advanced moog ones, but really don't want to :/. Thanks for the replies.
Jeepxj1234 is offline   Reply With Quote
Old 04-11-2012, 02:33 PM   #5
CF Veteran

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501

View TheJerm's Photo Album My Photos
1995 Cherokee
Default

Sometimes you get what you pay for. With balljoints if i have to do them then I dont ever want to do it again. Plus never had any fitment issues with moog
TheJerm is offline   Reply With Quote
Old 04-11-2012, 03:17 PM   #6
CF Veteran

Tom95YJ's Avatar

Join Date: Nov 2011
Location: SLC, Utah
Posts: 3,465

View Tom95YJ's Photo Album My Photos
1999 Cherokee
Default

Quote:
Originally Posted by TheJerm View Post
Thats a cheap chinese part. Should of gone with quality parts like moog.
X2
__________________
1999 XJ Tom95YJ's Build Thread

September 2013 Cherokee Of The Month

NAXJA Member
U4WDA Member
Tom95YJ is offline   Reply With Quote
Old 04-11-2012, 04:49 PM   #7
CF Veteran

Jeepxj1234's Avatar

Join Date: Sep 2010
Location: NC
Posts: 1,800

View Jeepxj1234's Photo Album My Photos
1998 Cherokee
Default

Ok so I know i should have gotten the expensive ball joints, but I don't see how these can't at least work. Does anyone know where to put the threaded sleeve?
Jeepxj1234 is offline   Reply With Quote
Old 04-11-2012, 04:58 PM   #8
CF Veteran

Jeepxj1234's Avatar

Join Date: Sep 2010
Location: NC
Posts: 1,800

View Jeepxj1234's Photo Album My Photos
1998 Cherokee
Default

Also, the upper ball joints are not duralast, if that makes a difference.
Jeepxj1234 is offline   Reply With Quote
Old 04-11-2012, 05:04 PM   #9
CF Veteran

storm101's Avatar

Join Date: Jan 2009
Location: Northfield MN
Posts: 1,215

View storm101's Photo Album My Photos
1999 Cherokee
Default

Pretty sure the early model xjs had that "sleeve" deal and they had a design change for later years, no effin clue what years had what or if they're interchangeable, my guess is no though lol.
__________________
Just remember, if the wife kicks you out for being on CF too much, you can always sleep in the jeep. lmao


"Storm" the 99' xj- 63mm bored tb, thor4x4 cowl induction, 2.5" exhaust with flowmaster super 44 muffler, 3" mixed lift, HIDS, fitchbox switch panel, JCR stage 2 sliders, 31" treadwright guard dogs, cragar soft 8 rims, TJ flares, ironman4x4 motor mounts and lca's, iro double shear tbar, l&l fab bumpers, serious one ton steering, engo E9000, tranny cooler, rear disc brake conversion
storm101 is offline   Reply With Quote
Old 04-11-2012, 05:18 PM   #10
CF Veteran

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501

View TheJerm's Photo Album My Photos
1995 Cherokee
Default

I never saw that sleeve on my 88 or 96. Even swapped my 95 knuckles to the 88 axle with no issue.
TheJerm is offline   Reply With Quote
Old 04-11-2012, 05:21 PM   #11
CF Veteran

storm101's Avatar

Join Date: Jan 2009
Location: Northfield MN
Posts: 1,215

View storm101's Photo Album My Photos
1999 Cherokee
Default

Quote:
Originally Posted by TheJerm View Post
I never saw that sleeve on my 88 or 96. Even swapped my 95 knuckles to the 88 axle with no issue.
No clue lol, just passing on info from my reading adventures.

http://www.naxja.org/forum/showthrea...ght=ball+joint

That's got a good pic on where the sleeve should go.
__________________
Just remember, if the wife kicks you out for being on CF too much, you can always sleep in the jeep. lmao


"Storm" the 99' xj- 63mm bored tb, thor4x4 cowl induction, 2.5" exhaust with flowmaster super 44 muffler, 3" mixed lift, HIDS, fitchbox switch panel, JCR stage 2 sliders, 31" treadwright guard dogs, cragar soft 8 rims, TJ flares, ironman4x4 motor mounts and lca's, iro double shear tbar, l&l fab bumpers, serious one ton steering, engo E9000, tranny cooler, rear disc brake conversion
storm101 is offline   Reply With Quote
Old 04-11-2012, 05:30 PM   #12
CF Veteran

storm101's Avatar

Join Date: Jan 2009
Location: Northfield MN
Posts: 1,215

View storm101's Photo Album My Photos
1999 Cherokee
Default

.
__________________
Just remember, if the wife kicks you out for being on CF too much, you can always sleep in the jeep. lmao


"Storm" the 99' xj- 63mm bored tb, thor4x4 cowl induction, 2.5" exhaust with flowmaster super 44 muffler, 3" mixed lift, HIDS, fitchbox switch panel, JCR stage 2 sliders, 31" treadwright guard dogs, cragar soft 8 rims, TJ flares, ironman4x4 motor mounts and lca's, iro double shear tbar, l&l fab bumpers, serious one ton steering, engo E9000, tranny cooler, rear disc brake conversion

Last edited by storm101; 04-11-2012 at 05:32 PM.
storm101 is offline   Reply With Quote
Old 04-11-2012, 05:31 PM   #13
CF Veteran

storm101's Avatar

Join Date: Jan 2009
Location: Northfield MN
Posts: 1,215

View storm101's Photo Album My Photos
1999 Cherokee
Default

88 may be the transition year for those threaded inserts, but it looks like if you don't need the sleeve you just dont use it.

Try Again without the sleeve and report back lol
__________________
Just remember, if the wife kicks you out for being on CF too much, you can always sleep in the jeep. lmao


"Storm" the 99' xj- 63mm bored tb, thor4x4 cowl induction, 2.5" exhaust with flowmaster super 44 muffler, 3" mixed lift, HIDS, fitchbox switch panel, JCR stage 2 sliders, 31" treadwright guard dogs, cragar soft 8 rims, TJ flares, ironman4x4 motor mounts and lca's, iro double shear tbar, l&l fab bumpers, serious one ton steering, engo E9000, tranny cooler, rear disc brake conversion

Last edited by storm101; 04-11-2012 at 05:39 PM.
storm101 is offline   Reply With Quote
Old 04-11-2012, 05:39 PM   #14
CF Veteran

Jeepxj1234's Avatar

Join Date: Sep 2010
Location: NC
Posts: 1,800

View Jeepxj1234's Photo Album My Photos
1998 Cherokee
Default

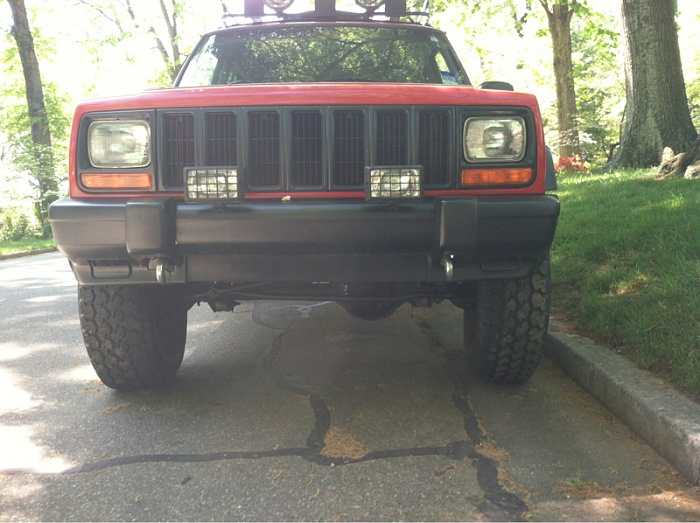

Yeah mines a 98 and the old one didn't have the sleeve (I don't think) so I just pressed it in, and now my tires look like this. Camber is way off.
Attached Thumbnails
Duralast/autozone lower ball joint problem. Please help!-image-3102338988.jpg
Jeepxj1234 is offline   Reply With Quote
Old 04-11-2012, 05:57 PM   #15
Cherokee Forum Vendor

Join Date: Mar 2012
Location: Yorba Linda
Posts: 767

View RWKHausSupply's Photo Album My Photos
2001 Cherokee
Default

Well If you think Moog are made in the USA you are likely mistaken also...

The OE Dana Spicer ball joint kit also has that threaded insert. It comes with it as a service to the customer, so in case you have the very early model that takes it, you can use it, other wise toss it...
RWKHausSupply is offline   Reply With Quote
