Old 10-26-2011, 10:15 PM   #16
Member

Join Date: Sep 2011
Posts: 233

View Omnipotent Octopus's Photo Album My Photos
00' Cherokee
Default

I live in somewhat dank size town so I have no clue who or where I would get this done.
Omnipotent Octopus is offline   Reply With Quote
Old 11-29-2011, 09:02 PM   #17
Member

hytek's Avatar

Join Date: Oct 2011
Location: IL
Posts: 121

View hytek's Photo Album My Photos
1999 Cherokee
Default

Just when I thought I'd have to dump a ton of $ in my xj, this forum saves me again! Is this as simple as it looks to install? My ac system is already drained....leaked out a while ago.
hytek is offline   Reply With Quote
Old 11-30-2011, 12:10 AM   #18
CF Veteran

Join Date: Jan 2009
Location: Utardiland
Posts: 1,703

View jmaxj's Photo Album My Photos
whats left of a 91 Cherokee
Default

yes, pull the lines undo the 4 bolts holding on the pump then unplug and remove it. then install the new pulley with the 3 bolts and your done. i did mine and a few others in about 15 min. maybe less.
__________________
Helping XJ's feel better about themselves one real piece of metal at a time.

proud producer of the NAXJA
smell on CF since 2009

Under construction for future destruction!!
jmaxj is offline   Reply With Quote
Old 11-30-2011, 12:42 AM   #19
Member

hytek's Avatar

Join Date: Oct 2011
Location: IL
Posts: 121

View hytek's Photo Album My Photos
1999 Cherokee
Default

Cool thanks!
hytek is offline   Reply With Quote
Old 11-30-2011, 11:48 AM   #20
Member

hytek's Avatar

Join Date: Oct 2011
Location: IL
Posts: 121

View hytek's Photo Album My Photos
1999 Cherokee
Default

Advance Auto Parts was able to order me one that'll be here tomorrow. It's the Dorman. Everywhere else was 5-7 days.
hytek is offline   Reply With Quote
Old 11-30-2011, 12:22 PM   #21
Member

Join Date: Sep 2011
Posts: 233

View Omnipotent Octopus's Photo Album My Photos
00' Cherokee
Default

Quote:
Originally Posted by hytek View Post
Advance Auto Parts was able to order me one that'll be here tomorrow. It's the Dorman. Everywhere else was 5-7 days.
Come back with an update after you put it in. I haven't put mine in yet, kinda holding it off for a spring or summer day.
Omnipotent Octopus is offline   Reply With Quote
Old 11-30-2011, 01:12 PM   #22
Member

hytek's Avatar

Join Date: Oct 2011
Location: IL
Posts: 121

View hytek's Photo Album My Photos
1999 Cherokee
Default

Quote:
Originally Posted by Omnipotent Octopus

Come back with an update after you put it in. I haven't put mine in yet, kinda holding it off for a spring or summer day.
No prob. I'll hopefully get it in tomorrow.
hytek is offline   Reply With Quote
Old 12-01-2011, 08:07 PM   #23
Member

hytek's Avatar

Join Date: Oct 2011
Location: IL
Posts: 121

View hytek's Photo Album My Photos
1999 Cherokee
Default

Picked up the bypass pulley from Advance Auto Parts today for $47 and a new belt. I couldn't find a 15mm wrench to get to the tensioner in my tools so it'll have to wait till this weekend.
hytek is offline   Reply With Quote
Old 12-04-2011, 03:13 PM   #24
Member

hytek's Avatar

Join Date: Oct 2011
Location: IL
Posts: 121

View hytek's Photo Album My Photos
1999 Cherokee
Default

I put the bypass pulley on today. Not hard at all!

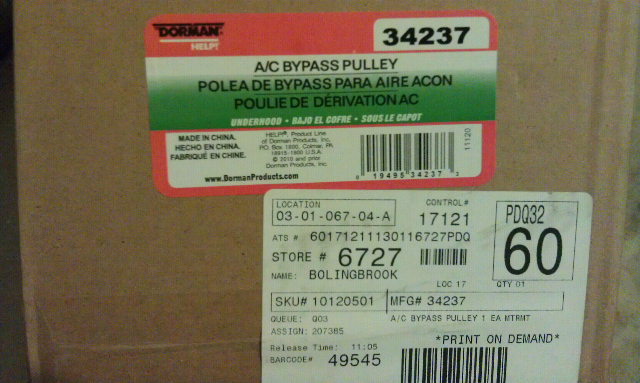

I bought the bypass pulley from Advance Auto Parts.
Part# Dorman 34237

Tools needed:
15mm wrench
15mm socket
13mm socket
12mm socket
Socket wrench

1. First make sure system is dry and have discharged properly. (Mine was already empty from a prior leak)
2. Loosen tensioner bolt and remove belt. I drew a diagram of the belt pattern b/c i couldn't find one for a 99 4.0.

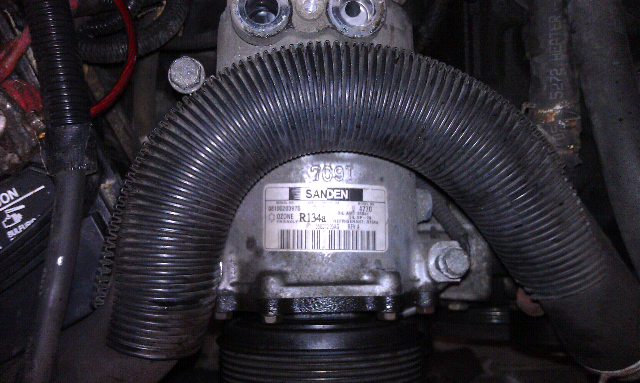

3. Loosen the 4 bolts on the top of the compressor but be careful. One of mine broke but luckily I still got it out.

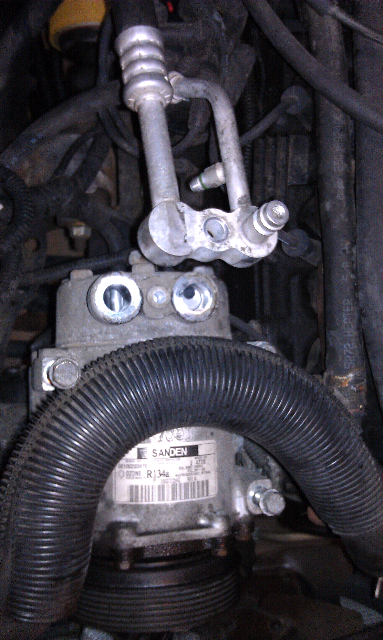

4. Remove the connection on top of the compressor.

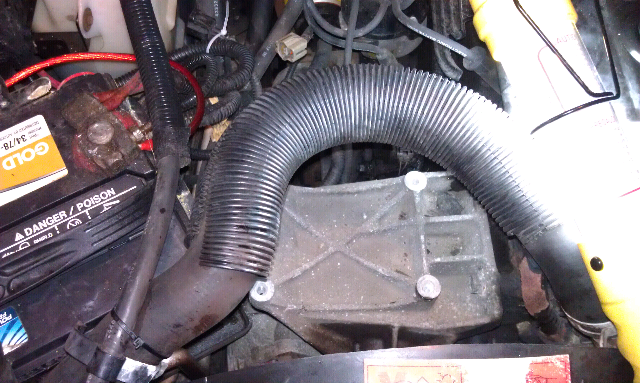

5. Remove compressor.
6. Remove hoses and tie back electrical connections.

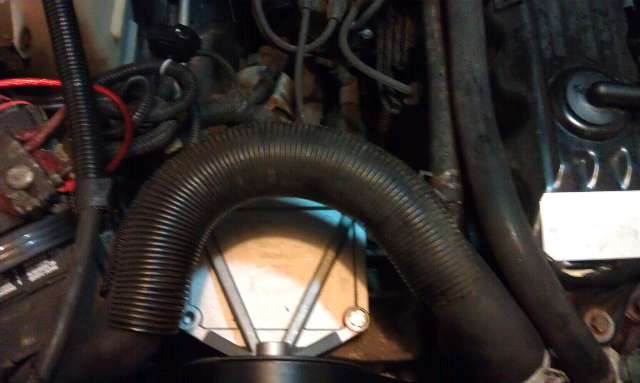

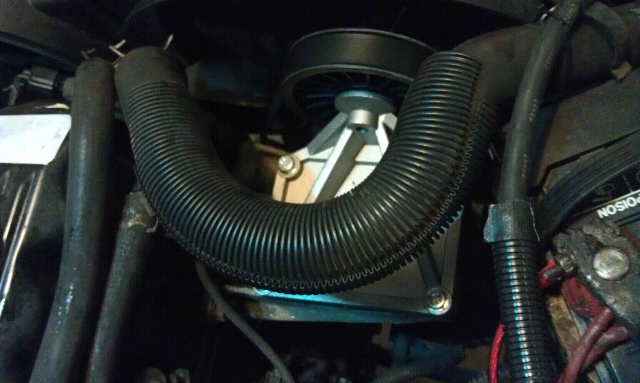

7. Put bypass pulley on and bolt up with supplied bolts and washers. Don't tighten to hard as the bolts can snap.
8. Put new belt on and tighten tensioner.
9. Check for squeeling.

I chose to leave the condensor in place with a couple other parts by the firewall. I might remove that another day or just in case I want ac again.

Whole process took approximately 2 hours.

Special thanks to Dukie for his tips and quick replies! You're an asset to CF man! This Site continues to amaze me with the help and knowledge of the veterans. Thanks everyone!
Attached Thumbnails
dummy pulley for AC Pump-forumrunner_20111204_150857.jpg   dummy pulley for AC Pump-forumrunner_20111204_150925.jpg   dummy pulley for AC Pump-forumrunner_20111204_150948.jpg   dummy pulley for AC Pump-forumrunner_20111204_151004.jpg   dummy pulley for AC Pump-forumrunner_20111204_151026.jpg

dummy pulley for AC Pump-forumrunner_20111204_151045.jpg
hytek is offline   Reply With Quote
Old 12-04-2011, 03:39 PM   #25
CF Veteran

Jeepjunky's Avatar

Join Date: Oct 2009
Location: somewhere Gee oh Dee cant find me...
Posts: 4,528

View Jeepjunky's Photo Album My Photos
1995 Cherokee
Default

could also make it into a OBA system, but thats just me
__________________
Lets Just I'm Good With My Hands

<<<< DO IT!!!

http://www.racelinepumps.com/

1988 MJ-- Project--jack stands, no axles
1995 XJ-- Daily driver--5" RC lift, 33x12.5 BFG KM2s
1993 ZJ-- rottin away in the backyard
1993 XJ-- SCRAPPED!!!
1995 S10-SOLD!!!!!!
Quote:
Originally Posted by odgreen89on35s View Post
Your lucky that 100 shot of caps lock didn't blow the welds off the Internet.
Jeepjunky is offline   Reply With Quote
Old 05-25-2012, 01:23 PM   #26
Member

Join Date: Sep 2011
Posts: 233

View Omnipotent Octopus's Photo Album My Photos
00' Cherokee
Default

Just finished my A/C delete and everything went smoothly. I went as far as taking all of the lines out and everything else associated with it, cant even tell there ever was a/c.
Omnipotent Octopus is offline   Reply With Quote
Old 05-25-2012, 03:30 PM   #27
Senior Member

billulsund's Avatar

Join Date: Apr 2010
Location: Bonney Lake, WA
Posts: 615

View billulsund's Photo Album My Photos
1989 Cherokee
Default

I cant understand why someone would pay money for a dummy pully when instead you could just leave the pump on, but remove all the rest of the AC components. It does not weigh much and acts just like a dummy pully as long as you dont give it power to engage the clutch. Plus then you could later on turn it into an OBA system.
billulsund is offline   Reply With Quote
Old 05-25-2012, 04:48 PM   #28
CF Veteran

N20jeep's Avatar

Join Date: Mar 2010
Location: Jacksonville, FL
Posts: 6,436

View N20jeep's Photo Album My Photos
92 Cherokee
Default

Quote:
Originally Posted by billulsund
I cant understand why someone would pay money for a dummy pully when instead you could just leave the pump on, but remove all the rest of the AC components. It does not weigh much and acts just like a dummy pully as long as you dont give it power to engage the clutch. Plus then you could later on turn it into an OBA system.
They could have a compressor with bad bearings
__________________
-Happy Trails 4x4 LLC-
Jacksonville, Fl
92 XJ....2dr, 5spd, np231, 4.5", 37's, locked, 4.10's,d44/ 8.8, rear 4-link, front 3 link, WARN 8k winch, bumpers, Sliders, some bedliner, and some other stuff...
-"Simply because you can breathe, doesn't mean you're alive"-
"Project Florida Crawler"
http://www.cherokeeforum.com/f46/pro...crawler-74408/

R.I.P. Brian (96_xj) you will be missed
N20jeep is offline   Reply With Quote
Old 05-25-2012, 05:44 PM   #29
::CF Moderator::

Gee oh Dee's Avatar

Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,074

View Gee oh Dee's Photo Album My Photos
1987 Cherokee
Default

Quote:
Originally Posted by Jeepjunky View Post
could also make it into a OBA system, but thats just me
Some folks, like me, already have a compressor, so no need.

Quote:
Originally Posted by N20jeep View Post
They could have a compressor with bad bearings
This.
__________________
Rest in peace Brian 96_XJ Perrine

"Build" thread:
http://www.cherokeeforum.com/f46/pro...herokee-58248/



"...To ride a motorcycle well is like making the choice to live in this world and the next simultaneously; It is to carelessly play with hell's devils and God's angels together because anything less would be, to the moto-enthusiast, to do nothing at all..."
Gee oh Dee is offline   Reply With Quote
Old 05-25-2012, 05:54 PM   #30
Senior Member

billulsund's Avatar

Join Date: Apr 2010
Location: Bonney Lake, WA
Posts: 615

View billulsund's Photo Album My Photos
1989 Cherokee
Default

I could easily find another AC pump with good bearings for about half the price of the dummy pully.
