Battery won't hold charge. Need help ASAP
#1
Newbie
Thread Starter
Join Date: Jul 2015
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Battery won't hold charge. Need help ASAP
Hello all. Recently I changed out the battery cables on my 2000 jeep cherokee sport and after doing so the battery wont hold a charge. The battery is 5 years old but was working until I installed the new cables. I've retraced my steps and retightened everything down more than once. I've checked all the fuses for shorts and things like that but have found nothing. Could it be a parasitic drain or is my battery just old and I need a new one? Thanks in advanced for the help
#2
Member
Join Date: Jul 2015
Location: San Antonio, Texas
Posts: 150
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
You would need to charge the battery and then load test it to know for sure. 5 years is very old for a battery, here in south Texas you would be extremely lucky to make it to 4 years on a battery.
My guess is that it is just a coincidence. But when you say you changed the cables, did you install new OEM cables or make your own?
My guess is that it is just a coincidence. But when you say you changed the cables, did you install new OEM cables or make your own?
#3
Newbie
Thread Starter
Join Date: Jul 2015
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
You would need to charge the battery and then load test it to know for sure. 5 years is very old for a battery, here in south Texas you would be extremely lucky to make it to 4 years on a battery.
My guess is that it is just a coincidence. But when you say you changed the cables, did you install new OEM cables or make your own?
My guess is that it is just a coincidence. But when you say you changed the cables, did you install new OEM cables or make your own?
#4
Member
Join Date: Jul 2015
Location: San Antonio, Texas
Posts: 150
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
Got any pics? How did you terminate the wires? and what type of 4AWG wire did you use? Did you mess with the battery temp sensor (I don't know if it would affect charging or not)? Do you have a CEL?
Last edited by 9krpmrx8; 07-31-2015 at 10:35 AM.
#6
Newbie
Thread Starter
Join Date: Jul 2015
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Trending Topics
#10
Member
Join Date: Jul 2015
Location: San Antonio, Texas
Posts: 150
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0

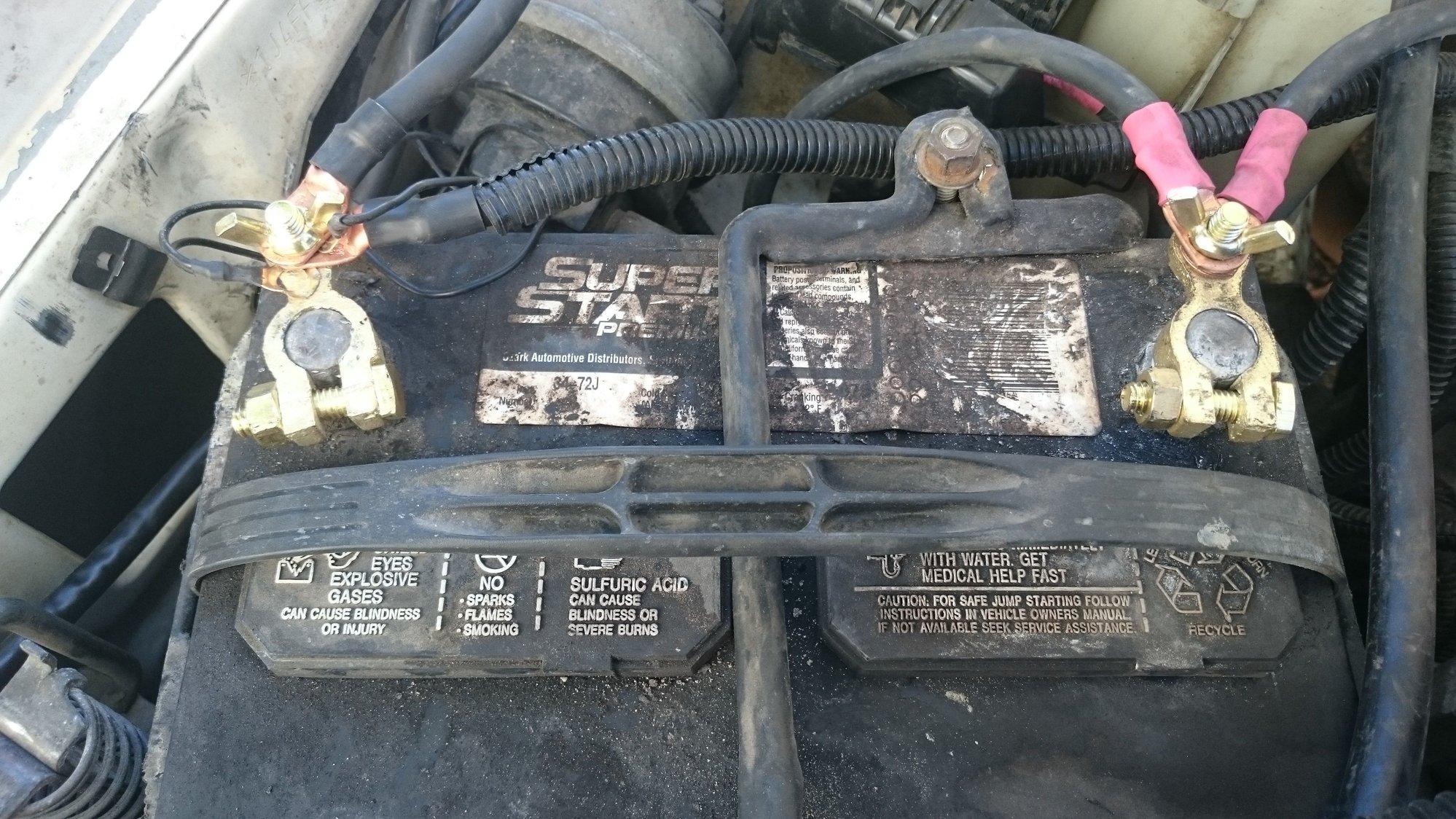

I can't really tell from the pics how they dealt with the alternator wiring and such. How they spliced into that is important. Overall it looks okay. I would have cleaned things up a bit but you can't expect too much from shops today.
#12
Newbie
Thread Starter
Join Date: Jul 2015
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#13
Member
Join Date: Jul 2015
Location: San Antonio, Texas
Posts: 150
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0

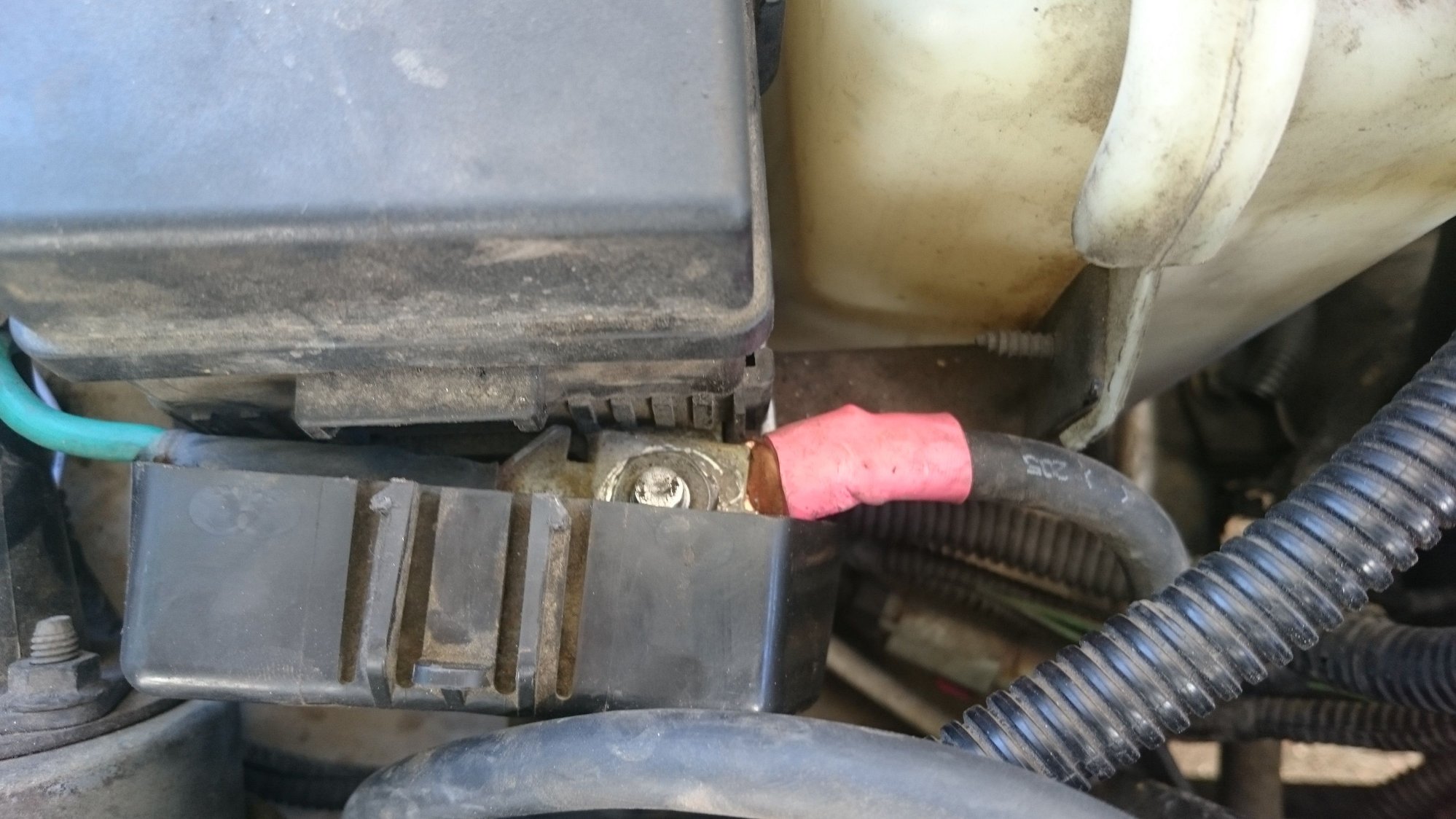

I can't really tell from the pics, but on my 2001 the harness is combined and the wires for th AC, alt, etc feed to the positive terminal on the fuse box, so they would have had to connect at some point. Unless it is different thru the years. What year is yours?
That said, testing the battery should be your first priority.
That said, testing the battery should be your first priority.
Last edited by 9krpmrx8; 07-31-2015 at 11:59 AM.
#14
Member
Join Date: Jul 2015
Location: San Antonio, Texas
Posts: 150
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
I just looked at mine, it looks like the green wire from the fuse box feeds the Alt. But it all combines in a main group of wires so I am not sure what is going on in that bundle when you pull off the wire sheathing, etc. But on yours to run the wire to the starter you would have had to pull that bundle apart unless it has been modified before, mine is pretty much bone stock.
#15
Before anything you need a charged battery. If you have a charger and a multimeter, slow charge the battery, disconnect and check again in about a half hour to see if the voltage changed. Or you could take it to a parts store to charge and test it.
Personally, I would do these steps in this order if battery checks out okay:
1.Check the wires. Use a multimeter to check resistance (ohms) or continuity if meter has it.
2. Positive and negative side grounds.
3. Parasitic drains. Last because the first two are quick and easy.
