android tablet dash mod
#47
Junior Member
Thread Starter
Join Date: Jul 2012
Location: Denver
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
So I went from the headphone jack, 3.5, to rca. Then from the rca I used two potentiometers. You can find them from pac-audio.com. The scu is pac-lc1. I went from the tablet into the first lc1 then split that with y adapters. 1 set went to front and rear inputs of amp and the other set went to another lc1. That was used for bass control and went to the sub input. It's a jl xd7005 5 channel amp btw
#48
Junior Member
Join Date: Jul 2011
Location: mantua ohio
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 4.0L
Oh thanks. Im thinkin ima mount a head unit in my counsol then mount the tablet in the dash but with the head unit in counsol i still get full eq control and regular radio Nd itll be hidden
#49
Junior Member
Thread Starter
Join Date: Jul 2012
Location: Denver
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
So I went from the headphone jack, 3.5, to rca. Then from the rca I used two potentiometers. You can find them from pac-audio.com. The scu is pac-lc1. I went from the tablet into the first lc1 then split that with y adapters. 1 set went to front and rear inputs of amp and the other set went to another lc1. That was used for bass control and went to the sub input. It's a jl xd7005 5 channel amp btw
#50
Junior Member
Thread Starter
Join Date: Jul 2012
Location: Denver
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
That is actually the better way to do it. Maximizing your preout voltage. You can also tie in with steering wheel controls and bluetooth easily. You will have plenty of room in there after altering ac vents.
#51
Junior Member
Thread Starter
Join Date: Jul 2012
Location: Denver
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
[QUOTE=modded96xj;2613163]Oh thanks. Im thinkin ima mount a head unit in my counsol then mount the tablet in the dash but with the head unit in counsol i still get full eq control and regular radio Nd
check out this product. I've used it in that application a few times and love it. Its from axcess. Oeswc-rf is the part number.
check out this product. I've used it in that application a few times and love it. Its from axcess. Oeswc-rf is the part number.
#53
Senior Member
Join Date: May 2012
Location: Rockford, IL
Posts: 888
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I'm thinking about doing this with my iPad mini. But I want to keep the stereo in the dash so I'm going to move everything down one place and relocate the 12v and switches somewhere else. Mainly because I dont have a network connection with it and I still want radio controls, and my hard drive isn't big enough for all my music. Mainly for gps and running some diagnostic apps, plus it'll just look sweet.
#54
Junior Member
Thread Starter
Join Date: Jul 2012
Location: Denver
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
redo
Decided to redo the tablet install.
I've been regretting doing a WiFi tablet instead of with a service provider. This new one will be with a Verizon samsung note 10.1 2014 edition. I will be including a lot more pictures with this one, and yes the old one is up for grabs.
I've been regretting doing a WiFi tablet instead of with a service provider. This new one will be with a Verizon samsung note 10.1 2014 edition. I will be including a lot more pictures with this one, and yes the old one is up for grabs.
#55
Seasoned Member
Join Date: Apr 2011
Location: Yuma
Posts: 420
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0, APN header & 2.5" exhaust
Do you have the BackCountry Navigator app? That's what I run on my cheap little Verizon tablet and works perfect for the trail runs I do in AZ.
#56
Junior Member
Thread Starter
Join Date: Jul 2012
Location: Denver
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
#57
CF Veteran
Join Date: Nov 2008
Location: mass
Posts: 1,021
Likes: 0
Received 3 Likes
on
2 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 high output
This is awsome I'm from mass but staying at my friends place in El mirage right now. my buddie and I were talking about mounting his tablet in a zj and using the backcountry app last night. Looking forward to wheeling some Arizona red
#58
Junior Member
Thread Starter
Join Date: Jul 2012
Location: Denver
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0

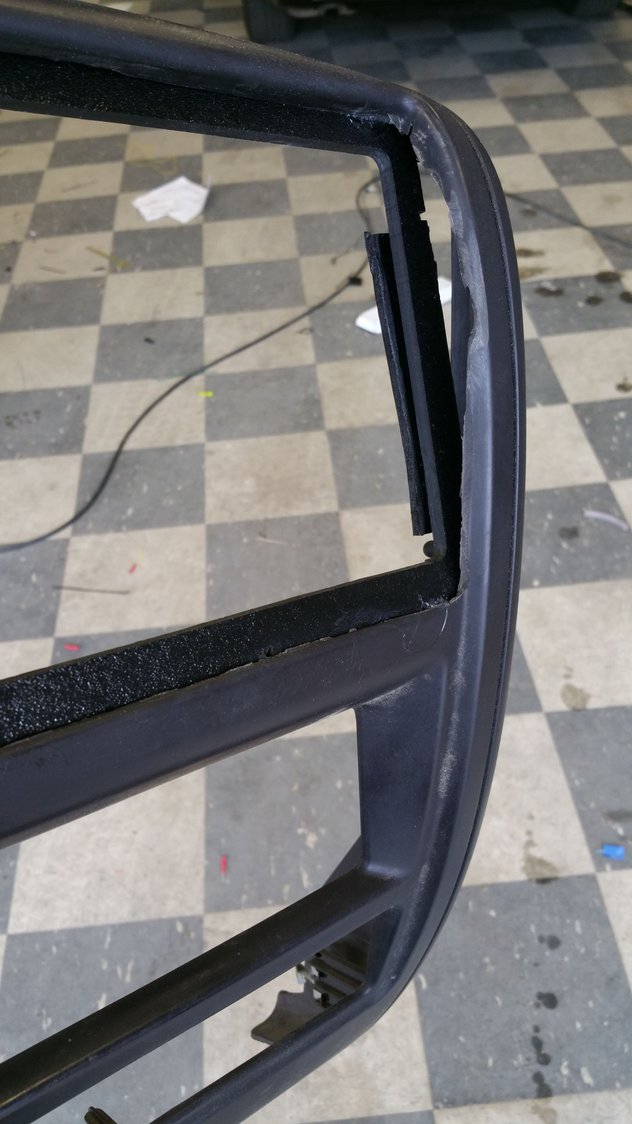

Abs frame routered to screen size. Extra length for wrapping around to cradle. Bought a dummy display model of the same tablet to destroy during build. Bottom right heated and wrapped around snug to tablet. Trimmed excess on bottom left.

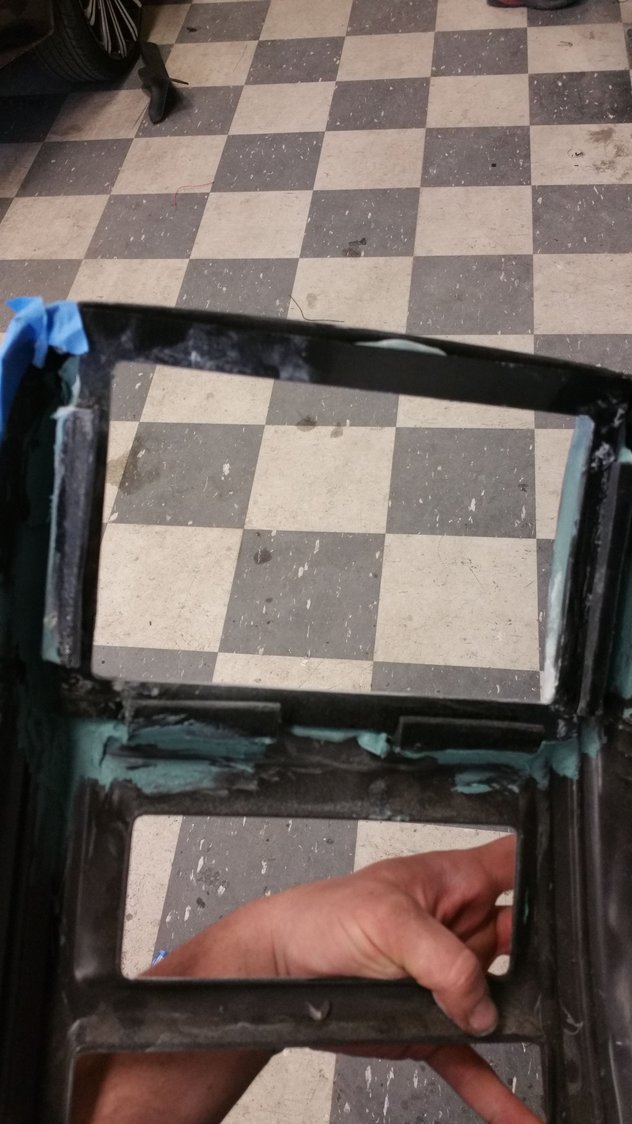

popped out ac vents and trimmed around edges
lightly attached the frame with super glue
Last edited by JAlvl3Z; 03-16-2015 at 02:32 PM.
#60
Seasoned Member
Join Date: Dec 2013
Location: Eastern Michigan
Posts: 320
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Now if you could find a way to control the HVAC with a tablet, it would eliminate those ***** and you could either shift the tablet down or replace the HVAC unit with vents. Either way, it would retain the vents.
