View Poll Results: Transfer case drop with 3" Lift?
Yes I have done it and it worked well.
8
50.00%
Yes I have done it and I had problems
2
12.50%
I haven't read the original post and I will give my useless opinion anyway.
5
31.25%
WGARA
1
6.25%
Voters: 16. You may not vote on this poll
3" lift with TC drop. Comments please.
#16
Seasoned Member
Thread Starter
I know you don't want to hear any negative feedback on this thread but a tc drop changes the angles of everything, hence the reason it puts stress on motor mounts and other components. I know some people are against degree shims without a sye but I have degree shims on the rear diff on mine. Why don't you look into those instead?
yes, I have thought about shims. Thanks for the suggestion!
I used them for a 55 chevy I built a few years ago.
I think a 3 or 4 degree would help... as for the TC drop,
I think (and only guessing) that those that have had motor mount problems are torqing the motor/off roading aggressively. (or the motor mounts were on their way out before they installed a TC drop)
I think with a street jeep It should be fine. an inch drop does not put that much twist on an engine mount..... flame away... LOL
now you got me thinkin...
again... LMAO...
anyway,
I got my hands full this afternoon....
I just dropped the gas tank... I need to repair a rust hole in the right rear frame.... just above the axle.
SafeTcap dont make apiece for the XJ
so I'm gonna make my own...
#17
Senior Member
had a 3" skyjacker lift and had vibes, installed skyjackers t-case drop kit. that took care of most of the vibes but the angle put stress on the motor mounts and exhaust so I ended up with squeaks and bangs I never had before. I now run a SYE with a stock front shaft in the rear.
#20
Seasoned Member
Thread Starter
But I am gonna try the TC drop and see what the actual engine drop is...
When I get a free moment I'm gonna check my actual pinion angles... so far, I'm just shootin the chit and pickin yer brains...
I may just opt to shim the rear axle.... gotta see what the current angle is...
and yes, I have also used the search function.
I thank everyone for the suggestions on SYE
I have looked into them... quite the decision there too... a few different options.
If I did ever go SYE, I really like the same D-shaft front and rear....
Just sayin.... I have read 2 threads so far with guys that have installed SYE and STILL have driveline vibes... so...
I think every situation/jeep is slightly different.
anyway...
I'm gonna hit the hay.
happy Labor day everyone.
#21
Beach Bum

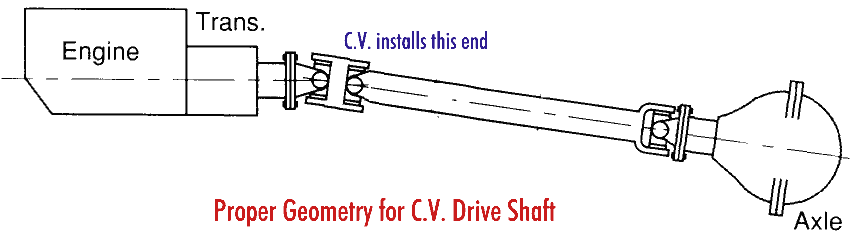

There should be no guesswork when it comes to drivelines. They are either properly set up, or they are not.
Let's understand driveline mechanics first, then make a decision.

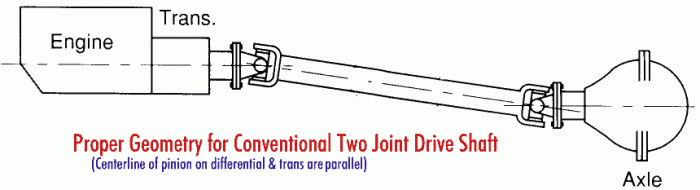

The rear shaft is not designed to operate at higher angles, it is a 2-joint system.
Simply put, for the stock rear shaft, the angle between transfer case yoke (output shaft)and driveshaft, should be the Same as the axle pinion and drive shaft. This is considered 'in phase'. If the angles are different, than the joints are 'out of phase' and driveshaft will vibrate.
The front driveshaft operates on the same principal, but the set up angles differ.
Those with a SYE that still have vibes, again due to improper setup.
http://www.fourwheeler.com/how-to/tr...veshaft-angle/
http://www.4xshaft.com/driveline101.asp
http://www.hotrodhotline.com/md/html..._harmonics.php
Let's understand driveline mechanics first, then make a decision.
The rear shaft is not designed to operate at higher angles, it is a 2-joint system.
Simply put, for the stock rear shaft, the angle between transfer case yoke (output shaft)and driveshaft, should be the Same as the axle pinion and drive shaft. This is considered 'in phase'. If the angles are different, than the joints are 'out of phase' and driveshaft will vibrate.
The front driveshaft operates on the same principal, but the set up angles differ.
Those with a SYE that still have vibes, again due to improper setup.
http://www.fourwheeler.com/how-to/tr...veshaft-angle/
http://www.4xshaft.com/driveline101.asp
http://www.hotrodhotline.com/md/html..._harmonics.php
Last edited by SteveMongr; 09-08-2015 at 11:05 AM. Reason: more friendly
#22
CF Veteran
There should be no guesswork when it comes to drivelines! They are either properly set up, or they are not.
I believe you should understand driveline mechanics first, then make a decision.
The rear shaft is not designed to operate at higher angles, it is a 2-joint system.
Simply put, for the stock rear shaft, the angle between transfer case yoke (output shaft)and driveshaft, should be the Same as the axle pinion and drive shaft. This is considered 'in phase'. If the angles are different, than the joints are 'out of phase' and driveshaft will vibrate.
The front driveshaft operates on the same principal, but the set up angles differ.
Those with a SYE that still have vibes, again due to improper setup.
http://www.fourwheeler.com/how-to/tr...veshaft-angle/
http://www.4xshaft.com/driveline101.asp
http://www.hotrodhotline.com/md/html..._harmonics.php
I believe you should understand driveline mechanics first, then make a decision.
The rear shaft is not designed to operate at higher angles, it is a 2-joint system.
Simply put, for the stock rear shaft, the angle between transfer case yoke (output shaft)and driveshaft, should be the Same as the axle pinion and drive shaft. This is considered 'in phase'. If the angles are different, than the joints are 'out of phase' and driveshaft will vibrate.
The front driveshaft operates on the same principal, but the set up angles differ.
Those with a SYE that still have vibes, again due to improper setup.
http://www.fourwheeler.com/how-to/tr...veshaft-angle/
http://www.4xshaft.com/driveline101.asp
http://www.hotrodhotline.com/md/html..._harmonics.php
Can someone sticky this please! Plain and simple english right here.
#23
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
There should be no guesswork when it comes to drivelines! They are either properly set up, or they are not.
Let's understand driveline mechanics first, then make a decision.
The rear shaft is not designed to operate at higher angles, it is a 2-joint system.
Simply put, for the stock rear shaft, the angle between transfer case yoke (output shaft)and driveshaft, should be the Same as the axle pinion and drive shaft. This is considered 'in phase'. If the angles are different, than the joints are 'out of phase' and driveshaft will vibrate.
The front driveshaft operates on the same principal, but the set up angles differ.
Those with a SYE that still have vibes, again due to improper setup.
http://www.fourwheeler.com/how-to/tr...veshaft-angle/
http://www.4xshaft.com/driveline101.asp
http://www.hotrodhotline.com/md/html..._harmonics.php
Let's understand driveline mechanics first, then make a decision.
The rear shaft is not designed to operate at higher angles, it is a 2-joint system.
Simply put, for the stock rear shaft, the angle between transfer case yoke (output shaft)and driveshaft, should be the Same as the axle pinion and drive shaft. This is considered 'in phase'. If the angles are different, than the joints are 'out of phase' and driveshaft will vibrate.
The front driveshaft operates on the same principal, but the set up angles differ.
Those with a SYE that still have vibes, again due to improper setup.
http://www.fourwheeler.com/how-to/tr...veshaft-angle/
http://www.4xshaft.com/driveline101.asp
http://www.hotrodhotline.com/md/html..._harmonics.php
After I installed my SYE I didn't like the angle and shimmed the rear also, no vibration just not the angle that I wanted.
#24
Member
Join Date: Oct 2009
Location: Kent, WA
Posts: 236
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
I've got a few months of daily driving on my RC 3" lift with a TC drop kit. It's been great so far, but I never planned on it being a permanent solution. I just used the drop as a band aid fix until I could put in an SYE.
#25
CF Veteran
Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,080
Likes: 0
Received 6 Likes
on
5 Posts
Year: 1994 SE
Model: Cherokee
Engine: 4.0
I made some 3/4" TC drop spacers to test out and the noise is gone. When everything settles (reminder to myself, everything should be settled by now) I'll change to a 1/2" spacer, then possibly 1/4". If the noise returns I'll have to go with a SYE.
#26
Looking for anyone who has installed a 3" rough country or other 3" lift AND a Transfer Case drop.
Looking for long term comments/review... Pro/Con
any problems?
did it solve any issues? etc.
Again,
Only looking for 3" lift first hand experience.
Thanks.
also added a poll
Looking for long term comments/review... Pro/Con
any problems?
did it solve any issues? etc.
Again,
Only looking for 3" lift first hand experience.
Thanks.
also added a poll
#27
Senior Member
Join Date: Jan 2017
Location: usa
Posts: 799
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2000
Model: Cherokee
Engine: 6 cylinder
Don't know if this counts but along with my Upcountry Package 1" stock lift, installed a 1.75" Daystar budget lift. Almost 3" total.
I felt slight drive line vibrations only while accelerating at higher speeds.
Installed a Rustys 1" crossmember drop which cured the vibration problem.
That was 30k miles ago. Everything appears ok except a weird tranny fluid leak i think but not 100% sure coming from the Tcase. The Tcase output seal area is dry as is the rest of the Tcase.
Until i get that leak source figured out in warmer weather, the jury is still out.
I felt slight drive line vibrations only while accelerating at higher speeds.
Installed a Rustys 1" crossmember drop which cured the vibration problem.
That was 30k miles ago. Everything appears ok except a weird tranny fluid leak i think but not 100% sure coming from the Tcase. The Tcase output seal area is dry as is the rest of the Tcase.
Until i get that leak source figured out in warmer weather, the jury is still out.
#28
3" lift with TC drop. Comments please.
Old thread. Jus givin take. We had the original rear dl on the 88 xj with the 6.5 lift. But when i got my 99 same height withe the sye... Wow. Better ride and so capable. Its like dang mtn goat. That old dl... Fooey.
I live at big dune nv. Yall ever visiting hit me up. During the week got it to myself pretty much. Cheers.love. gotta go.
I live at big dune nv. Yall ever visiting hit me up. During the week got it to myself pretty much. Cheers.love. gotta go.
