Winch mount advice needed
#16
Senior Member
Thread Starter
Join Date: Jan 2012
Location: Port Richey, FL
Posts: 648
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0

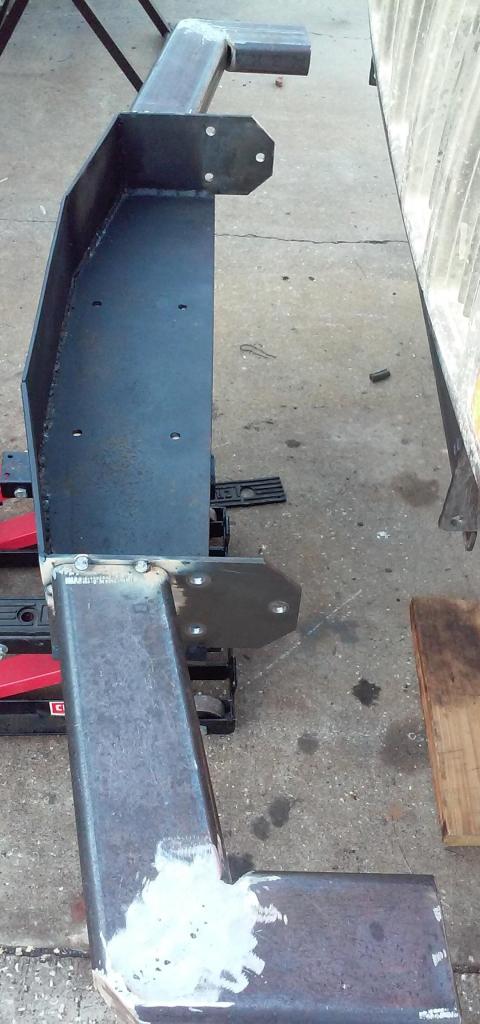

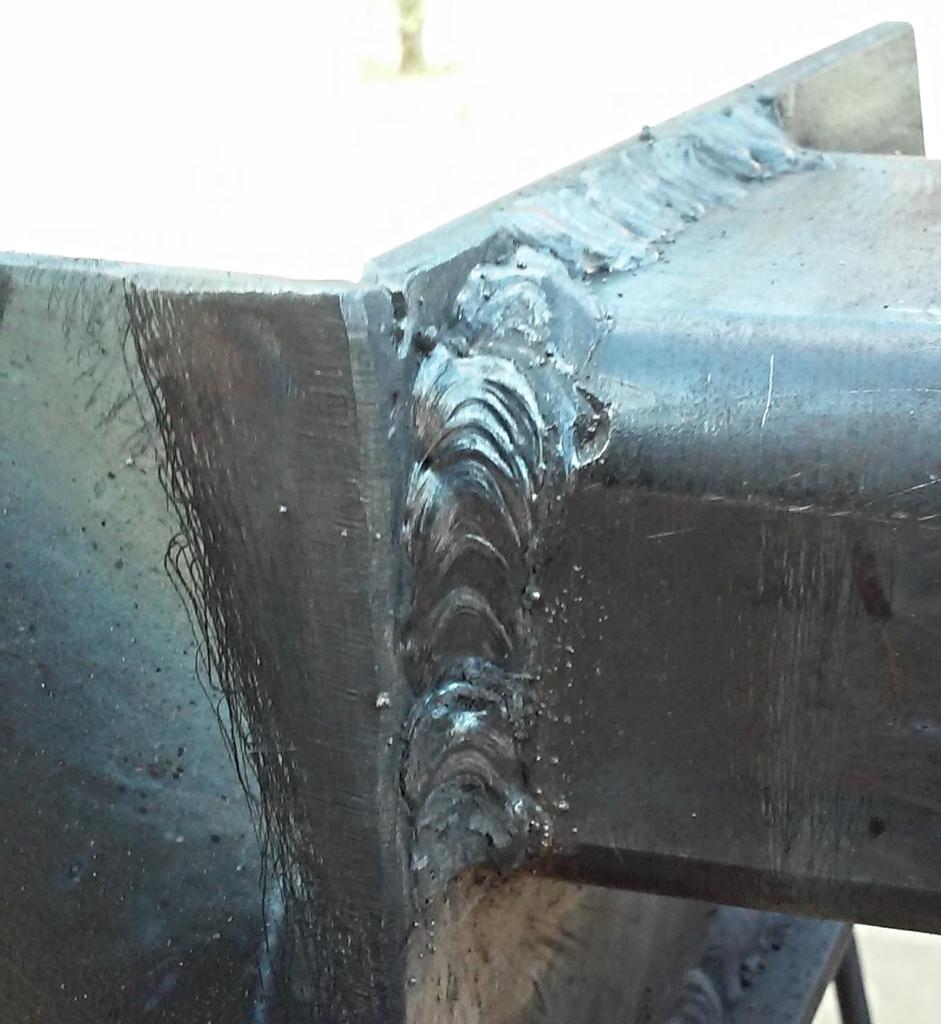

More progress. It's "finished" but, all that's left is a bunch off odds and ends including mounting the box and wiring everything in. Really, starting to a "feel" for it now. Little bit better on judging heat and also figured out I was going too fast. I'm undecided if I want to add more to it or not.
#18
Senior Member
Thread Starter
Join Date: Jan 2012
Location: Port Richey, FL
Posts: 648
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
Yeah. I was thinking the same thing. I was pushing to get it to that point yesterday because we had our club Christmas party at The Winghouse last night. Just needed it to "look" complete.
#21
Senior Member
Thread Starter
Join Date: Jan 2012
Location: Port Richey, FL
Posts: 648
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0

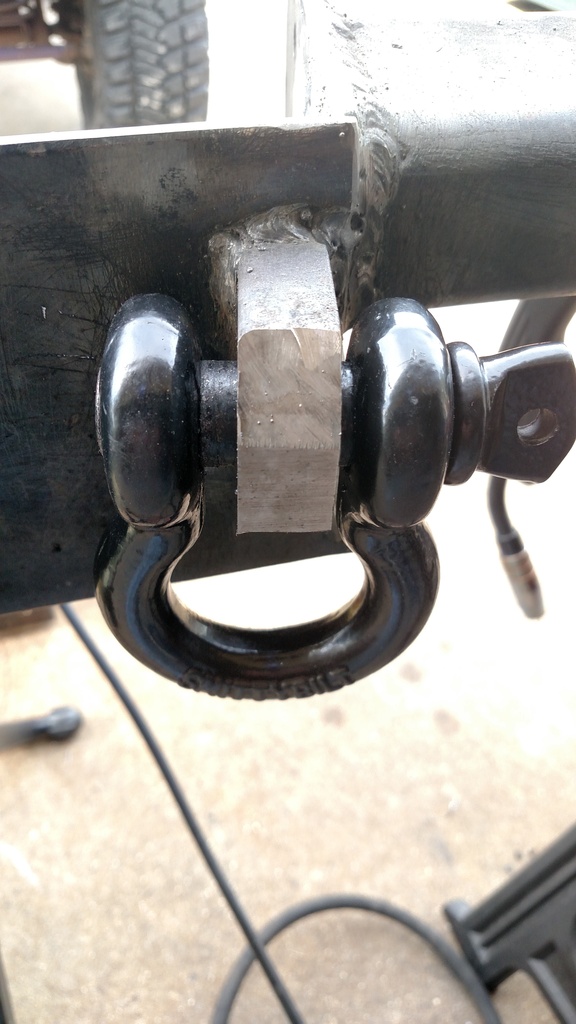

Good lord. I can't believe it's been 8 months since I last worked on this. I finally got my hands on a small drill press, so I decided to start making the clevis mounts for the bumper. I was surprised how easily the hole saw cut through the steel. I used 850rpm on the press and spray lube.
I think they came out pretty nice.
I also was able to get a brace in along the back edge.
Still have to add the passenger clevis mount and some gussets, but it's pretty close. I've just been very lazy this summer, plus it rained a LOT this year.
I think they came out pretty nice.
I also was able to get a brace in along the back edge.
Still have to add the passenger clevis mount and some gussets, but it's pretty close. I've just been very lazy this summer, plus it rained a LOT this year.
#22
Senior Member
Thread Starter
Join Date: Jan 2012
Location: Port Richey, FL
Posts: 648
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
Well, I finally got it finished yesterday. Had to pull the winch apart so I could clock it 45 degrees. The clutch switch would hit the bumper and not engage. Also had to make up some longer cables from the control box to the motor. I'm pretty happy with it for my first big project.
I ended up having to trim that top plate so I could get my wrench in to mount it. Most of it is still there.
I ended up having to trim that top plate so I could get my wrench in to mount it. Most of it is still there.
