Default My DIY overkill bumper build.

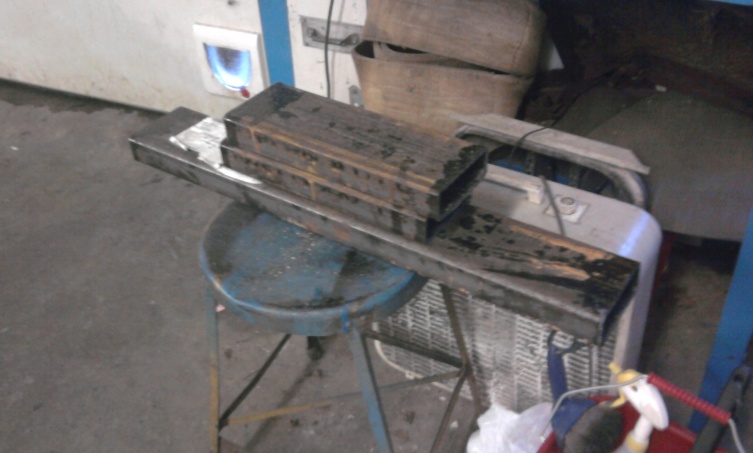

Well I started this project by purchasing a 21 ft. section of 2" x 5" x 1/4" tube. I'm not used to working with metal like this and probably could have gotten by with 3/16" wall, but oh well. My original thought was to sandwich the frame mount with the outer bumper sections. Making the frame mount flush with the face of the bumper. Then I would weld my clevis mounts to the frame mounts and notch the tube around the clevis mount. Here's my pile of tube ready for fab.
Attached Thumbnails
My DIY overkill bumper build.-photo0302.jpg
__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 02:37 PM   #2
Member

knobturner75's Avatar

Join Date: Feb 2009
Location: West Paducah, KY
Posts: 178

View knobturner75's Photo Album My Photos
1996 Cherokee
Default

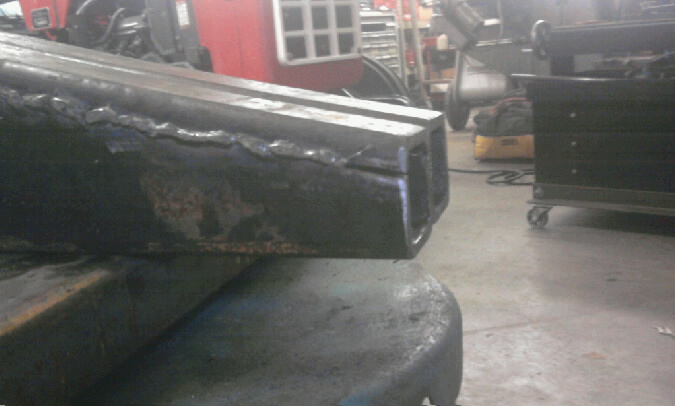

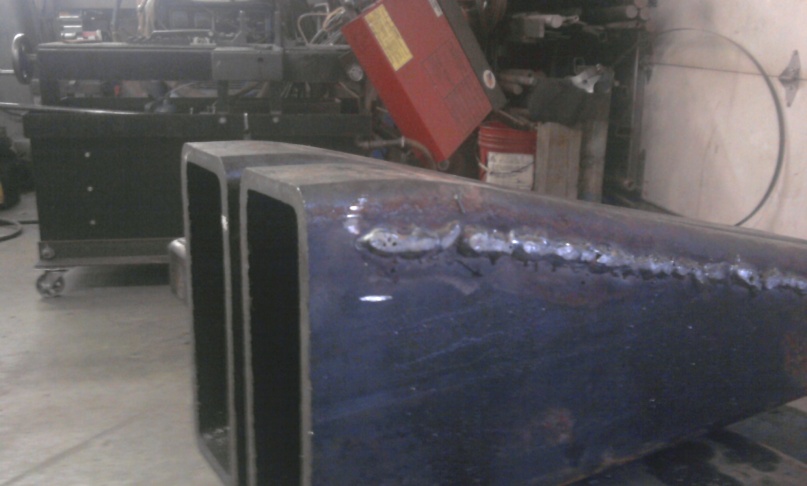

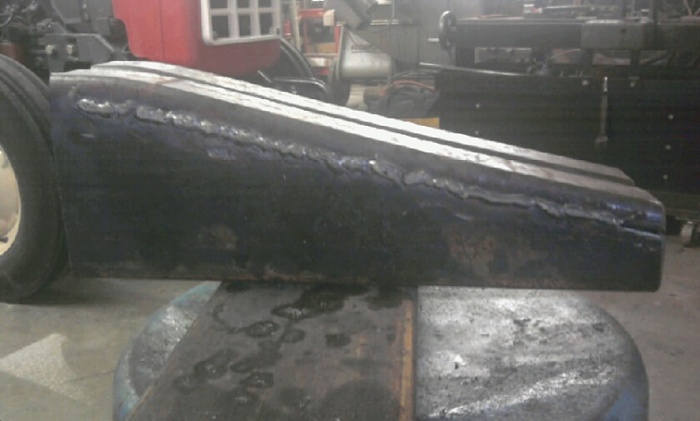

I wanted to trim down the end sections to make them to a 2" x 2" size on the end. I also wanted to go the extra step and keep the nice rounded edges from the mill. So, I pie cut the end sections, then bent the pieces together, and then welded them together.
Attached Thumbnails
My DIY overkill bumper build.-photo0315.jpg   My DIY overkill bumper build.-photo0316.jpg
Attached Images

__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 02:58 PM   #3
Member

knobturner75's Avatar

Join Date: Feb 2009
Location: West Paducah, KY
Posts: 178

View knobturner75's Photo Album My Photos
1996 Cherokee
Default

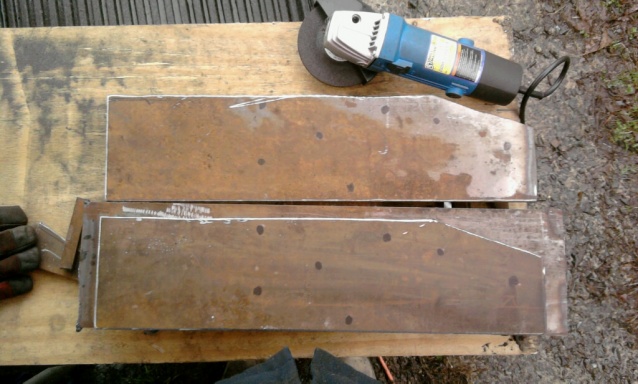

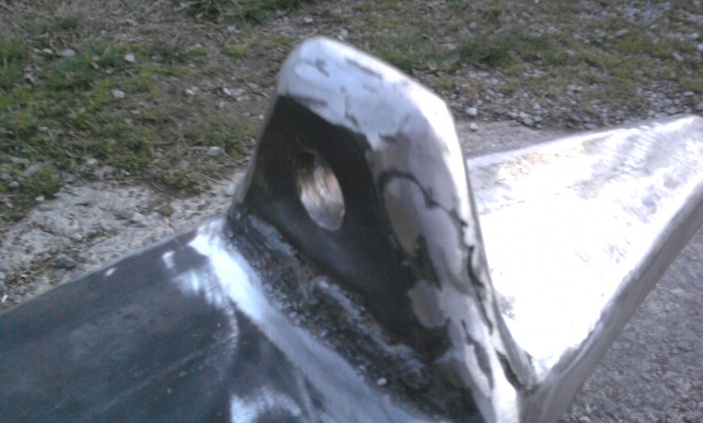

Now it was time to pick out my mount material. My wife's uncle owns the shop that I've been working in and he told me that I could use any metal stock he had laying around. I started looking around for a piece of 1/4" x 5.5" or 6" flat bar to make my frame mounts out of. I was hoping that 5" would work, but it misses catching the highest or lowest bolts, depending on how you mount it. I couldn't find any 1/4", but did find a section of 3/8" x 6". I know this is kinda overkill, but hey, it's free. So, I had to go and rethink my design. What I came up with was to make the mount one piece from the big oval, sleeved hole all the way out to the tip of the clevis mount. I still sandwiched the mount between the tube but the clevis mount stuck out from in between the tube. I also added one piece of the 3/8" flat to each side of the clevis mount to make it stronger for pulling. The additional pieces were also trimmed smaller than the mount sticking out so there was area to weld it in real good.
Attached Thumbnails
My DIY overkill bumper build.-1_0-3-.jpg   My DIY overkill bumper build.-0_0-3-.jpg   My DIY overkill bumper build.-1_0-2-.jpg   My DIY overkill bumper build.-clevis-mount.jpg   My DIY overkill bumper build.-clevis-mount2.jpg

__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 03:03 PM   #4
Member

knobturner75's Avatar

Join Date: Feb 2009
Location: West Paducah, KY
Posts: 178

View knobturner75's Photo Album My Photos
1996 Cherokee
Default

Here are some shots after the main body was welded, but the additional 3/8" flat has not been added.
Attached Thumbnails
My DIY overkill bumper build.-0_0.jpg   My DIY overkill bumper build.-0_1-2-.jpg   My DIY overkill bumper build.-1_0.jpg   My DIY overkill bumper build.-1_1-2-.jpg
__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 03:05 PM   #5
Member

knobturner75's Avatar

Join Date: Feb 2009
Location: West Paducah, KY
Posts: 178

View knobturner75's Photo Album My Photos
1996 Cherokee
Default

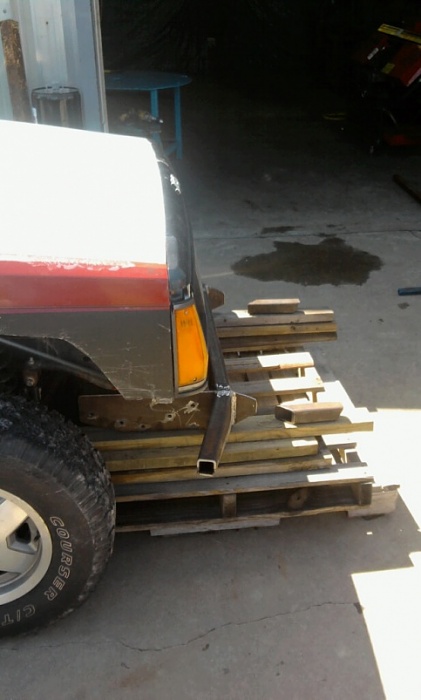

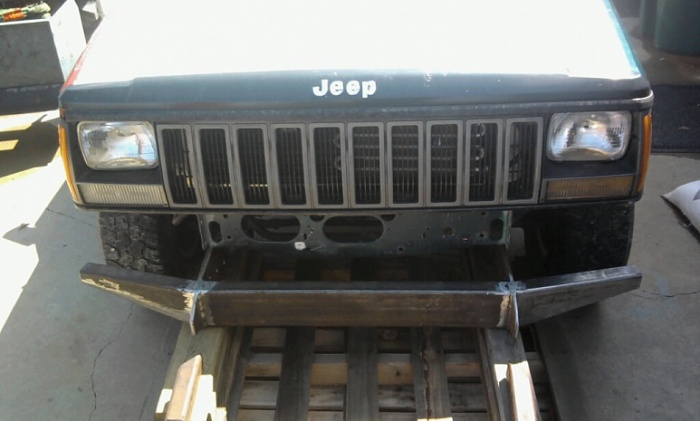

Here's a couple shots while I'm trying to test it out without mounting it.
Attached Thumbnails
My DIY overkill bumper build.-0_1.jpg   My DIY overkill bumper build.-1_1.jpg
__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 03:08 PM   #6
Member

knobturner75's Avatar

Join Date: Feb 2009
Location: West Paducah, KY
Posts: 178

View knobturner75's Photo Album My Photos
1996 Cherokee
Default

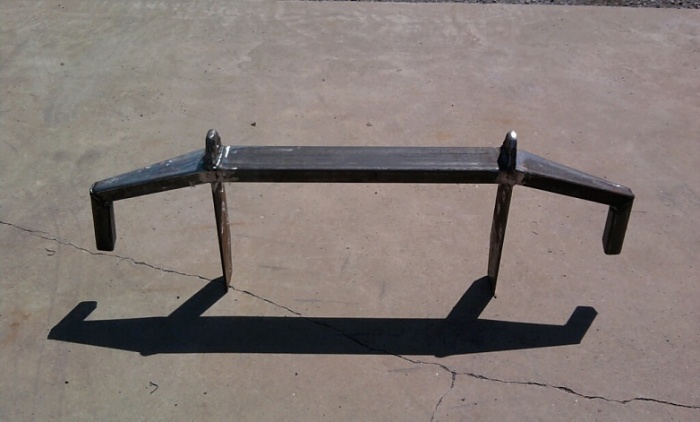

Next was to add the 2" x 2" tube that protects the fenders.
Attached Thumbnails
My DIY overkill bumper build.-bumper.jpg   My DIY overkill bumper build.-bumper2.jpg   My DIY overkill bumper build.-bumper4.jpg
__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 03:10 PM   #7
Member

knobturner75's Avatar

Join Date: Feb 2009
Location: West Paducah, KY
Posts: 178

View knobturner75's Photo Album My Photos
1996 Cherokee
Default

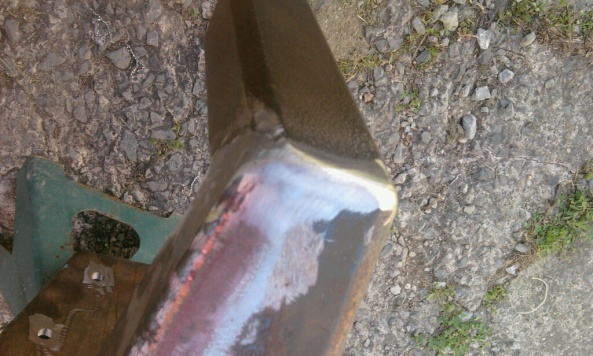

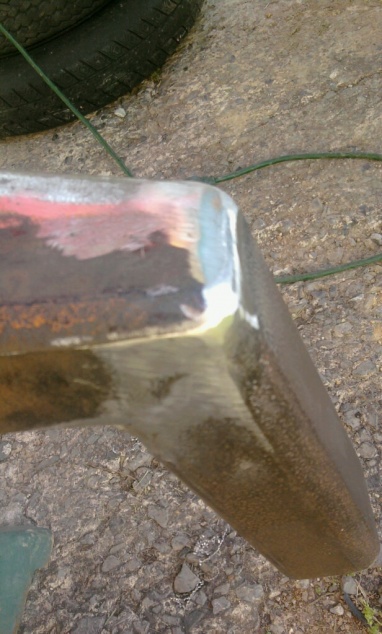

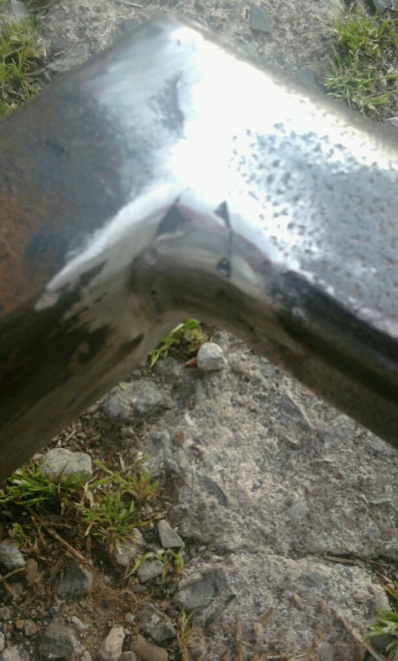

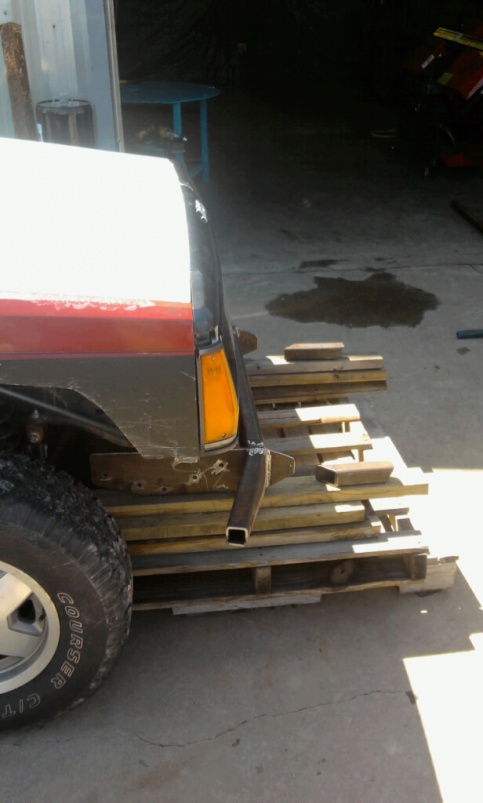

Here's some close ups of the fender protection.
Attached Thumbnails
My DIY overkill bumper build.-corner-pic.jpg   My DIY overkill bumper build.-corner-pic2.jpg   My DIY overkill bumper build.-front-coner3.jpg   My DIY overkill bumper build.-front-corner.jpg   My DIY overkill bumper build.-front-corner2.jpg

__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 03:15 PM   #8
Member

knobturner75's Avatar

Join Date: Feb 2009
Location: West Paducah, KY
Posts: 178

View knobturner75's Photo Album My Photos
1996 Cherokee
Default

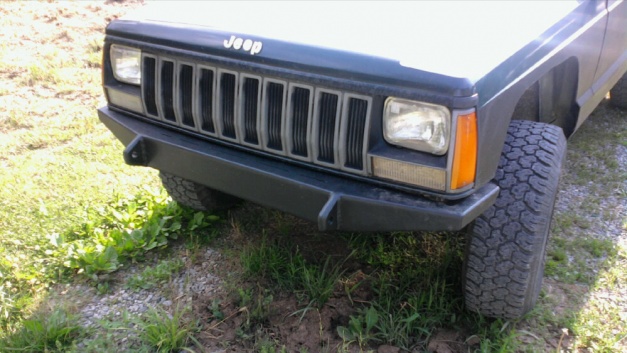

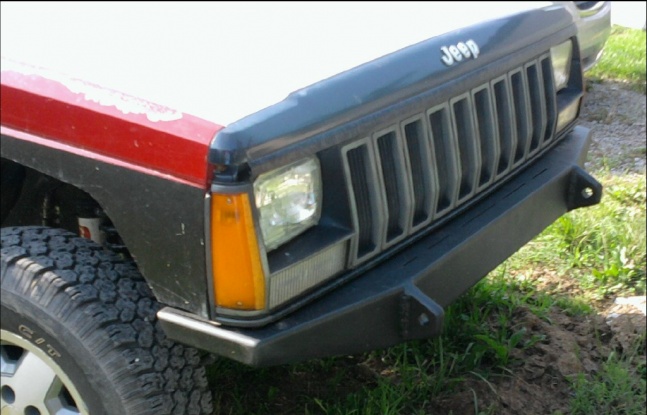

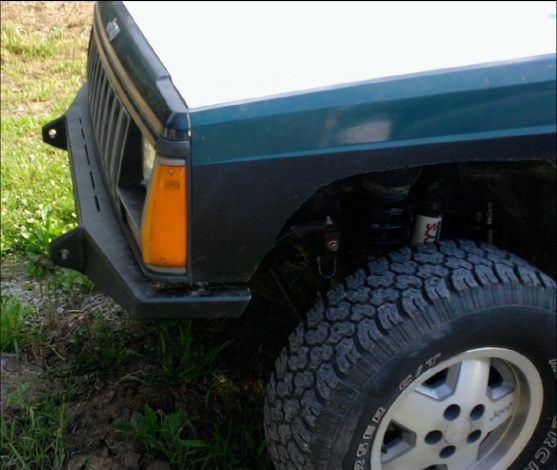

Now it was time to sand it down, primer, and paint it with aerosol bedliner. Then I got to install it. Found out 2 things. #1 it's an extremely tight fit. # 2 is that 2 of the bolt holes on each side didn't line up to the existing holes in the frame. A little quality time with the air die grinder fixed that on the driver's side. Now I just need to do it to the pass. side.
Attached Thumbnails
My DIY overkill bumper build.-completed-bumper.jpg   My DIY overkill bumper build.-completed-bumper2.jpg   My DIY overkill bumper build.-completed-bumper3.jpg
__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 03:17 PM   #9
Member

knobturner75's Avatar

Join Date: Feb 2009
Location: West Paducah, KY
Posts: 178

View knobturner75's Photo Album My Photos
1996 Cherokee
Default

This makes phase 1 of the build complete. Phase 2 will come when I buy my winch and buy some tube for the front.
__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 03:21 PM   #10
Junior Member

2000AKXJ's Avatar

Join Date: Apr 2010
Location: Alaska
Posts: 73

View 2000AKXJ's Photo Album My Photos
2000 Cherokee
Default

This looks good, I like it, How much that thing wiegh
__________________
I love Jeeps because it keeps my ADHD at bay, Always something to do
._-_-_-_o_o_
//___l__,\____\,_
l_---\_ _l---[]IIIIII[]_
()_)--o()_)--O-)_)
2000AKXJ is offline   Reply With Quote
Old 06-09-2010, 03:24 PM   #11
Member

knobturner75's Avatar

Join Date: Feb 2009
Location: West Paducah, KY
Posts: 178

View knobturner75's Photo Album My Photos
1996 Cherokee
Default

Thank you. It weighs just a little over 80 lbs. Like the title says, overkill.
__________________
1996 XJ Sport, wrecked and re-built
Rusty's 4.5" front springs, S-10 b-pack in rear
Rough Country long arm upgrade kit and sway bar disconnects
Rusty's shocks
33" x 12.5" x 15" Goodyear Wrangler Duratracs
Homemade front bumper
HP D30 front with 4.10's and a Spartan locker
Ford 8.8 rear with 4.10's and a LSD

My build thread

My bumper build thread
knobturner75 is offline   Reply With Quote
Old 06-09-2010, 03:36 PM   #12
Seasoned Member

bluedragon436's Avatar

Join Date: May 2010
Location: Dover AFB, DE
Posts: 308

View bluedragon436's Photo Album My Photos
1998 Cherokee
Default

Bumper looks good... feel sorry for anyone or anything that ever gets hit by that thing... are you going to build a rear bumper along the same lines??
__________________
|
|
___-----
O-O-O
|_ //___l__,\___\,___
|_l_---\___l---[]IIIIII[]
__(o)_)--(o)_)--O-)_)
bluedragon436 is offline   Reply With Quote
Old 06-09-2010, 03:40 PM   #13
Member

mcnslayer's Avatar

Join Date: May 2010
Location: bullville,ny
Posts: 151

View mcnslayer's Photo Album My Photos
1998 Cherokee
Default

nice
__________________
97 xj 4.5 RC lift kit with rear skyjacker leaf pack magnaflow exhaust cooper discover stt 31x10.50(junk hate them)homemade front tube bumper trimmed fenders
SOLD

98 xj sport 6.5 RCX lift kit,bfg mud terrains 33x12.50,15inch cragar soft 8's, yellow top optima
(thats all I could spend on it as of now will be posting build picks soon)
mcnslayer is offline   Reply With Quote
Old 06-09-2010, 03:49 PM   #14
CF Veteran

Tankerblade's Avatar

Join Date: Apr 2009
Location: Gilbert, AZ
Posts: 1,613

View Tankerblade's Photo Album My Photos
2001 Cherokee
Default

That looks great! Good job with tons of overkill
__________________
CAP SAR Semper gumby!


01' : 2wd : 8.25 w/LS : 30x9.5 BFG A/T
Tankerblade is offline   Reply With Quote
Old 06-09-2010, 04:07 PM   #15
Senior Member

RENIXBEAST's Avatar

Join Date: Aug 2009
Location: Effingham, N.H.
Posts: 958

View RENIXBEAST's Photo Album My Photos
1989 Cherokee
Default

Frigging Sick!!!!! Love every bit of it. Great fab!!
__________________
SCRAPYARD SURVIVOR
Just Empty Every Pocket
Just Enough Essential Parts
1989 Cherokee Pioneer, 4.0, AW4, Around 5.5"s- 3.5" RE SF, 2" poly spacers, 2" shackles, HP-D30/C8.25, 33/12.5/15, front hitch, S.Y.E.
RENIXBEAST is offline   Reply With Quote
Old 06-09-2010, 04:07 PM



submit to reddit
Reply
Go Back   Jeep Cherokee Forum > Technical Discussion > Fabrication



Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Custom front winch bumper build and rear bumper tkjeeper53 Fabrication 6 11-20-2009 11:33 AM
A simple bumper build PingPong Fabrication 5 09-13-2009 06:21 PM
Bumper Build Desertfox1023 Fabrication 30 08-19-2009 09:59 PM
new bumper build ?'s Jabo OEM Cherokee Tech 6 01-20-2009 07:40 PM
New Bumper Build SeriousOffroad OEM Cherokee Tech 11 05-26-2008 08:31 AM


All times are GMT -5. The time now is 08:10 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
This site is in no way affiliated with Jeep or Chrysler.

Emails Backup
