Old 08-05-2009, 08:45 PM   #1
Member

92muddycherokee's Avatar

Join Date: Feb 2009
Posts: 159

View 92muddycherokee's Photo Album My Photos
1995 Cherokee
Question Homemade Roof Rack?

I am pretty limited on funds and a welder and a bunch of metal is out of the question so I was thinking...
I made a wood front bumper for my 92XJ and I really like it. It is very simple and has a light bar. It can't really be used for towing but it has held up just fine for a couple years.
I have been trying to make some plans to fab up a wood roof rack. The wood would be treated and painted of course. They used to make truck beds out of wood so I figure there is no reason a roof rack can't be made out of one.
The rack would more than likely be mounted to the factory rails or luggage racks. Probably the rails because they provide a flatter surface to work with.
Anyway, let me know your thoughts/concerns please.
Thanks,
Bryan
92muddycherokee is offline   Reply With Quote
Old 08-05-2009, 09:26 PM   #2
Resident Pirate

taythegibs's Avatar

Join Date: Nov 2008
Location: Orlando-Chickamauga
Posts: 3,872

View taythegibs's Photo Album My Photos
2001 Cherokee
Default

thoughts and concerns-
1. it would weigh a lot
2. it would be hard to secure
3. it would be very unattractive
__________________
My Mall Crawler- 2001 XJ

Last edited by taythegibs; 08-06-2009 at 02:13 AM.
taythegibs is offline   Reply With Quote
Old 08-06-2009, 12:55 AM   #3
CF Veteran

95Cherokee's Avatar

Join Date: Feb 2009
Location: Houston Tx.
Posts: 2,128

View 95Cherokee's Photo Album My Photos
1995 Cherokee
Default

Just my opinion, this rack...

Click the image to open in full size.

...on top of this Wagoneer would look awesome, provided the wood was stained to match the Jeep.

Click the image to open in full size.
95Cherokee is offline   Reply With Quote
Old 08-06-2009, 01:19 AM   #4
Junior Member

hurley842002's Avatar

Join Date: Jul 2009
Posts: 64

View hurley842002's Photo Album My Photos
1999 Cherokee
Default

Pics of the wood bumper perhaps?
__________________
99 Jeep Cherokee 2DR Sport. 3.5" Rubicon Express Superflex W/.75" Coil spacer, 31" BFG AT's, Rear Aussie, Warn M8000, some other goodies.
hurley842002 is offline   Reply With Quote
Old 08-06-2009, 12:16 PM   #5
Member

Join Date: May 2009
Posts: 103

View redhandstudios's Photo Album My Photos
1990 Cherokee
Default

Quote:
Originally Posted by hurley842002 View Post
Pics of the wood bumper perhaps?
X2
redhandstudios is offline   Reply With Quote
Old 08-06-2009, 12:31 PM   #6
Seasoned Member

Nstyfox's Avatar

Join Date: Apr 2009
Location: marlton,south jersey
Posts: 349

View Nstyfox's Photo Album My Photos
91 Cherokee
Default

wood=ghetto...........my opinion
__________________
91 xj-33in baja claws,2in spacers,v8 zj up country front coils,re drop shackle and bushwackers
91 mustang gt-stock block,cartech turbo kit,backed by a T56.....400rwhp with stock heads,stock rockers,stock crank pulley and 435rwt on 8pounds with a safe tune
Nstyfox is offline   Reply With Quote
Old 08-06-2009, 03:41 PM   #7
Member

92muddycherokee's Avatar

Join Date: Feb 2009
Posts: 159

View 92muddycherokee's Photo Album My Photos
1995 Cherokee
Default

Here are some pics. I used a 4x6 board I think and beveled the edges and mounted a simple light bar to it. It has been on for around 2 years and hasnt tried to break or fall apart.
I would paint the rack black and use as light of materials as I could. I am trying to figure out a clamp that would work to secure it to the rails or rain gutter.
This may be too much trouble than it is worth. I just wanted your opinions on the matter. I love working with wood and my step dad is a carpenter so we could make something pretty cool(he didn't help me with the bumper)
Let me know what you think.

Click the image to open in full size.


Click the image to open in full size.


Here is a wood floor we put in after patching all the rust in the back:
The floor is pretty scratched up now but it works great.

Click the image to open in full size.

Click the image to open in full size.
92muddycherokee is offline   Reply With Quote
Old 08-06-2009, 05:50 PM   #8
Junior Member

rustface's Avatar

Join Date: Jul 2008
Location: Maine
Posts: 82

View rustface's Photo Album My Photos
96 Cherokee
Default

Depends on the load, but for what it's worth: People who know how to build wooden boats would know how to make a roof rack... I am not one of them.

Steaming little strips of strong wood (oak?), bending them, fastening correctly, and making it water-resistant.
rustface is offline   Reply With Quote
Old 08-06-2009, 07:44 PM   #9
Member

92muddycherokee's Avatar

Join Date: Feb 2009
Posts: 159

View 92muddycherokee's Photo Album My Photos
1995 Cherokee
Default

Weather is a major factor but it can be done. I would mostly just use it to carry a spare tire and maybe some camping supplies, tent, duffle bags, etc....
92muddycherokee is offline   Reply With Quote
Old 08-06-2009, 09:12 PM   #10
Seasoned Member

99NCXJ's Avatar

Join Date: Nov 2008
Location: Belmont, NC
Posts: 419

View 99NCXJ's Photo Album My Photos
99 Cherokee
Default

if you want to cut cost you can use 7/8" electrical conduit. It will still look a little ghetto unless you have a welder but here is a cheap roof rack i made a long time ago for my jeep. It cost around 50.00 to make it, then took it off once i realized that it only got hung up on trees when leaned over on the trails...then sold it for 100.00

Click the image to open in full size.
Click the image to open in full size.
__________________
'99 XJ FJ 80 axles, D300, 39.5 iroks, locked, caged.
'00 XJ 6" lift with 35's.
www.4x4grace.com
99NCXJ is offline   Reply With Quote
Old 08-06-2009, 10:57 PM   #11
Senior Member

BLKXJ 96's Avatar

Join Date: May 2008
Location: Michigan
Posts: 800

View BLKXJ 96's Photo Album My Photos
1996 Cherokee
Default

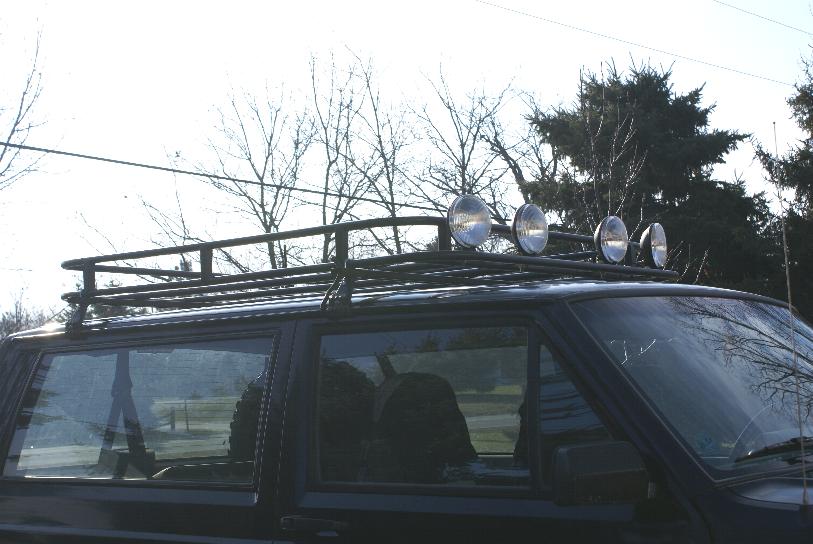

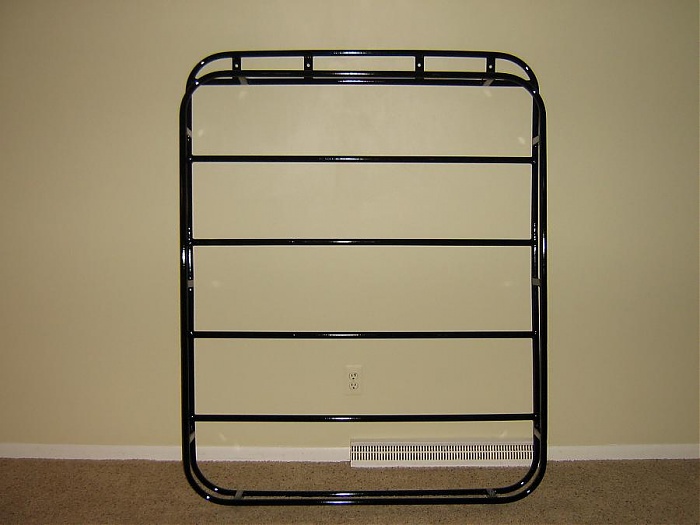

X 2 on the conduit, heres a few I made one for my jeep and sold the second one for $200
Attached Thumbnails
Homemade Roof Rack?-dsc03791.jpg   Homemade Roof Rack?-010.jpg
__________________
Jeff
BLKXJ 96 is offline   Reply With Quote
Old 08-06-2009, 11:54 PM   #12
Member

92muddycherokee's Avatar

Join Date: Feb 2009
Posts: 159

View 92muddycherokee's Photo Album My Photos
1995 Cherokee
Default

Thanks guys. I am not familiar with conduit at all. What would I use to connect the conduit together without welding?
92muddycherokee is offline   Reply With Quote
Old 08-06-2009, 11:54 PM   #13
Member

92muddycherokee's Avatar

Join Date: Feb 2009
Posts: 159

View 92muddycherokee's Photo Album My Photos
1995 Cherokee
Default

Also how did you secure the rack to the top of the jeep?
Thanks
92muddycherokee is offline   Reply With Quote
Old 08-07-2009, 03:50 PM   #14
Seasoned Member

99NCXJ's Avatar

Join Date: Nov 2008
Location: Belmont, NC
Posts: 419

View 99NCXJ's Photo Album My Photos
99 Cherokee
Default

if you don't have a welder you can buy the connectors where you buy the conduit...however, that will look like crap. Just find someone with a little 110 volt welder and go at it. I didn't have a conduit bender when i did mine so i mitered the corners. I like the rounded look better on the pics below mine. that actually looks like something you would pay good money for.

Even with that said, I took mine off becuase
1) it didnt help me get over any obsticals
2) it got hung up on trees alot

My wants/needs have changed quite a bit since i first got into this. but to each thier own.
__________________
'99 XJ FJ 80 axles, D300, 39.5 iroks, locked, caged.
'00 XJ 6" lift with 35's.
www.4x4grace.com
99NCXJ is offline   Reply With Quote
Old 08-07-2009, 05:22 PM   #15
Newbie

gornikebounder's Avatar

Join Date: Jul 2009
Posts: 27

View gornikebounder's Photo Album My Photos
93 Cherokee
Cool

i made mine out of EMT (electrical conduit). i used 1" conduit and galv. fence top rail. i had all these materials layin around my house.

the 1" slid inside of the top rail. worked better than i thought. i used 1" ubolts to atach it to my existing rack. its super strong. i can shake the %#@ out of the jeep.

if you would like some more info on how i did it let me know. ill give you more detailed instuctions and a materials list.

for the money you cant beat it.

i have a few pics in my album

good luck
