Homebrew Bumpers
#421
Member
Join Date: Oct 2014
Location: Denver
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L
This is mine, the bumper is made from 2x4 box steel with sheet steel gussets and end caps. I put the hinge on the passenger side so that I could open the tire swing away from traffic. The hinge I made puts the swing in double shear with ¼” plates, a 1 inch bolt through DOM tubing and oil impregnated brass bushings so I shouldn’t have issues with it breaking like all the guys that use trailer spindles in single shear. In the event that it were to fail I have a ¾” hitch pin closure on the other side that should at least keep it attached. The hard mount on the hitch pin side is a 1/2” pin that runs through the 2x4 bumper section and is welded at both ends. The pin mates with a bracket on the tire swing with a ½” hole. This keeps it centered and doesn’t allow for any movement when closed. I have jacked the jeep from both the bumper and the tire swing with no movement of either. I cut the end of the frame out and ran 2x4 box steel in as far as I could. I drilled a hole in each to allow for the shackle bolt to pass throug instead of slotting the entire box as some have done. These are attached with 8 grade eight bolts per side (4 to the stock mounting holes and 4 underneath). The clevis tabs are a full inch thick and also run through the 2x4 and are welded at both ends. The clevis tabs are located at the frame tie-ins and are welded to those too.
#426
Member
Join Date: Oct 2014
Location: Denver
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L
Here you go:

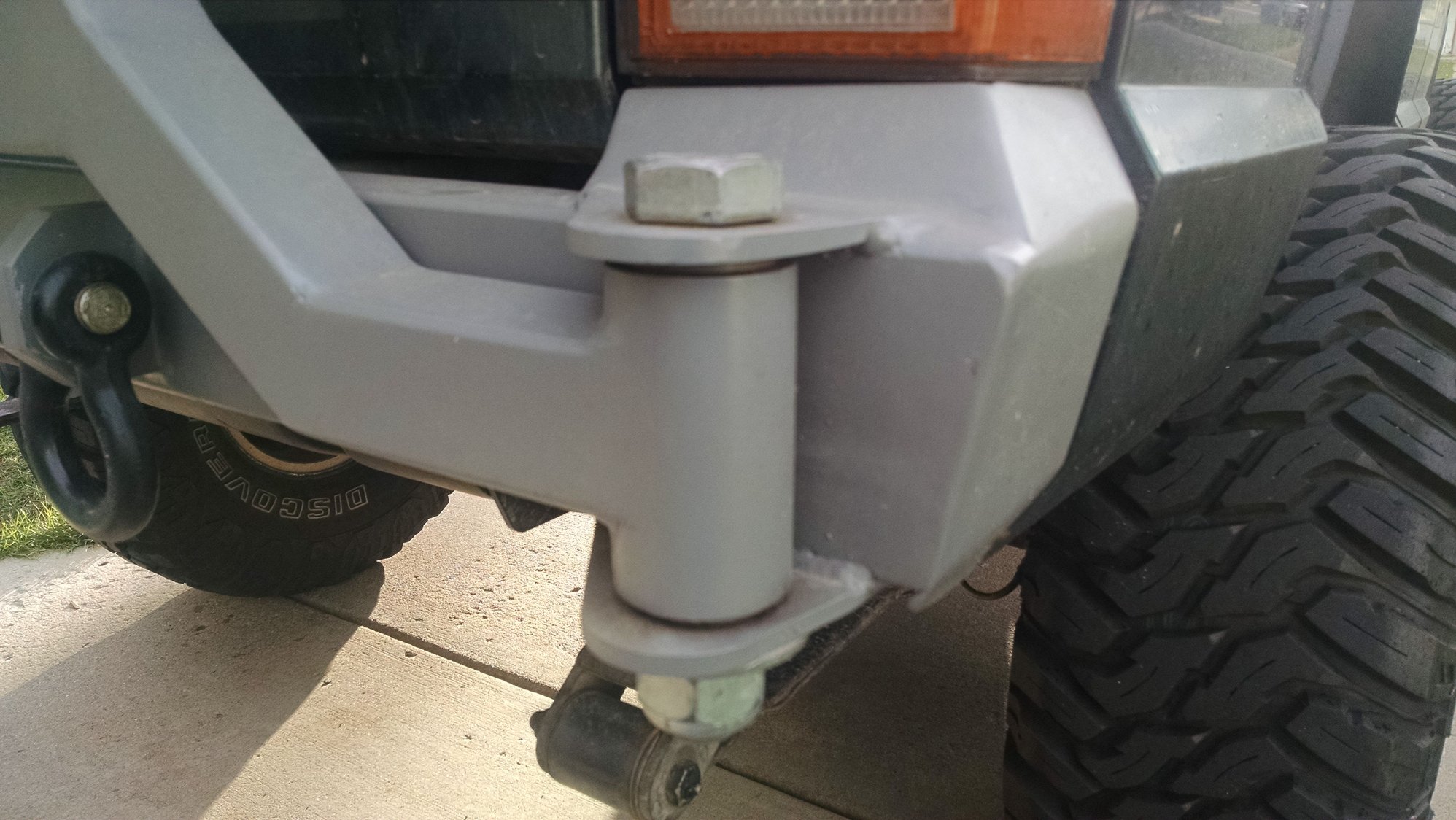

A couple shots of the hinge.

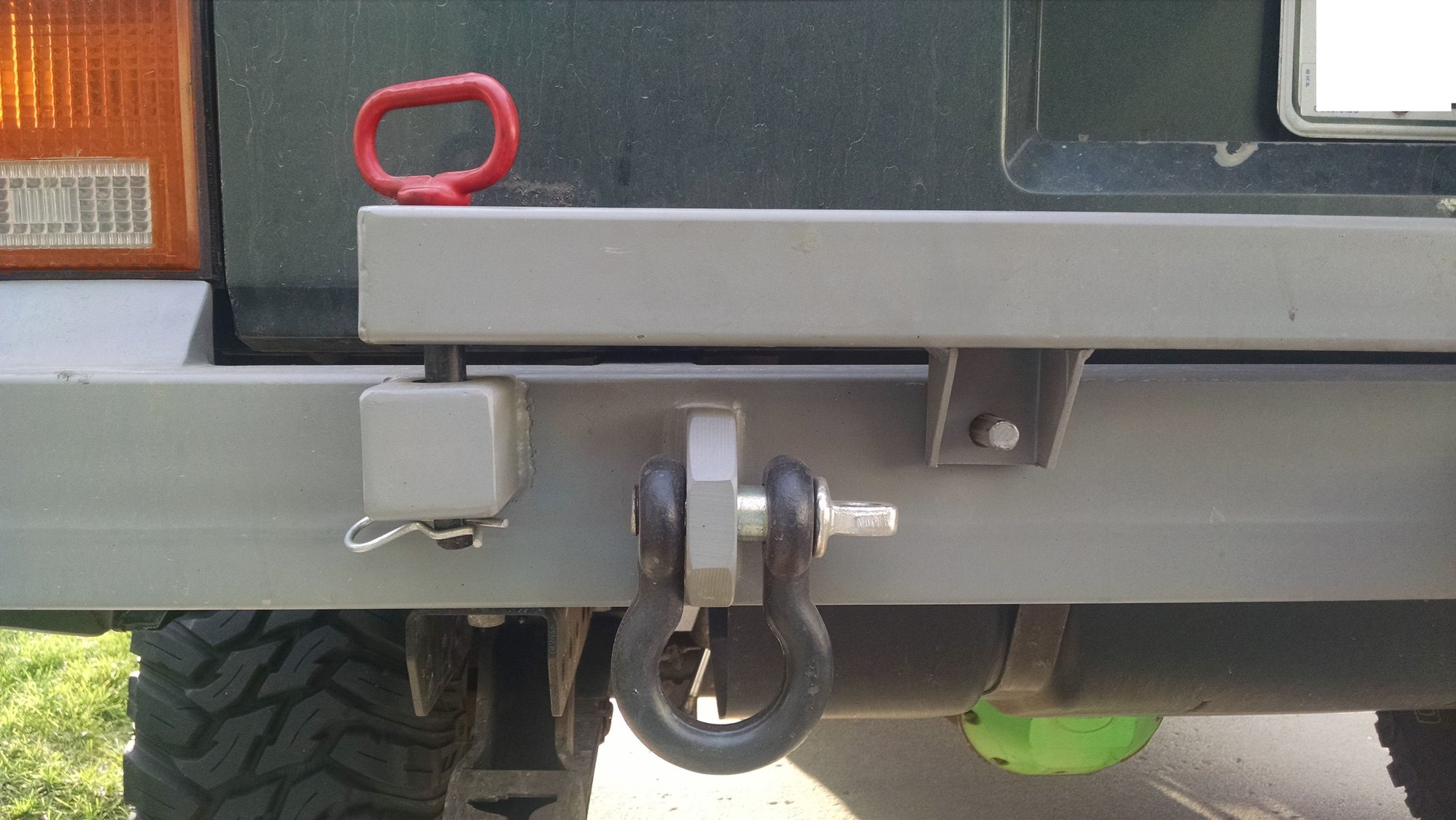

A couple shots of the closure.
And one more of the whole bumper.
Anything else in particular you wanted to see? I do plan on relocating the license plate. Fortunately I haven't been pulled over yet. Also I'm sure you noticed it's still in primer. I plan to make a mount for a couple jerry cans and my hi-lift. I'll probably add some back up lights to the tire swing portion too. Once i have it the way I want it I'll finish it with line-x.
A couple shots of the hinge.
A couple shots of the closure.
And one more of the whole bumper.
Anything else in particular you wanted to see? I do plan on relocating the license plate. Fortunately I haven't been pulled over yet. Also I'm sure you noticed it's still in primer. I plan to make a mount for a couple jerry cans and my hi-lift. I'll probably add some back up lights to the tire swing portion too. Once i have it the way I want it I'll finish it with line-x.
#428
Junior Member
Join Date: May 2014
Location: IndianaCornCountry
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
[IMG]https://cimg7.ibsrv.net/gimg/www.cherokeeforum.com-vbulletin/640x480/80-[QU
OTE]
[/QUOTE]mms_picture_3_2_021203676a622b1b523424f92907dfb1a5 a82941.jpg[/IMG]
OTE]
[/QUOTE]mms_picture_3_2_021203676a622b1b523424f92907dfb1a5 a82941.jpg[/IMG]
#430
Senior Member
Join Date: Apr 2011
Location: west virginia
Posts: 585
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
heres my rear I built for my 93 2 door. Its made out of 4 inch c channel and 3/16th plate to make the corners. i have added a 2 inch reciver but dont have a pic of it.
#431
Seasoned Member
Join Date: Jan 2014
Location: Oak Lawn, Illinois
Posts: 484
Likes: 0
Received 1 Like
on
1 Post
Year: 1997
Model: Cherokee
Engine: 4.0
Still want to make the taillight gap fillers, and fill the blank space when you open the hatch so I don't drop stuff. Made it this week, first bumper I made.
Its 3/16 2x4 box tubing, angled sides with unibody rail supports and cut and fold protection.
Its 3/16 2x4 box tubing, angled sides with unibody rail supports and cut and fold protection.
#433
Senior Member
Join Date: Apr 2011
Location: west virginia
Posts: 585
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1989
Model: Cherokee
Engine: 4.0

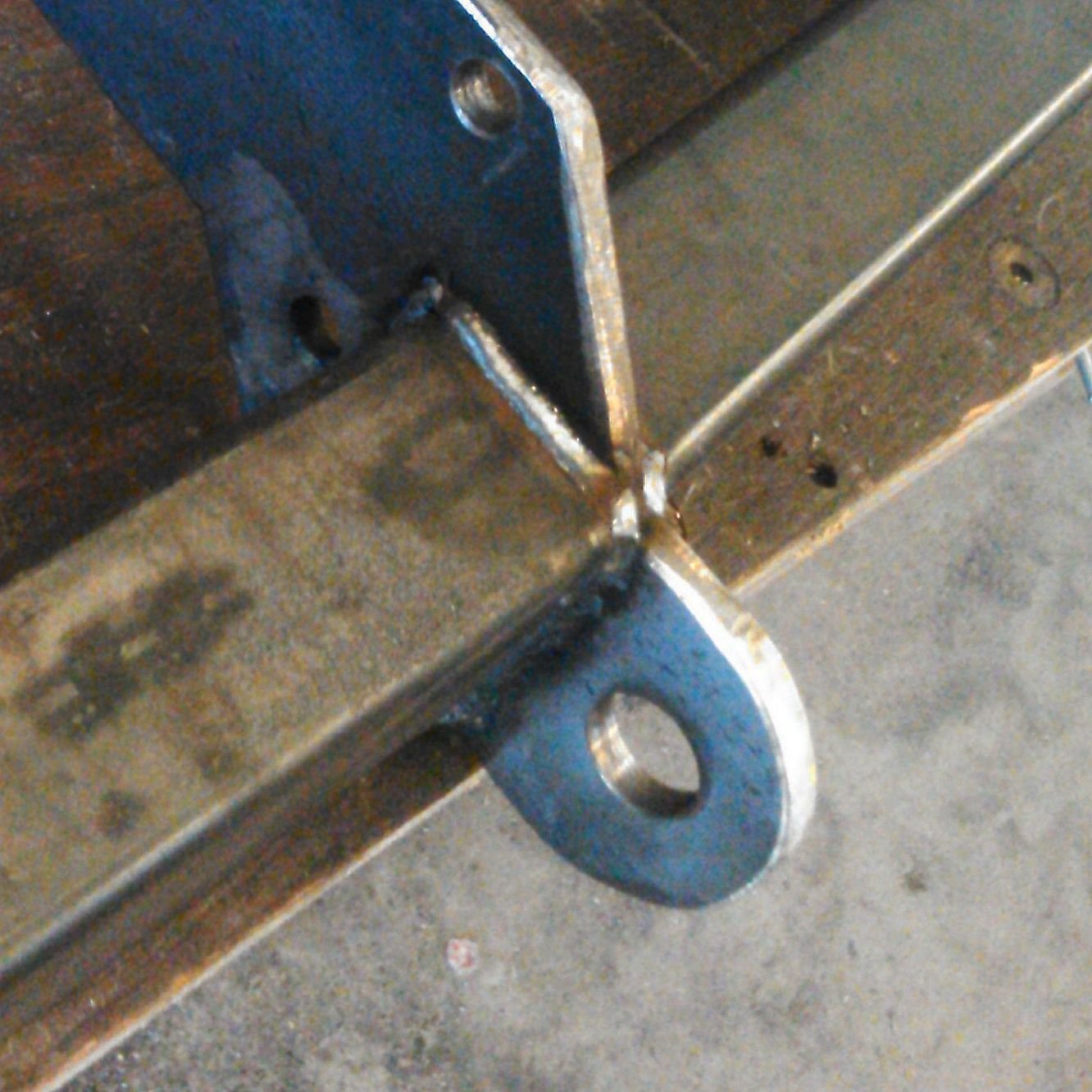

Made this one this weekend. Its out of 3\16 plate. Mounts are out of 1\4 with 7 mounting points on either side and with plates on the insides of the rails. Not to sure if ill keep the tow hooks on it of chop them off and put d ring mounts on. But they was laying around the garage so i figured what the heck.
