Default Full jku seat swap




XJ bench on top of JKU bench assembly



Mocking up front seats



adapter fabrication



finished adapter with factory 1994 slide mechanisms
oldblue#2 is offline
Reply Like
Old 11-14-2016, 11:03 AM
  #2
Member
Thread Starter

oldblue#2's Avatar

Join Date: Aug 2016
Location: Delaware
Posts: 188
Received 17 Likes on 16 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Default


Back seat view



6 half inch grade 8 hardware, with reinforcement plates under the unibody. Cut center section for the seat to sit level and weld lowering plate with angle.

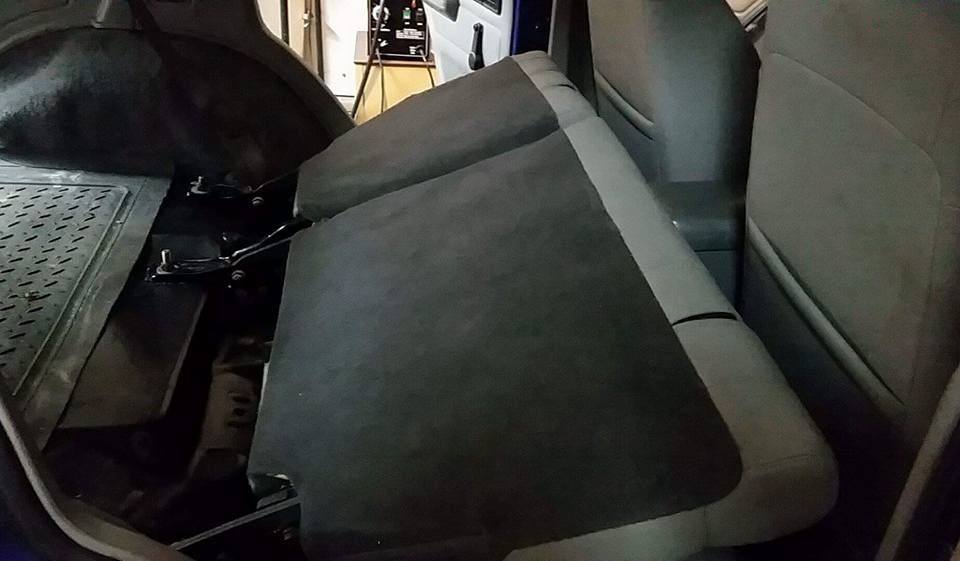

Functioning fold flat feature *almost folds flat.



Seats completed. Rear headrests removed for visibility.
oldblue#2 is offline
Reply Like
Old 11-15-2016, 02:28 AM
  #3
Seasoned Member

myHEEPis.rad's Avatar

Join Date: Jul 2009
Location: mendocino County, CA707
Posts: 462
Likes: 0
Received 0 Likes on 0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Default
Looks amazing! Pics of the under body supports??
myHEEPis.rad is offline
Reply Like
Old 11-15-2016, 07:49 AM
  #4
Member
Thread Starter

oldblue#2's Avatar

Join Date: Aug 2016
Location: Delaware
Posts: 188
Received 17 Likes on 16 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Default
Here are the two that I have. I can get a more recent picture tonight for you.


oldblue#2 is offline
Reply Like
Old 11-15-2016, 10:16 AM
  #5
Seasoned Member

myHEEPis.rad's Avatar

Join Date: Jul 2009
Location: mendocino County, CA707
Posts: 462
Likes: 0
Received 0 Likes on 0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Default
Looks pretty straight forward! Major props my man!
myHEEPis.rad is offline
Reply Like
Old 11-23-2016, 12:44 PM
  #6
Newbie

jessezipper's Avatar

Join Date: Apr 2011
Posts: 23
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default
i like this alot!! gonna have to keep an eye out for the seats!
jessezipper is offline
Reply Like
Old 01-26-2017, 08:30 PM
  #7
Junior Member

3link94xj's Avatar

Join Date: Jan 2017
Posts: 39
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default
finish your bumper
3link94xj is offline
Reply Like

Trending Topics

Old 01-27-2017, 01:20 PM
  #8
Member
Thread Starter

oldblue#2's Avatar

Join Date: Aug 2016
Location: Delaware
Posts: 188
Received 17 Likes on 16 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Default Working on it
I'm trying to! Time is the issue. I worked on it Thursday. Need to make a hardware run for the tire carrier and cut some end cap plates and tack it together.
oldblue#2 is offline
Reply Like
Old 03-26-2017, 01:19 PM
  #9
Seasoned Member

craigjacob1's Avatar

Join Date: Nov 2016
Location: Idaho
Posts: 304
Likes: 0
Received 3 Likes on 3 Posts
Year: 1990
Engine: Renix 4.0
Default
What year of jku did these come out of?
craigjacob1 is offline
Reply Like
Old 03-26-2017, 01:22 PM
  #10
Member
Thread Starter

oldblue#2's Avatar

Join Date: Aug 2016
Location: Delaware
Posts: 188
Received 17 Likes on 16 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Default
They came out of a 2009, but I would say that the brackets haven't changed in the Jk line since the beginning. 2013 and up might be easier though, as the seats are more rounded in shape.
oldblue#2 is offline
Reply Like
Old 04-01-2017, 04:09 PM
  #11
Seasoned Member

RRXJeeper71's Avatar

Join Date: Aug 2013
Location: ATX
Posts: 389
Likes: 0
Received 2 Likes on 2 Posts
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default
Are the seats that much more comfortable/firmer-more supportive? than our Xj seats?
very curious!
RRXJeeper71 is offline
Reply Like
Old 04-01-2017, 08:26 PM
  #12
Member
Thread Starter

oldblue#2's Avatar

Join Date: Aug 2016
Location: Delaware
Posts: 188
Received 17 Likes on 16 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Default
Originally Posted by RRXJeeper71
Are the seats that much more comfortable/firmer-more supportive? than our Xj seats?
very curious!
for me and my girl friend, they are much more firm, and very much more comfortable. Well worth the effort.
oldblue#2 is offline
Reply Like
Old 04-02-2017, 08:46 AM
  #13
Seasoned Member

RRXJeeper71's Avatar

Join Date: Aug 2013
Location: ATX
Posts: 389
Likes: 0
Received 2 Likes on 2 Posts
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default
cost?
Im planning on looking for my XJ
RRXJeeper71 is offline
Reply Like
Old 04-02-2017, 03:19 PM
  #14
Member
Thread Starter

oldblue#2's Avatar

Join Date: Aug 2016
Location: Delaware
Posts: 188
Received 17 Likes on 16 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Default Cost?
I paid 100 for all four pieces. 20 bucks in hardware, and about 20 hours or so of work, including paint.
oldblue#2 is offline
Reply Like
Old 04-02-2017, 04:41 PM
  #15
Senior Member

rzldzl's Avatar

Join Date: Dec 2012
Location: cariboo, bc
Posts: 606
Received 20 Likes on 12 Posts
Model: Cherokee
Default
nice
