Another roof rack

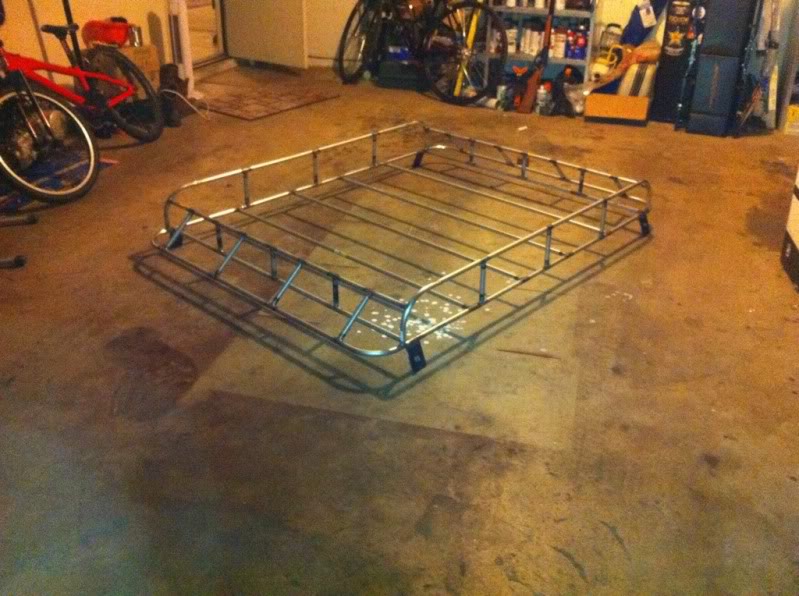

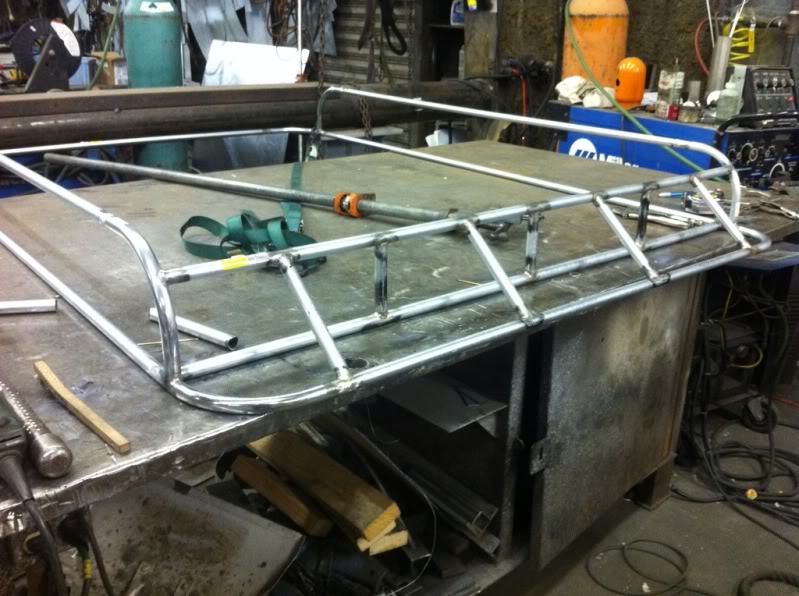

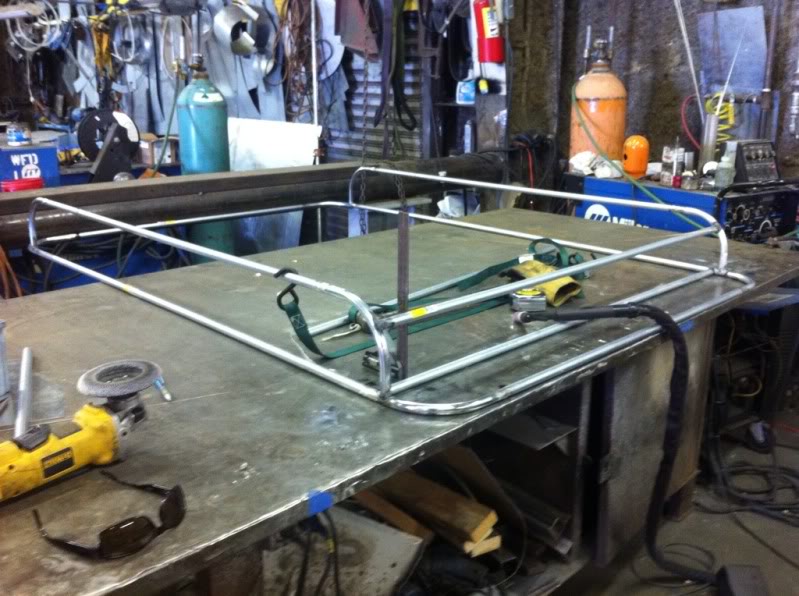

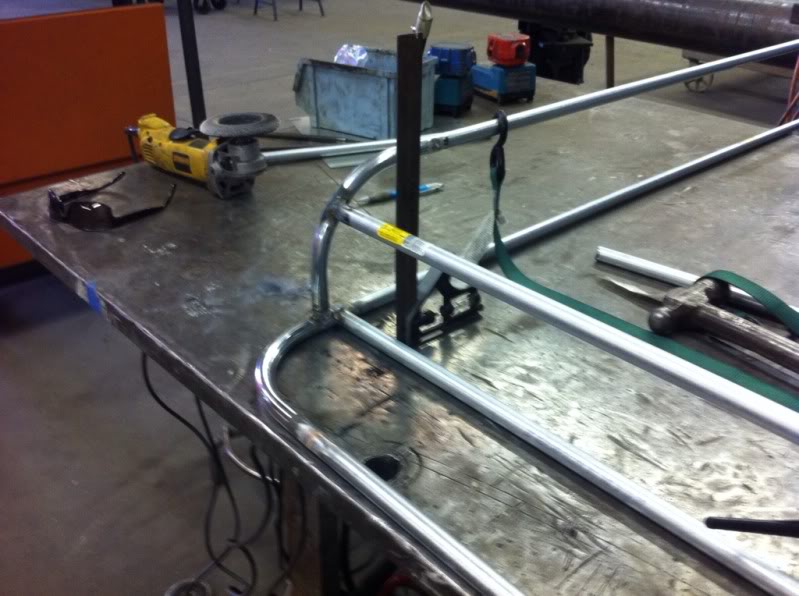

I'm half way done taking a break so I will throw the pics up, half inch EMT, I was inspired to make a basket style rack that could also strap a sheet of plywood or lumber, ladder ect.
I'm using silica bronze welding rod and a TIG welder, also anywhere there is a butt weld I'm putting a sleeve inside the tubing! Front and back is triangulated so the rack itself will support more than the gutters will allow!
I'm using silica bronze welding rod and a TIG welder, also anywhere there is a butt weld I'm putting a sleeve inside the tubing! Front and back is triangulated so the rack itself will support more than the gutters will allow!
#2
Senior Member
Thread Starter
Join Date: Jan 2011
Location: Escalon, Ca
Posts: 842
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1996
Model: Cherokee
Engine: 4litre
Not trying to be insulting, and I blame alot of this on bad Internet advise, but most welding I see of forums is pretty terrible and at time down right dangerous!

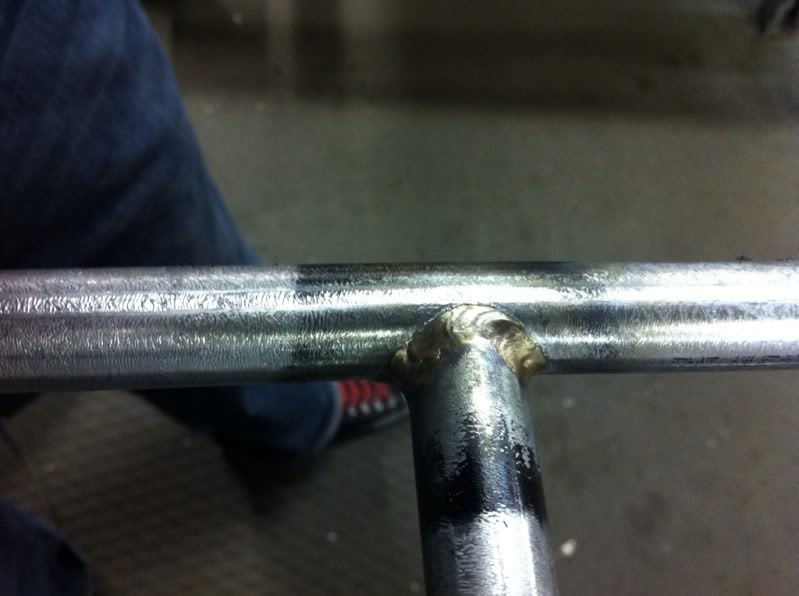

Here is what it should look like
I've got 25000 hours of fabrication experience so my opinion is pretty jaded, but after you do food grade stainless work for awhile you learn to appreciate a nice weld!
Here is what it should look like
I've got 25000 hours of fabrication experience so my opinion is pretty jaded, but after you do food grade stainless work for awhile you learn to appreciate a nice weld!
#4
Senior Member
Join Date: Aug 2011
Location: Pennsylvania
Posts: 690
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Good info. People should definatley take the time to learn to weld, but by fabbing stuff for yourself, you are learning, right? Better to learn making my stuff than learn making someone elses, right?
Last edited by CPLSeraphim; 03-06-2012 at 09:30 PM.
#5
Senior Member
Thread Starter
Join Date: Jan 2011
Location: Escalon, Ca
Posts: 842
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1996
Model: Cherokee
Engine: 4litre
Don't get me wrong I'm all about DIY! What I'm not in favor of is people telling others how awesome things look when in reality it's well below sub par! Or recommending a welder from harbor Frieght to build bumpers and suspension components.
When I was 14 I took a high school metal working class, we practiced welding mig stick and oxy act for an entire semester before we ever got to fabricate anything! That's probably the way a person should learn, not learning while building something that may ultimately fail you when you need it most!
I have seen some awesome ideas/designs on this and other forums, but a bad *** design back up by less than stellar fab skills is a travesty!
The fab is done, going to mock it up to double check it fits right before paint!
It's 6'x50", weighs just over 20lbs and cost $30 to fab!
When I was 14 I took a high school metal working class, we practiced welding mig stick and oxy act for an entire semester before we ever got to fabricate anything! That's probably the way a person should learn, not learning while building something that may ultimately fail you when you need it most!
I have seen some awesome ideas/designs on this and other forums, but a bad *** design back up by less than stellar fab skills is a travesty!
The fab is done, going to mock it up to double check it fits right before paint!
It's 6'x50", weighs just over 20lbs and cost $30 to fab!
#6
Senior Member
Thread Starter
Join Date: Jan 2011
Location: Escalon, Ca
Posts: 842
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1996
Model: Cherokee
Engine: 4litre

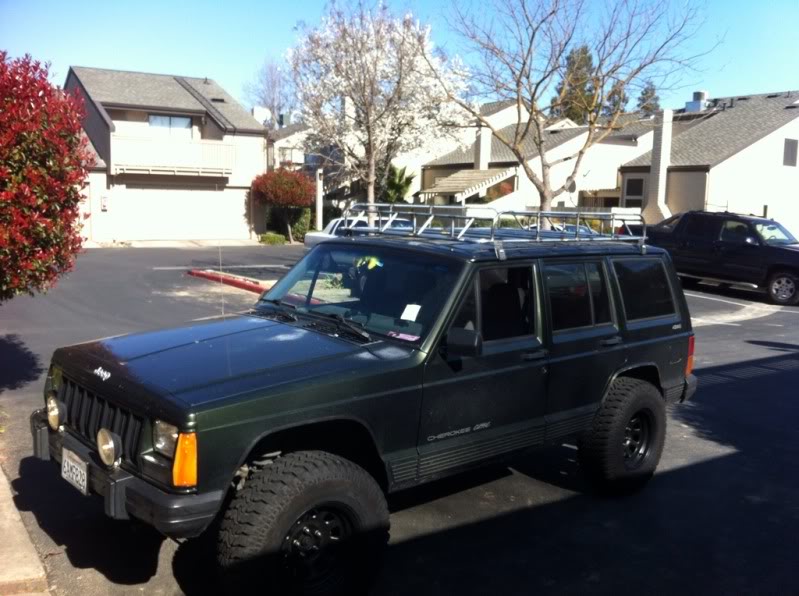

Got her mounted, overall I'm please with the fit, I prefer the look of the smaller racks but if I was to make it smaller it wouldn't suffice all the needs I require!

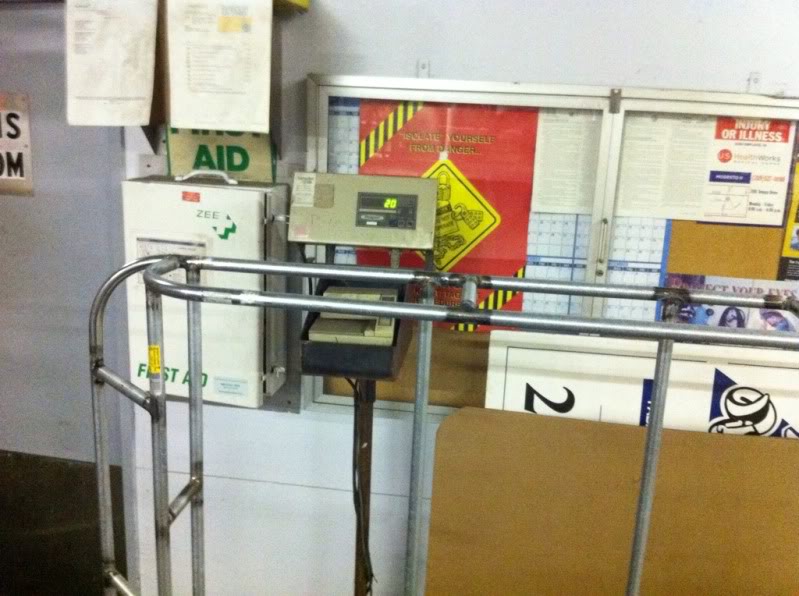

3 of my co workers and I stood on the front and back triangulated cross braces, it supported nearly 800lbs, it's final weight with the mounts is 22lbs. So it will support at least 36 times it's own weight!
3 of my co workers and I stood on the front and back triangulated cross braces, it supported nearly 800lbs, it's final weight with the mounts is 22lbs. So it will support at least 36 times it's own weight!
