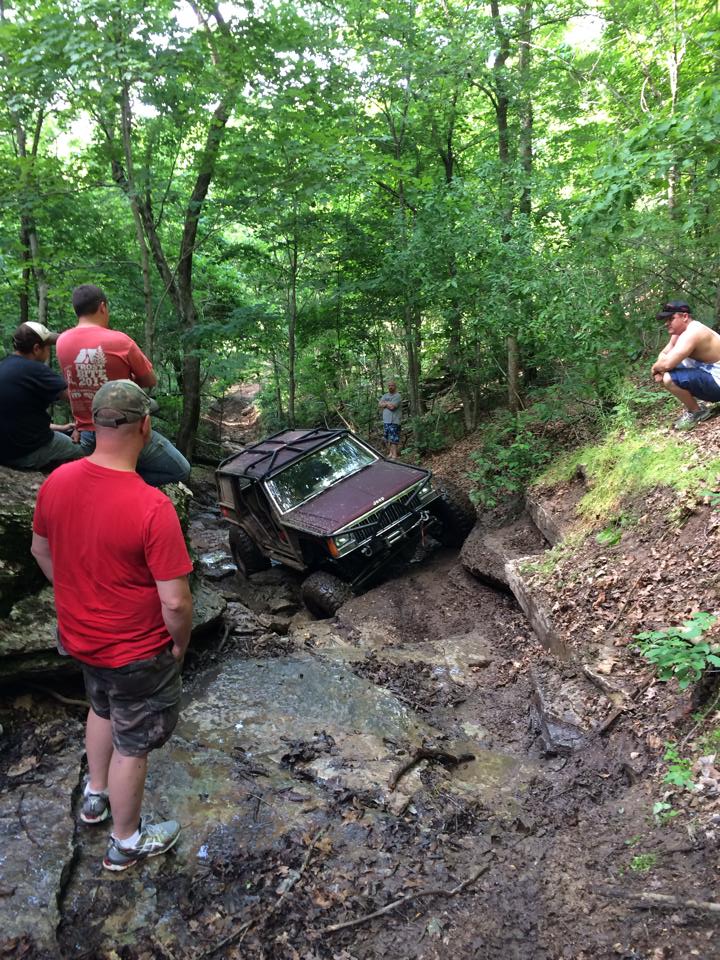

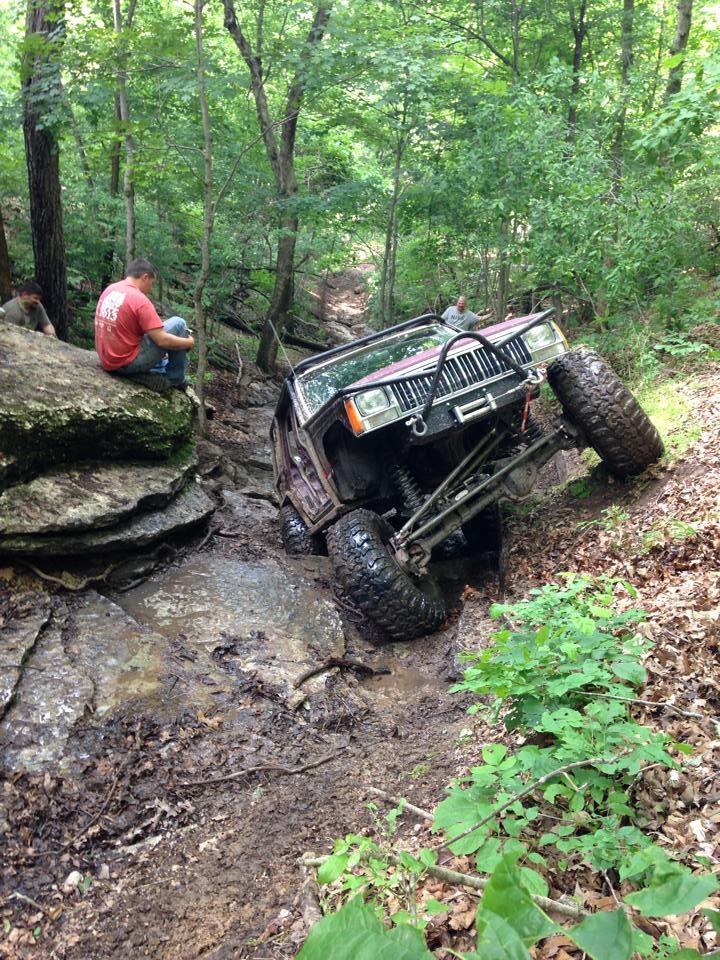

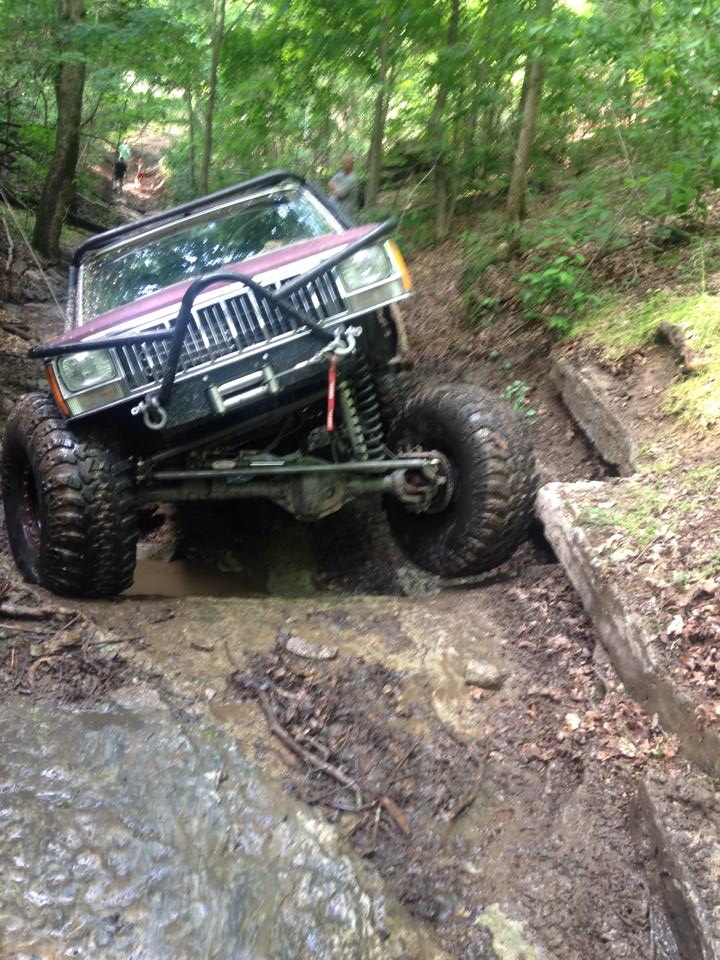

cholthauss

Corey

good luck to the rest of the fellas

Hired gun off road for life!

Specs

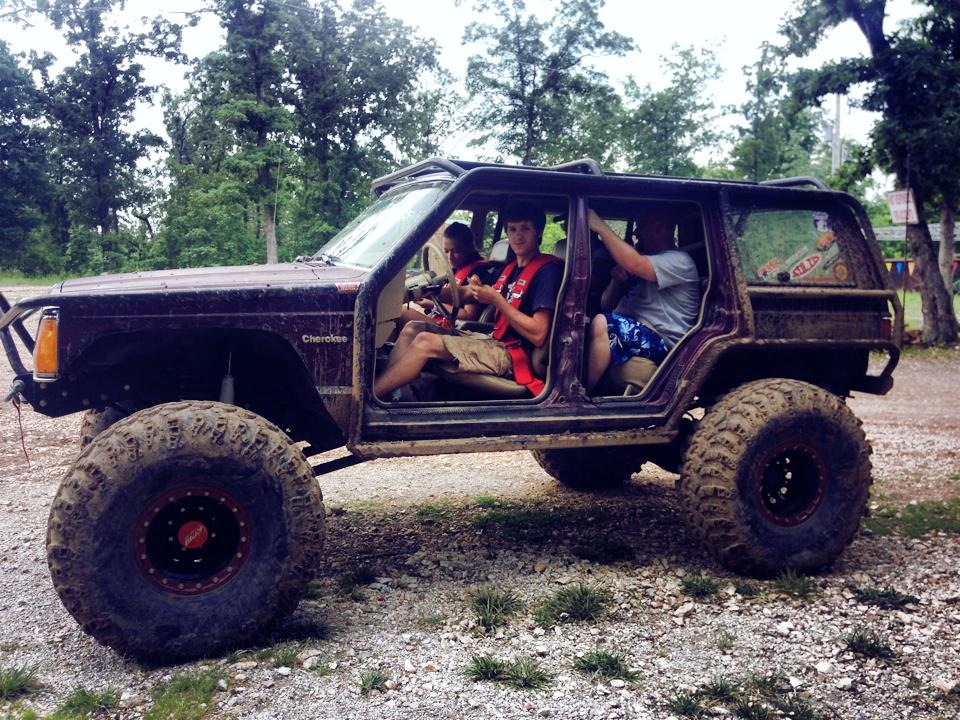

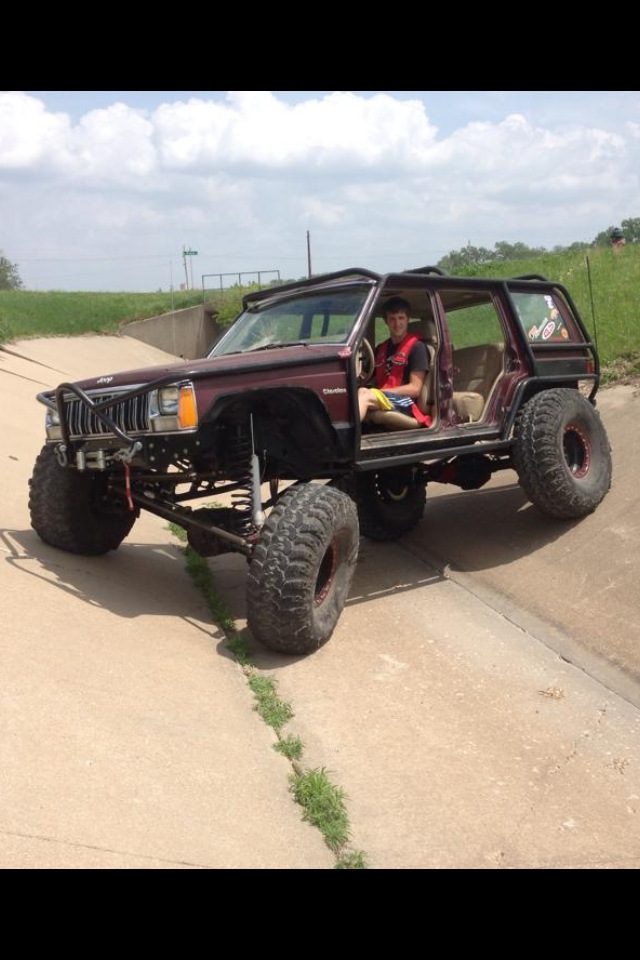

1993 jeep cherokee
Motor 4.0
K&n air filter
Tcase 231 slip yoke
Front axle 79 Hp dana 60
Rear axle 14BFF
Wheelbase 107.5''
39.5 iroks

Mods

Custom 3 link front stretched 3''
Ford f150 leaf spring in the rear stretched 3" Stubby front bumper with integrated Warn VR8000 winch tied into the cage
RPM drive flanges
Spool in the front 4.88 Nitro gears
Detroit locker and yukon 4.88sin the rear
High steer
Hydro assist
Mrw beadlocks
Barns Pinion Guard
Alot of window stickers!
Full Exo cage tied in on the inside and all (por-15)
Rock sliders
Rear 2x4 bumper tied into the cage
Crow 4 point harnesses
Competition cut rear fenders and tubed (soon to stretch)
Wired in a in cab winch remote
Fuel Cell
Nitrogen tank

Future mods

Beadliner Floor
Flip leaf springs
Install traction bar
Racing seats
231/300 or atlas 3.8 idk yet

fritzthekatt

Here goes:

Specs:
2001 Cherokee Limited
159,000 miles on original engine/tranny
4.0L HO, 784 Injectors, 63mm bored throttle body
AW4 Transmission
NP231 Transfer Case
HP D30
Ford 8.8
295/70R17 Nitto Trail Grappler tires on 17x9 ProComp Series 1069 Wheels

IronMan 4x4 Long Arm with Rubicon Express Xtreme Cross Member including:
5.5" Coils
Bilstein 5100 Series Shocks
3.5” Leaf Springs
Rear Lift Shackle
H.D. Off Road Shackle Relocation Brackets,
Stainless brake lines
Iron Rock Off Road Double Shear Track Bar and bracket
JKS Quicker Disconnects
HD Slip Yoke Eliminator
Custom Rear Drive Shaft

Differentials
High Pinion D30 Conversion
4.56 Yukons
Detroit True Track LSD
Synergy HD Ball Joints
Moog Hubs
DBA 4000 Slotted Rotors
Hawk LTS Pads
Riddler Cover
Artec Truss, C Gussets and LCA Skids

Ford 8.8
4.56 Yukons
RuffStuff 8.8 Conversion Kit
Super 8.8 Yukon Kit
Stainless Steel Brake lines
Raybestos Disk Brakes
Artec Truss
RuffStuff Diff Cover
MORE Ebrake Cable

Bumpers and Armor
Custom Prerunner Winch Bumper
Custom Tire Carrier Bumper with Highlift and Rotopax mount
JCR Ultimate Deluxe Sliders
ORFAB Upper Rear Quarter Panel Armor
Dirtbound Off Road Lower Rear Quarter Panel Armor

Other Mods:
K&N Cold Air Intake
Off Road Only U Turn Cross Over Steering
PSC Stage 4 Hydro Assist Kit
Derale Steering Cooler
JCR steering box reinforcement
FlowCooler Water Pump
Hesco High Flow Housing
Dirtbound Off Road TriFan Kit
Hella H4 Headlight conversion, 55/100 bulbs, Rally Lights wiring harness
PIAA 520 Ion Crystal Fogs
Magnaflow Muffler, Hi-Flow cat, custom mandrel bent tailpipe
Flow Cooler Hood Vents
SmittyBilt X20 Comp 8 Winch
Novak Cable TCase Shifter Upgrade
DPG and Daystar BumpStops Rear
Synergy Aluminum Stops Front
Uniden BearCat 880 CB with 4’ Firestick
IronMan 4x4 Motor Mounts
Custom Aux Trans Cooler with AutoMeter Gauges
Old School Alpine Sound System
Alloy USA Wheel Spacers 1.25”
Optima Blue Top Battery
Zebra Fuzzy Dice

XJwonders

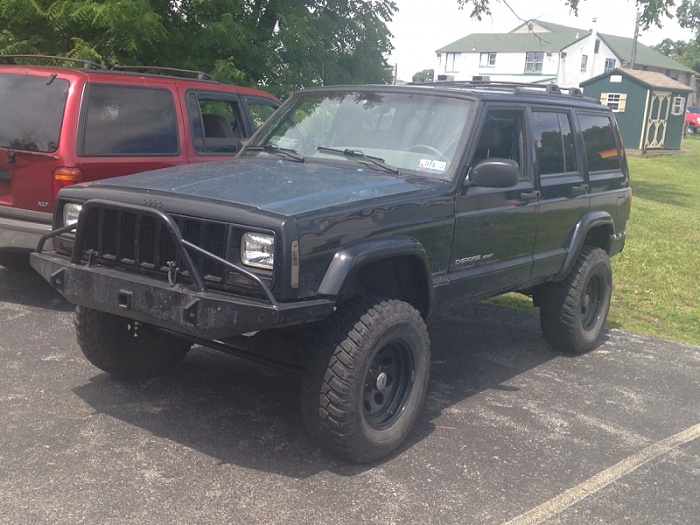

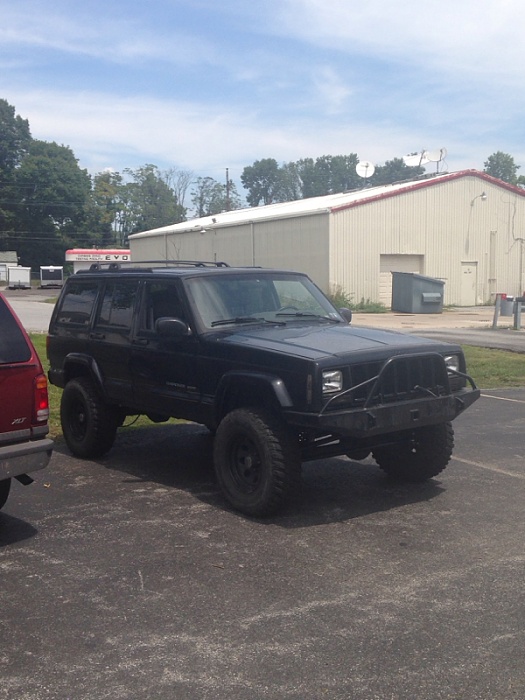

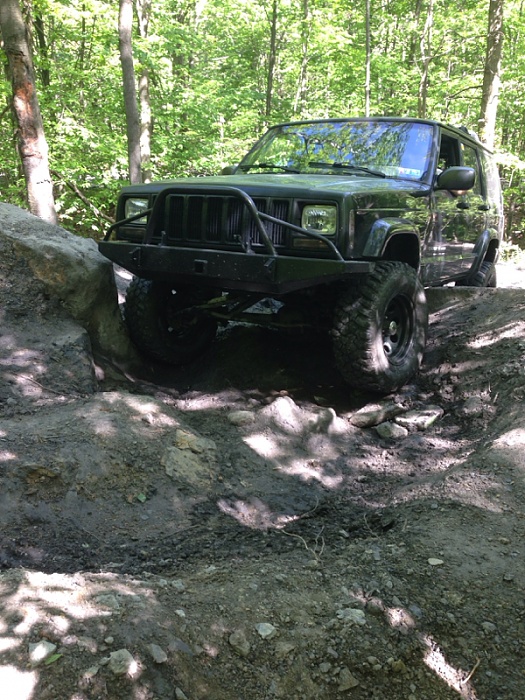

1999 Jeep XJ Cherokee Black 4DR POWERTRAIN;
4.0L
30-43LE
NP231J
HP Dana 30
Chrysler 8.25

ENGINE
PowerTech 4.0L
99+ Intake manifold
60MM bored throttle body
784 injectors
2AWG battery cables with 200 amp fuse
E-fan override switch
High Idle switch
Cowl Snorkel

TRANSMISSION
Aisin-Warner 30-43LE
Transmission cooler
Sunpro transmission temp gauge
Autometer transmission temp sensor
WIX filter

TRANSFER CASE
Advance Adapters SYE kit
Morse chain

AXLES
High Pinion Dana 30 front axle 3.55 gear ratio Chrysler 8.25 rear axle 3.55 gear ratio

SUSPENSION/STEERING
RockKrawler 3 link long arms
4.5 Rubicon Express coils
Custom OTA panhard bar
Toxic stainless steel brake lines
Teraflex 1.5 shackles
3 inch Rough Country AAL
Rough Country 2.0 shocks
Hockey puck bumpstops
Custom 7/8 heim steering system

ARMOR
HD Offroad middle and rear frame stiffeners Custom front bumper
Gas tank skid plate
Custom transmission crossmember
(Working on custom rear bumper now)
Custom rock sliders
Custom cargo window guards

MISCELLANEOUS
Entire interior LEDs upgrade
Rampage H4 headlights
Smoked turn signals and taillights
20 inch LED light bar

Sitting on 31x10.5x15 Dakota Definity tires and Cragar soft 8's rims



Attachment 253058



Attachment 253059



Attachment 253060

SteveMongr

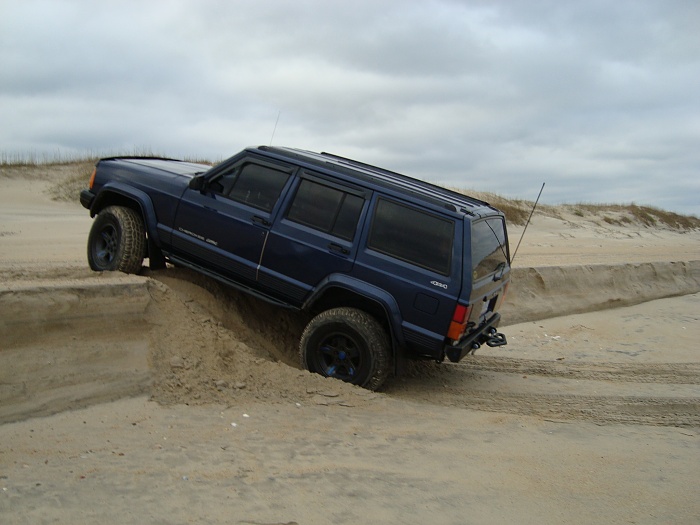

1996 4 door.
4.0L 155,000 miles
AW4 transmission with B&M Cooler
242 Command-Trac

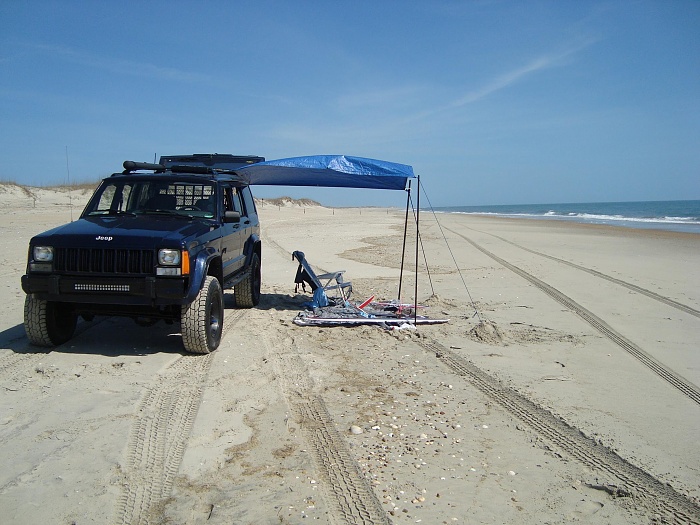

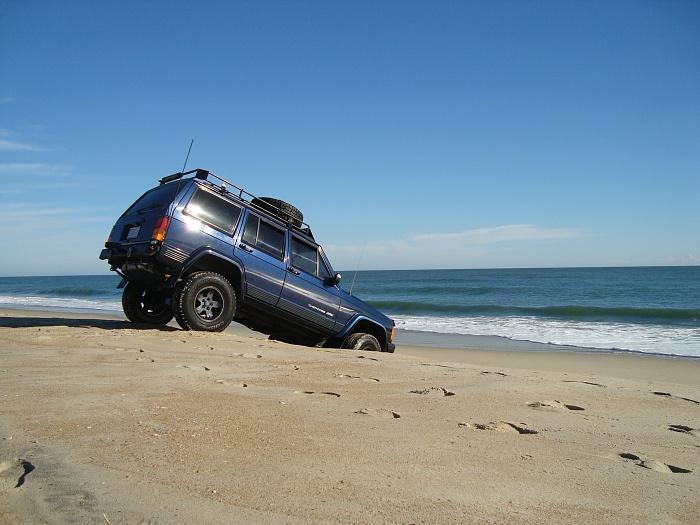

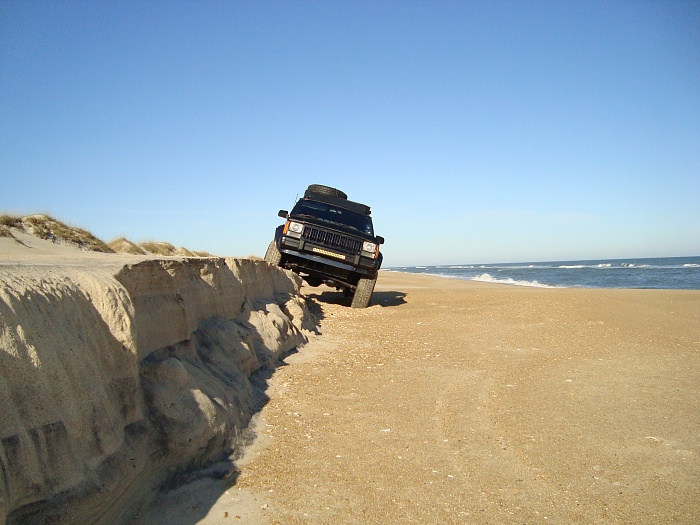

Daily beach vehicle, also bug-out/survival rig for after a hurricane.

Suspension
Rock Krawler Control arms and Coil Springs
Prothane Coil inserts
BDS Leaf packs, Clayton shackles.
Bilstein 5100 10" Travel
Currie Steering

Axles
D30 with mini-skids, extended swaybar mounts. Tube seals
29 spline 8.2.5 Aussie Locker
Riddler Diff covers.
Ravine wheels
Cooper AT3 P265/75/15 31"x 10.5"

Add-ons
JCR Phase 2 Rock Sliders
Stock skids on Transfer Case, Steering, Gas Tank.

Nates4x4 Roofrack 72"x48"
Nates4x4 rear bumper/hitch.

Injectors
Optima Yellow Top
99+ Intake
On board air

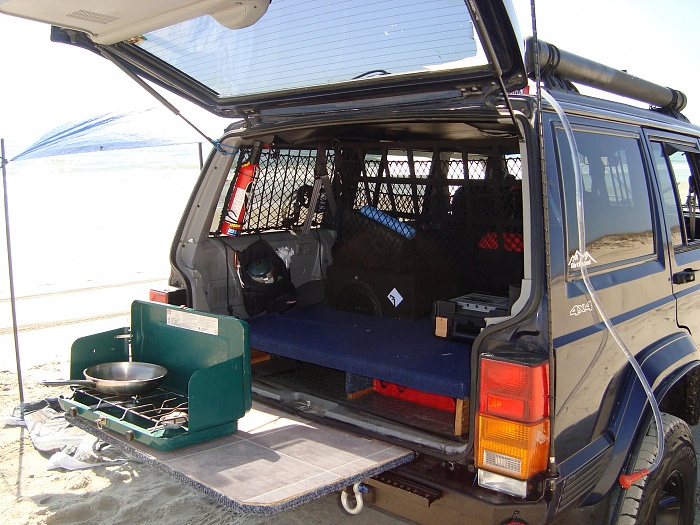

Camp Shower in roof rack.
False floor in cargo area

884x4

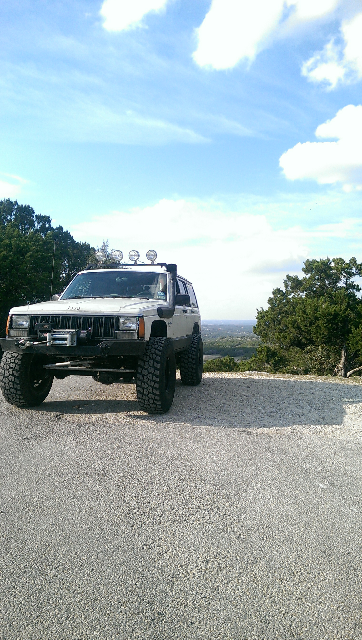

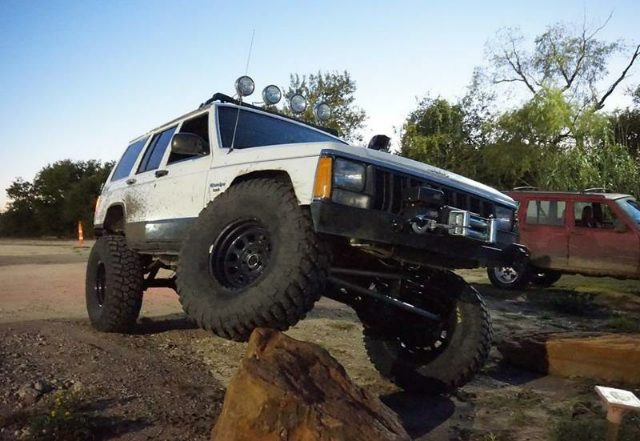

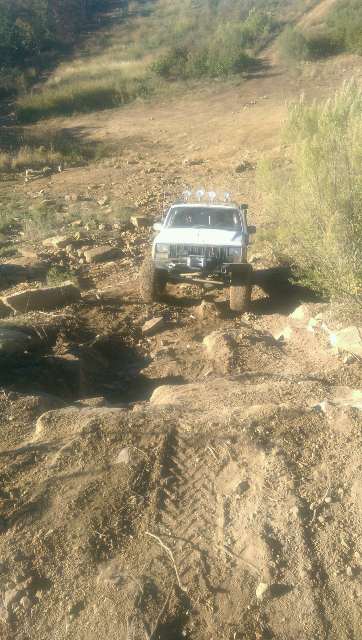

This is my 1988 jeep Cherokee xj Laredo
engine/transmission
-new stock 4.0
- 746 4 hole injectors
- home brew cold air intake with snorkel
- aw4 freshly rebuilt
- np242 freshly re built with sye
-2.5 inch Dinomax cat back exhaust
- pacesetter headers
- Brown dog offroad classic poly motor mounts


Axles tires and wheels
- Dana 30 front (HP) with 4.88 gears and lockright(760x u joints) full circle clips
- ford 8.8 rear end with disk brakes built with heavy duty iron rock hardware 4.88 gears open
- solid diff covers front and rear
- 35x12.5r15 BFG km2s
- black d windows 15x8 with 3.75" back spacing

Suspension and steering
- 3 inch coils with 2 in coil spacers
- add a leaf 3 inch with RC shacke relocation brackets
- over the axle track bar made with ruff stuff brackets, 7/8th heims and 1.5 .250 wall DOM
- RC lowers adjustable uppers
- inverted over the knuckle T steering made with 1.5 .250 wall DOM and one ton ends


Armor and recovery
- home brew tube bumper with tie ins
- l&l winch bumper with smitybilt xrc8
- in cab winch controls
- in cab mounted 54" trail jack
- spare d30 shafts

Lighting
4 kc day lighters on Carr light bar
- led reverse lights
-24" led light bar on bumper. not anymore it got stolen

Misc - cb with horn
- bed lined floor
- stripped ac
- new cooling system with duel e fans
- cut fenders with rear lower qtr pannel fold
- Removable doors
- new sensors and gaskets
-97+ door mod
-wj brake booster and master cylinder upgrade
-optima yellow top

Coming soon:
-Long arms
-d30 truss and gussets
-2x6 rockers
-front , mid, and rear stiffeners
-Ford 8.8 Detroit locker



Attachment 258305



Attachment 258307


Attachment 258308



Attachment 258309



Attachment 258311

emptypockets

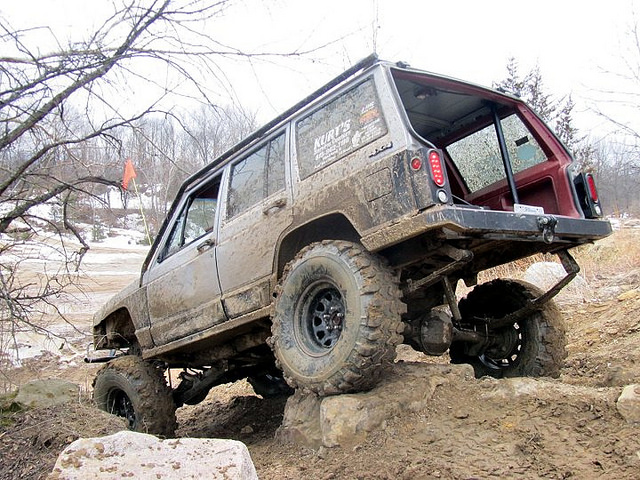

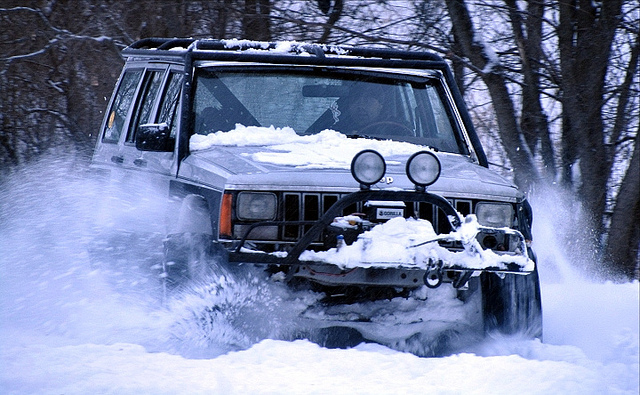

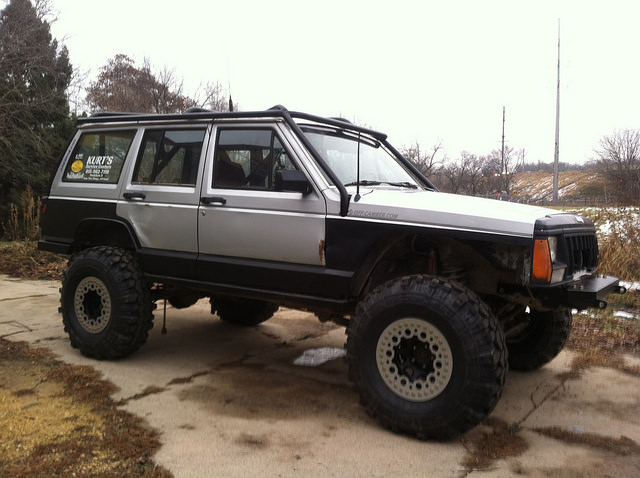

1986 Cherokee Pioneer

Engine/Driveline:
-2.8L
-NP231 with DIY wide chain & 6 gear planetary
-JB Conversions SYE
-Advance adapters tcase shifter
-TF904
-Shortened Explorer front driveshaft
-Tom Woods rear driveshaft
-Brown Dog motor mounts

Front Axle:
-High Pinion D30
-Lock Right Locker
-4.56 geared
-Artec truss w/ Johnny Joints
-IRO C-gussets
-RuffStuff diff cover
-JKS LCA Skids
-Prothane bumpstops

Rear Axle:
-Chrysler 8.25 (29 spline)
-Powertrax No-Slip Locker
-4.56 geared
-RuffStuff diff cover
-Dakota brake hose
-Custom bumpstops

Steering & Suspension:
-Custom length Claytons long arms
-4.5" Rubicon Express coils
-4.5" Otto-Max leaf springs
-H.D. Offroad No Lift Relocation Brackets
-Teraflex shackles
-Edlebrock Xtreme remote reservoir shocks
-Ruff Stuff 3/4" heim steering
-IRO trackbar
-IRO Gearbox spacer

Tires/Wheels:
-35x12.5x15 Swamper LTB
-D-window wheels with 3.75" backspacing
-TMI DIY beadlocks
-Full Size Spare

Armor/Recovery:
-Hobag Hybrid cage
-2x6 rockers
-Ares Fab stubby JK bumper w/ prototype tie-ins
-Custom rear bumper
-Superwinch 8.5k winch
-RuffStuff frame stiffeners
-Modified JCR Transfer case skid
-Farmboy tail light boxes with LED lights
-RuffStuff front and rear diff covers

Other:
-Gas tank relocated in vehicle
-Midland CB radio
-Cut and fold fenders/quarters
-Stripped interior


Future Mods:
-Relocate battery
-More tube work

I'm still in the middle of rebuilding, so some pics are old.

Lowrange2

Due to the fact that there's a limit of 10 options on the poll and 12 contestants there will be 2 polls.

You can vote on both polls if you'd like. Or just on one. I can't stop you either way. Sure, it's not the best way to do it but this is what we have.

The person with the most votes after TWO days wins COTY.

Go. Vote.

XJwonders

I guess I know who I'm voting for. Lol

SteveMongr

Who? You or me. lol

XJwonders

Lol that's tough one there. Haha

Turbo X_J

Best of luck to all!
When does the world tour start?

884x4

Congrats cholthaus!!!

(At least you guys know I diddnt vote for myself lol)
