TJ Interior Lights
I'm trying to get a rundown of the different interior lighting configurations over the course of the TJ run. Normally I get this info from salvage yards, but I can't find any dead TJs to pick from.
Thanks for reading. If you can correct or fill in anything, thanks!
Questions:
1. Is soundbar a replacement for the dome light?
2. Do 04-06 unlimiteds have an extra light? Do they all have a soundbar?
3. Did the 99 model year change cover all 99s or was it introduced during the model year?
What I've figured from research and owners:
Floor wells:
97-98 use 1156 metal can insert and twist lamps, same as ZJ & XJ floors
99-06 use T10 Wedge type (192,194,921,168,etc) same as WJ floors
Overhead lights
97-98 use 561 1.75" festoon (fuse) type lamp
99-06 use T10
Sound Bar Lamps
97-02 use T10
03-06 use 561 - x2 1.75" festoon (fuse) type lamp
TJ Unlimited (what light configs do they have?)
04-06 ??
Pics:

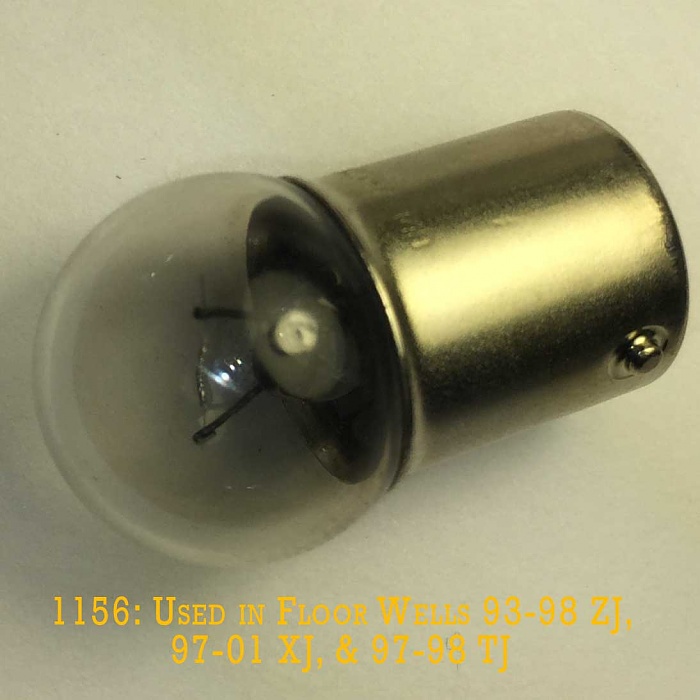

Large 'bulb' on metal can = 1156 type bulb

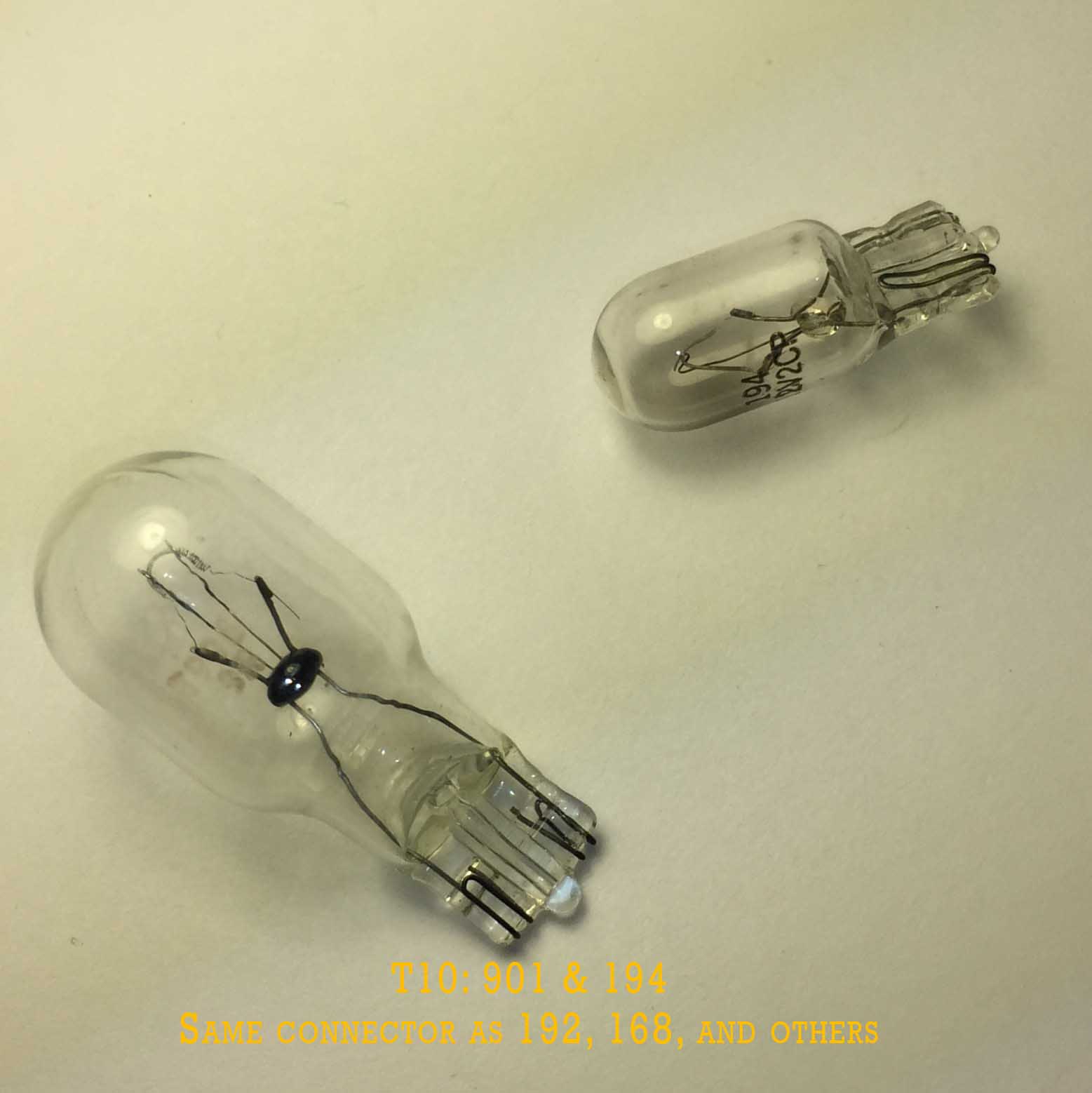

Wedge shaped small and large bulbs = T10 type; part number designates the 'bulbous' part, but are electrically interchangeable. (194, 192, 168, etc)

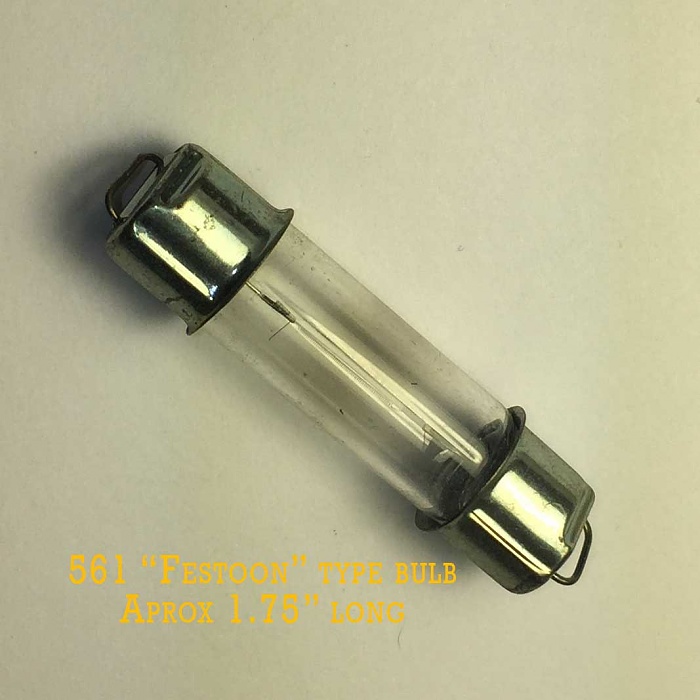

Fuse type bulb = 561; aka festoon
Thanks for reading. If you can correct or fill in anything, thanks!
Questions:
1. Is soundbar a replacement for the dome light?
2. Do 04-06 unlimiteds have an extra light? Do they all have a soundbar?
3. Did the 99 model year change cover all 99s or was it introduced during the model year?
What I've figured from research and owners:
Floor wells:
97-98 use 1156 metal can insert and twist lamps, same as ZJ & XJ floors
99-06 use T10 Wedge type (192,194,921,168,etc) same as WJ floors
Overhead lights
97-98 use 561 1.75" festoon (fuse) type lamp
99-06 use T10
Sound Bar Lamps
97-02 use T10
03-06 use 561 - x2 1.75" festoon (fuse) type lamp
TJ Unlimited (what light configs do they have?)
04-06 ??
Pics:
Large 'bulb' on metal can = 1156 type bulb
Wedge shaped small and large bulbs = T10 type; part number designates the 'bulbous' part, but are electrically interchangeable. (194, 192, 168, etc)
Fuse type bulb = 561; aka festoon
