Rear Fender Trimming (Cut and Weld)
For this, you really only need a few things. Welder, angle grinder, hammer, and vice grips.

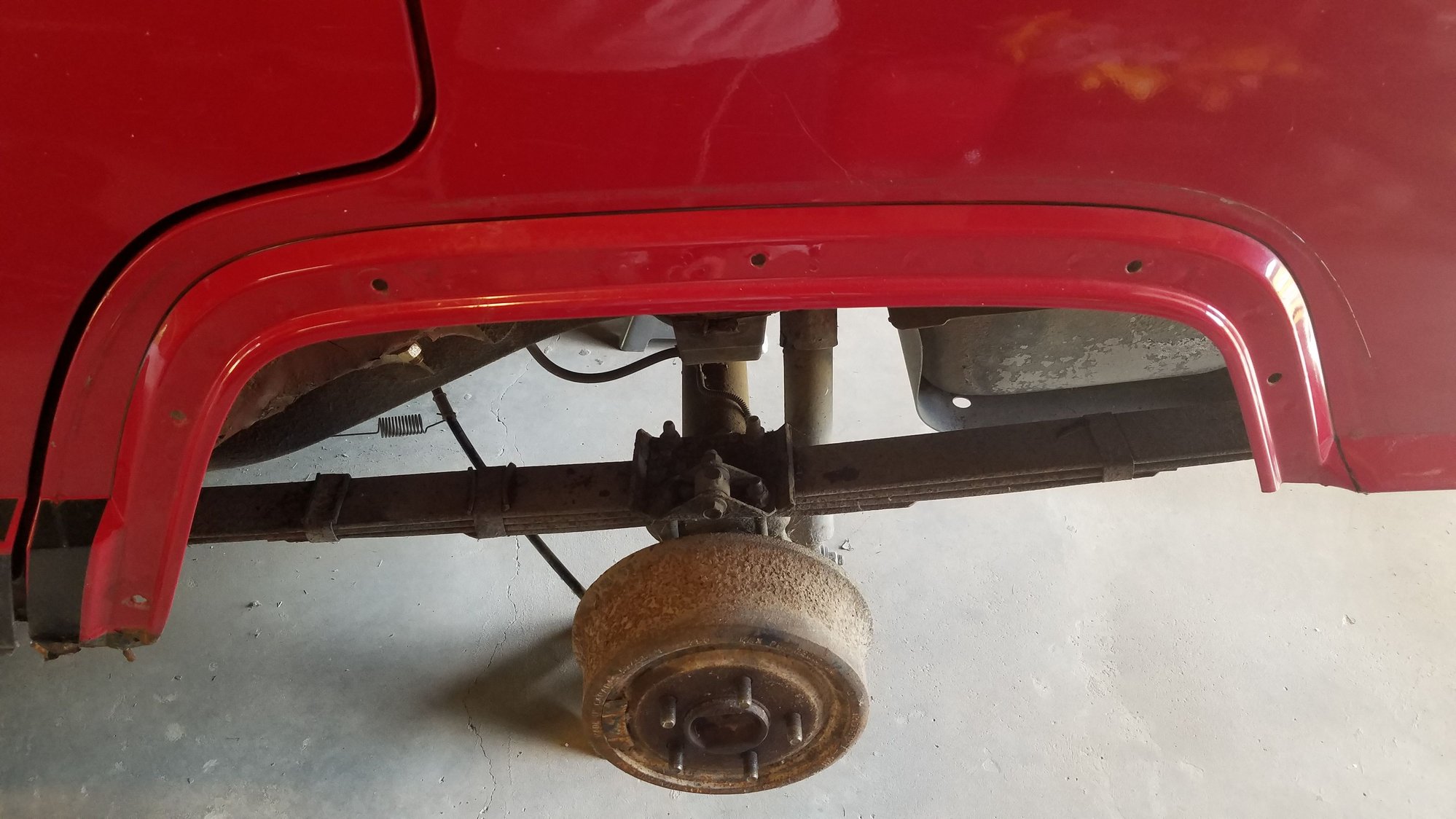

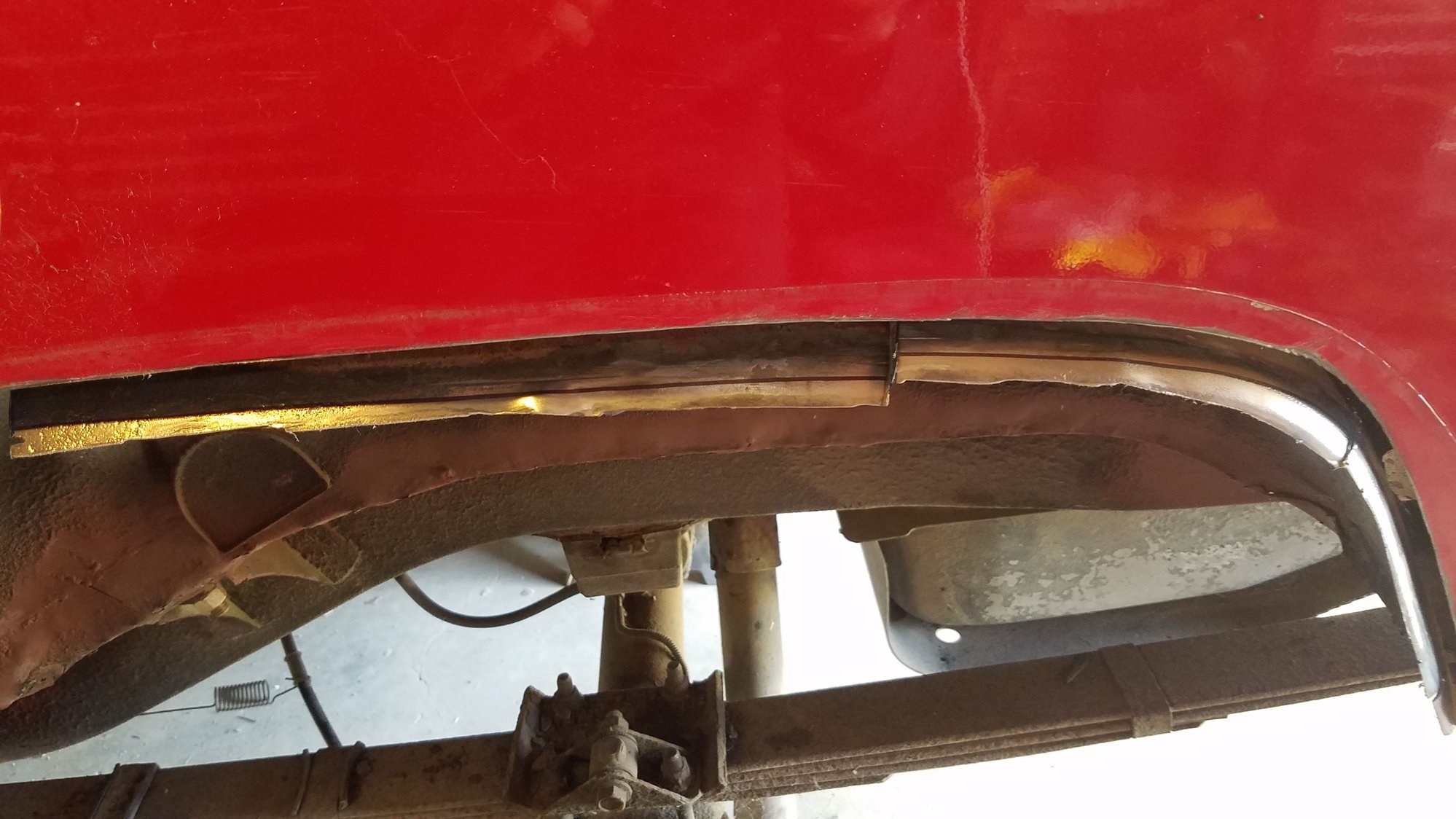

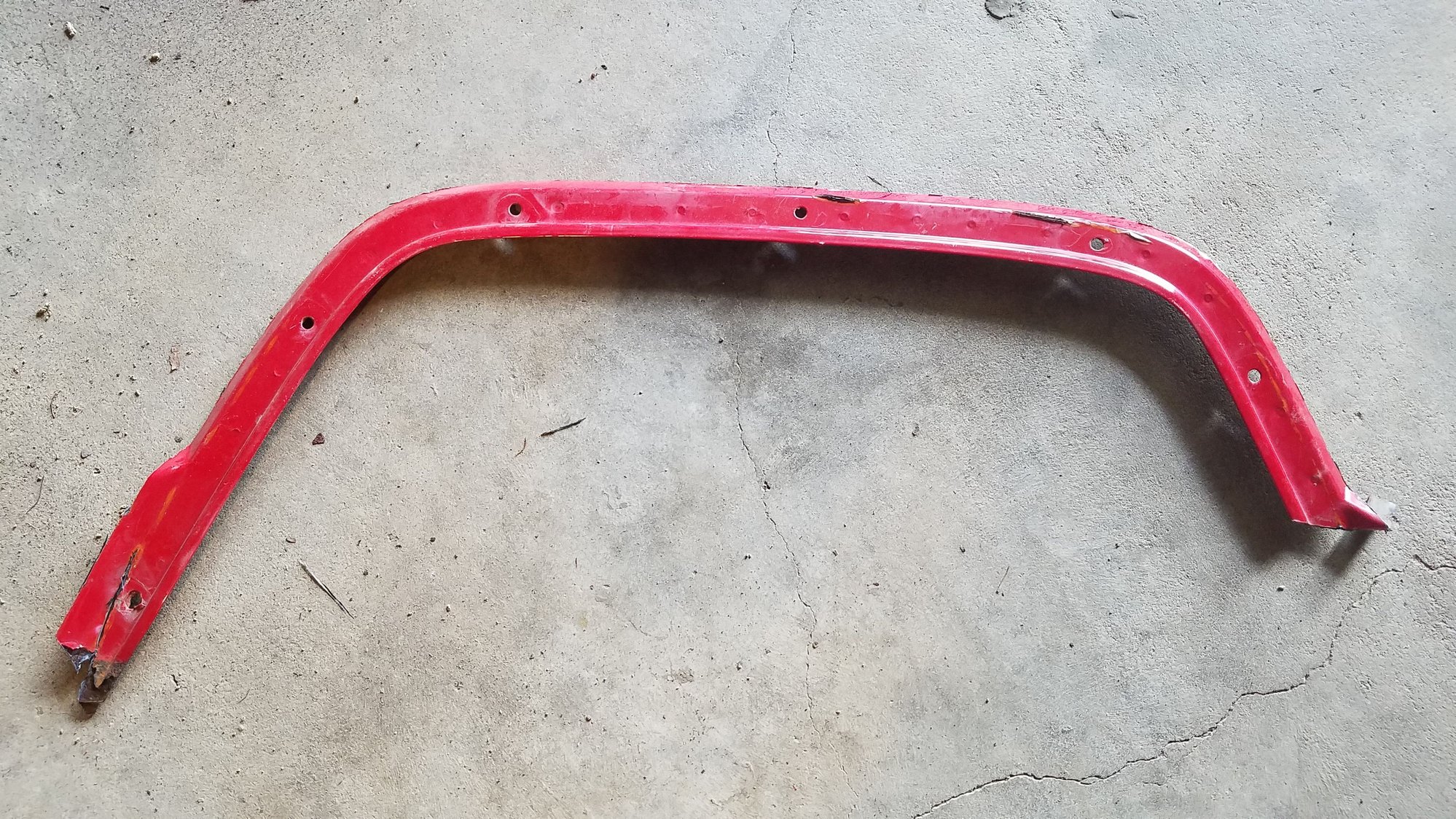

1. Mark and cut. I cut the outside first, then cut the inner fender. Doing this leaves a lip that you can mark and cut accurately. If you were to just cut through from the outside, it would probably cut the inner fender too far and leave a gap.

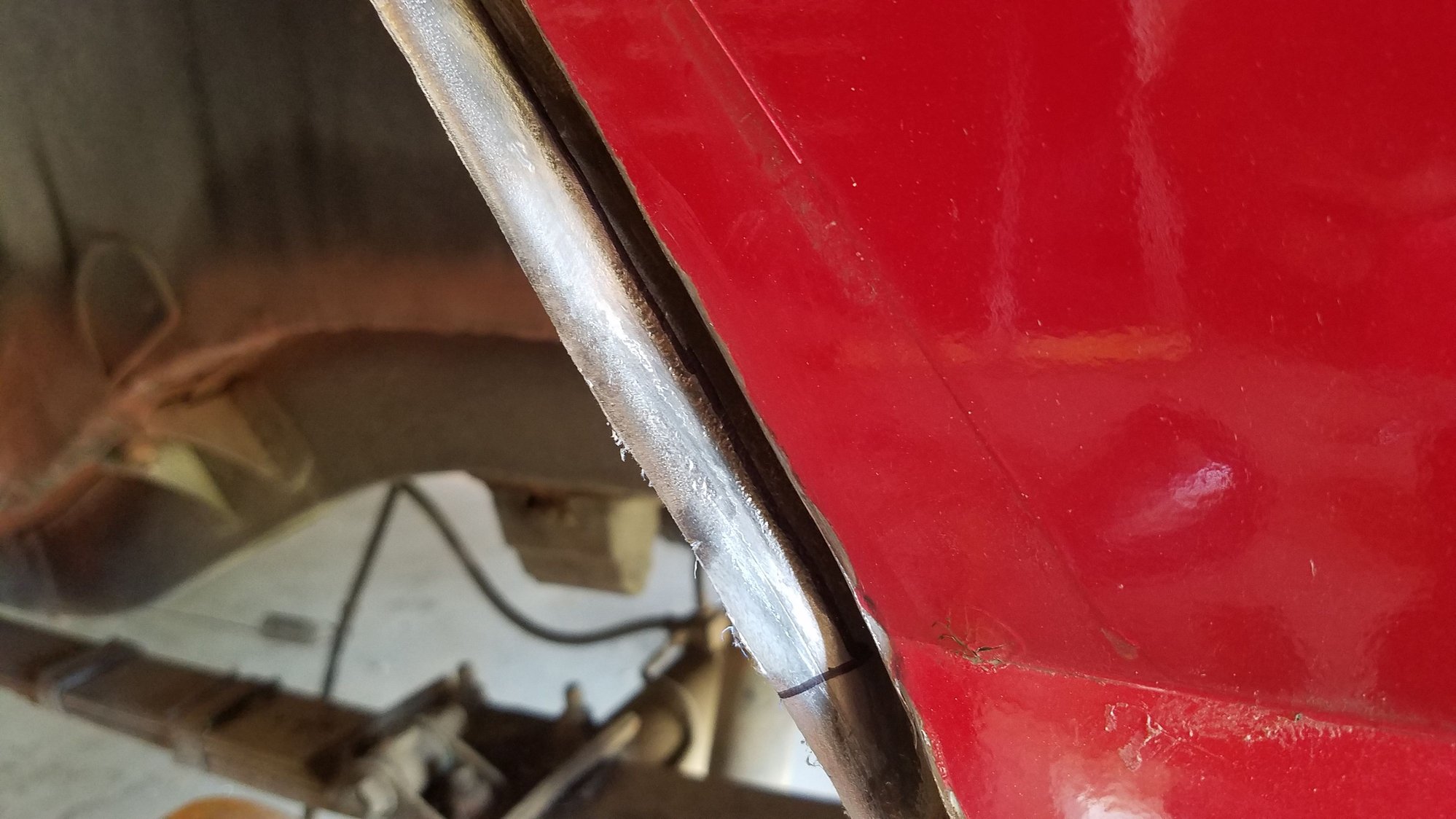

2. Clean the lip with a wire wheel and make relief cuts on the wheel well. I ended up doing 5 cuts.

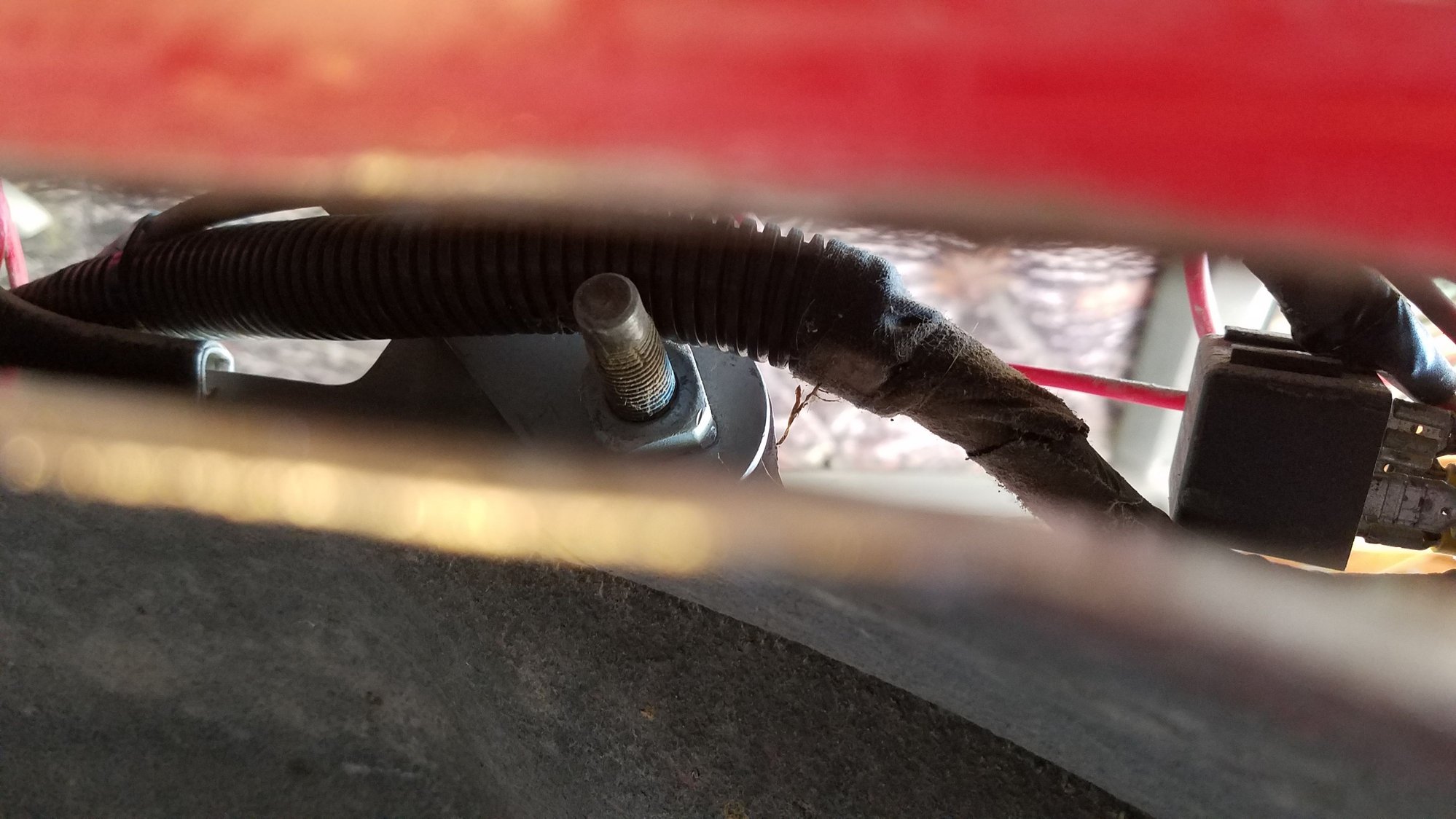

BEFORE YOU CUT!!! There is a wire harness in the fender that needs to be moved. I just set it up on a bolt and made sure my cuts were shallow.

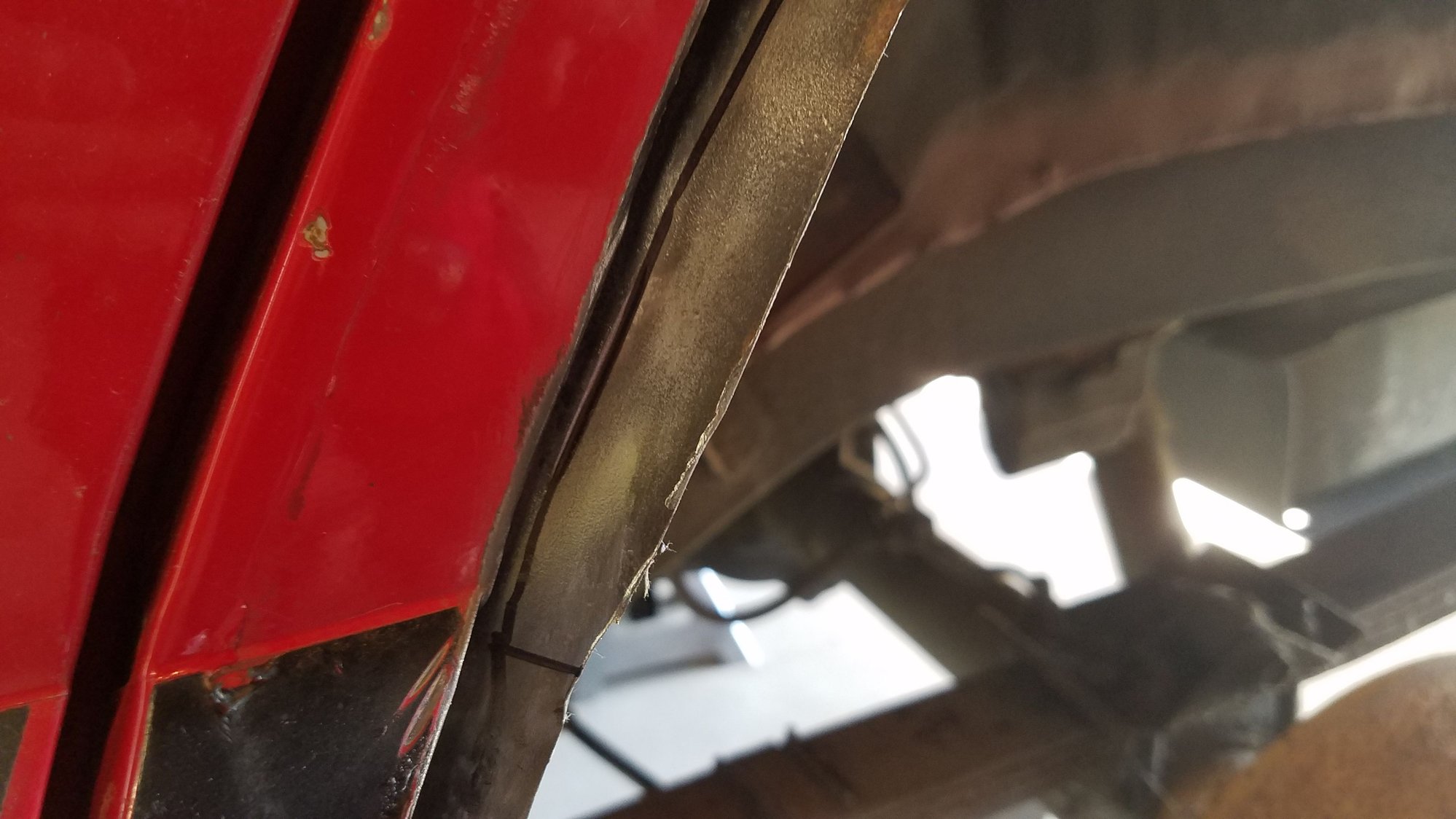

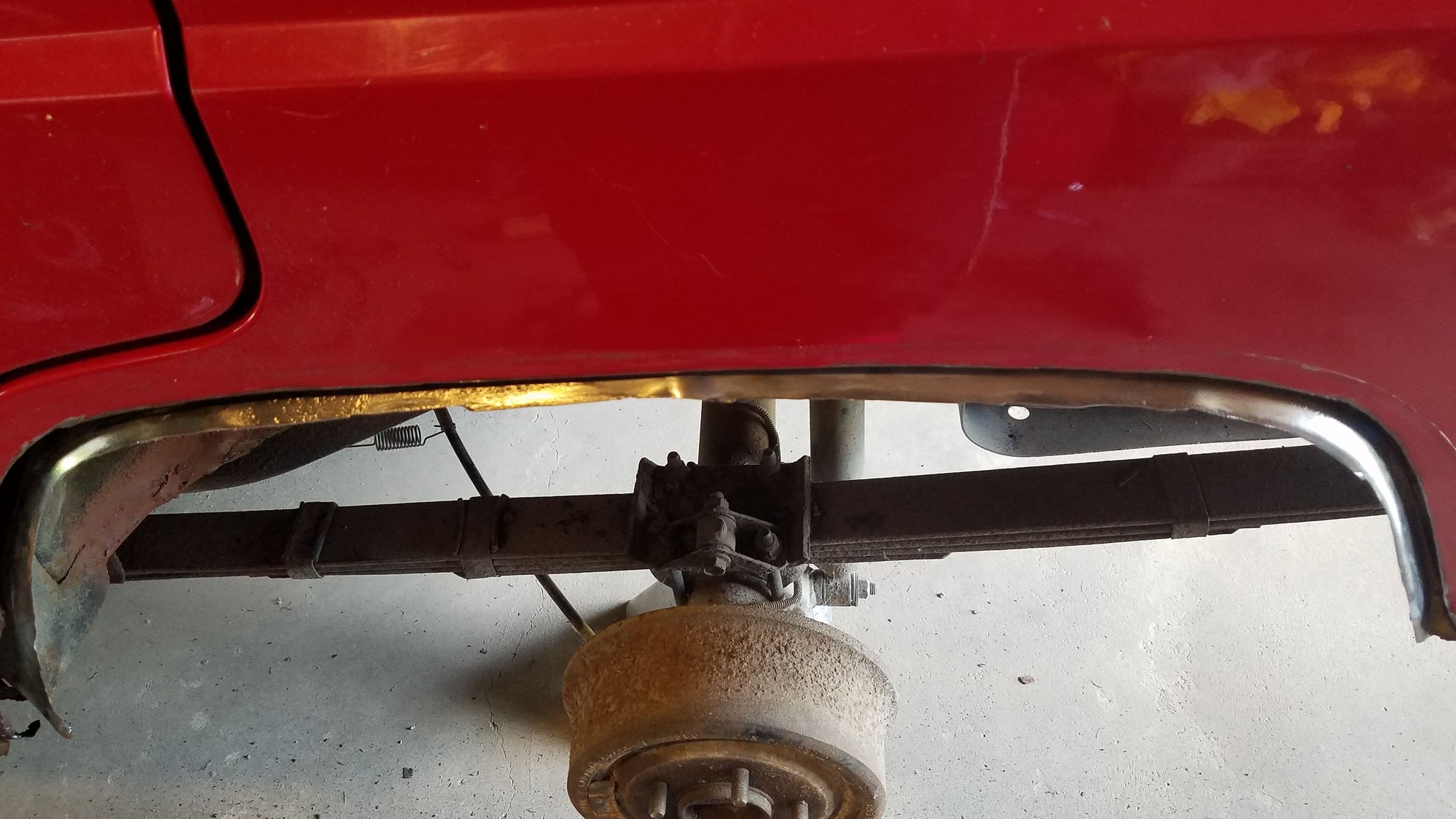

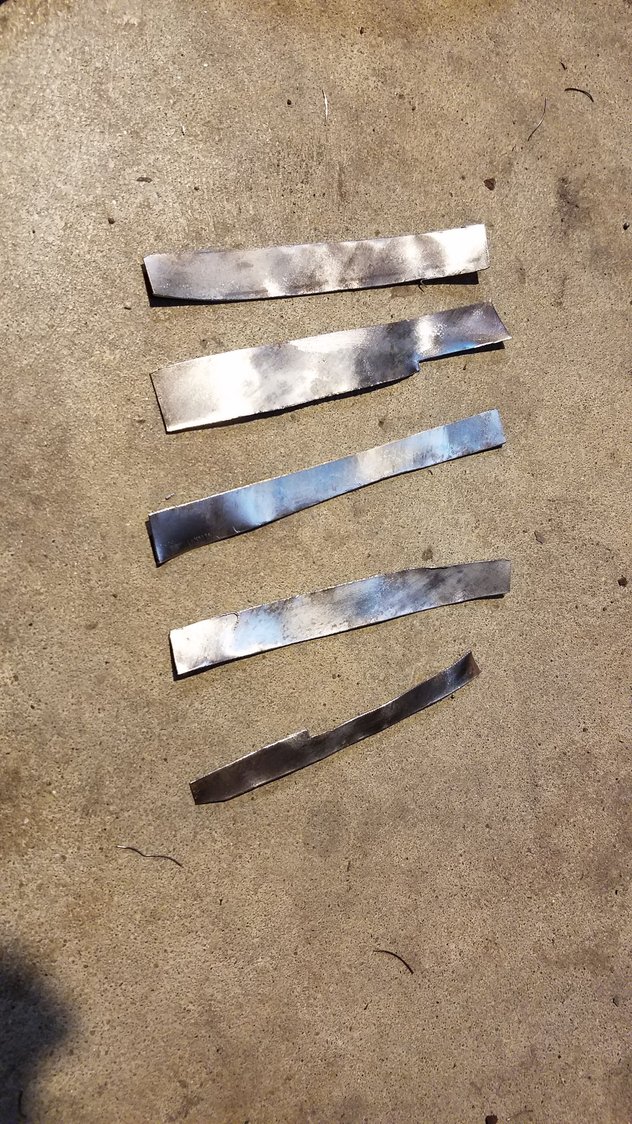

3. Mark and cut the excess. I didn't cut any excess off below the body lines, this leaves you enough metal to fill the gap where it widens up.
4. Next go over the wheel well with a grinder and make sure it doesn't shove your fender out when you push it up. This will help keep it straight when you weld it together. I did have it pull in a bit in some spots, but it's not very noticeable.
5. Weld it up! I used vice grips to hold up the wheel well where I wanted it as I welded. I held it up around 1/8" from where I cut the fender. (Ignore my terrible welds, my welder was acting up for majority of the welding on this side.)

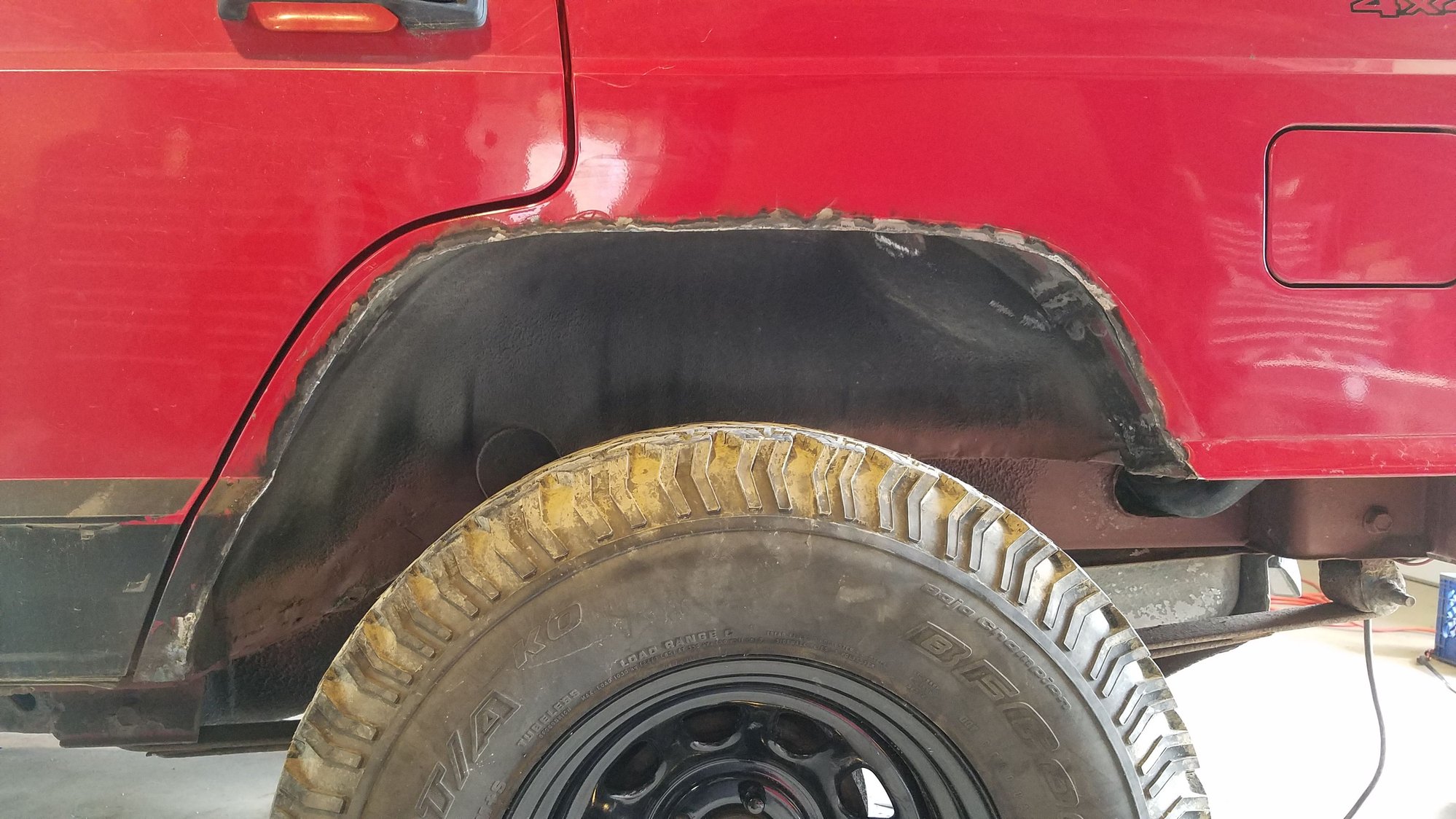

6. Clean it up with a grinder and you're done! (I ended up going back and getting it to look better, but these are the only pictures I have.)
1. Mark and cut. I cut the outside first, then cut the inner fender. Doing this leaves a lip that you can mark and cut accurately. If you were to just cut through from the outside, it would probably cut the inner fender too far and leave a gap.
2. Clean the lip with a wire wheel and make relief cuts on the wheel well. I ended up doing 5 cuts.
BEFORE YOU CUT!!! There is a wire harness in the fender that needs to be moved. I just set it up on a bolt and made sure my cuts were shallow.
3. Mark and cut the excess. I didn't cut any excess off below the body lines, this leaves you enough metal to fill the gap where it widens up.
4. Next go over the wheel well with a grinder and make sure it doesn't shove your fender out when you push it up. This will help keep it straight when you weld it together. I did have it pull in a bit in some spots, but it's not very noticeable.
5. Weld it up! I used vice grips to hold up the wheel well where I wanted it as I welded. I held it up around 1/8" from where I cut the fender. (Ignore my terrible welds, my welder was acting up for majority of the welding on this side.)
6. Clean it up with a grinder and you're done! (I ended up going back and getting it to look better, but these are the only pictures I have.)
