Fixing rear hatch latch 97+
#1
::CF Administrator::
Thread Starter
Fixing rear hatch latch 97+
So for those who didn't see my post in OEM, here is what I did to fix my rear latch. Background: My key would only lock the rear latch, but not open it, the tumbler would only turn one way, lock only. My dilemma was I couldn't get my rear hatch open to fix. So, here it is.

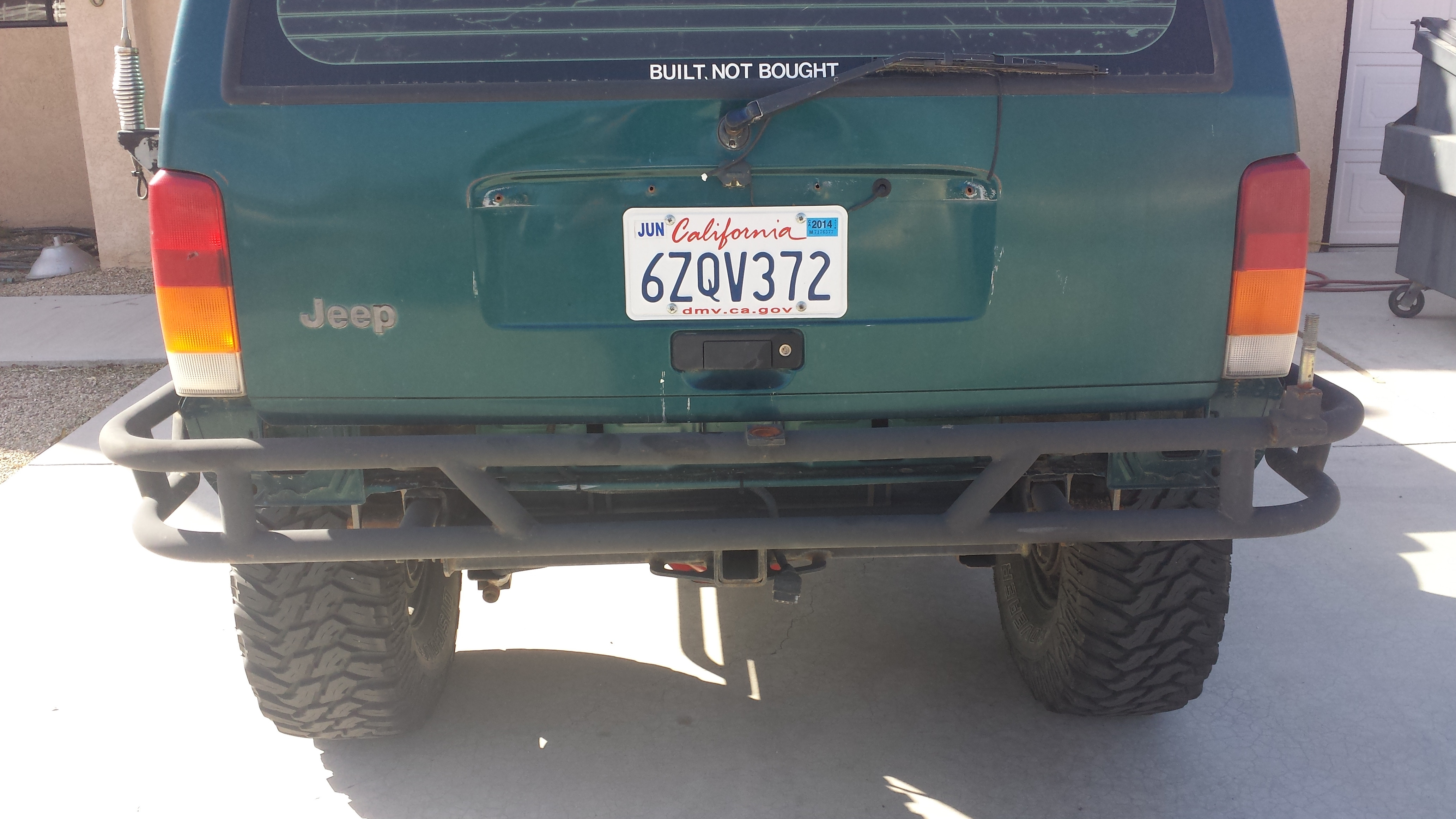

OK, so solved my rear hatch not unlocking problem. So, here's what I started with:

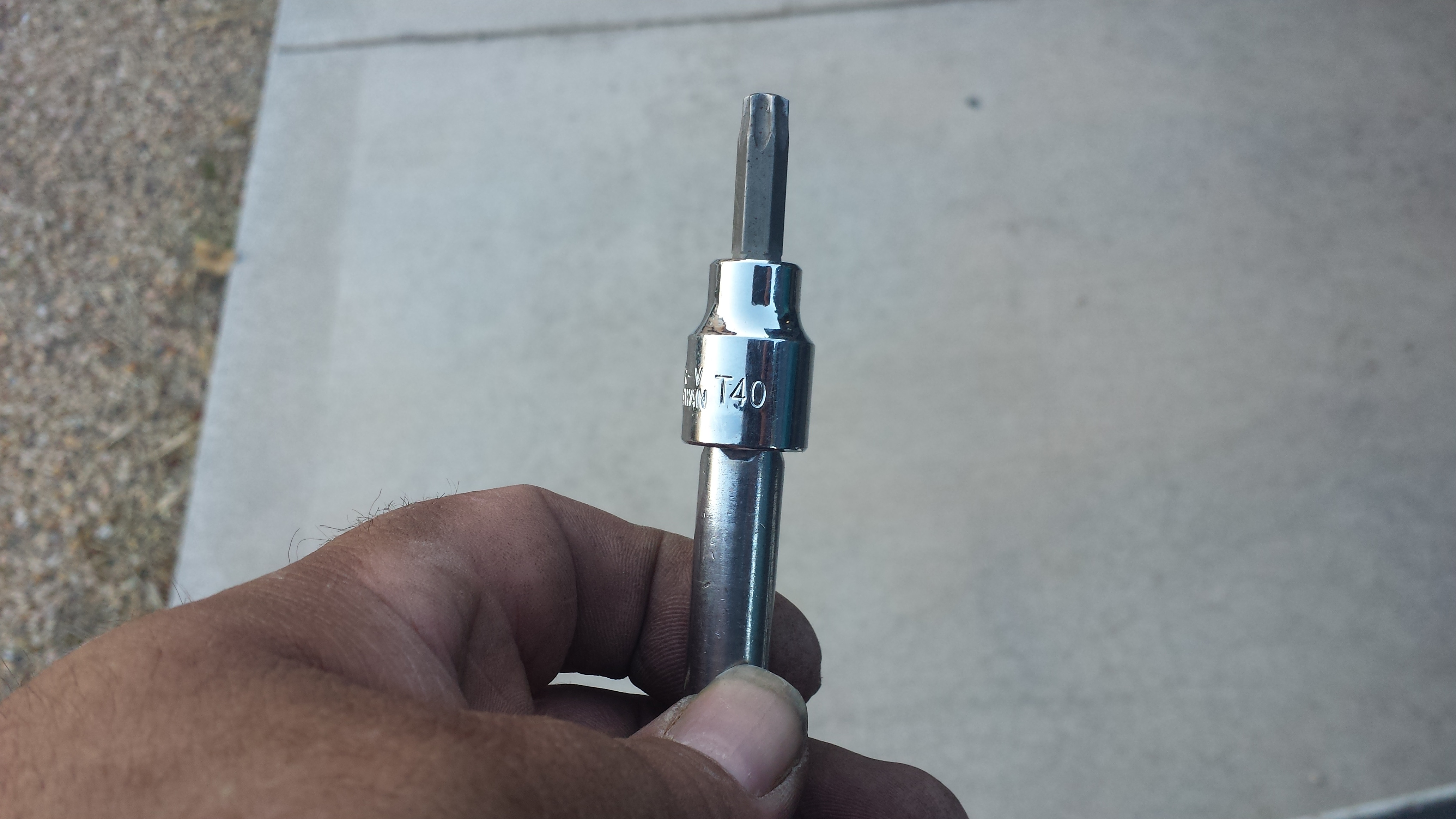

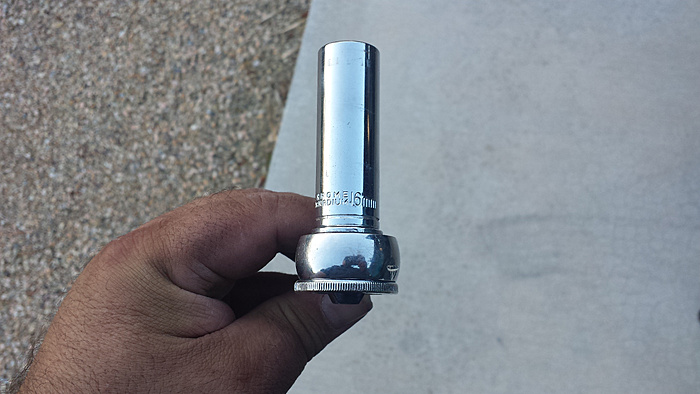

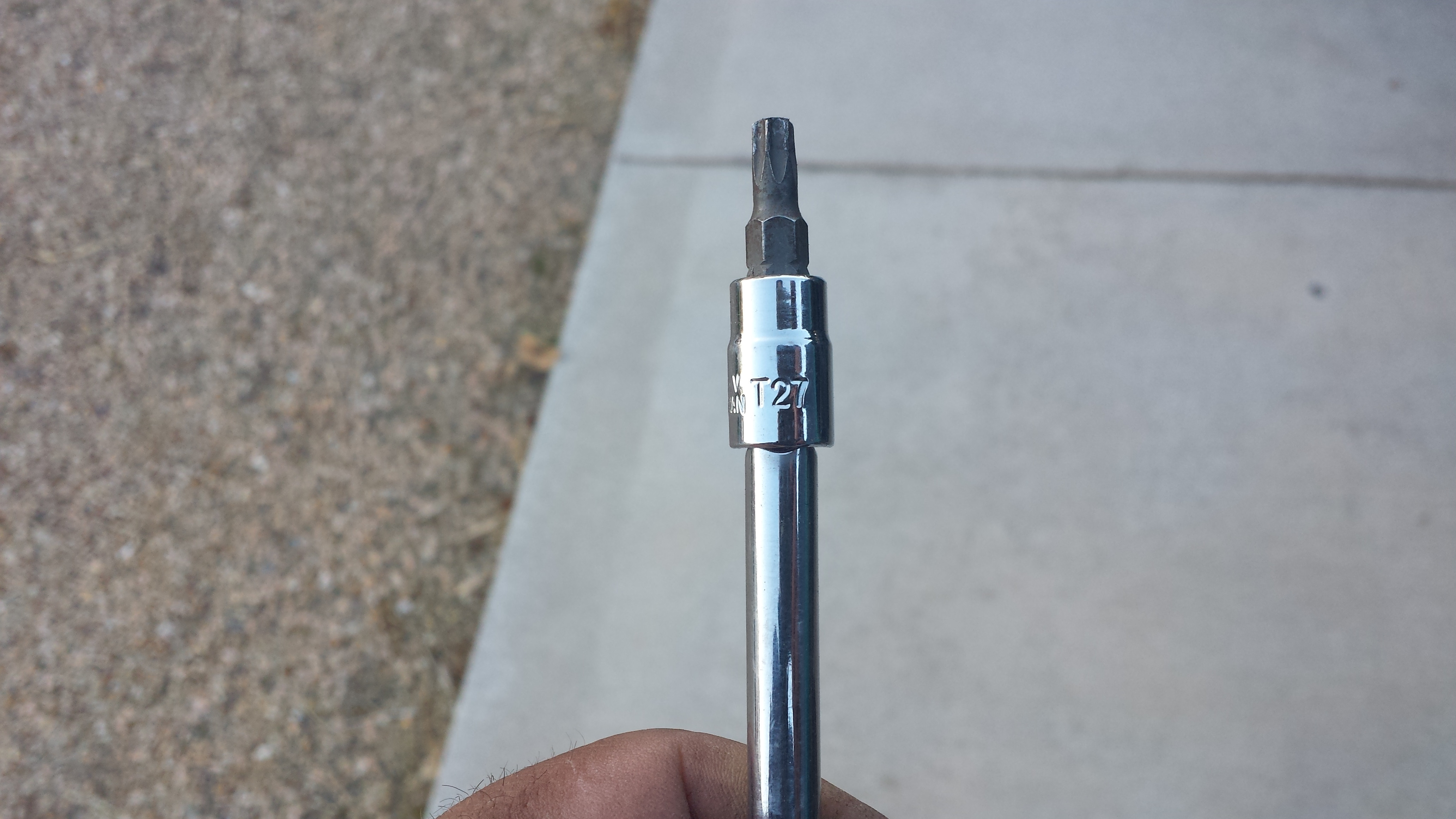

Got my needed tools, didn't grab a pic of the cordless drill with phillips bit, sorry, LOL
So, it was suggested I check underneath where the striker is to see if I could access the bolts, to remove them and get the hatch open.

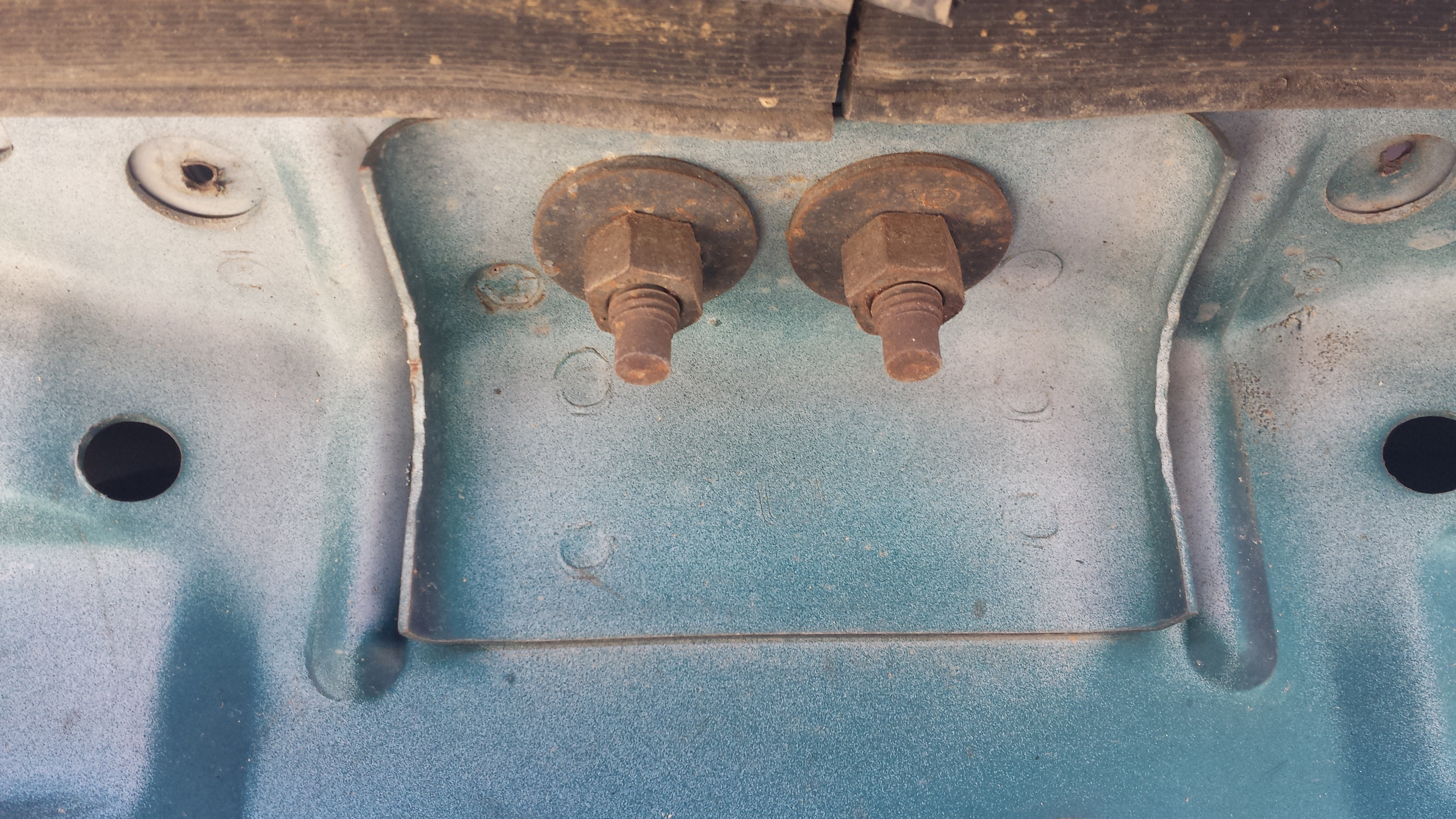

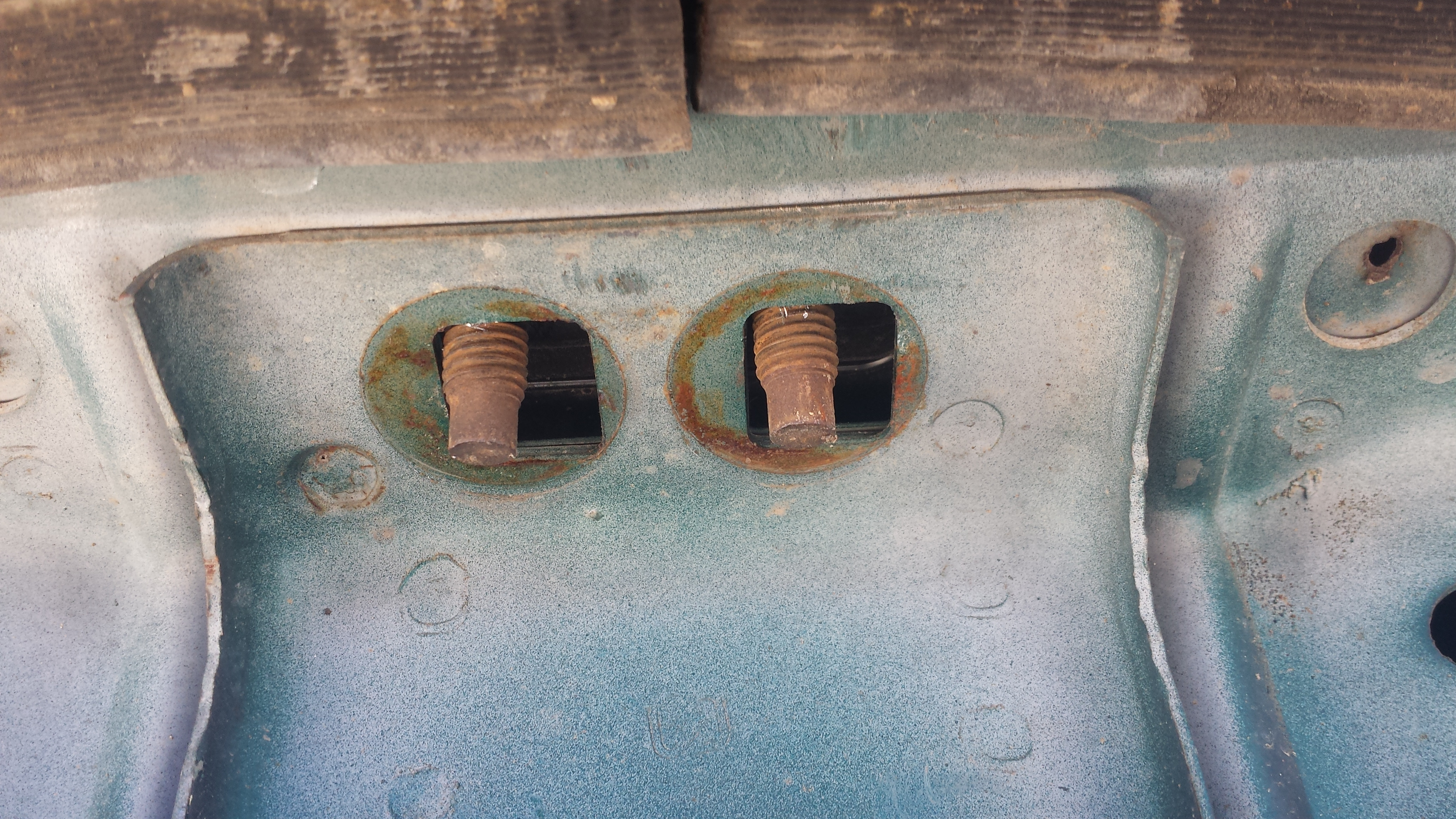

So, I'm in luck, right? WRONG. Took them out, and while I was able to move it, couldn't get it open as the bolts were too long. Here's what they looked like at the maxed out position:

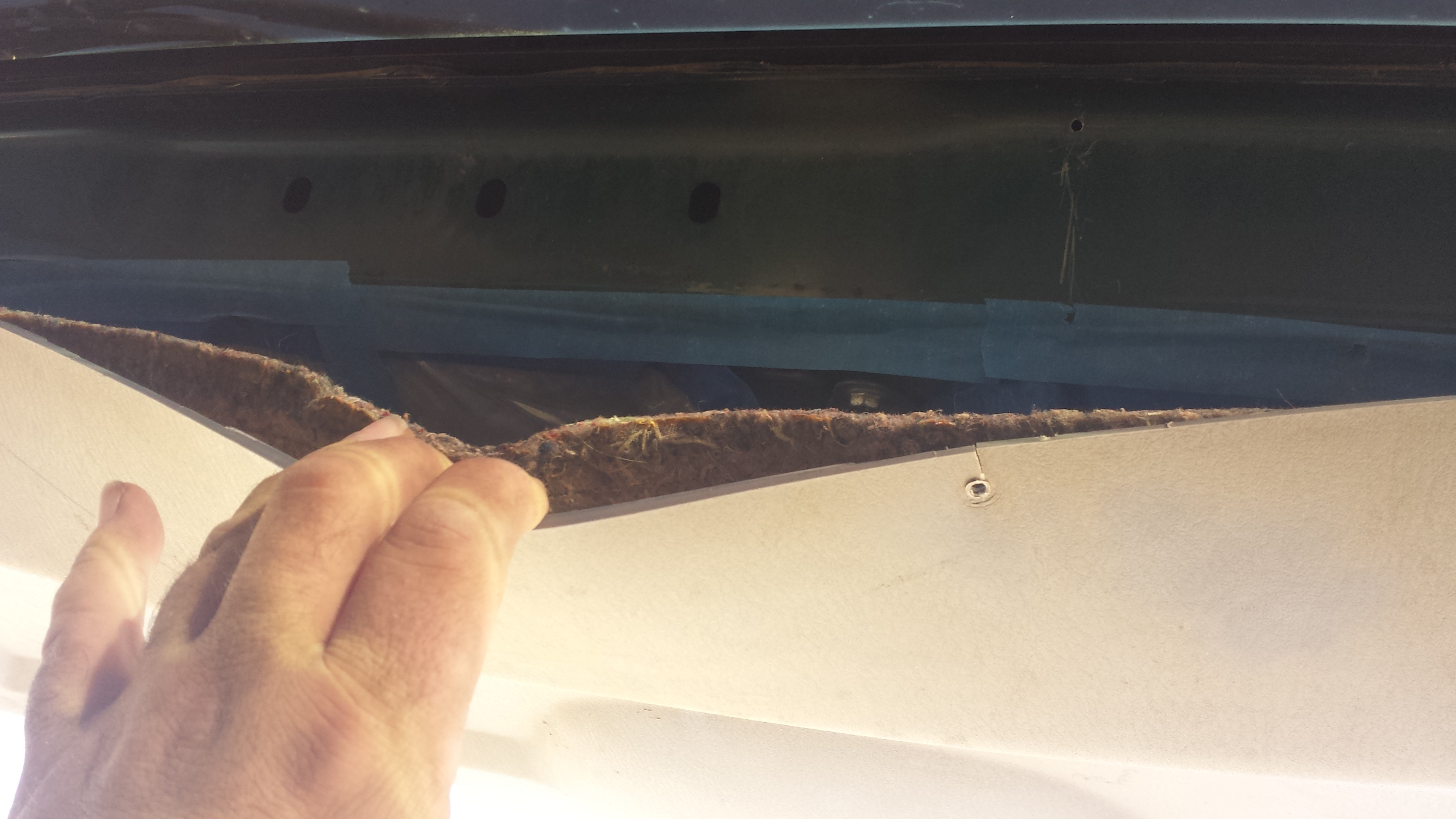

So, I crawled in the back and pulled the middle section of the panel out next:
Just reached in and pulled the latch lever.

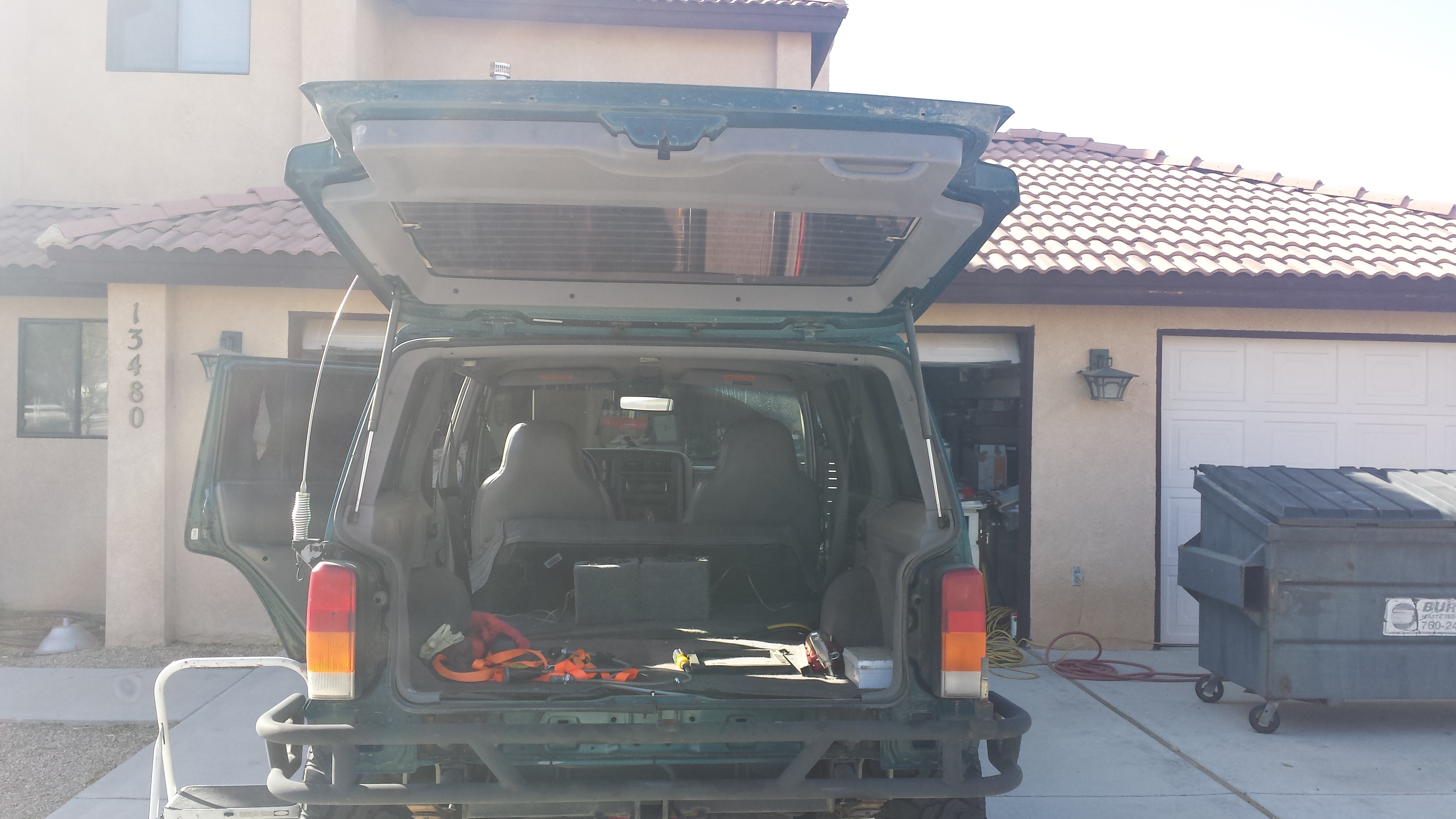

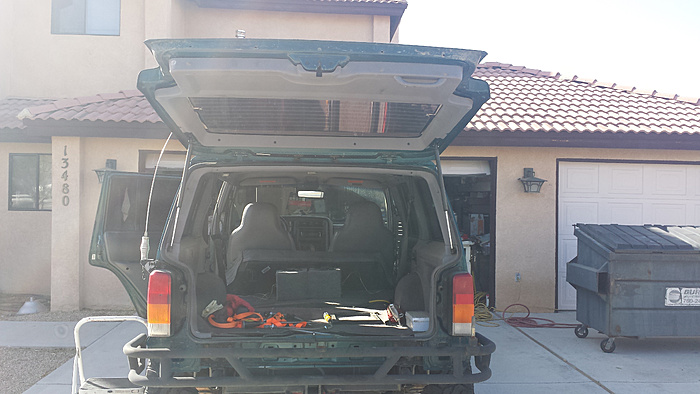

Success!

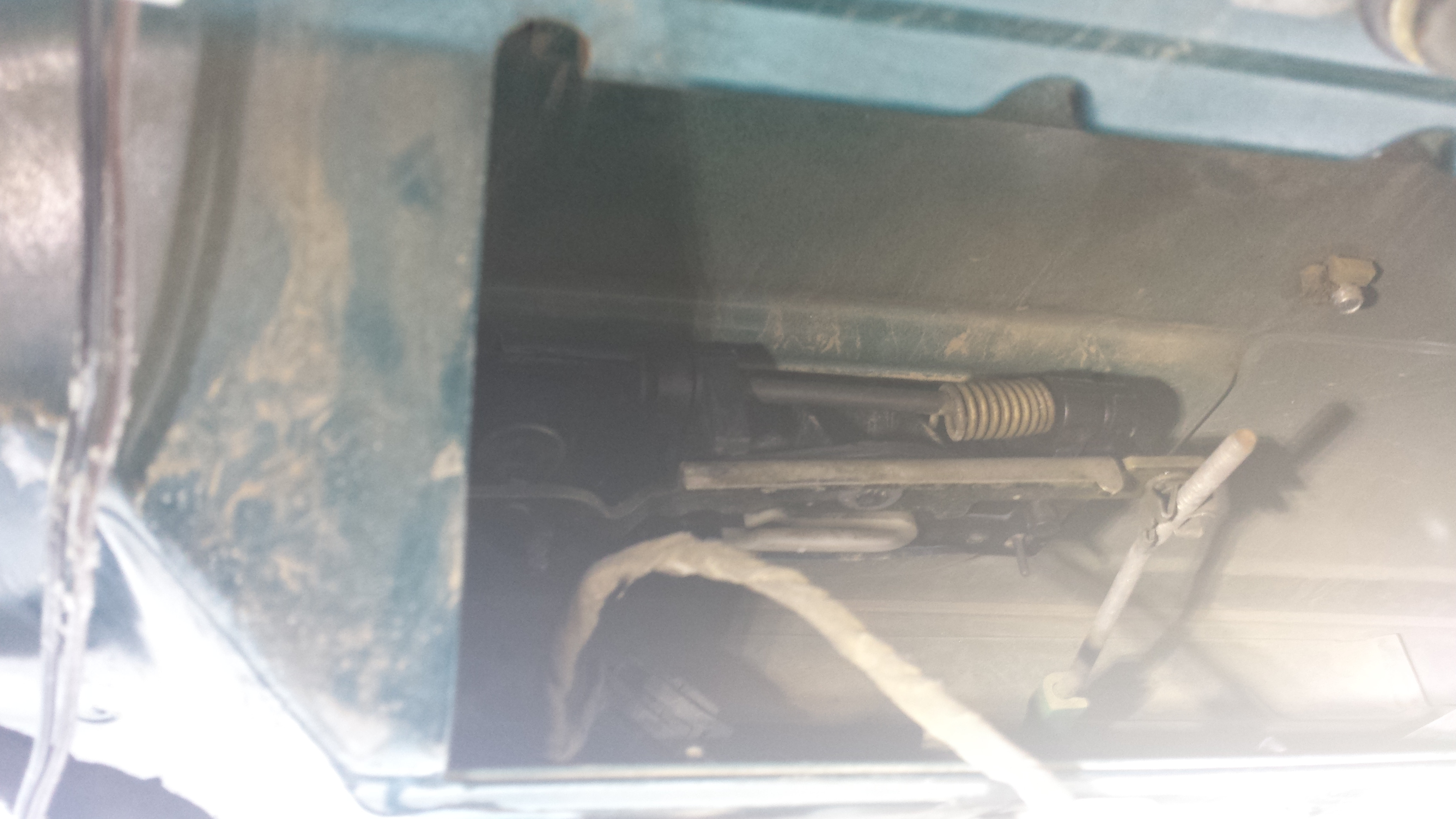

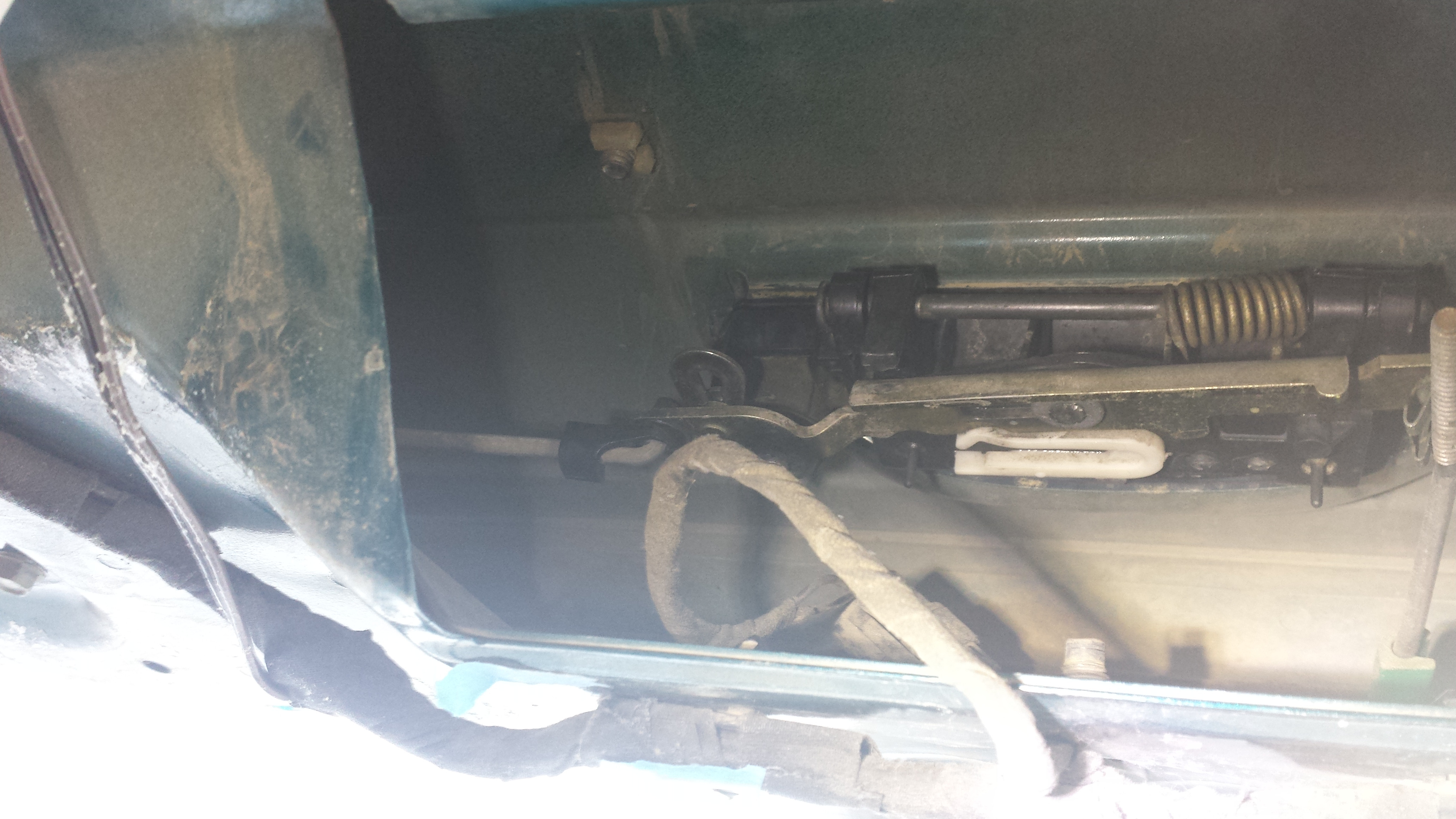

So then I got the interior panel off, and poked my noggin around inside, pulled the metal clip on the latch lever, and removed the solenoid rod...

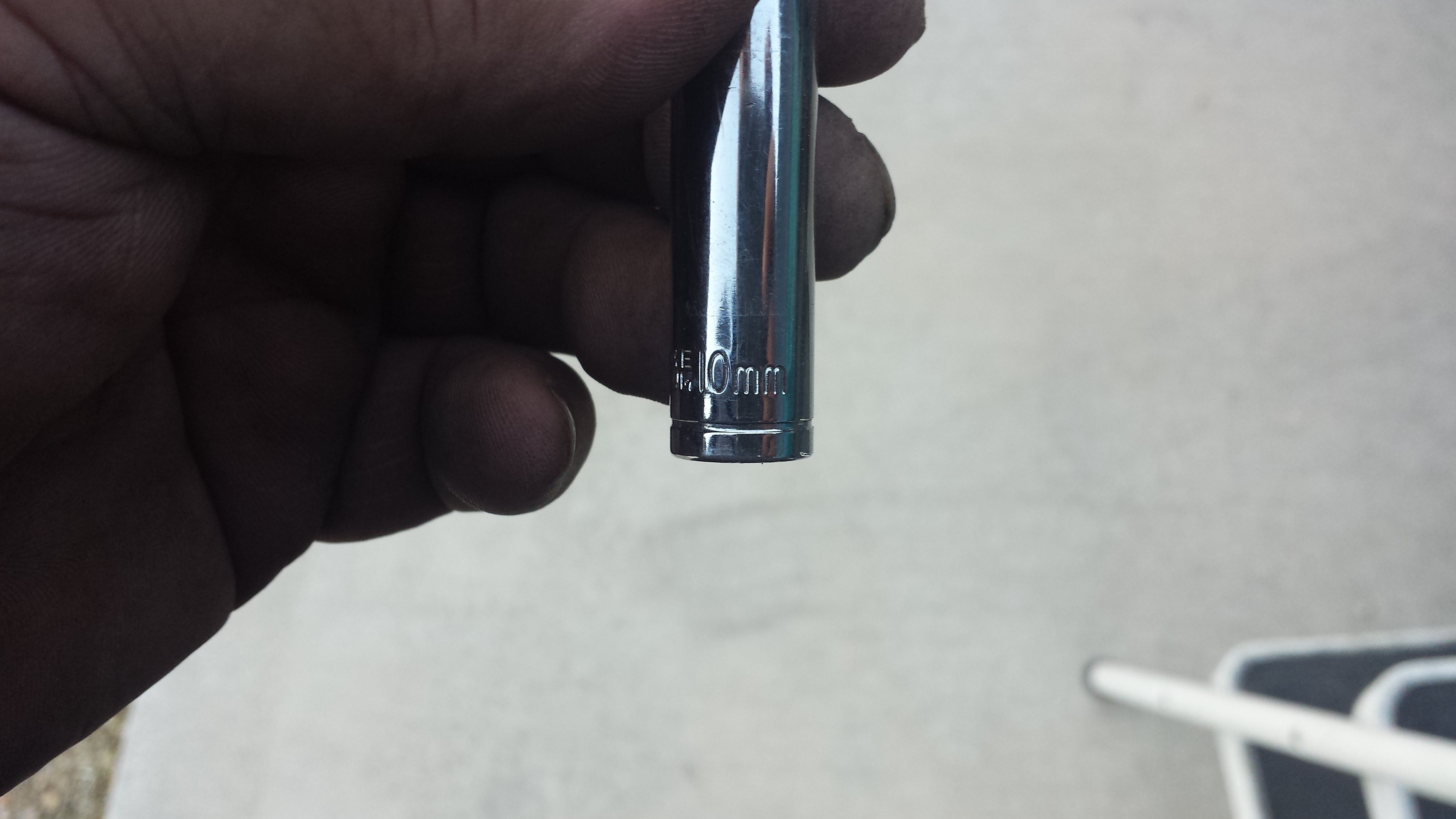

Removed the 10mm nut holding it in place and removed:

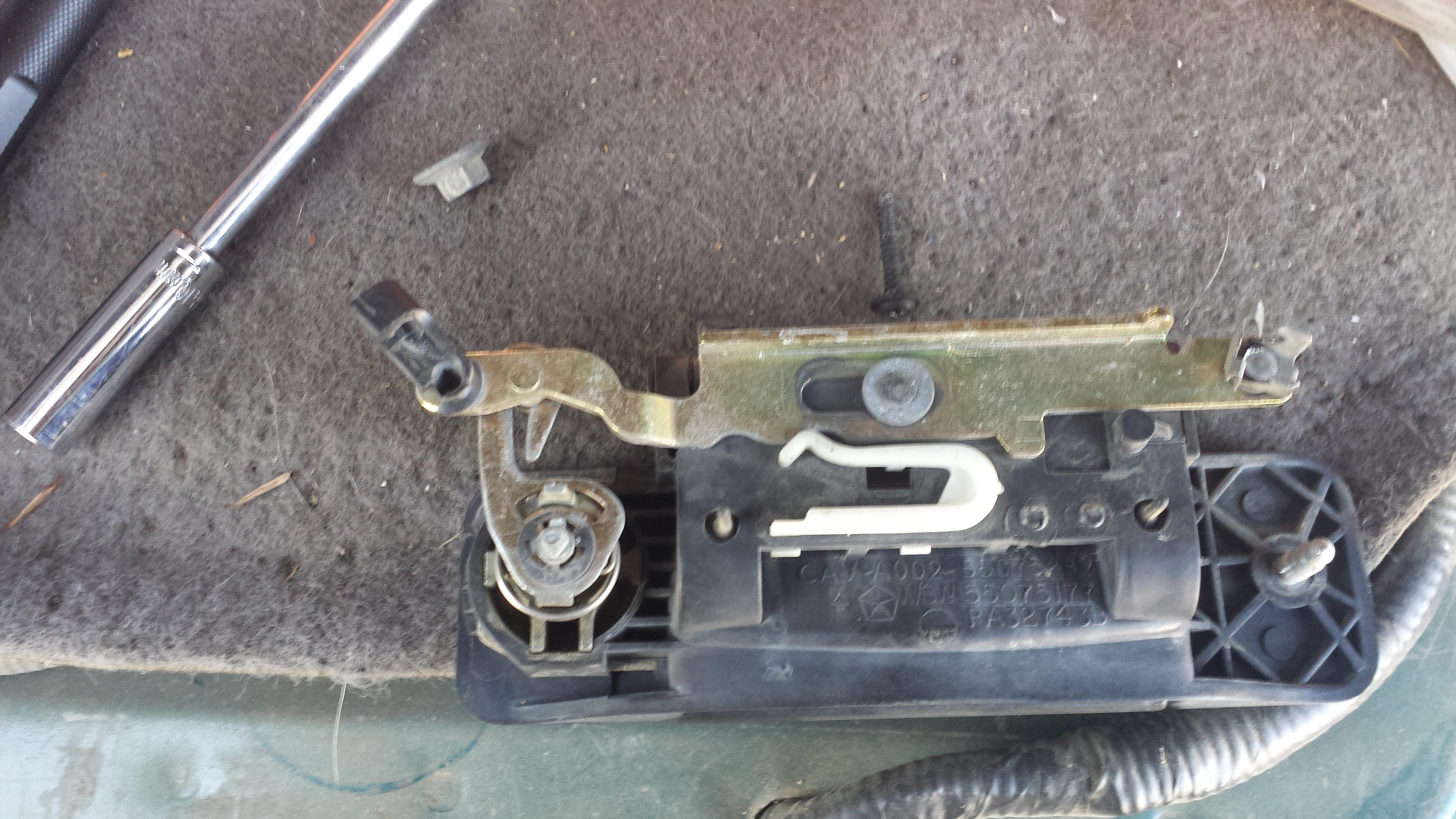

So here's the culprit:
...and here is where the issue was. That little hooked portion I'm pointing to was bent slightly out of whack...
After bending it back in place, I cleaned, lubed, reinstalled, put the clips back on, replaced the interior trim, verified operation, YAY! Key locks and unlocks with zero issues now. Then took it on a test drive with a friend:
Hope this helps anyone with the same issue!
OK, so solved my rear hatch not unlocking problem. So, here's what I started with:
Got my needed tools, didn't grab a pic of the cordless drill with phillips bit, sorry, LOL
So, it was suggested I check underneath where the striker is to see if I could access the bolts, to remove them and get the hatch open.
So, I'm in luck, right? WRONG. Took them out, and while I was able to move it, couldn't get it open as the bolts were too long. Here's what they looked like at the maxed out position:
So, I crawled in the back and pulled the middle section of the panel out next:
Just reached in and pulled the latch lever.
Success!
So then I got the interior panel off, and poked my noggin around inside, pulled the metal clip on the latch lever, and removed the solenoid rod...

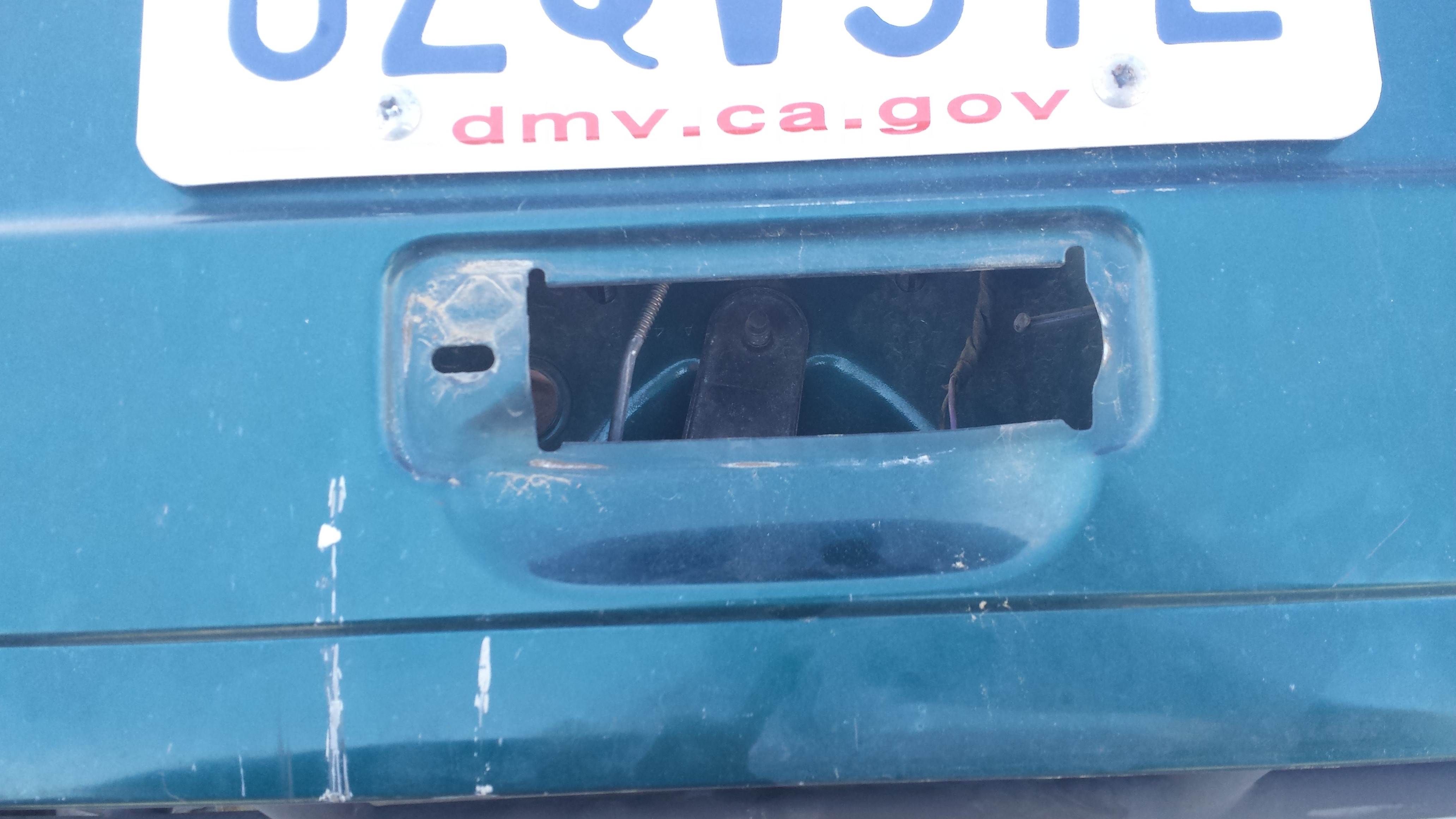

Removed the 10mm nut holding it in place and removed:
So here's the culprit:
...and here is where the issue was. That little hooked portion I'm pointing to was bent slightly out of whack...
After bending it back in place, I cleaned, lubed, reinstalled, put the clips back on, replaced the interior trim, verified operation, YAY! Key locks and unlocks with zero issues now. Then took it on a test drive with a friend:
Hope this helps anyone with the same issue!
