Tie rod end help.
#1
Junior Member
Thread Starter
Join Date: Mar 2016
Location: Goleta,ca
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L 6cyl
Tie rod end help.
I got a kit off ebay with the tie rod ends and ball joints. Im only changing the tie rod ends but one of the new ones has a flat end and my two old ones both have a "hump" end and the old right one also has that little screw
sticking out that also is on the bottom. The new ones dont have a side spotfor that screw. So is that ok and what are those screws for anyway?
sticking out that also is on the bottom. The new ones dont have a side spotfor that screw. So is that ok and what are those screws for anyway?
#4
Old fart with a wrench
The grease fittings may be on the side, on the bottom, or not be there at all. Those are factory sealed with grease inside. I don't like sealed joints because they tend to not last long.
I hope you took length measurements before you took those apart.
I hope you took length measurements before you took those apart.
#6
CF Veteran
#7
Junior Member
Thread Starter
Join Date: Mar 2016
Location: Goleta,ca
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L 6cyl
Haha thanks for the vote of confidence guys. I changed the whole front end with my boyfriends help for muscle of course. I couldnt have done it alone. Im not some rookie but i dont know everything either. 45 yrs old and I never relied on a man to fix any car I ever owned Yes I measure/counted the threads before taking them apart. But I have a new problem. One of the ends is just flat out stuck. Its the one on driver side. I unscrewed the rod from it after no luck getting it out thinking it might make it easier with less wieght on it. No luck. Any ideas
on getting it out? Even a seperator wont help
on getting it out? Even a seperator wont help
Trending Topics
#8
Senior Member
Join Date: Mar 2012
Location: s.jersey
Posts: 643
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0

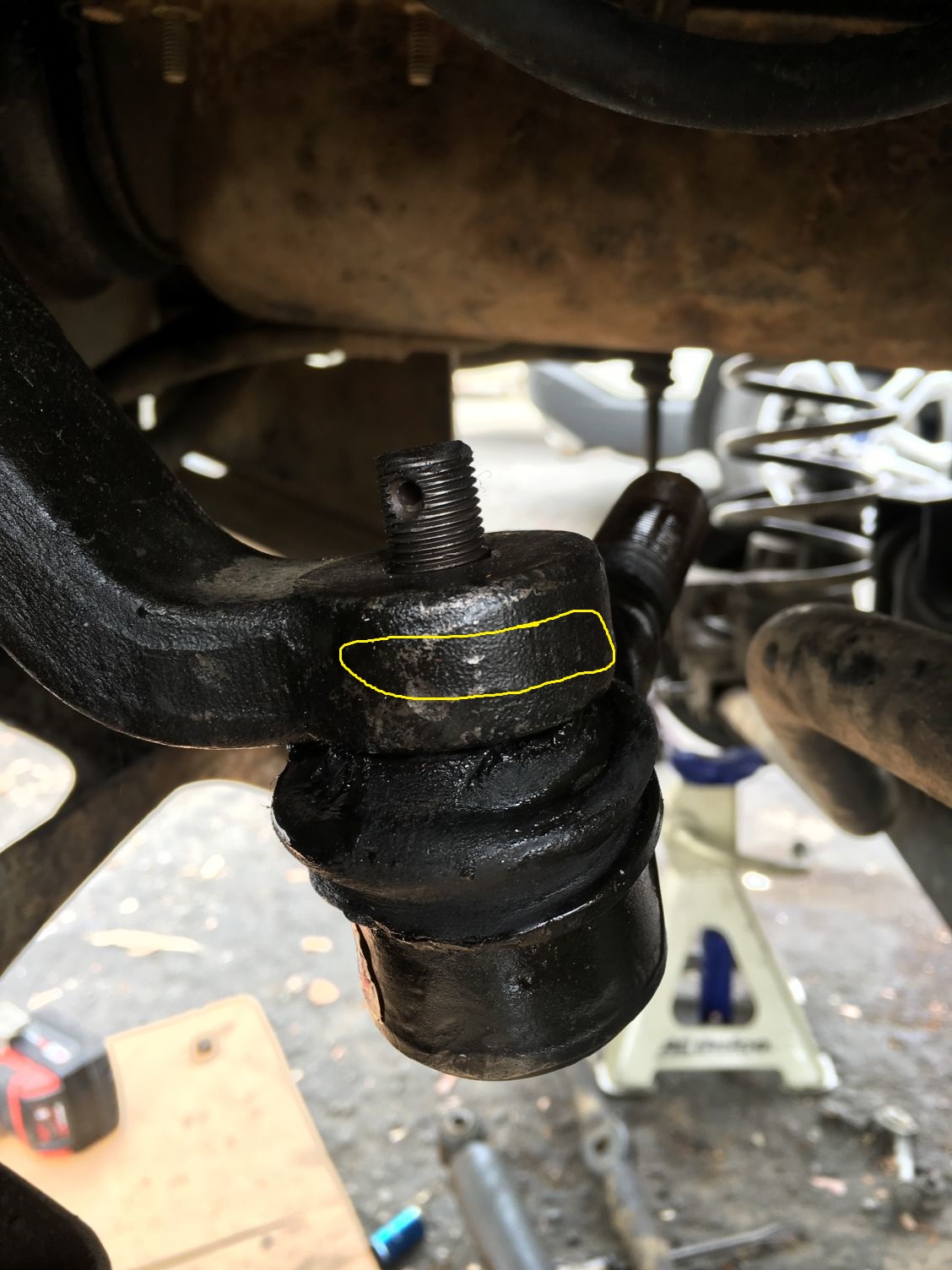

usually if you smack it a few good times where i put the yellow with a 3 lbs. hammer they will pop apart. or you can use the proper fork on it.. you'll need a smaller fork to work properly on that tie rod end.
#9
Senior Member
Join Date: Oct 2011
Location: Phoenix, AZ
Posts: 542
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0 L6
Omg... Measurements of old tie rod and drag link.... Totally messed up my alignment when I changed mine to all new moon parts and then tried to "eyeball it" for some reason .... I guess it's time to go measure the rods I've still got and fix this ****. Don't know what I was thinking...
OP, did you figure out what you wanted?
OP, did you figure out what you wanted?
#10
Senior Member
Join Date: Feb 2015
Location: South Georgia
Posts: 514
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0l
If i don't have a tool i usually go to Advanced or auto zone and rent it....it's free..you pay for the tool but get your money back after you return it or you could smack it with a hammer.
Last edited by peligro113; 06-05-2016 at 03:39 PM.
#11
CF Veteran
Agree, you can just buy one of these for like $14, and they are well worth it, no more smacking with hammers or pickle forks. A couple light taps and a couple turns of the screw and pop that baby out in no time and still reuse it if you can. A necessity in the toolbox. Also. would help to apply a little heat from a propane torch to the outside to make it expand, together with the tool. It has no chance of staying in then. But I think just the tool and maybe some penetrating oil will pop it.
Last edited by 97grand4.0; 06-05-2016 at 04:45 PM.
#12
Old fart with a wrench
Just a point of interest. A MAP gas torch is much hotter and you don't care about the rubber boot because it's getting replaced anyhow. That's the pitman arm, so maybe you can turn the steering wheel and get it out from under the body and wail on the TOP on it with a BMFH!
#13
CF Veteran
Just a point of interest. A MAP gas torch is much hotter and you don't care about the rubber boot because it's getting replaced anyhow. That's the pitman arm, so maybe you can turn the steering wheel and get it out from under the body and wail on the TOP on it with a BMFH!
#14
Junior Member
Thread Starter
Join Date: Mar 2016
Location: Goleta,ca
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L 6cyl
I got it out by calling in the muscle. I was trying to let him relax on a sunday. LOL We turned the wheel a bit and he gets it to pop right out. SMH lol
#15
Old fart with a wrench
