Default Need exploded view of rear axle.TIA

Hi All,

I have a GC AWD 4.0L 1997, the problem is the rear wheel bearing is worn out & my mate is a mechanic who is going to help me fit a new one.

What we need is a exploded view of the axle please so we can see how it all go's together...the reason being we don't wanna pull it apart till we know how it go's because we don't want it blocking up his workshop.

Thanks for you time...

Alan.
smirkymetalhead is offline   Reply With Quote
Old 06-16-2011, 02:57 PM   #2
Seasoned Member

Join Date: Apr 2011
Location: Outside of RTP NC
Posts: 431

View jronald's Photo Album My Photos
1993 Grand Cherokee
Default

We would need to know what axle you have.

In General:
There are 2 types of axles the world over (Dont go nuts people!)

#1 Type has a C Clip inside the center of the axle. You must take the cover off, and once again, generally remove a small bolt, that pulls a pin. Push the avle towards the center of the diff. then pull the clip out. Once the clip is out, you pull the axle out and the bearing stays with the tube. Pulling the bearing out of the tube is generally (once again) pretty easy.

#2 Type buried behind the brake backing plate on the end of the axle tube is a much smaller plate. It may be held on with separate bolts or the brake backing plate bolts. once these bolts are removed, the plate (and perhaps the brake backing plate) will slide off when you tug on the end of the axle. The bearing is is pressed onto the axle shaft and will need to be pressed off, and then pressed back on. Make sure the retaining plate is reinstalled BEFORE the new bearing.

Ron
__________________
I see in my son's eyes, each day, the wonders I have squandered fortunes to possess and have sought my entire lifetime to attain.
jronald is offline   Reply With Quote
Old 06-17-2011, 03:42 AM   #3
Junior Member

Join Date: May 2011
Location: Guernsey, Channel Islands
Posts: 32

View smirkymetalhead's Photo Album My Photos
1997 Grand Cherokee
Default

Hi,

Sorry i didn't know there was more than one type of axle, i will take a photo of it later.

Regards Alan...
smirkymetalhead is offline   Reply With Quote
Old 06-17-2011, 06:24 AM   #4
Seasoned Member

Join Date: Apr 2011
Location: Outside of RTP NC
Posts: 431

View jronald's Photo Album My Photos
1993 Grand Cherokee
Default

No worries, as I said regardless of the axle, it will either be a floating bearing, or a pressed on. The trick is figuring out which one.

Ron
__________________
I see in my son's eyes, each day, the wonders I have squandered fortunes to possess and have sought my entire lifetime to attain.
jronald is offline   Reply With Quote
Old 06-17-2011, 09:07 AM   #5
CF Veteran


wildspear's Avatar

Join Date: May 2010
Location: Western Michigan
Posts: 1,675

View wildspear's Photo Album My Photos
1993 Grand Cherokee
Default

It should be a dana 35. here is a pic

Click the image to open in full size.

I got the pic from Morris 4x4 center
http://www.jeep4x4center.com/grand_cherokee/menu.htm
__________________
Jeep Blessing 2013-
http://cadillacjeepers.com/jeep-blessing/

ZJ- wildspear
http://grandzebra.blogspot.com/
Michigan Jeepers
http://www.cherokeeforum.com/groups/michigan-jeepers/

Mud, it's not just wet dirt.....it's a way of life!

http://www.cherokeeforum.com/f59/cou...heeling-11829/
wildspear is offline   Reply With Quote
Old 06-17-2011, 10:29 AM   #6
Seasoned Member

Join Date: Apr 2011
Location: Outside of RTP NC
Posts: 431

View jronald's Photo Album My Photos
1993 Grand Cherokee
Default

The Dana 35 appears to be a Type#1 axle. Look at number 18. That appears to be the clip.
As I said there should be a fairly small bolt, holding a large pin. Removing the pin allows the axle to be pushed in to pull the c clip. All of this is going on 10 (15) year old memory, but its pretty straight forward once you get in there.

Ron
__________________
I see in my son's eyes, each day, the wonders I have squandered fortunes to possess and have sought my entire lifetime to attain.
jronald is offline   Reply With Quote
Old 06-18-2011, 08:00 AM   #7
Junior Member

Join Date: May 2011
Location: Guernsey, Channel Islands
Posts: 32

View smirkymetalhead's Photo Album My Photos
1997 Grand Cherokee
Default

Thank you all for your help...

Alan...
smirkymetalhead is offline   Reply With Quote
Old 06-18-2011, 08:04 AM   #8
Junior Member

Join Date: May 2011
Location: Guernsey, Channel Islands
Posts: 32

View smirkymetalhead's Photo Album My Photos
1997 Grand Cherokee
Default

Sorry to ask this noob question, is this dana axle got LSD

Thanks
smirkymetalhead is offline   Reply With Quote
Old 06-18-2011, 02:56 PM   #9
Seasoned Member

Join Date: Feb 2011
Location: Fort Knox, KY
Posts: 318

View blackjack12982's Photo Album My Photos
1994 Grand Cherokee
Default

Quote:
Originally Posted by smirkymetalhead View Post
Hi,

Sorry i didn't know there was more than one type of axle, i will take a photo of it later.

Regards Alan...
You need to ID the axle first.

US model ZJ's came with D44HD's (or more commonly known over here as D44a's) and D35's. Export model ZJ's have been known to come with iron D44's. Is your ZJ an export model or a US version.

Each one of the axles have an option for an LSD.
__________________
1994 ZJ w/ 5.2, rebuilt 46RH, 231 swap, HP30 swap regeared to 3.73, homemade rock sliders, roof rack w/ 4 Hella's, K&N FIPK, Mopar Performance PCM, trimmed fenders, F>R swap w/ 2" BB, and 35" KM2's.
blackjack12982 is offline   Reply With Quote
Old 06-18-2011, 03:20 PM   #10
Seasoned Member

Join Date: Apr 2011
Location: Outside of RTP NC
Posts: 431

View jronald's Photo Album My Photos
1993 Grand Cherokee
Default

If its a LSD you will have an assembly that looks like #9 instead of #7.

Quick dirty way to tell is to jack up the entire rear axle. Turn one wheel one way. The other wheel should turn the same way if its LSD.

Ron
__________________
I see in my son's eyes, each day, the wonders I have squandered fortunes to possess and have sought my entire lifetime to attain.
jronald is offline   Reply With Quote
Old 06-21-2011, 03:58 AM   #11
Junior Member

Join Date: May 2011
Location: Guernsey, Channel Islands
Posts: 32

View smirkymetalhead's Photo Album My Photos
1997 Grand Cherokee
Default

Hi All...

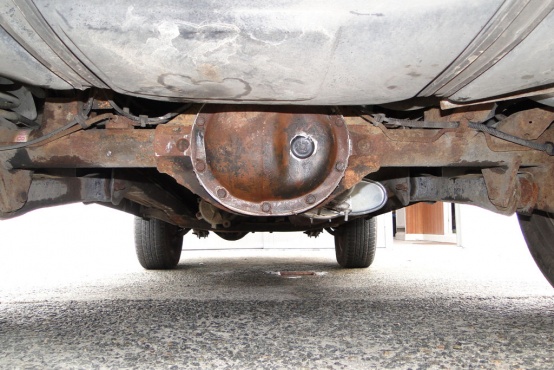

Just to confirm which axle i have before i order my wheel bearing, here is a pic of it.
Attached Thumbnails
Need exploded view of rear axle.TIA-dsc00481.jpg
smirkymetalhead is offline   Reply With Quote
Old 06-21-2011, 04:11 AM   #12
Seasoned Member

Zj heep's Avatar

Join Date: Apr 2011
Location: muskogee ok
Posts: 458

View Zj heep's Photo Album My Photos
Grand Cherokee
Default

You have a Dana 35.
Zj heep is offline   Reply With Quote
Old 06-21-2011, 04:40 AM   #13
Junior Member

Join Date: May 2011
Location: Guernsey, Channel Islands
Posts: 32

View smirkymetalhead's Photo Album My Photos
1997 Grand Cherokee
Default

thanks for the help...much appreciated.

Alan....
smirkymetalhead is offline   Reply With Quote
