the resurrection of an XJ.
#16
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

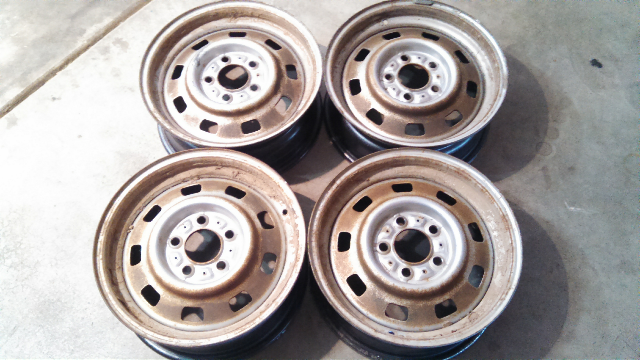

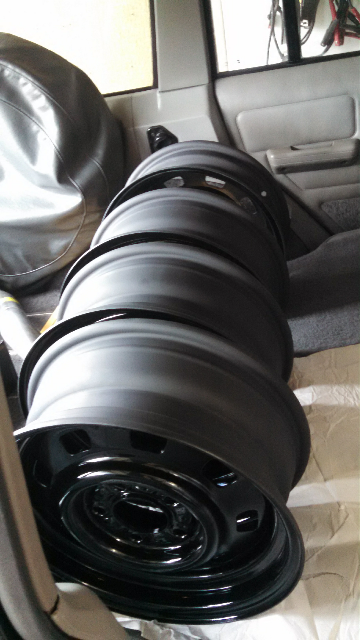

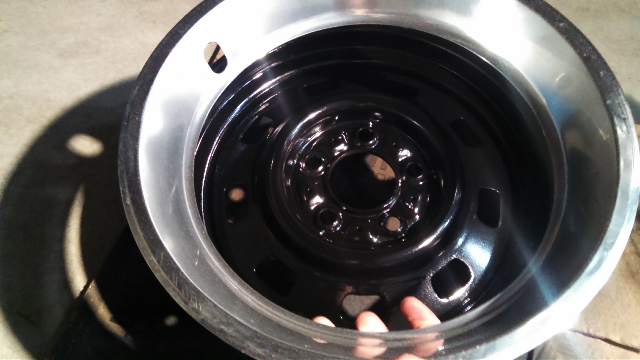

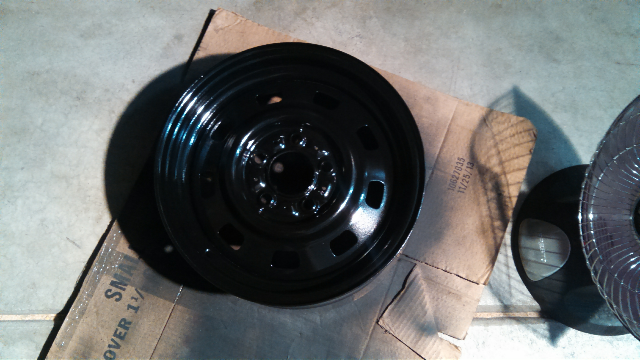

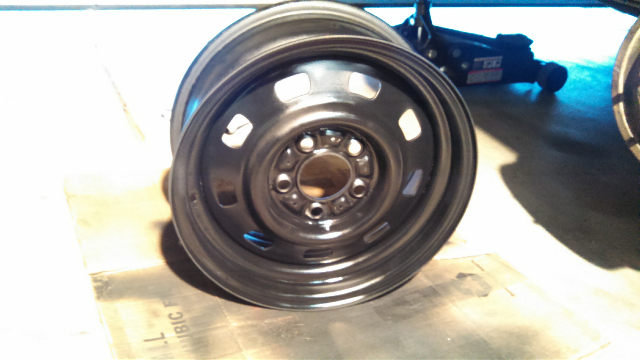

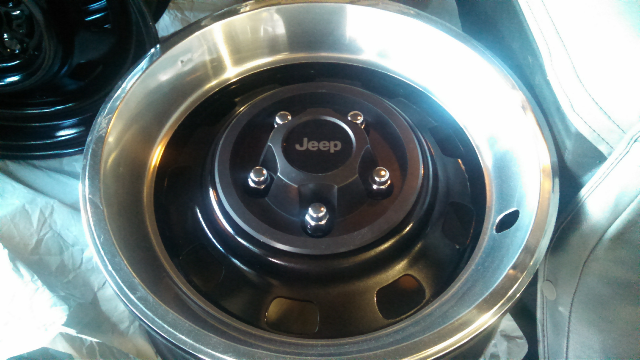

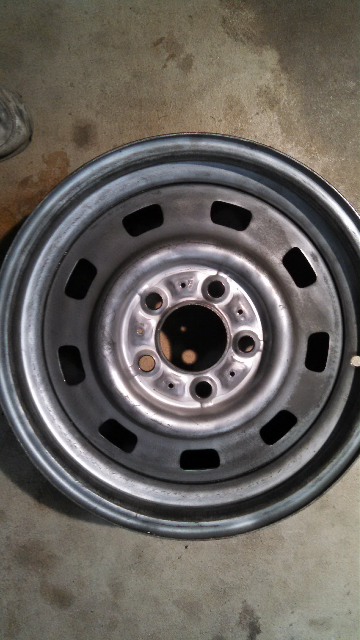

I took the tires off and was happy to find that overall they were pretty rust free. What you see on the face was ver minimal cosmetic rust. In fact I spent more time getting rid of dirt than I did rust. In the end it turned out well.
Last edited by mike8301; 12-22-2014 at 12:02 PM.
#17
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker
#18
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

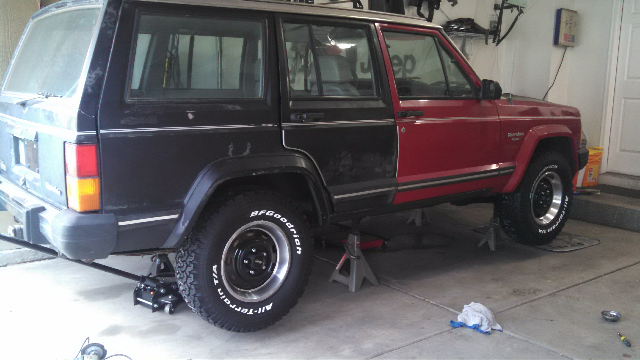

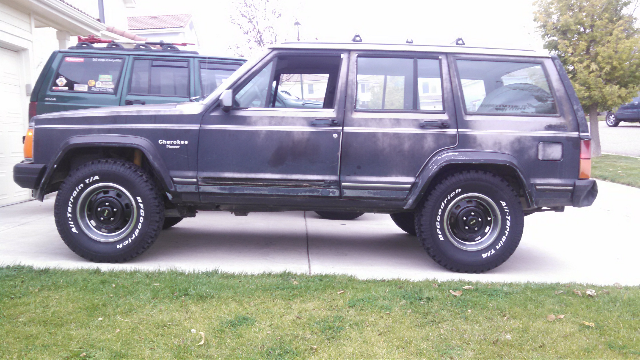

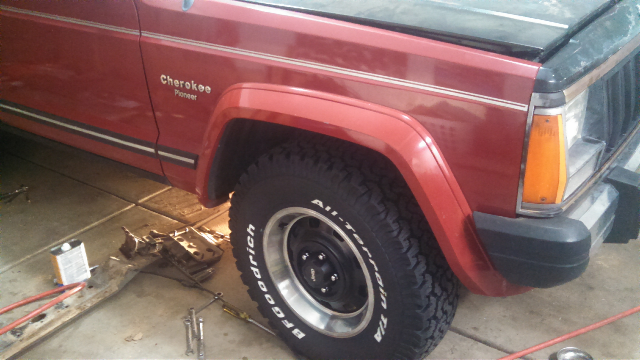

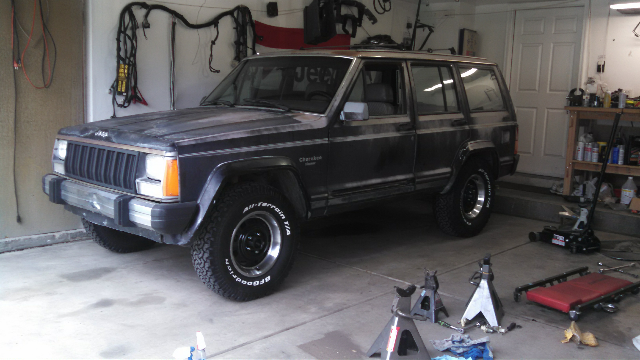

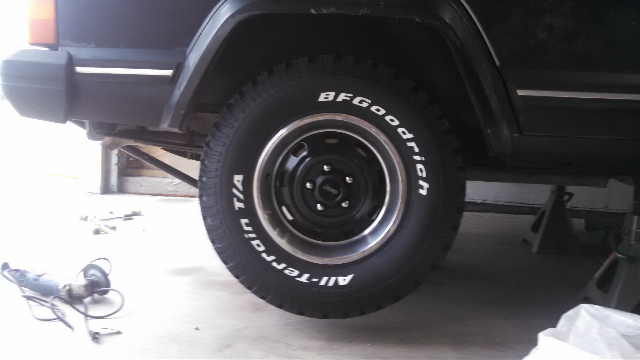

I decided to go with a set of 30x9.5xR15 BFG A/T KOs for my choice of tire. The 9.5" allowed me to use the stock rims and have no rub.
#20
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

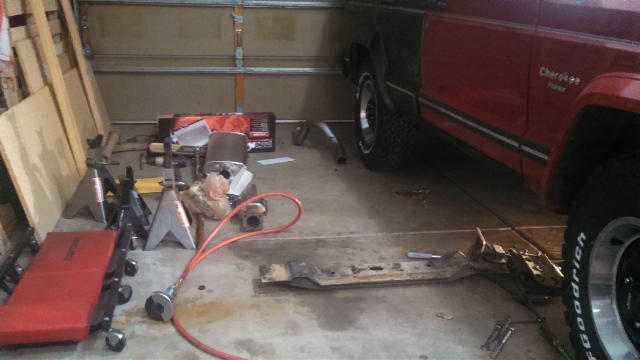

Next I finally got around to putting my new exhaust on. This kit was a bolt on which made it fairly easy in comparison. However getting my old cat off, took some excessive hits with a BFH so I could keep the studs on the pipe. But I ended up having to cut one off so I just put new ones in.
#21
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

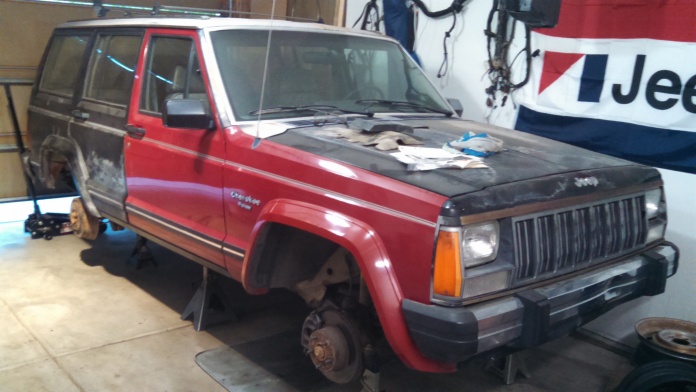

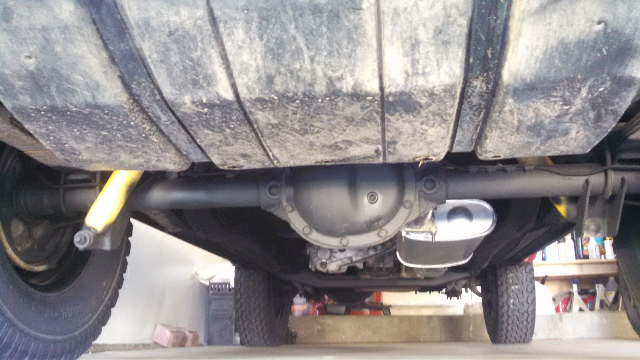

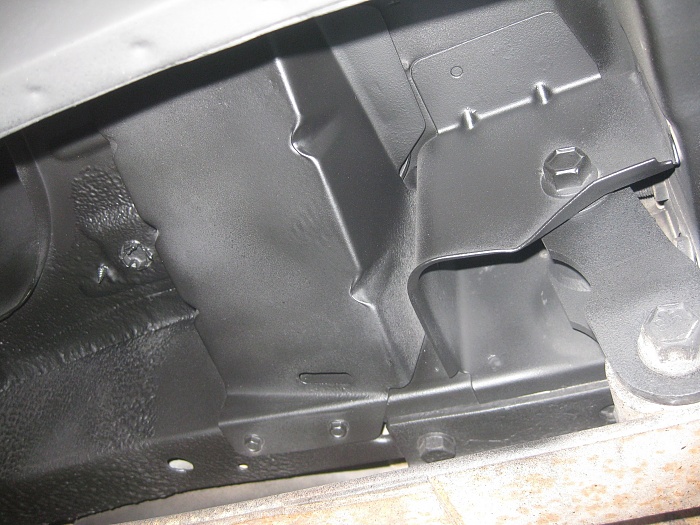

As you can see from my last post, a new exhaust isn't the only thing I've been up to. Before I put it in I wanted to remove every bit of rust from this jeep. There was some minor cancer on the rear quarter panels that did require some grinding and sanding to eliminate. I started there and then proceeded to do the entire underside.
Last edited by mike8301; 12-19-2014 at 08:27 PM.
#22
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker
I did front and rear and even most of the transmission tunnel.
Last edited by mike8301; 12-18-2014 at 12:49 AM.
#23
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

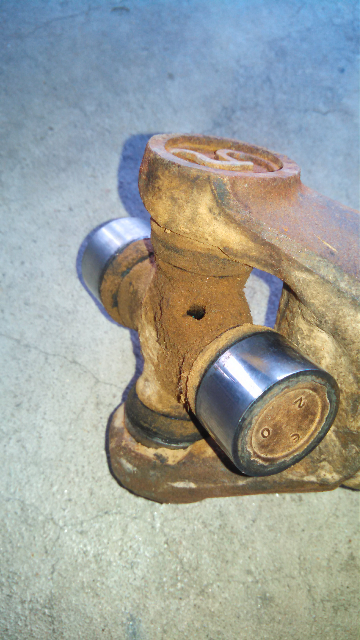

I came across only one bad ujoint. I am glad I caught it as the ujoint was bad, straps were worn out and the yoke was broken. It was just waiting to explode.
#24
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

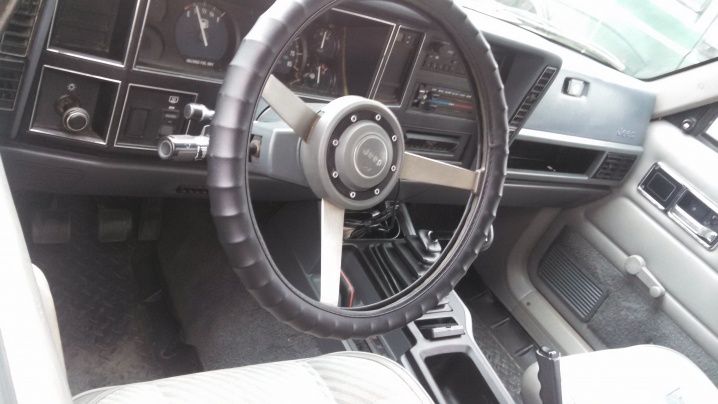

After all of this I was waiting for some money to get it smogged and its plates. For $100 I picked up an overhead console, dash trim, full set of gauges, a tire, heater controls and some other minor things. This gave me time to fix an issue with the steering column, get wipers working, heater core cleaned out further.
#25
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

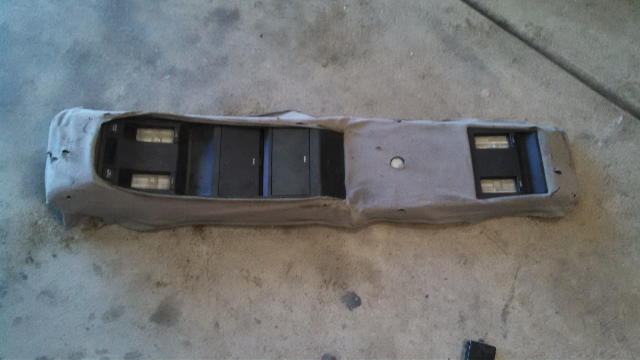

This overhead console was from a 91 xj and didn't have a harness or bracket. I went to the junkyard once again and found the connector I needed and bracket for $10 and got to work. I also had left over fabric from redoing my 2000xj headliner.

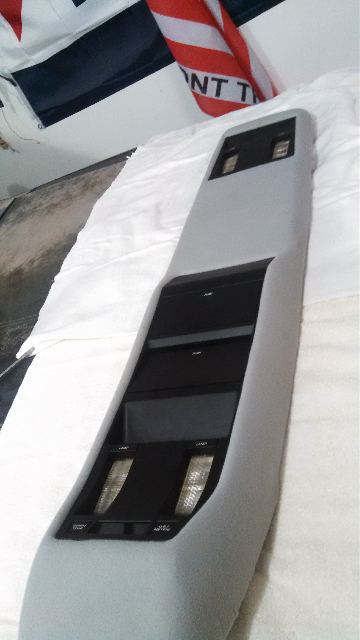

The first thing I did was to recover the console, which was easy and it didn't take long. I removed the keyless entry circuit board and covered that hole as mine is all manual doors and windows. I then set out to make a wiring harness for it and get it in.
The first thing I did was to recover the console, which was easy and it didn't take long. I removed the keyless entry circuit board and covered that hole as mine is all manual doors and windows. I then set out to make a wiring harness for it and get it in.
Last edited by mike8301; 12-22-2014 at 12:09 PM.
#26
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

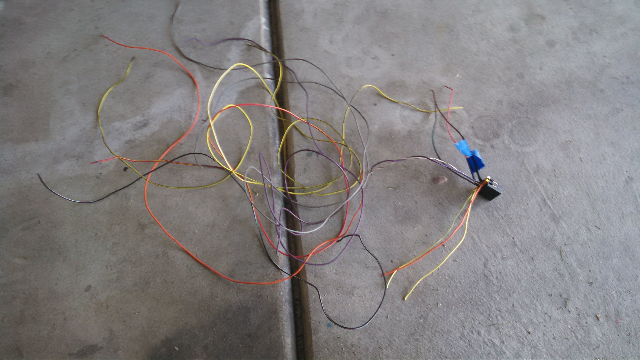

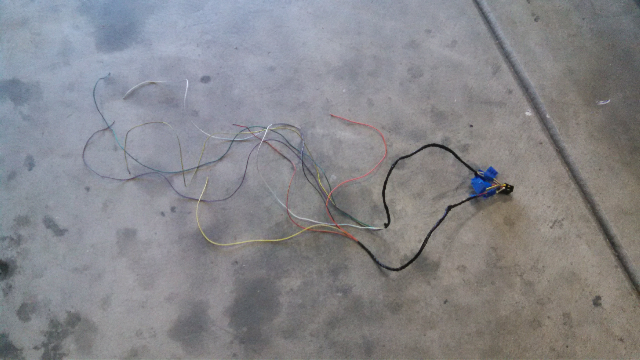

Using just the factory dome light wires and my connector I used a wiring diagram to sort out what needed to go where. I had a box of wires from an old engine harness that I used to get the right length and gauge of wire so I set out to make a harness. I got it nicely soldered and heat shrink insulation on and wrapped it with electrical tape.
Last edited by mike8301; 12-22-2014 at 12:11 PM.
#27
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

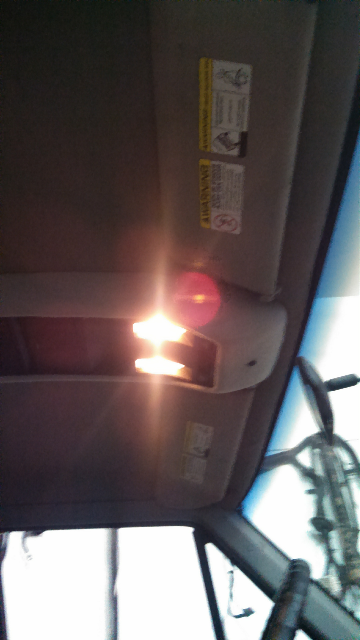

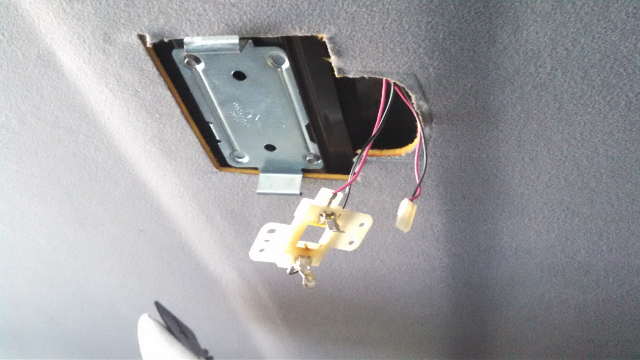

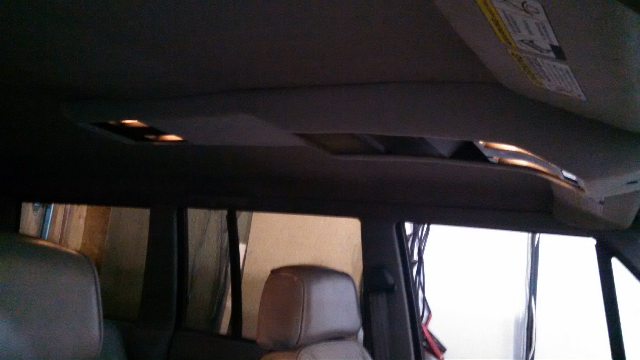

I went with a bracket from a ZJ that had a similar console. I still had to modify it a bit to fit the XJ, but for about $10 it was pretty reasonable. I did that and got my console in. I also picked up a set of visors from a 2000 xj since the '89 visors were too long to accommodate a console. I found that I only had to drill a hole for each of the visor clips and one for the overhead console as the '91 and older apparently never had the option.
I did manage to come across an xj console recently that had a bracket in the front. I didnt have that either, but I used a long wood screw. It was a good 2 1/2 inches long and it did the job nicely.
I did manage to come across an xj console recently that had a bracket in the front. I didnt have that either, but I used a long wood screw. It was a good 2 1/2 inches long and it did the job nicely.
Last edited by mike8301; 12-22-2014 at 12:13 PM.
#28
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

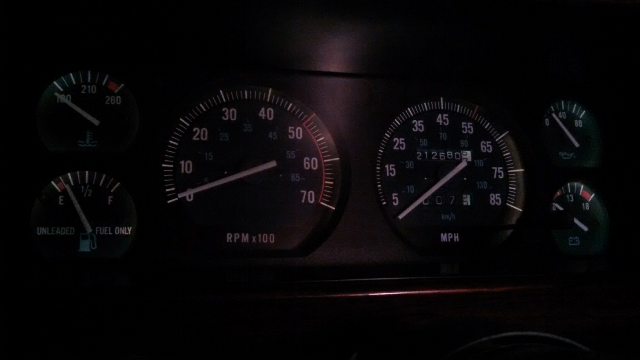

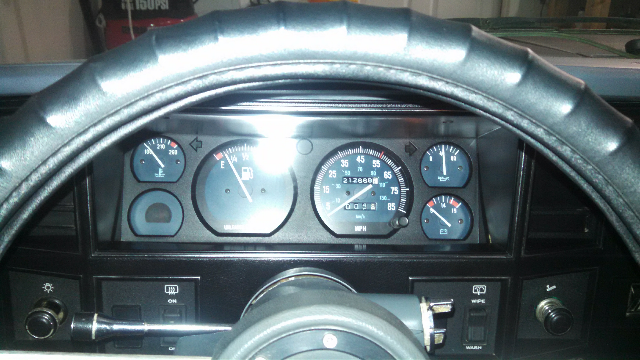

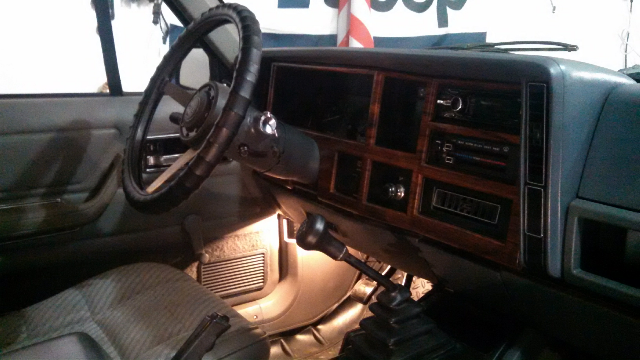

I took the time to replace my dummy gauges with the full set that I got for $10-$20 and put in the dash trim and a new radio. I picked up the iPod control radio by Sony for $80.
Last edited by mike8301; 12-22-2014 at 12:15 PM.
#29
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker

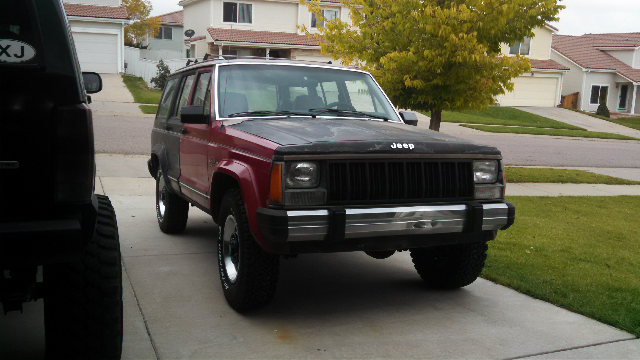

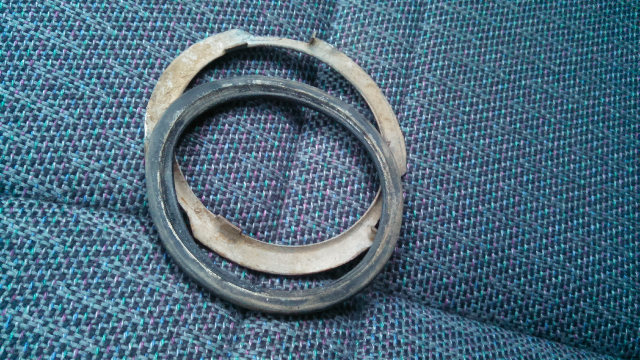

I finally got it registered and on the road. Unfortunately as soon as I filled it up with gas, it started to dump fuel out of the tank due to a shot o ring and there was a hole on the fuel pump assembly the the previous owner used puddy to fix. So I ended up having to order an entire fuel pump assembly to fix that. In the meantime I pumped out the excess fuel and ran on a half tank for a week and it didn't leak or have excessive fumes to worry about.
Last edited by mike8301; 12-18-2014 at 12:55 AM.
#30
Junior Member
Thread Starter
Join Date: Oct 2009
Location: Denver
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I6 4.6L Stroker
I was driving home a week ago and I had the fuse blow for the radio. Come to find out my entire circuit was grounded. As I traced wires back, the entire harness to include the battery cables were grounded. I found numerous problems with worn or missing insulation, but I did take the time to completely redo the wiring harness, hoses for the vents behind the dash, replace a leaking clutch master cylinder and more. Busy week!
