Project never done
#48
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster

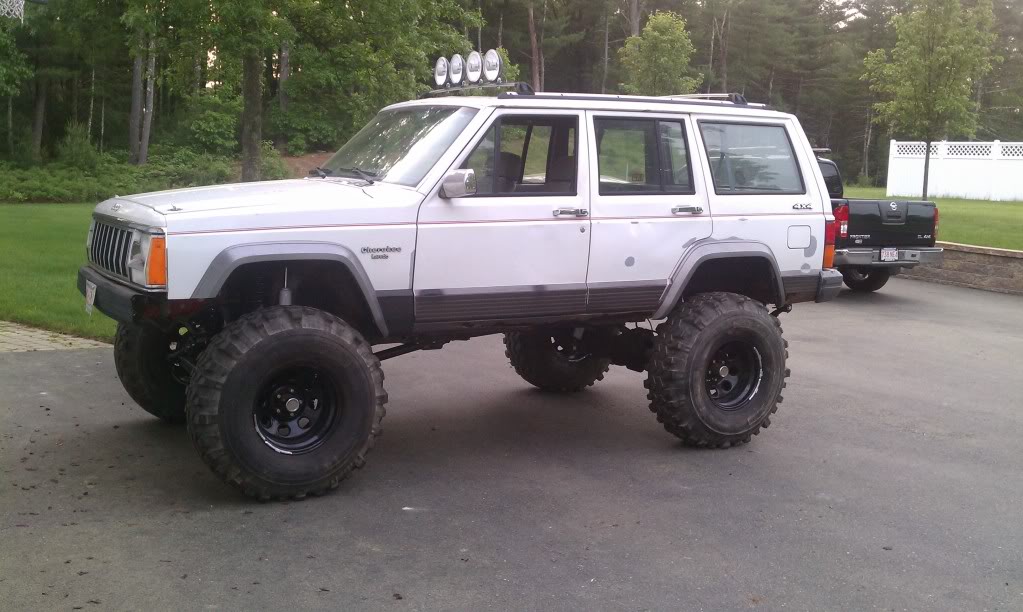

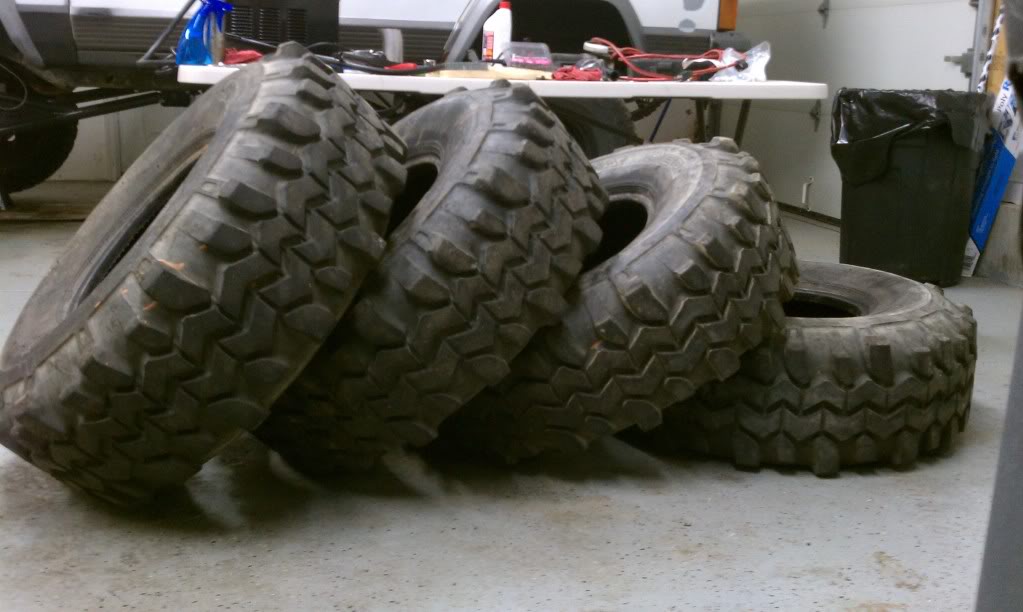

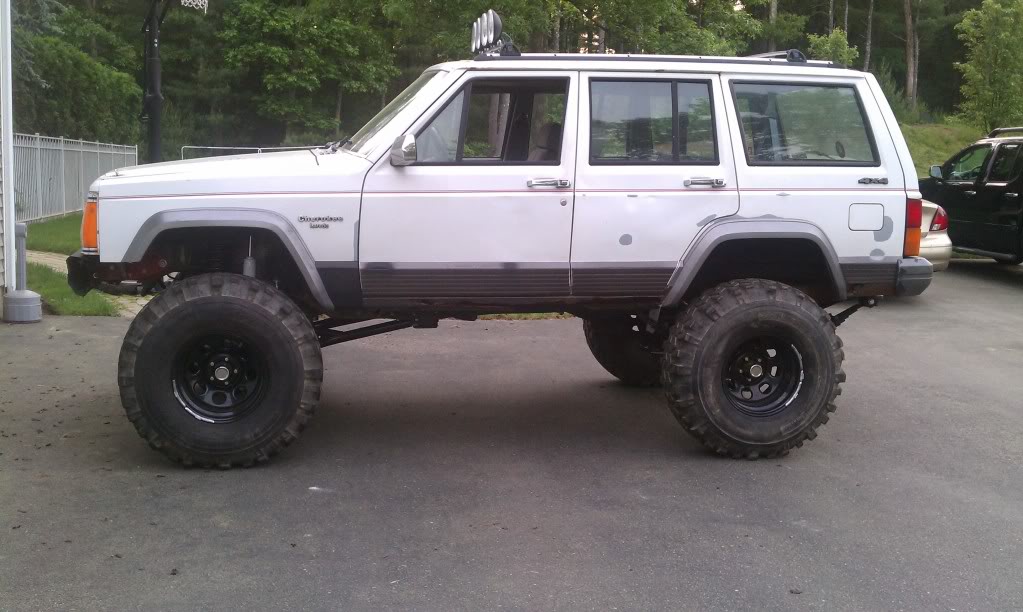

Looks much better with 36's i think. I plan on getting 37 inch iroks when I have some extra cash.
#50
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster
#51
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster

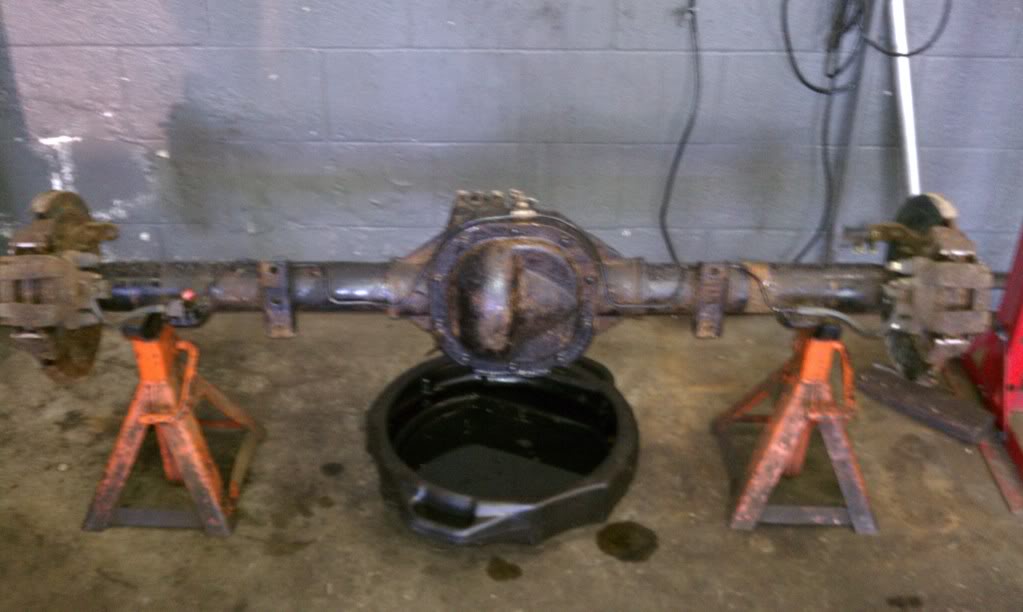

36's and stock gears weren't working out very well so i got this Ford 8.8 out of an explorer from a junkyard near me.
#54
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster

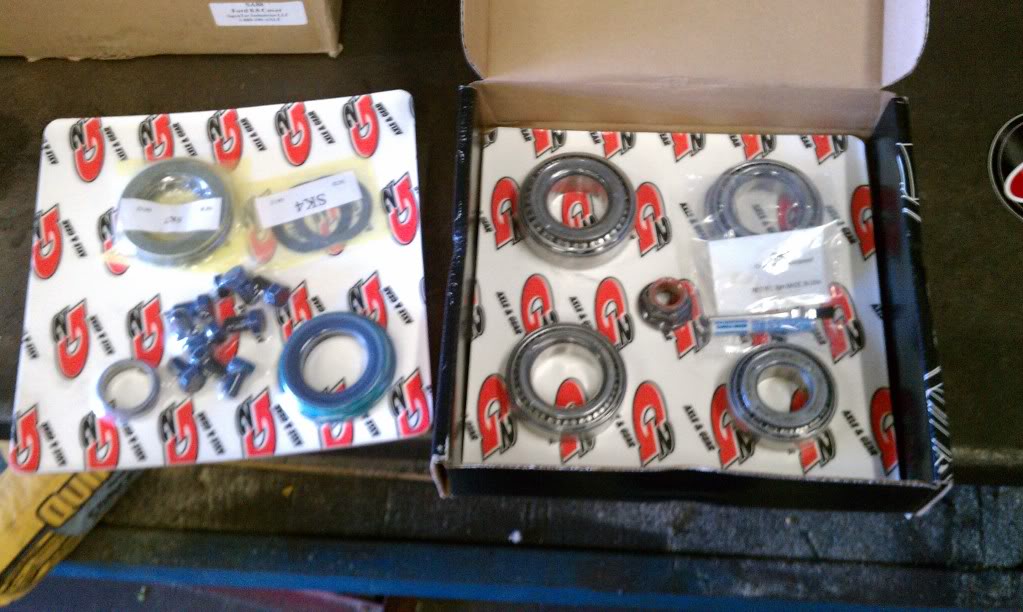

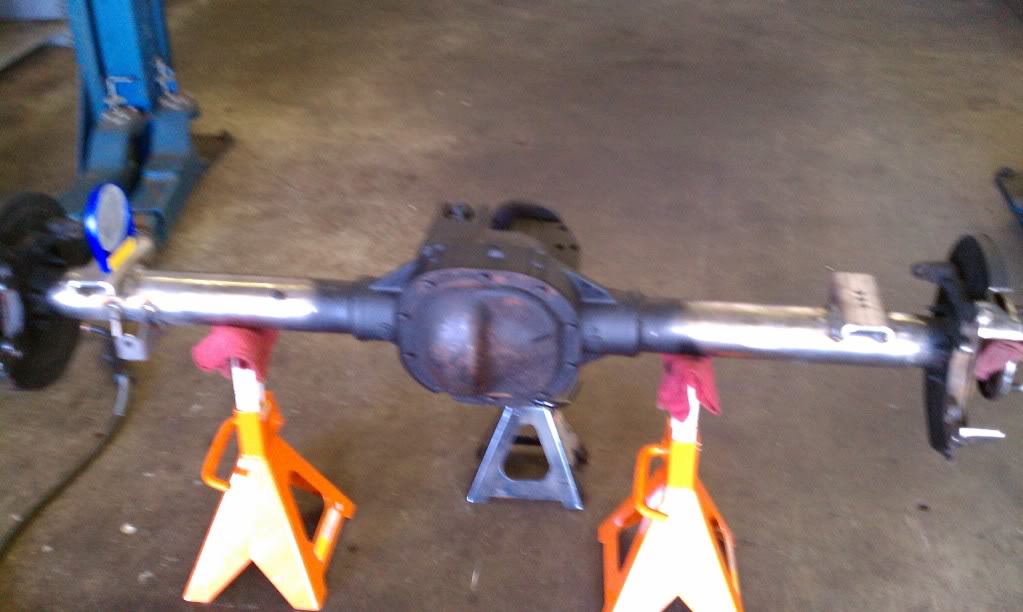

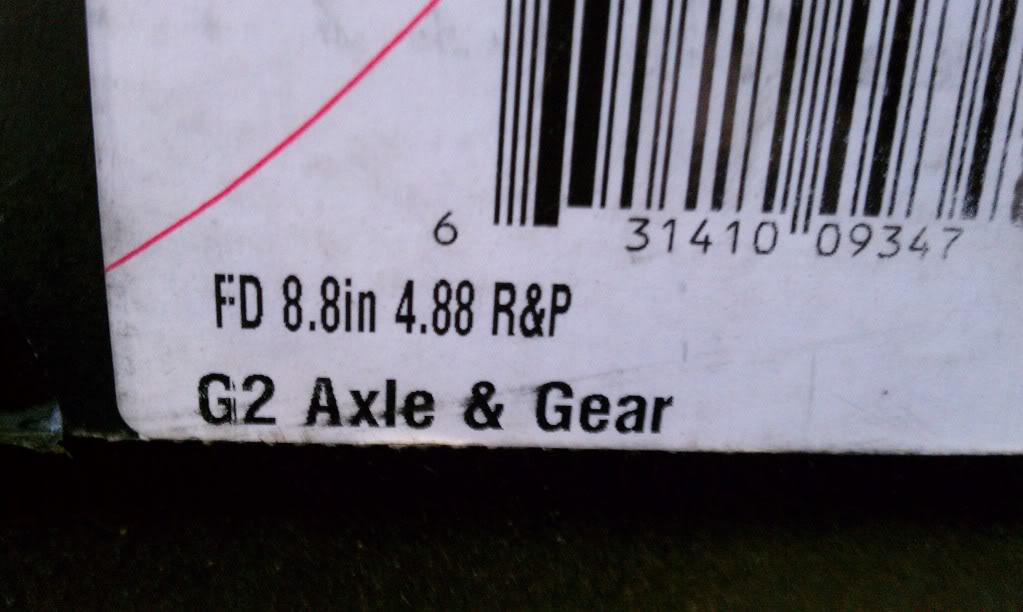

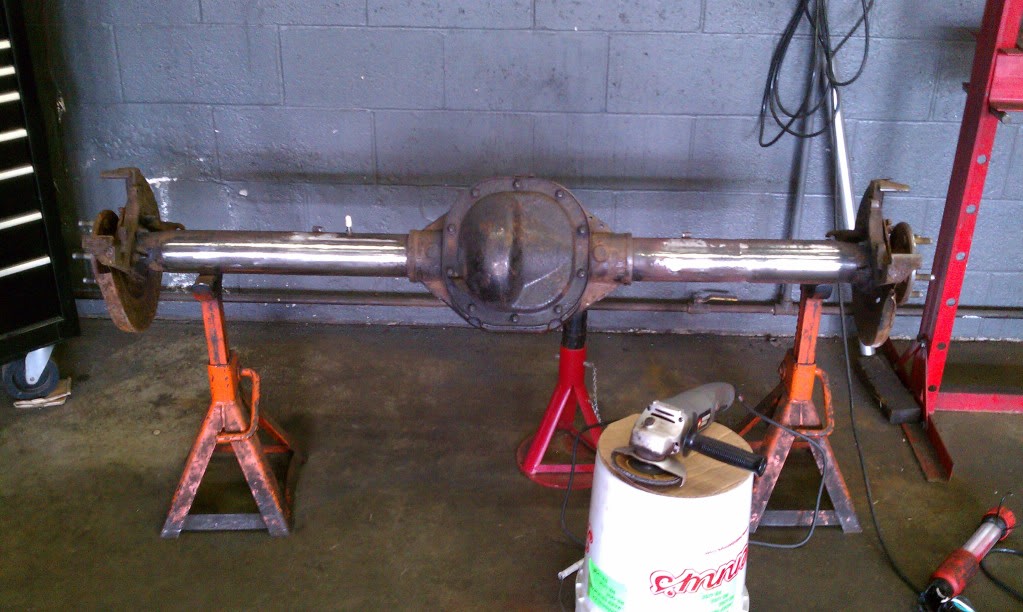

Torched off all the mounts and cleaned up the tubes then brought it down to a mustang shop down the street to get the gears installed. They also replaced the outer axle bearings which were not included in the master kit. I lucked out with the rotors and gave em a cut on the brake lathe to give em a nice new surface. The calipers were also good. Not to bad for $150 and a 6 month warranty.
#55
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster

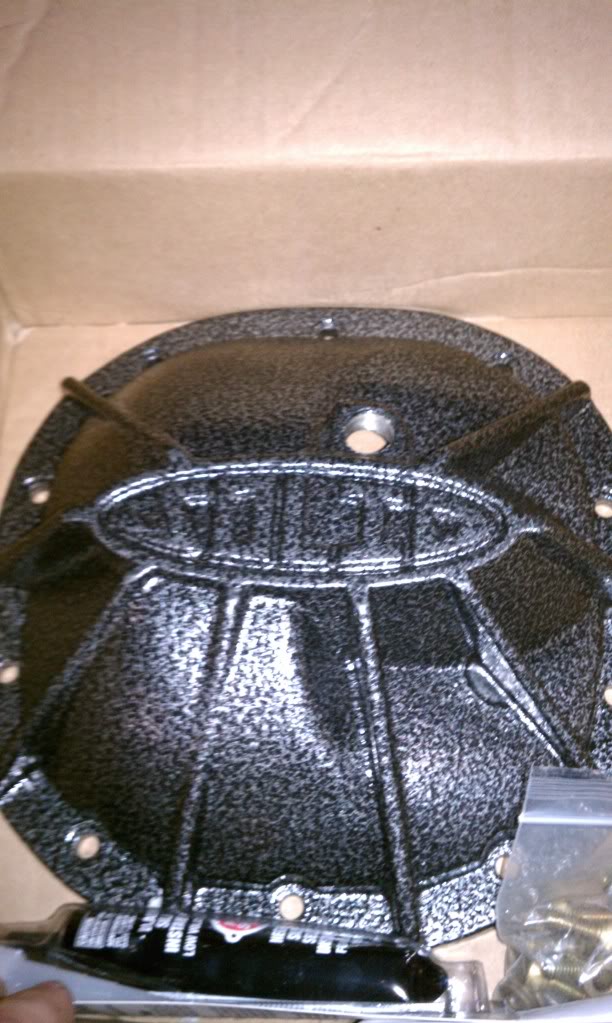

Got a solid diff cover for the 8.8. Also got the IRO swap kit. It comes all the shock mounts, spring perches, u bolts, and u bolt plates. Also comes with a truss to beef things up.
Last edited by justin92xj; 04-20-2013 at 07:22 PM. Reason: mis spelling
#56
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster
Got my pinion angle set and burned in the spring perches.
#57
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster

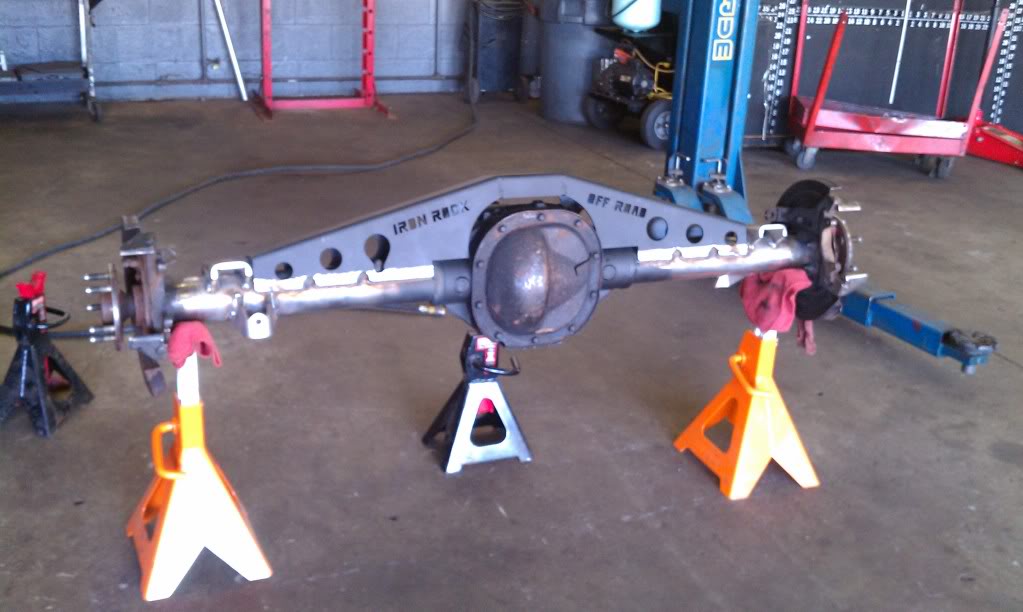

Next was the truss and shock mounts. Had to remove some material from the truss on the ends so the u bolts would fit and also had to cut out a little bit on the bottem of one of the holes so the vent tube would clear.
#59
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster

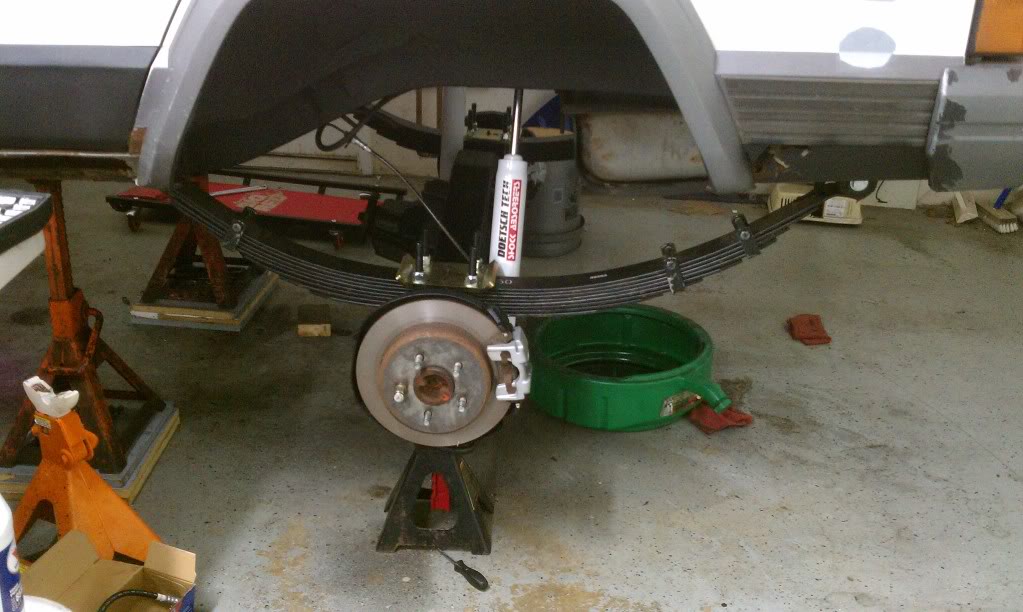

Fits peerfect. I also cleaned up the calipers and sprayed em with silver caliper paint. For the axle I used duplicolor bedliner.
#60
Seasoned Member
Thread Starter
Join Date: Jan 2012
Location: Massachusetts, southeast
Posts: 433
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L, brown dog mounts, spectre cowl intake, 10 series flowmaster
