Not really sure what to say, that hasn't already been said during 1,000 lift installs. So I'll just post pictures and feel free to ask any questions that you may have.
#17
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L

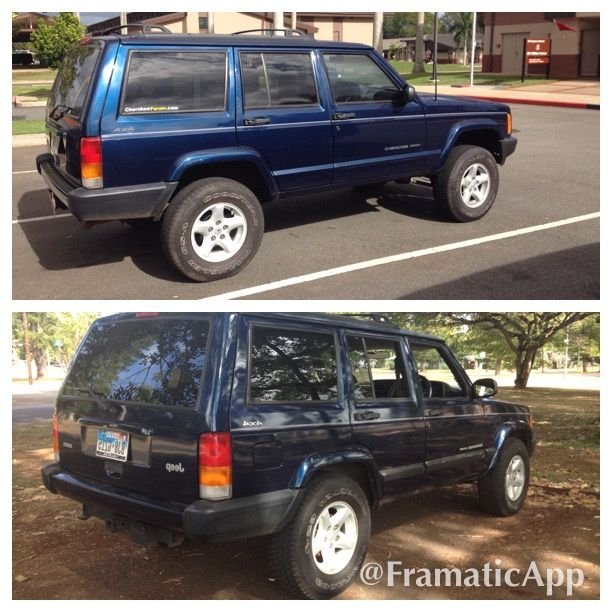

I kinda see-sawed my lift install up to ~4" or so, here is how.
3" leaf packs in the rear
3.5" Coils up front with 3" leaf packs in the rear
3.5" Coils up front, 3" leaf packs with Relo brackets and 1" lift boomerang shackles
3.5" Coils with .75" spacers and 3" springs with relo brackets and boomerang shackles for a total of around 4"-4.25" of lift
3" leaf packs in the rear
3.5" Coils up front with 3" leaf packs in the rear
3.5" Coils up front, 3" leaf packs with Relo brackets and 1" lift boomerang shackles
3.5" Coils with .75" spacers and 3" springs with relo brackets and boomerang shackles for a total of around 4"-4.25" of lift
Last edited by ss427ci; 02-24-2016 at 11:05 AM.
#18
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L

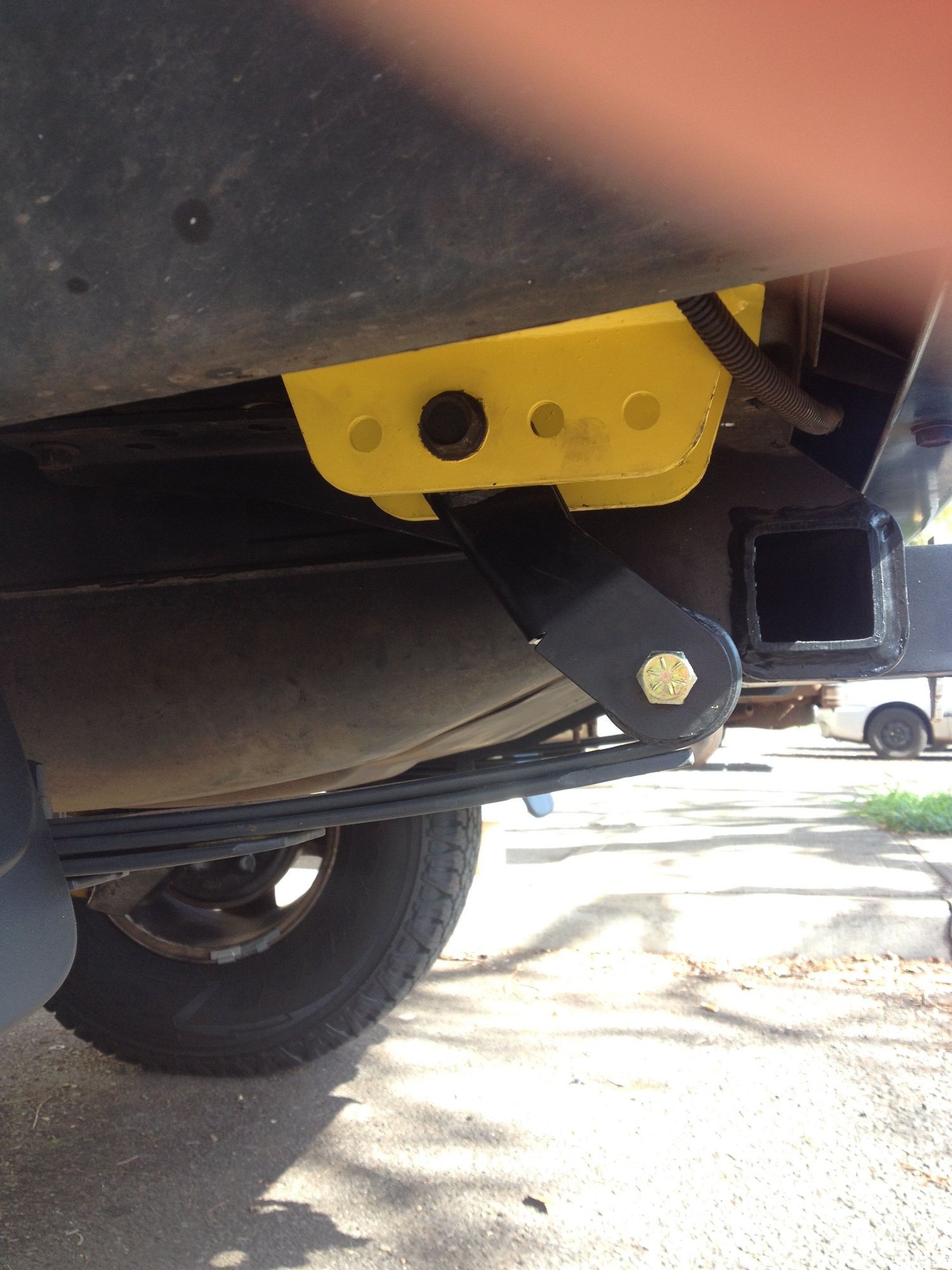

After I installed the rear springs I could tell right away, relocation brackets were necessary. I don't see how so many people are running without them. My stock shackle was pulled so far forward from the curve in the springs that there was no room for it to flex, rendering my rear suspension worthless. Not to mention the bone jarring ride in the rear. Luckily I had already removed the 3rd leaf from my packs in anticipation of this probability. The ride and flex improved dramatically. I went with LII brackets because of their short angled design, allowing the boomerang shackle design more compression than other designs. It pushed my lift higher than I would have liked, but we will see where it sits after bumpers and armor, I always have the extra leaf if things start to sag as well.

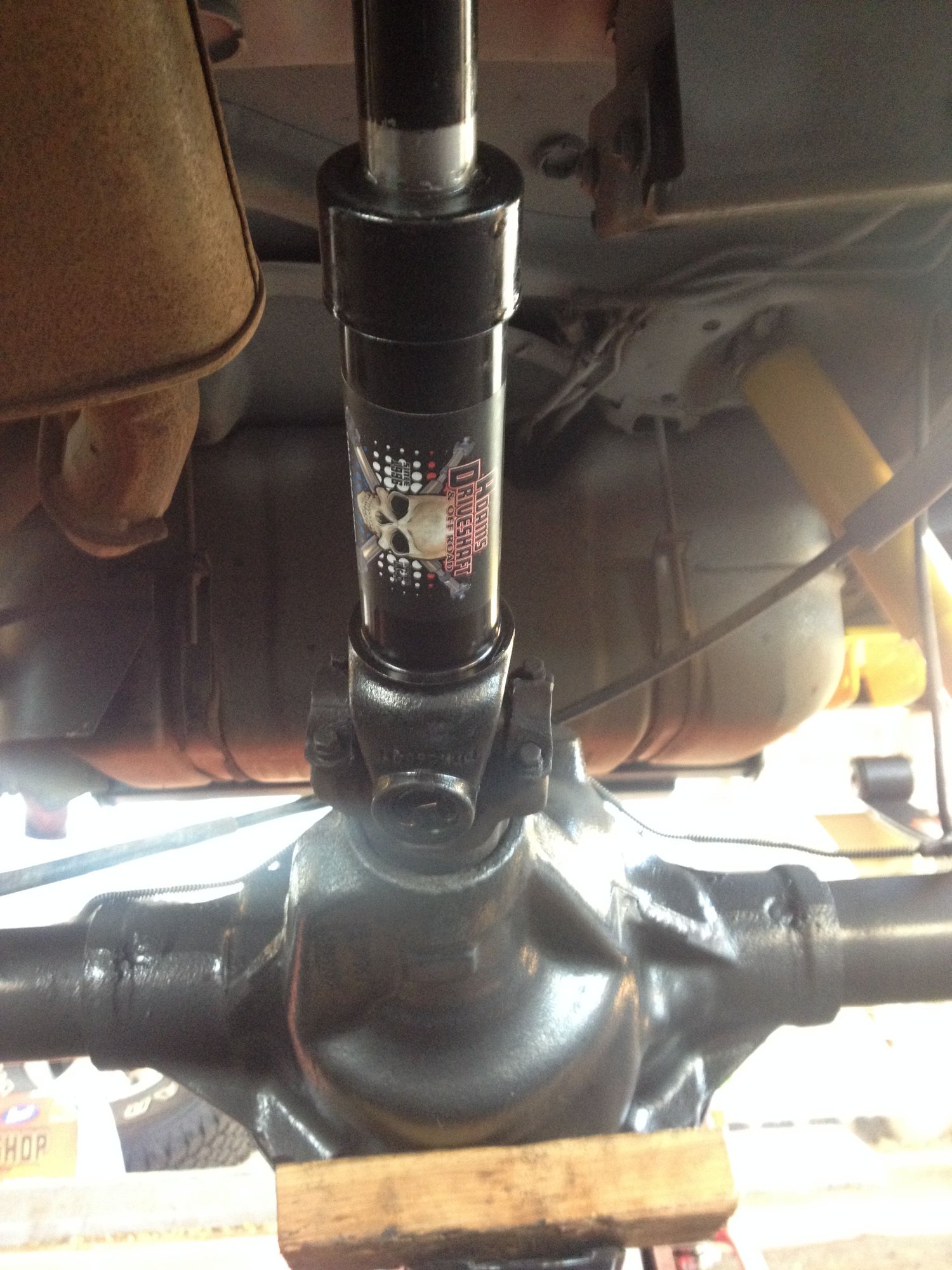

Adam's Driveshaft. I paid for shipping from Vegas to Hawaii, instead of going to the local 4wheelparts store, based on my phone conversations with them and their reputation. Great people and a great product.
Adam's Driveshaft. I paid for shipping from Vegas to Hawaii, instead of going to the local 4wheelparts store, based on my phone conversations with them and their reputation. Great people and a great product.
#19
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L

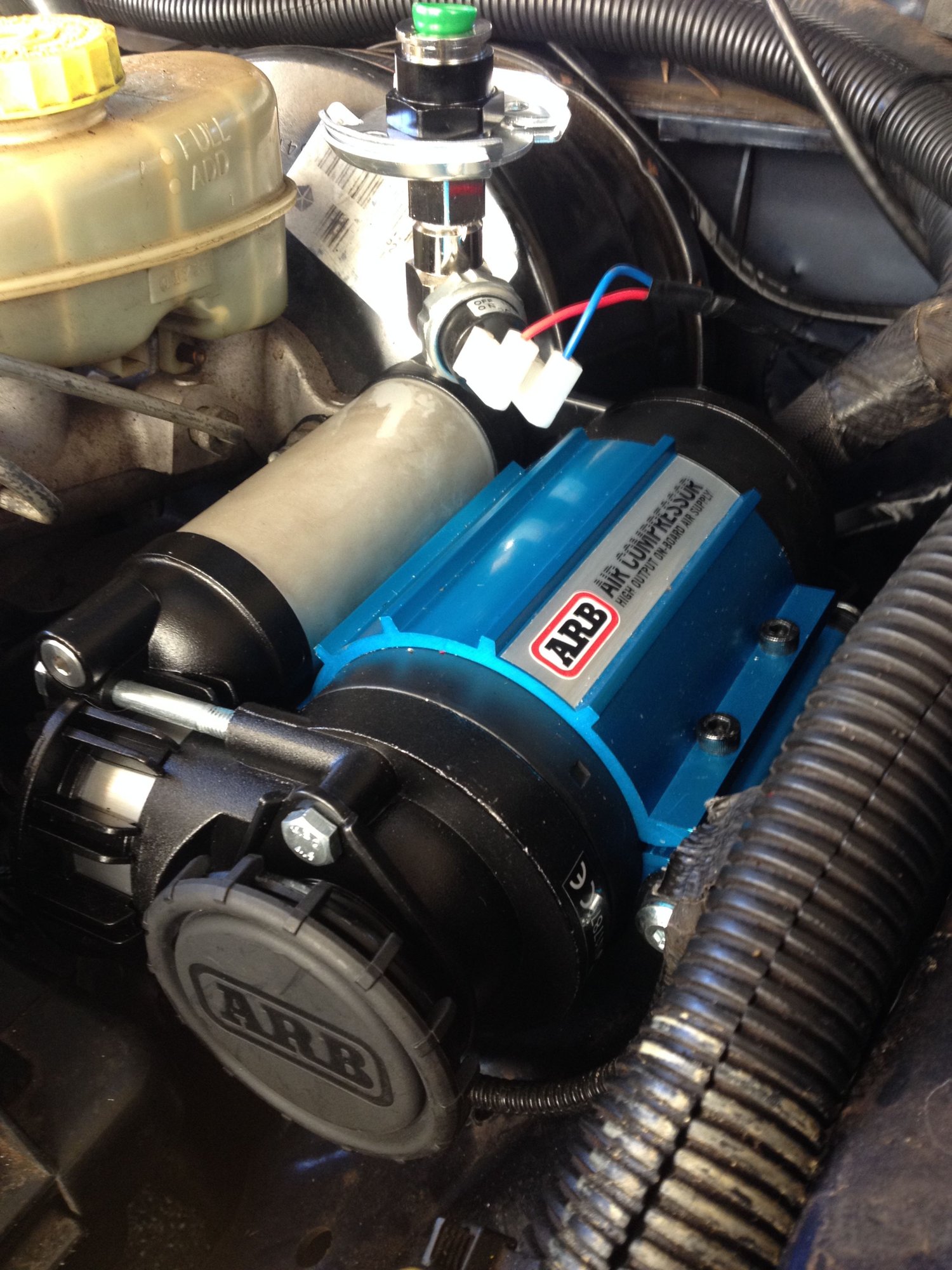

I recently installed a ARB on-board air compressor (CKMA12). Just another piece of the self reliant agenda. Plus it will be used for future ARB air lockers front and rear, once I upgrade axles.
I chose to splice the switch power to the fog lights. This will allow me to turn on the lights and use the compressor without the keys being in the ignition and it will serve as an additional safety measure to prevent accidental engagement of compressor or air lockers.
I might relocate this in the future, once I start wiring my air lockers. Haven't decided on a switch layout yet.
I chose to splice the switch power to the fog lights. This will allow me to turn on the lights and use the compressor without the keys being in the ignition and it will serve as an additional safety measure to prevent accidental engagement of compressor or air lockers.
I might relocate this in the future, once I start wiring my air lockers. Haven't decided on a switch layout yet.
Last edited by ss427ci; 03-21-2015 at 06:04 AM.
#20
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
I ran across this ARB roof rack at a 4wheelparts cookout/sale. I was not planning on buying a roof rack yet, plus I've been leaning towards the Front Runner rack instead of this one. But I got this $750 rack without "arm and a leg" shipping costs for $500, so I couldn't pass it up. The only reason is because the original buyer refused it because of scratches, lol. I guess he didn't plan on using it.
*Yes, I know it is zip tied to the factory roof rack. I'm waiting to order the $300 mounting kit!
*Yes, I know it is zip tied to the factory roof rack. I'm waiting to order the $300 mounting kit!
#21
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
So I was at the Truck & Jeep fest down in Honolulu and Currie made me an offer I couldn't refuse on this steering kit. I was still trying to decide between a true crossover steering, OTK steering or the Currie. Getting a $580 setup for $430 helped make up my mind though.
#22
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L

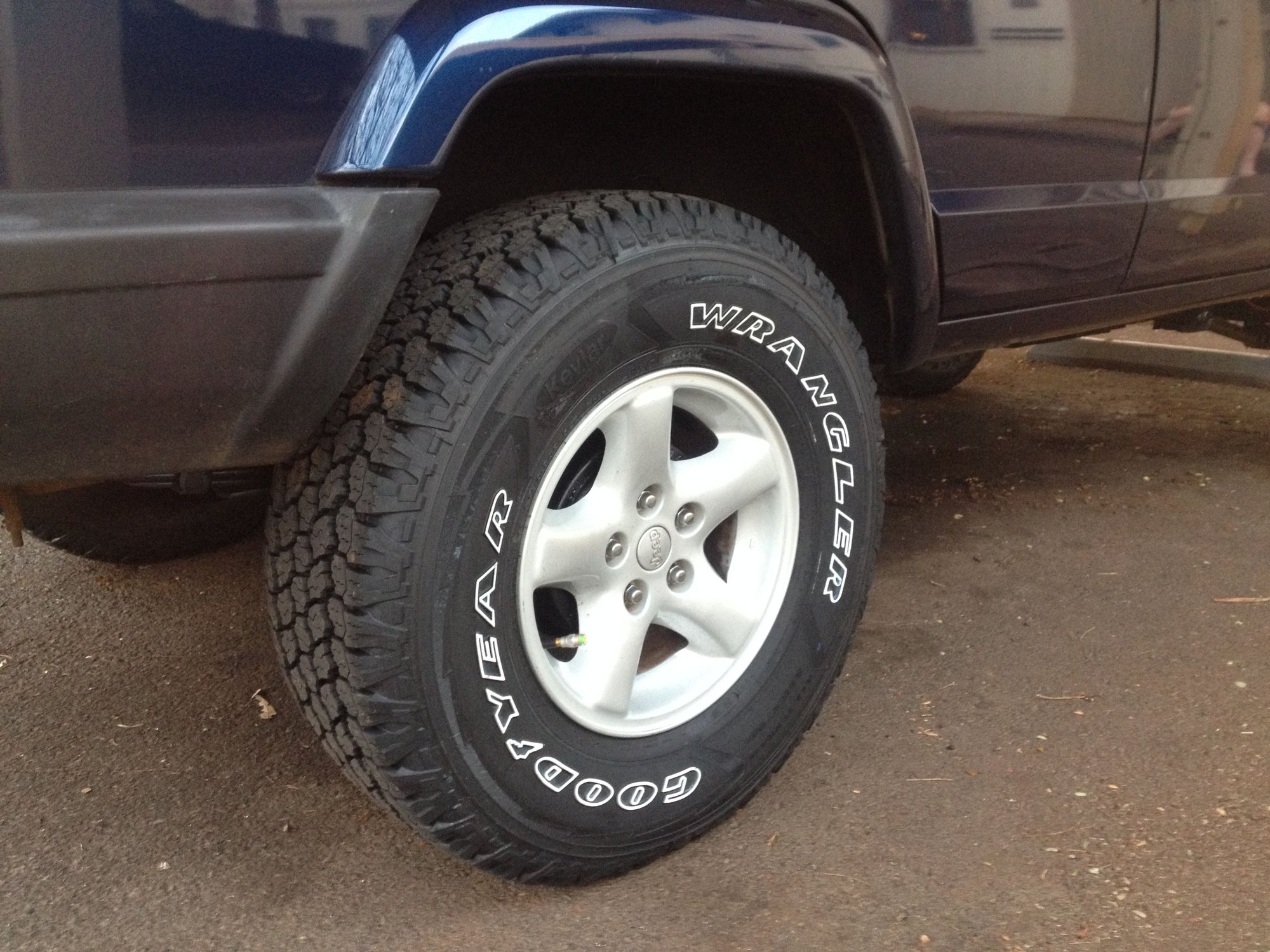

Oh yeah, new tires!
You don't know long I debated over a MT tire like M/TR or a AT tire. I wanted a decent offroad tire, but most of all durable. I love the looks of a MT tire, but logic and realistic needs won that battle. So I got the best tire to suit my needs. The Goodyear Wrangler Adventure w/ Kevlar in 31x10.5r15. This tire performs excellent on the road and decent offroad as well. Cause lets be honest, most of my time is spent on the road. Would I rather be chewing up $200 MT tires with no warranty? Or a extremely durable AT tire with a 60k mile warranty?
Well for now anyway. Once my fenders are cut & flared and I upgrade axles, gears and lockers, I will probably get some 32x11.5r15 MT tires. But that is way later. I am happy with 31s for now.
Now I'm just waiting on these to get here so I can stop rubbing my LCAs. Don't even try and tell me I could have gotten 4 steel wheels for the price of 1 of these, I don't wanna hear it! haha
You don't know long I debated over a MT tire like M/TR or a AT tire. I wanted a decent offroad tire, but most of all durable. I love the looks of a MT tire, but logic and realistic needs won that battle. So I got the best tire to suit my needs. The Goodyear Wrangler Adventure w/ Kevlar in 31x10.5r15. This tire performs excellent on the road and decent offroad as well. Cause lets be honest, most of my time is spent on the road. Would I rather be chewing up $200 MT tires with no warranty? Or a extremely durable AT tire with a 60k mile warranty?
Well for now anyway. Once my fenders are cut & flared and I upgrade axles, gears and lockers, I will probably get some 32x11.5r15 MT tires. But that is way later. I am happy with 31s for now.
Now I'm just waiting on these to get here so I can stop rubbing my LCAs. Don't even try and tell me I could have gotten 4 steel wheels for the price of 1 of these, I don't wanna hear it! haha
#23
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Colorado Springs, CO
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L

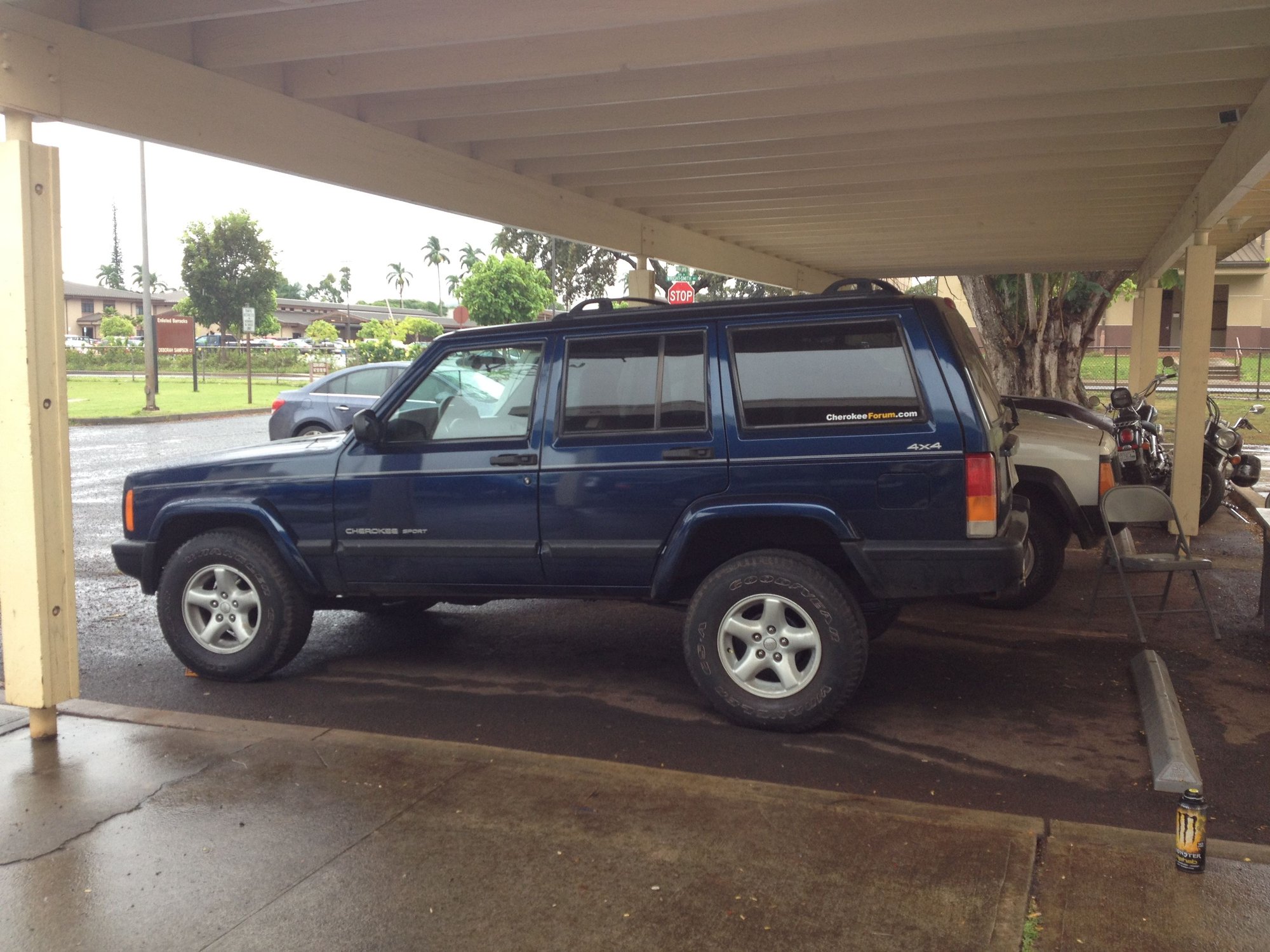

Here some posing shots. I plan on getting some offroad shots once the wheels come in, cause right now I'm rubbing to much to flex.
