Family Budget Build
#1
CF Veteran
Thread Starter
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
So after many nights of thinking about how I wanted to go about this build I think i have it down. First a little background on me and the Jeep.
I'm 25, engaged with one little girl and little boy on the way (mid march). My Jeep is a 1987 Laredo 4.0 Auto 236k. It had no-name front lift springs (2" from what I measured) and some worn 31x10.5's (three MT and one AT). Traded a 1993 Honda del sol and got $1000 cash in my hand for the jeep.
I was looking for something My family could enjoy with me, as we love the outdoors. The jeep seemed like the right direction. Anyways, onto the build.
So for now this is my DD so im more or less fixing whats broke and buying what i can find when its cheap. I dont really wheel very hard, mainly off road trails, very few rocks. I'm not really looking to build an all out rock crawler. I'll be posting pics as I complete different projects.
Things I have done,
-New Shocks (Pro Comp ES3000)
-New tie rod/drag link
-new steering stabilizer (pro comp ES2000)
-rear lift shackles (no name auto zone drop shackles)
-trans flush/fitler
-new tstat/system flush (mopar)
-replaced factory fogs with aftermarket (wallyworld special)
-new upper/lower ball joints
-97+ mirrors
-Complete brake flush
-New plugs/Wires
-4.5" RE Coils
-RE Adj. Track bar
-Longer LCA's
-F350 sway bar end links
-15x8 3.25BS With 32x11.5 Mastercraft Courser MXT's
-91+oil adapter swap
Right now im sitting at 4.5" up front and 2.5" in the rear. Still need to put my rear leafs on. Debating running relocation brackets.
Future Plans
-Complete motor/trans/TC swap (got a 347 stroker sitting in a corner)
-1 ton axles with 5.13's and Air Lockers
-Hydro steering
-half Interior cage
-custom bumpers w/ winch
-paint factory silver w/ bedliner rockers
-roof tack
-convert to full coilover setup with around 6.5" lift
-35" tires
At the point I start my full build the Jeep will become a trailer queen.

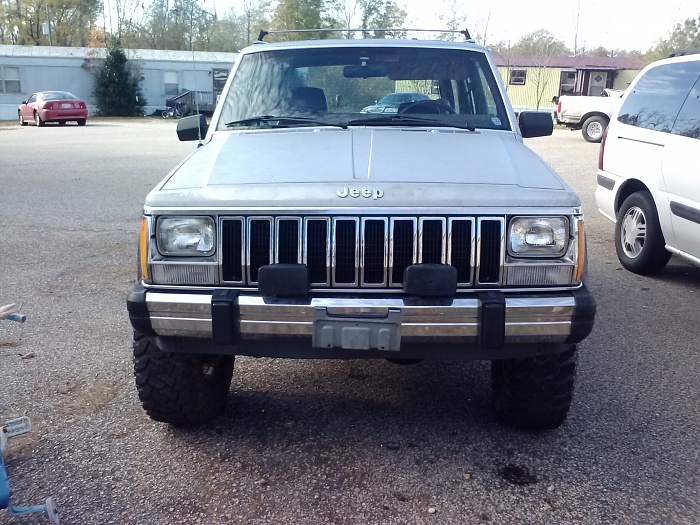

Here she is the day I got her:
I'm 25, engaged with one little girl and little boy on the way (mid march). My Jeep is a 1987 Laredo 4.0 Auto 236k. It had no-name front lift springs (2" from what I measured) and some worn 31x10.5's (three MT and one AT). Traded a 1993 Honda del sol and got $1000 cash in my hand for the jeep.
I was looking for something My family could enjoy with me, as we love the outdoors. The jeep seemed like the right direction. Anyways, onto the build.
So for now this is my DD so im more or less fixing whats broke and buying what i can find when its cheap. I dont really wheel very hard, mainly off road trails, very few rocks. I'm not really looking to build an all out rock crawler. I'll be posting pics as I complete different projects.
Things I have done,
-New Shocks (Pro Comp ES3000)
-New tie rod/drag link
-new steering stabilizer (pro comp ES2000)
-rear lift shackles (no name auto zone drop shackles)
-trans flush/fitler
-new tstat/system flush (mopar)
-replaced factory fogs with aftermarket (wallyworld special)
-new upper/lower ball joints
-97+ mirrors
-Complete brake flush
-New plugs/Wires
-4.5" RE Coils
-RE Adj. Track bar
-Longer LCA's
-F350 sway bar end links
-15x8 3.25BS With 32x11.5 Mastercraft Courser MXT's
-91+oil adapter swap
Right now im sitting at 4.5" up front and 2.5" in the rear. Still need to put my rear leafs on. Debating running relocation brackets.
Future Plans
-Complete motor/trans/TC swap (got a 347 stroker sitting in a corner)
-1 ton axles with 5.13's and Air Lockers
-Hydro steering
-half Interior cage
-custom bumpers w/ winch
-paint factory silver w/ bedliner rockers
-roof tack
-convert to full coilover setup with around 6.5" lift
-35" tires
At the point I start my full build the Jeep will become a trailer queen.
Here she is the day I got her:
Last edited by drhoward1988; 05-03-2014 at 06:19 PM.
#2
CF Veteran
Thread Starter
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0

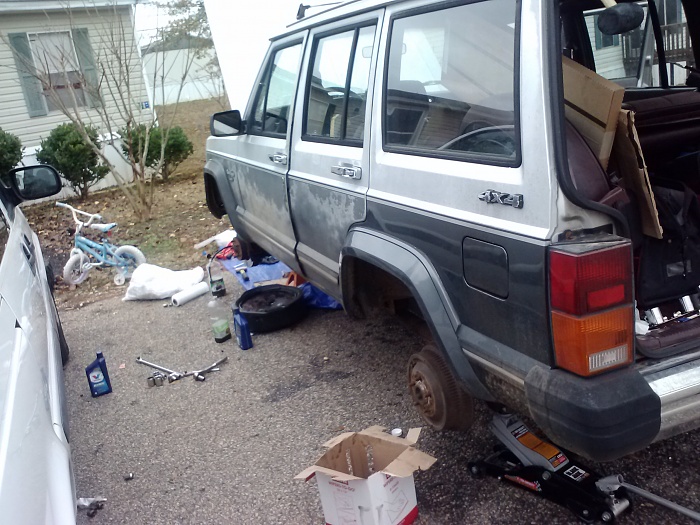

She had major death wobble over 35MPH So it was first on my list, also flushed the trans and did a new trans filter. I believe my death wobble came from a blown steering stabilzer and worn tie rod ends.
#4
CF Veteran
Thread Starter
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
Got rid of the broken fog lights, only one pic but if anyone wants to know details let me know. They are wired into a separate Relay and tied into the factory switch. can be powered on anytime and will cut off with the vehicle. Also installed new mirrors as mine where kaput!! they are 97+ manual mirrors and had them sprayed with UV bed-liner spray
Last edited by drhoward1988; 01-27-2014 at 10:23 PM.
#6
Looks good so far. I'm looking at buying my first xj soon (as soon as I find one I like) and from the sounds of it will be a very similar build to yours. Keep it up and keep us posted.
#7
CF Veteran
Thread Starter
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
thanks, its a slow work in progress. Im waiting for some parts now, trying to get all the leaks sorted. In the next few weeks Ill have posts/pics of replacing all the seals in the tc case, changing the oil filter house to a 91+, new front and rear crank seal and new oil pan gasket.
Trending Topics
#10
CF Veteran
Thread Starter
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
**UPDATE** Still waiting on a few parts to get here, hopfully i can get started this weekend. Here is a pic of a few goodies for the jeep
#11
CF Veteran
Thread Starter
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
So i have a question for the wise. I have a HO head from a 95 i plan on swapping in. im keeping the renix intake but i need to replace my renix manifold due to it being cracked. My question pertains to the fitment of a newer header (91+). Will it bolt in or will i need to modify anything in the exhaust? Thanks
#12
CF Veteran
Thread Starter
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
#13
CF Veteran
Thread Starter
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
A few more parts in today. Also got some lovely news from my mechanic. Apparently my timing chain was so loose it rubbed a whole in the cover and damaged the harmonic balancer. Dodged a bullet on it. Glad i decided to be lazy and outsource the pan gasket and front and rear crank seals. My tires will be installed friday. Hopfully the rest of my lift components will be in by the weeks end.
