Cherokee Built For $1000 bucks
#16
Member
Thread Starter
Join Date: Oct 2012
Location: North Carolina
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
So been pretty busy today, after coming into some money what better way to spend it than putting it into the jeep lol. So I went ahead and bought my front coil springs today from a ford thunderchicken. cost a whole $42.00 dollars. That was the spring and strut plate. After looking at it, it seems the strut plate won't be needed but time will tell after installing it.

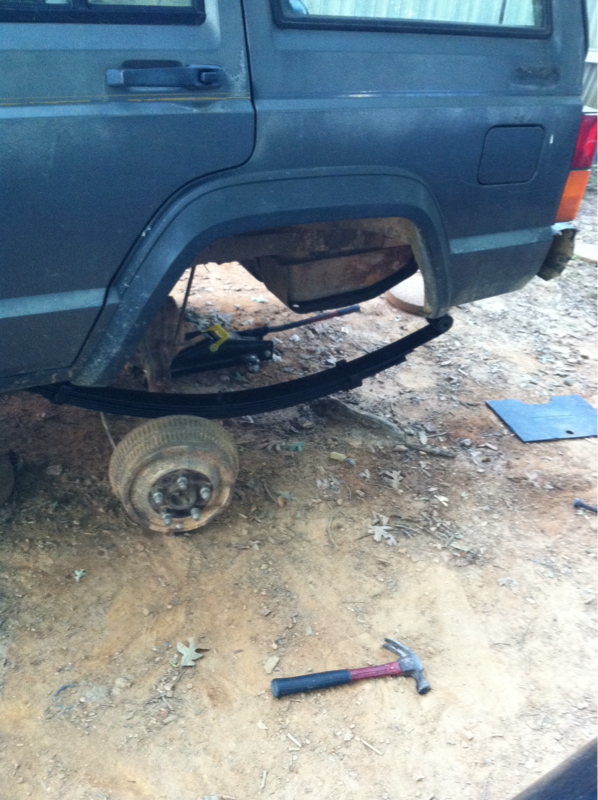

So came home and started on the rear removing the rear leaf springs which actually went pretty good. All the bolts came out good (no broken shock bolts) which was a plus considering the previous owner played in the mud alot lol but I had to remove rear tail section of the exhaust and the hole exaust pulled out of the muffle lol but I gotta say it sounds better now instead of the exhaust leak it had.
So far I gotta do the bastered pack and in goes the leafs springs and on to the coil springs.
NOTE: thunderbird vs 4.5 coil springs.
1)Thunderbird measured to 16.5 tall commpared to 20'' tall for the 4.5
2) Thunderbird really noticably thicker than 4.5 coils.
3) Thunderbird was like 5'' wide vs 6 inch on 4.5 coils so thats why it leads me to believe, strut mount isn't need.
PICTURES BELOW
So came home and started on the rear removing the rear leaf springs which actually went pretty good. All the bolts came out good (no broken shock bolts) which was a plus considering the previous owner played in the mud alot lol but I had to remove rear tail section of the exhaust and the hole exaust pulled out of the muffle lol but I gotta say it sounds better now instead of the exhaust leak it had.
So far I gotta do the bastered pack and in goes the leafs springs and on to the coil springs.
NOTE: thunderbird vs 4.5 coil springs.
1)Thunderbird measured to 16.5 tall commpared to 20'' tall for the 4.5
2) Thunderbird really noticably thicker than 4.5 coils.
3) Thunderbird was like 5'' wide vs 6 inch on 4.5 coils so thats why it leads me to believe, strut mount isn't need.
PICTURES BELOW
Last edited by Tyler01; 09-20-2015 at 10:24 PM.
#18
Member
Thread Starter
Join Date: Oct 2012
Location: North Carolina
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Measurements is the factory height as rear hitch and front bumper mount. and I rolled my 37x14x15 up beside it also lol
#19
Member
Thread Starter
Join Date: Oct 2012
Location: North Carolina
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0

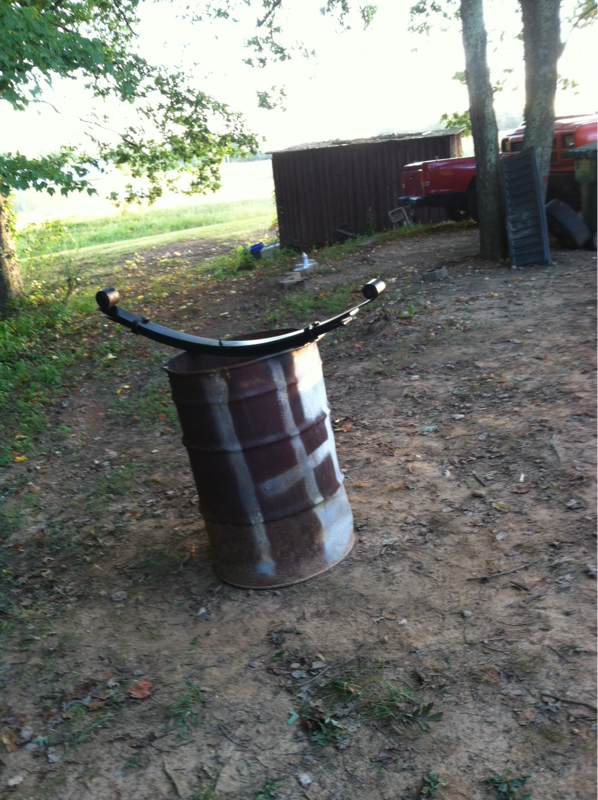

Got my bastered packs built. Probably gonna get shackles installed while I'm doin all this but I haven't decided yet.
For the order I ran my packs was
Cherokee
S10
Cherokee
S10
S10
So far I like the arch it gave me but true test will be after I install them.
So today I'll be putting everything together in the rear to see how much lift it's actually gonna net me. I'll keep y'all posted
For the order I ran my packs was
Cherokee
S10
Cherokee
S10
S10
So far I like the arch it gave me but true test will be after I install them.
So today I'll be putting everything together in the rear to see how much lift it's actually gonna net me. I'll keep y'all posted
#20
Member
Thread Starter
Join Date: Oct 2012
Location: North Carolina
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
So a progress of the budget so far.
I left off spending $190, so far I spent
$30 Leaf Springs
$52 U Bolts, Bedliner, Grinding disk cleaner
$15 Paint
$45 Coil Spring and Spring Isolator
$40 Oil and filter and 4 quarts of gear oil.
$372 So far and counting the Jeep.
$328 dollars to spend left in the budget,
I left off spending $190, so far I spent
$30 Leaf Springs
$52 U Bolts, Bedliner, Grinding disk cleaner
$15 Paint
$45 Coil Spring and Spring Isolator
$40 Oil and filter and 4 quarts of gear oil.
$372 So far and counting the Jeep.
$328 dollars to spend left in the budget,
#21
Member
Thread Starter
Join Date: Oct 2012
Location: North Carolina
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
So holy *****, installed the bastered pack and 2 inch blocks and I believe I got more lift that I was thinking lol. The goal was trade my 37 for 31's and run 31's but instead so much lift was gained I can run 37's like it's nothing and still could add a shackle if I wanted.
Just have to drill out the isolator and from their I'm on the home stretch.
Just have to drill out the isolator and from their I'm on the home stretch.
#23
Member
Thread Starter
Join Date: Oct 2012
Location: North Carolina
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
So everything lifted, problem I'm running into now the front is not tall enough because my control are at full drop and won't allow the jeep to raise up anymore so only thing I need is control arms, shocks, and maybe trac bar and it's done and paint and jeeps done.
I can honestly say u can build a a 4.5 lifted cherokee an be fine but I just have the urge to go big or go home. But it'll get finished sooner or later lol
I'll keep y'all posted
I can honestly say u can build a a 4.5 lifted cherokee an be fine but I just have the urge to go big or go home. But it'll get finished sooner or later lol
I'll keep y'all posted
#25
Member
Thread Starter
Join Date: Oct 2012
Location: North Carolina
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0

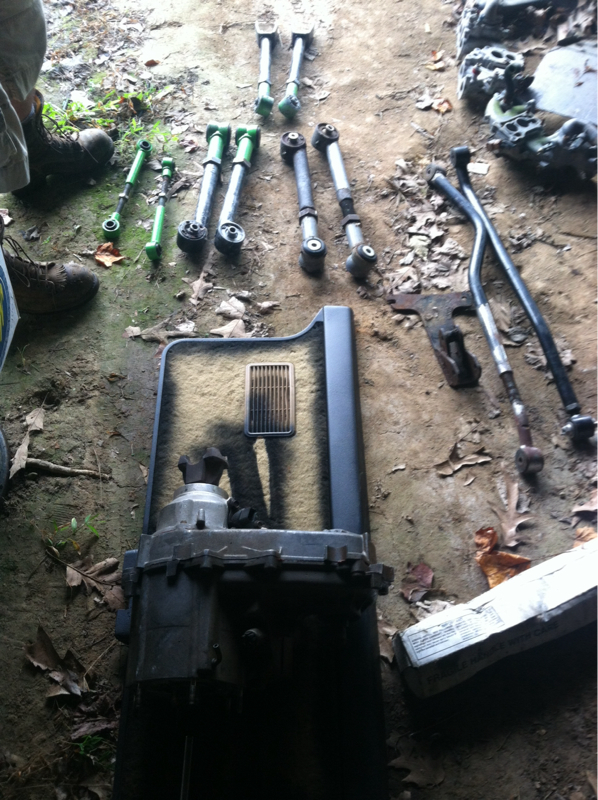

So I just scored BIG TIME!!!!! Found a ad on craiglist that had no picture that said adjustable controls arms for $70 so I was like what!!! So called guy and we met up and I wind up getting
Rubicon express control arms
2 sets of lower adjustable control arms
1 set of upper adjustable control arms
2 adjustable trac bars
Pair of adjustable sway bar links
AND a transfer case with a brand new SYE KIT that hasn't even been used yet
!!!!!!!!!!! For $175 BUCKS !!!!!!!!!
Guy said he was getting outa jeeps and didn't wanna mess with it anymore and I was like THANK YOU JESUS LOL
Rubicon express control arms
2 sets of lower adjustable control arms
1 set of upper adjustable control arms
2 adjustable trac bars
Pair of adjustable sway bar links
AND a transfer case with a brand new SYE KIT that hasn't even been used yet
!!!!!!!!!!! For $175 BUCKS !!!!!!!!!
Guy said he was getting outa jeeps and didn't wanna mess with it anymore and I was like THANK YOU JESUS LOL
#28
CF Veteran
Join Date: Feb 2012
Location: Hamburg, NY
Posts: 1,258
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Great Score on CL.
Are you planning on running those 37's? Your XJ's gonna hate you 4 banger, stock gearing, D35..
keep up the build & watch that budget......
Are you planning on running those 37's? Your XJ's gonna hate you 4 banger, stock gearing, D35..
keep up the build & watch that budget......
#29
Member
Thread Starter
Join Date: Oct 2012
Location: North Carolina
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
But if it would ever stop raining id go install my control arms so I can atleast drive it around but for now it sits in the back yard waiting. So may be a couple days before I get a posted back so stay tuned!!!
#30
Member
Thread Starter
Join Date: Oct 2012
Location: North Carolina
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
So I figured all the $$$ that I have in the jeep and what's left.
Before: $328
Spent $175 on jeep parts but the transfer case won't be installed on this jeep so really spent $75
Final amount left before $1000 dollar mark is .......... $$253
Items left to finish jeep.
-interior door handle
-center console arm rest
-homemade transfer case drop
-shocks (buying from advanceauto)
-paint
-maybe drop pitman arm.
And that's it.
From what I added up if I don't paint the jeep and can finish the jeep right at a $1000 but if I do paint it, I'll have a total if $1150 dollars in it.
So I'm still undecided on if I'm going to paint it or not. I'll keep y'all posted
Before: $328
Spent $175 on jeep parts but the transfer case won't be installed on this jeep so really spent $75
Final amount left before $1000 dollar mark is .......... $$253
Items left to finish jeep.
-interior door handle
-center console arm rest
-homemade transfer case drop
-shocks (buying from advanceauto)
-paint
-maybe drop pitman arm.
And that's it.
From what I added up if I don't paint the jeep and can finish the jeep right at a $1000 but if I do paint it, I'll have a total if $1150 dollars in it.
So I'm still undecided on if I'm going to paint it or not. I'll keep y'all posted
