Build project: an 88 story, anti bolt on build
#61
CF Veteran
Thread Starter
Join Date: Jul 2011
Location: Oceanside So Cal
Posts: 1,045
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
Just a small update, got the center section of my new cross member built, incorporated a 1 inch trans drop as well.

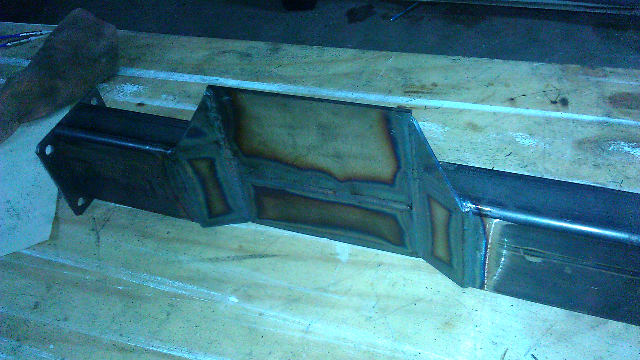

Top..not drilled yet

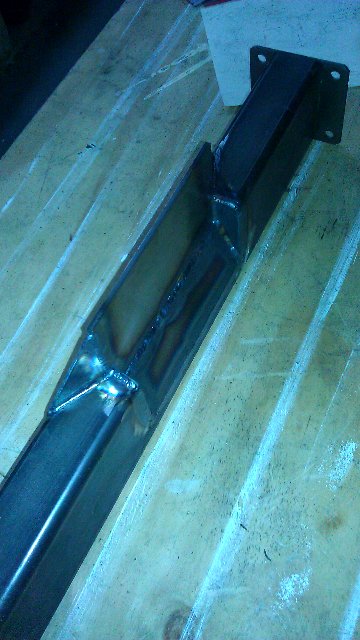

Bottom
Top..not drilled yet
Bottom
Last edited by Domaas; 01-03-2012 at 11:22 PM.
#63
Senior Member
Join Date: Dec 2010
Location: Pittsburgh, PA
Posts: 848
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
I have to say this is one sick build.
Would you happen to have a sketch of those tube doors? That is almost exactly what I'm looking for in a tube door and would love to have some sketches and dimensions of what you have.
Would you happen to have a sketch of those tube doors? That is almost exactly what I'm looking for in a tube door and would love to have some sketches and dimensions of what you have.
#64
CF Veteran
Thread Starter
Join Date: Jul 2011
Location: Oceanside So Cal
Posts: 1,045
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
Link to door build in fab section.
https://www.cherokeeforum.com/f58/yu...-doors-117607/
Lots more to come, finish crossmember, build radius arm(long am) tire carrier, exo, roof rack, baja light bar(with 5 baja designs HID race lights..blah..blah..blah.
Last edited by Domaas; 01-05-2012 at 12:24 AM. Reason: added link to fab section
#65
Newbie
Join Date: Nov 2011
Location: athens ohio
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0l
your jeep is gonna be sick. im lovin the build so far. im tryin to dao the same thing but i have an extremely limited budget and not nearly as cool of tools as u do...lol. and im only 22 so ive never done anything like this before. do u have any tips for a first time fabricator??
#66
CF Veteran
Thread Starter
Join Date: Jul 2011
Location: Oceanside So Cal
Posts: 1,045
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
My budget is stupid small...I'm still under a grand so far..including the purchase of the jeep, looking to finish hopefully under 3 grand for everything.. As far as fab advice..feel free to pm me.
#67
CF Veteran
Thread Starter
Join Date: Jul 2011
Location: Oceanside So Cal
Posts: 1,045
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
nothing much new..lack of funds, had to put new shoes on my DD..boy.. those 20" wheels really looked good on the truck sitting in the stealership...but damn...are they proud of those tires or what!
So..with that said...im gonna try and finsh welding up the crossmember this weekend.
Also picked up another set of latches to build the rear doors, and the new latch for the rear tire carrier/ can rack.
So..with that said...im gonna try and finsh welding up the crossmember this weekend.
Also picked up another set of latches to build the rear doors, and the new latch for the rear tire carrier/ can rack.
#70
CF Veteran
Thread Starter
Join Date: Jul 2011
Location: Oceanside So Cal
Posts: 1,045
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
thanks fellas..shpuld be able to get out to the garage sun and get some welding done, maybe try and squeeze out to the steel supply tommorow(sat) and grab some tube for the rear doors? gotta throw in the new EGR and o2..so if all else fails i have a excuse to get something done.but not near as fun as playing with the bender!!
#72
CF Veteran
Thread Starter
Join Date: Jul 2011
Location: Oceanside So Cal
Posts: 1,045
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
in ththe garage...yes i have a lap top in here with me..lol
mounting and fabing the rest of my cross member...some how i totally spaced the front drive shaft clearance at esimated full droop
So its off, the center section will have to be turned around for more shaft clearance...and have to wack out the exhaust and move the cat back....oh well. not everything will go as planned.
mounting and fabing the rest of my cross member...some how i totally spaced the front drive shaft clearance at esimated full droop
So its off, the center section will have to be turned around for more shaft clearance...and have to wack out the exhaust and move the cat back....oh well. not everything will go as planned.
#73
Newbie
Join Date: Jan 2012
Location: Wherever i get screwed into beign stationed
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
hey its Kahal, just went through your whole thread and the build is bad ***. im gonna follow it while i'm out here. it looks sick though
#74
CF Veteran
Thread Starter
Join Date: Jul 2011
Location: Oceanside So Cal
Posts: 1,045
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Model: Cherokee (XJ)
Engine: 4.0 renix
hey bud, good to here from ya!Here in the garage working as i type..should be able to post the rear tire carrier, tube sides and rear tube doors by tomorow.
Send me a email, and some pics of the hueys and cobras! Lets see that new Duc too!! BTW, your grad pics from Boot look good!
Send me a email, and some pics of the hueys and cobras! Lets see that new Duc too!! BTW, your grad pics from Boot look good!
#75
i must say i love that welder...i had someone break in my garage bout 3 months ago an steal one just like it...gotta hate theifs. still awaiting my insurance to cover it.are u making all 4 tube doors?? an if ur would build a set for someone let me know how much ...im looking to do that come spring time
