wiring a switch box
#1
Seasoned Member
Thread Starter
Join Date: Jan 2010
Location: Near Fayetteville NC
Posts: 339
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
wiring a switch box

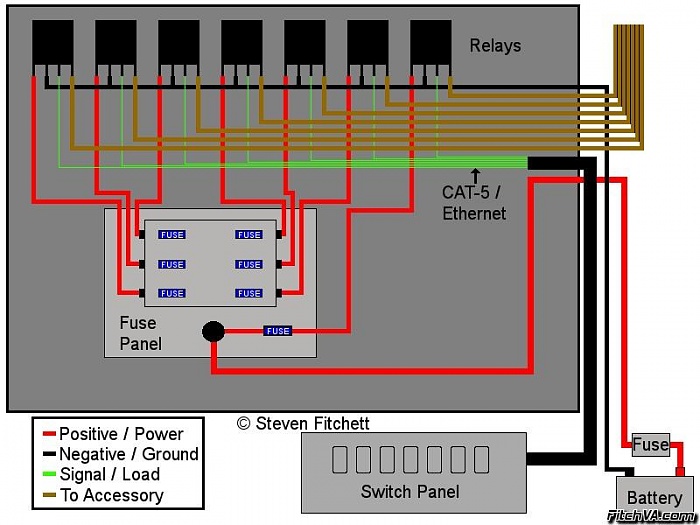

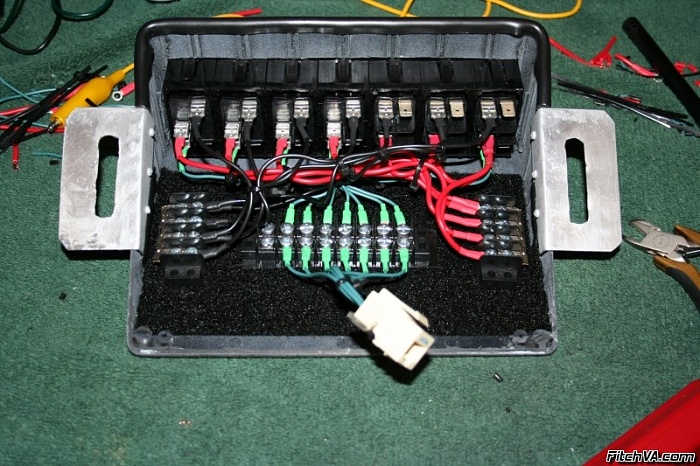

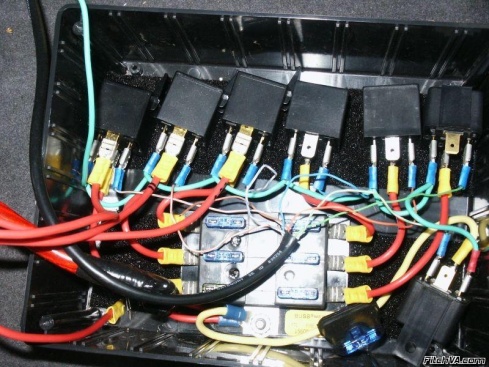

ok for all you smart guys out there i found a wiring box diagram and some pictures take a look and tell what you think and if you see any flaws let me know.here are the diagrams for the relay box and the switch panel. also some pics of the final product. tear it apart so that i can know whats wrong i really like the set up but want to make sure that its safe.
#3
Senior Member
Join Date: Jul 2010
Location: Connecticut
Posts: 501
Likes: 0
Received 2 Likes
on
2 Posts
Year: 98
Model: Cherokee
Engine: 4.0l
I guess it would work. Before I put money on CAT5 to control the relays, I'd calculate current to the coil to make sure the wire can sustain the flow without overheating.
CAT5 is like 24 gauge.
You would have to take resistance readings of the relays coil, then use ohms law to calculate the current it will draw while operating.
Then dividing Voltage (12) by that resistance (??) will equal current
Then look for the ampacity of 24 gauge wire, de-rate it by 20% to compensate for the heat produced by the current flow and you'll know if CAT5 has the capacity to power the relays under constant load without burning up.
Other than that, it looks pretty straight forward.
CAT5 is like 24 gauge.
You would have to take resistance readings of the relays coil, then use ohms law to calculate the current it will draw while operating.
Then dividing Voltage (12) by that resistance (??) will equal current
Then look for the ampacity of 24 gauge wire, de-rate it by 20% to compensate for the heat produced by the current flow and you'll know if CAT5 has the capacity to power the relays under constant load without burning up.
Other than that, it looks pretty straight forward.
#4
Senior Member
Join Date: Mar 2010
Location: Southern California
Posts: 855
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 Inline 6 Renix
Very nice, a lot of people wouldn't go through all that planning, hopefully it pays off and you wont have any problems.
#5
Seasoned Member
Join Date: Sep 2009
Location: Everett, WA
Posts: 373
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0l
I see problems using CAT5 wire. Its too small...its a signal wire not a supply wire. First think about voltage drop, then realize the more those tiny wires heat up, the more the resistance, which makes more heat, which makes more resistance...and on and on till the wires burn up. Its called a cascade-affect. I'd use at least a 16ga., but lean more torwards 14ga. My .02
Other than the wire size, your design looks really sharp and clean!
Other than the wire size, your design looks really sharp and clean!
#6
Member
Join Date: May 2010
Location: Argyll, Scotland
Posts: 142
Likes: 0
Received 1 Like
on
1 Post
Model: Cherokee
Also, the Cat5 cabling is solid cored, not designed for areas subject to vibrations.
You'd be better off using multicored cabling for trailers/caravans. You can get in 7 way lengths.
Rob
You'd be better off using multicored cabling for trailers/caravans. You can get in 7 way lengths.
Rob
Last edited by longship; 12-18-2010 at 06:08 PM.
#7
Seasoned Member
Join Date: Sep 2010
Location: Akron, OH
Posts: 440
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 HO
I was going to do the same exact thing. The coil shouldnt draw that much on a relay that size so I dont see why cat 5 wouldnt work.
Trending Topics
#8
Seasoned Member
Join Date: Jul 2010
Location: Gobles Michigan
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
I also have to say that the cat5e should not be used. Very brittle wire and as someone already said it is a 24ga wire which wil not carry the ampacity that you will need. (even at 12v)
#9
Seasoned Member
Join Date: Sep 2010
Location: Akron, OH
Posts: 440
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 HO
Cat 5 wire in 24awg will handle a maximum current per conductor of .577 amps, so you just have to figure out the draw of your relays and go from there.
#10
Seasoned Member
Join Date: Sep 2010
Location: Akron, OH
Posts: 440
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 HO
In a DC relay coil, the coil resistance determines the current flow through the coil. The current draw by the coil of a bosch(5 pin) relay is ~0.160 amps (~75 ohm coil).
#11
Senior Member
Join Date: Dec 2008
Location: Aldergrove,BC,Canada
Posts: 564
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Wagoneer
Engine: 4.0L I6
thats FitchVA's setup from jeepforum, not sure which model but ive seen lots of people use his setups with nothing but good things to say bout it
heres a link to the several variations of his switch/relay boxes
http://fitchva.com/jeep/?cat=4
heres a link to the several variations of his switch/relay boxes
http://fitchva.com/jeep/?cat=4
#12
Seasoned Member
Thread Starter
Join Date: Jan 2010
Location: Near Fayetteville NC
Posts: 339
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
fitchva.com had the best set up and the best explantion i just wish there would have been a list of what he used like what size those relays are cause i have no clue. By loking at the pictures can anyone tell what size those are????
#13
Senior Member
Join Date: Jul 2010
Location: Connecticut
Posts: 501
Likes: 0
Received 2 Likes
on
2 Posts
Year: 98
Model: Cherokee
Engine: 4.0l
That info should be available on a particular relays spec page. If you're dead set on using CAT5, look for a relay whose coil requirements are less than the capacity the wire can provide while supplying a sustained flow.
How about using SCR's (even if you use them between the switch and the relays coil)? If you're set on CAT5 as the control circuit, that setup should definitely work.
#14
Member
Join Date: Apr 2010
Location: Greensboro, NC
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L HO 242
I have built this setup exactly as shown after referencing fitch.va and I must say it is amazing. No problems overheating.
#15
Member
Join Date: Oct 2009
Location: South Jersey
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Whenever I'm building something like this, I prefer to use the switchs to control the ground side of the relay. That way I don't have to run a lot of hot (positive) wires. By switching the positive side of the circuit, you need to run power from the battery to the switches and from the switches to the relays. That creates a lot of potential for shorts in the new wiring. If you control the ground side, you just run wire from the relays to each switch and then to a nearby chassis ground. Then if one of those wires chafes and shorts to ground, the only thing that happens is that accessory comes on. No fires or melted wires.
