What size (and thread pitch) is the front pinion bolt?
#1
Seasoned Member
Thread Starter
Join Date: Dec 2011
Location: Beaverton, Oregon
Posts: 467
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
What size (and thread pitch) is the front pinion bolt?

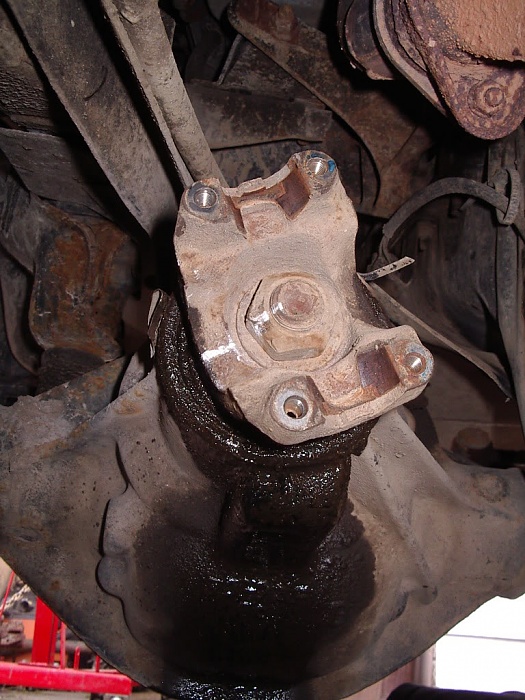

I've attached a picture of the bolt I am talking about. I am curious if anyone knows what size the bolt is as well as the thread pitch and any other info I might need when buying a replacement bolt for it at the hardware store. I am replacing the front pinion seal and I figure I will just replace this bolt while I am at it with a new one. Need to get the bolt first though so I need to know all the specs.
Thanks!
Thanks!
#2
CF Veteran
Join Date: May 2008
Location: Bristol,Pa
Posts: 5,188
Likes: 0
Received 6 Likes
on
6 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
It's a nut.. and a hardware store most likely wont have it. Quadratec, and most vendors will have it.
That's a pretty good leak, how much slop does the yoke have laterally?
You could use the same nut and a bit of Loctite. Count the threads showing and realign the white marks on reassembly.
That's a pretty good leak, how much slop does the yoke have laterally?
You could use the same nut and a bit of Loctite. Count the threads showing and realign the white marks on reassembly.
#3
Seasoned Member
Thread Starter
Join Date: Dec 2011
Location: Beaverton, Oregon
Posts: 467
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
It's a nut.. and a hardware store most likely wont have it. Quadratec, and most vendors will have it.
That's a pretty good leak, how much slop does the yoke have laterally?
You could use the same nut and a bit of Loctite. Count the threads showing and realign the white marks on reassembly.
That's a pretty good leak, how much slop does the yoke have laterally?
You could use the same nut and a bit of Loctite. Count the threads showing and realign the white marks on reassembly.
Anyways, my local Ace Hardware seems to have about every bolt you could ever imagine so there is a good chance they might have it to be honest.
That's not my photo, I just found it with a Google search. Mine is leaking but nowhere near as bad as that thing is!
Not sure why they used those white marks on it, what is that for? As long as I torque it to the proper spec isn't that all that matters?
#6
Seasoned Member
Thread Starter
Join Date: Dec 2011
Location: Beaverton, Oregon
Posts: 467
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
1-1/8 socket? Glad I asked, I did a search and someone else was saying 1-1/4 but that was for an older XJ, maybe they changed it on the 97+ models?
Thanks for that info though, I'll see if my local hardware store has a bolt this size that's hardened. If not it's no big deal but they seem to have just about every bolt imaginable.
#7
Seasoned Member
Thread Starter
Join Date: Dec 2011
Location: Beaverton, Oregon
Posts: 467
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
You sure you didn't mean 3/8-16 thread pitch?
Just checked out the hex nuts on McMaster Carr here... http://www.mcmaster.com/#hex-nuts/=oy6c2c
Doesn't look like they have any hex nuts at all in a 3/4-16 thread pitch. Unless I'm missing something...
Just checked out the hex nuts on McMaster Carr here... http://www.mcmaster.com/#hex-nuts/=oy6c2c
Doesn't look like they have any hex nuts at all in a 3/4-16 thread pitch. Unless I'm missing something...
Trending Topics
#8
Junior Member
Join Date: Sep 2013
Location: NW Iowa
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6
#10
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Dana 30's been the same for a long time. That's what makes it a Dana 30. The Chrysler 8.25 pinion nut can be yanked off with a 1-1/4" socket.
3/8"? Lol have you ever seen a D30 pinion?
3/8"? Lol have you ever seen a D30 pinion?
#11
Seasoned Member
Thread Starter
Join Date: Dec 2011
Location: Beaverton, Oregon
Posts: 467
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
Is my front driveshaft supposed to say D35 engraved on it?
#12
Beach Bum
There should also be a mark on the drive-shaft so that it re-installs with the same orientation. The output yoke of the transfer case is probably also marked and should be matched up as well.
#13
Seasoned Member
Thread Starter
Join Date: Dec 2011
Location: Beaverton, Oregon
Posts: 467
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
Maybe this is a dumb question but why does it matter if all the marks are lined up? Seems like if everything is torqued properly it wouldn't make a difference.
#14
Beach Bum
As a general rule when taking apart things that spin, the parts should go back together with the same orientation.
