Default What am I missing??

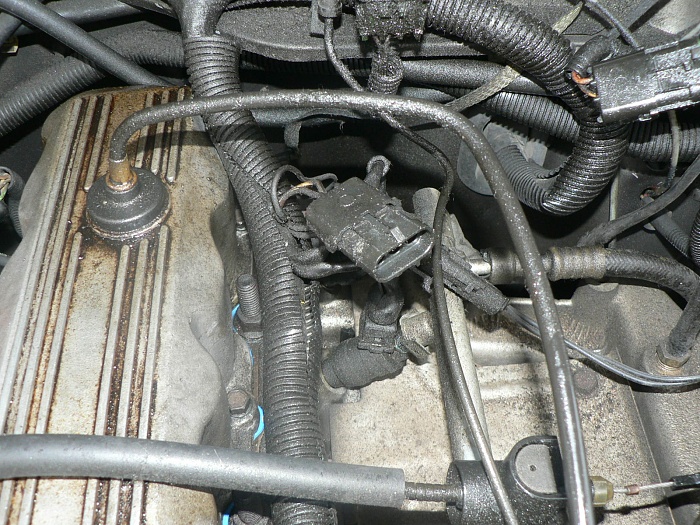

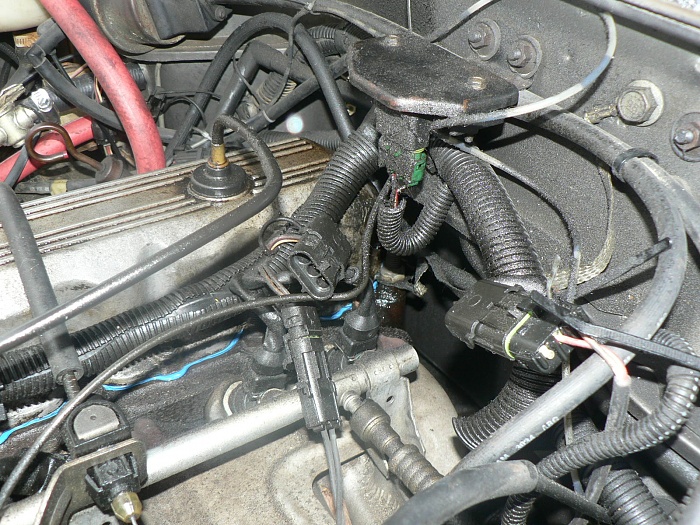

I found a connector with nothing plugged in and was hoping that someone could tell me what it is for. I have accounted for all the sensors at least I think so.
Attached Thumbnails
What am I missing??-p1110393.jpg   What am I missing??-p1110394.jpg
Sidewinder69 is offline   Reply With Quote
Old 02-10-2011, 03:54 PM   #2
Junior Member

Sidewinder69's Avatar

Join Date: Feb 2011
Location: Smithfield, Virginia
Posts: 52

View Sidewinder69's Photo Album My Photos
1989 Wagoneer
Default

Bump
Sidewinder69 is offline   Reply With Quote
Old 02-10-2011, 04:19 PM   #3
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 31,421

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

do you got cruise
__________________
its all in your altitude,horn broke watch for fingerWhen asking for help here and not listening to test procedures why ask.
freegdr is offline   Reply With Quote
Old 02-10-2011, 04:43 PM   #4
Junior Member

Sidewinder69's Avatar

Join Date: Feb 2011
Location: Smithfield, Virginia
Posts: 52

View Sidewinder69's Photo Album My Photos
1989 Wagoneer
Default

Maybe at some point, I have the controls but it has never worked since I've had the Jeep. Is that where the cruise would hook up then?
Sidewinder69 is offline   Reply With Quote
Old 02-10-2011, 04:44 PM   #5
::CF Sheriff::

dukie564's Avatar

Join Date: Nov 2009
Location: Hanover, MD
Posts: 14,224

View dukie564's Photo Album My Photos
1995 Cherokee
Default

it's ok to have empty connectors. Jeep used the same harness for every option, so most jeeps are bound to have a few empty sockets.

That said, are you having any issues with it running?
__________________
1995 XJ Cherokee Sport
4.5" Frankenstein Homebrew Lift, 4.0L HO I-6, AX-15, NP231, D30(Open)/C8.25(Locked)
33x12.5 Mickey Thompson Baja MTZ Tires
291,000 mi and runnin' strong

RIP Brian "96_XJ" Perrine - You will be greatly missed...
Selfless over Selfish

Project Danger Cart - A super-powered, high-tech vehicle designed by a genius, or perhaps space aliens
August 2012 Cherokee of the Month!
2012 Cherokee of the Year!
dukie564 is offline   Reply With Quote
Old 02-10-2011, 04:47 PM   #6
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 31,421

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

Quote:
Originally Posted by Sidewinder69 View Post
Maybe at some point, I have the controls but it has never worked since I've had the Jeep. Is that where the cruise would hook up then?
not sure thats why i asked you lol is there three cables going to the throttle body
__________________
its all in your altitude,horn broke watch for fingerWhen asking for help here and not listening to test procedures why ask.
freegdr is offline   Reply With Quote
Old 02-10-2011, 04:47 PM   #7
CF Veteran

Join Date: Oct 2008
Location: Hell, CA
Posts: 1,849

View Metmknice's Photo Album My Photos
1989 Cherokee
Default

NVM
__________________
A bus station is where a bus stops. A train station is where a train stops. On my desk, I have a work station...

Some people are like Slinkies...Not really good for anything but they bring a smile to your face when pushed down the stairs.
Metmknice is offline   Reply With Quote
Old 02-10-2011, 04:57 PM   #8
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 31,421

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

Quote:
Originally Posted by Metmknice View Post
NVM
?????????????
__________________
its all in your altitude,horn broke watch for fingerWhen asking for help here and not listening to test procedures why ask.
freegdr is offline   Reply With Quote
Old 02-10-2011, 04:58 PM   #9
Junior Member

Sidewinder69's Avatar

Join Date: Feb 2011
Location: Smithfield, Virginia
Posts: 52

View Sidewinder69's Photo Album My Photos
1989 Wagoneer
Default

It cuts off on me which I believe is the Crank sensor since it was 10 ohms to high on the test and which I am replacing Saturday. It Idles 2500 Rpm after the restart from the above problem which I haven't tested the TPS yet but I believe that is the culprit for that and my shifting problem. Other than that it runs good for 278,000 miles
Sidewinder69 is offline   Reply With Quote
Old 02-10-2011, 05:04 PM   #10
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 31,421

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

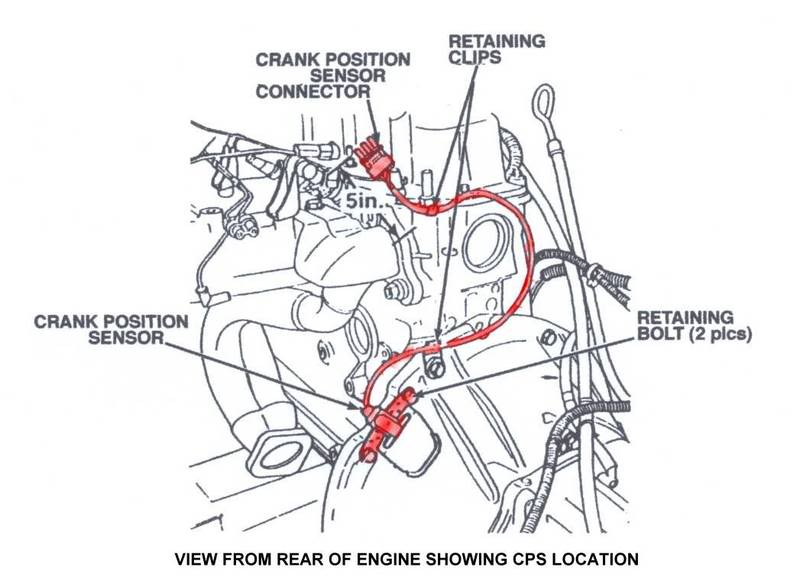

this area
Attached Thumbnails
What am I missing??-crankshaft_position_sensor_diagram.jpg
__________________
its all in your altitude,horn broke watch for fingerWhen asking for help here and not listening to test procedures why ask.
freegdr is offline   Reply With Quote
Old 02-10-2011, 05:11 PM   #11
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 31,421

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

i think its the plug to the cps?
__________________
its all in your altitude,horn broke watch for fingerWhen asking for help here and not listening to test procedures why ask.
freegdr is offline   Reply With Quote
Old 02-10-2011, 05:36 PM   #12
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 31,421

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

Quote:
Originally Posted by Sidewinder69 View Post
It cuts off on me which I believe is the Crank sensor since it was 10 ohms to high on the test and which I am replacing Saturday. It Idles 2500 Rpm after the restart from the above problem which I haven't tested the TPS yet but I believe that is the culprit for that and my shifting problem. Other than that it runs good for 278,000 miles
2500rpm iac motor try cleaning it
__________________
its all in your altitude,horn broke watch for fingerWhen asking for help here and not listening to test procedures why ask.
freegdr is offline   Reply With Quote
Old 02-10-2011, 06:18 PM   #13
Junior Member

Sidewinder69's Avatar

Join Date: Feb 2011
Location: Smithfield, Virginia
Posts: 52

View Sidewinder69's Photo Album My Photos
1989 Wagoneer
Default

Its not the CPS and its in the same wiring harness that runs along the fuel injectors. I will try cleaning the IAC but with my shifting problem I was thinking TPS. I all ready adjusted the shift cable so the TPS was my next course of action.
Sidewinder69 is offline   Reply With Quote
