What is this

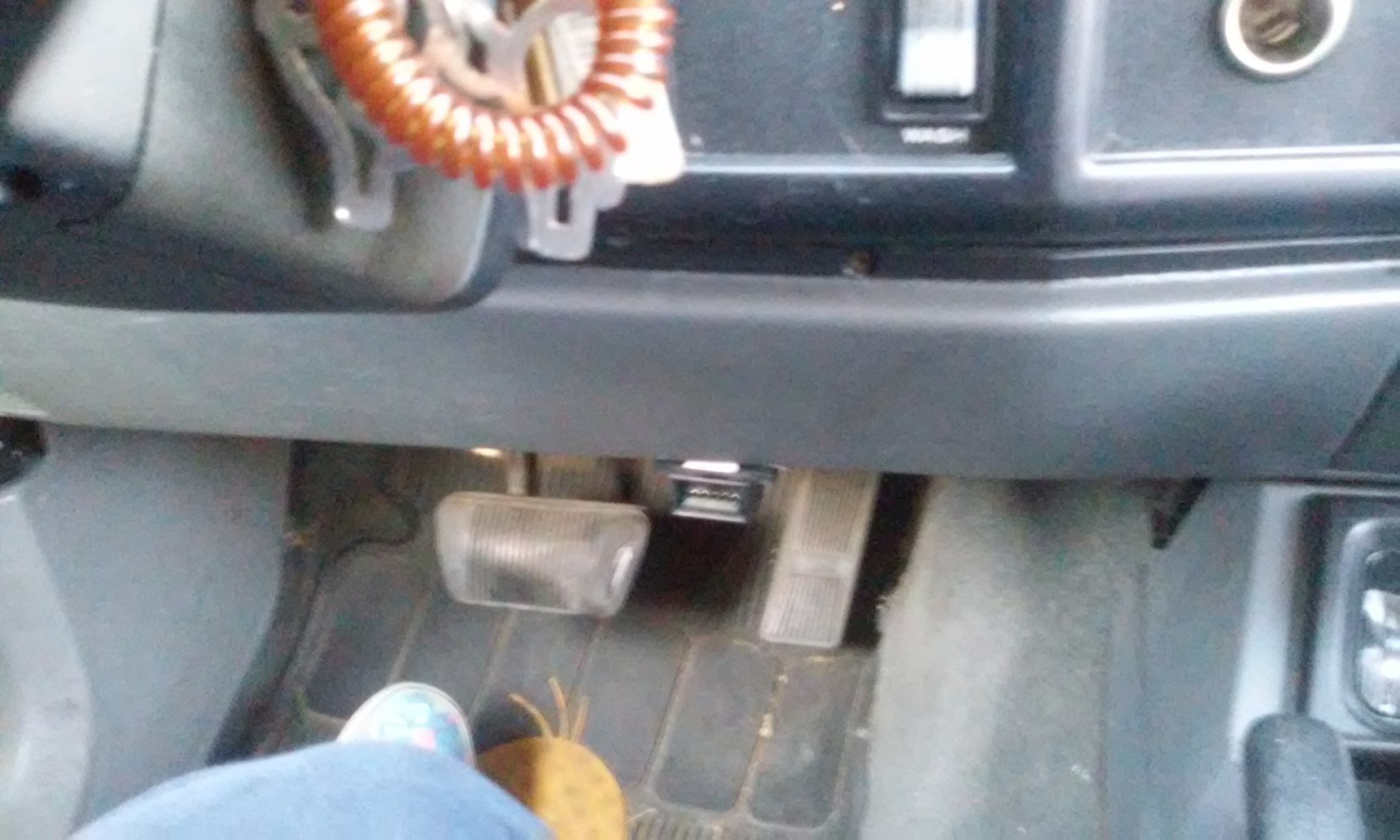

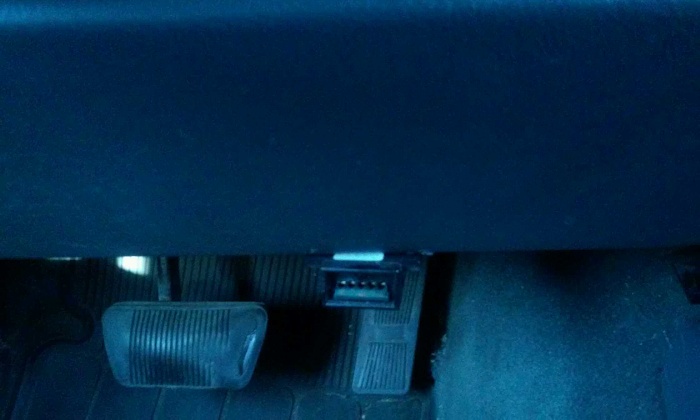

On my 96 xj this box all of a sudden is flashing and when is does my jeep won't start. If i jiggle the wires on that box it starts. What is it? It's a plug maybe for engine light tester.
#2
Seasoned Member
Join Date: Mar 2014
Location: Central Texas
Posts: 498
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Does your jeep have any aftermarket security system equipment on it? As they age, these systems start to flake out and if it includes an ignition disable option, can cause a no start.
I bring this up because that kinda looks like one of those plugs that an additional electronic key would plug into. ( I think they just had a circuit with a given value of resistor on it). Something similar used to come on 90's GM trucks.
I have a '96 also, and while there's a lot of crap up under my dash, there's definitely nothing that lights up, and that plug doesn't look like an OBD2 port.
I bring this up because that kinda looks like one of those plugs that an additional electronic key would plug into. ( I think they just had a circuit with a given value of resistor on it). Something similar used to come on 90's GM trucks.
I have a '96 also, and while there's a lot of crap up under my dash, there's definitely nothing that lights up, and that plug doesn't look like an OBD2 port.
#3
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Those were a dealer installed anti-theft device from the 90's. All it does is interrupt the start circuit until you put the "special" key in it to complete the circuit.
#5
Seasoned Member
Join Date: Mar 2014
Location: Central Texas
Posts: 498
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
It's most likely a plug in add-on module... trace the wires and see if anything plugs inline in the normal harness, where if you removed it, the wiring would just plug back together normally minus the added component(s)
