Voltage, alternator, water pump issue. (With pics) Please Help.
Hey all, thanks in advance for the help. I have a 1995 XJ 4.0, AT. I have recently developed an issue where my voltage meter on the dash is dropping down to around 9 when idling, it will come back up slowly when moving. If I have the AC on it stays at around 9 and will not come up. It will shut off my radar detector (which will say low voltage please unplug). Last night the lights got very dim and when letting off the gas the tachometer would drop to zero, when I shut the air off and gave it gas the tach jumped back up to normal. It makes a "clanging" sound you can hear in the cabin but more so when the hood is open, I tried to capture it on video and will try to post it here. Also my belt does squeal a bit and I'm not sure if the water pump pulley is angled off a little bit which I have included pics of too. Could the clanging sound be my waterpump and it is throwing my belt out of whack so the alternator is not functioning correctly? Check engine light is also on. Thank you again!

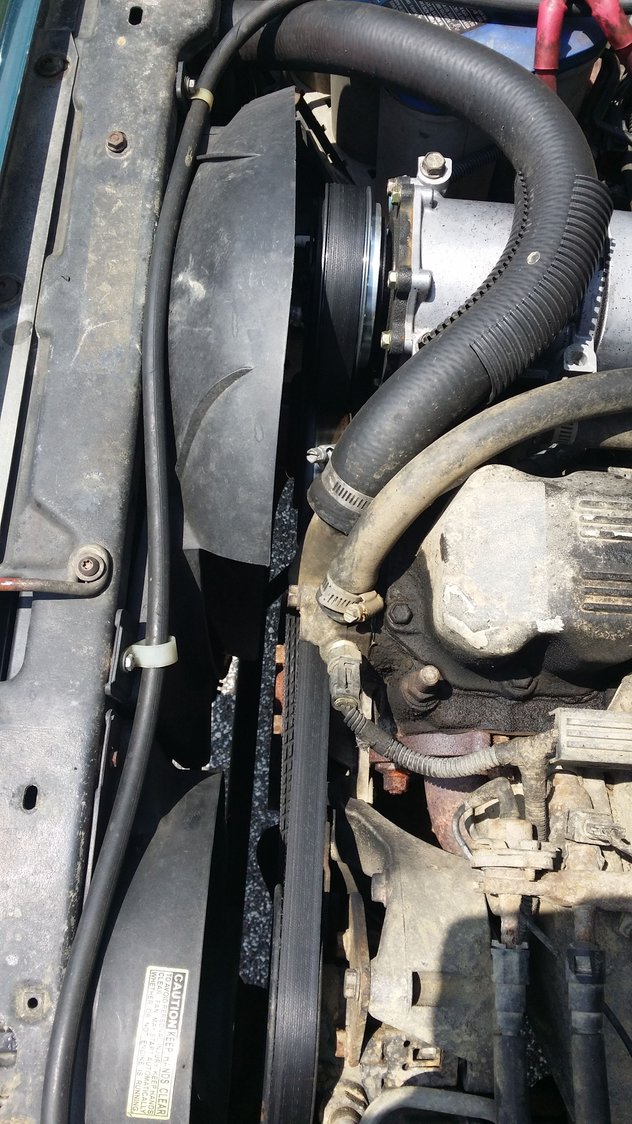

Overhead

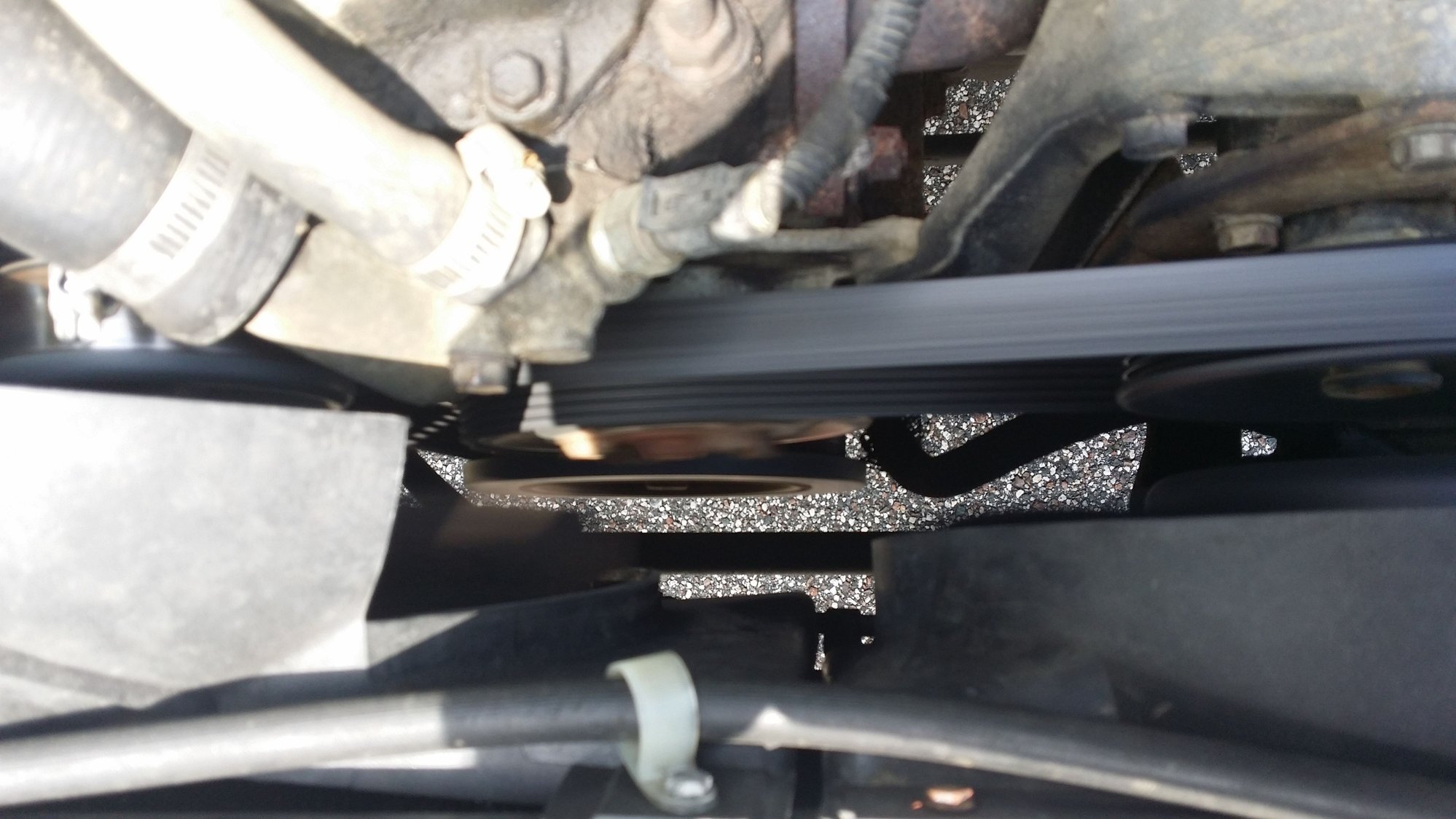

From drivers side

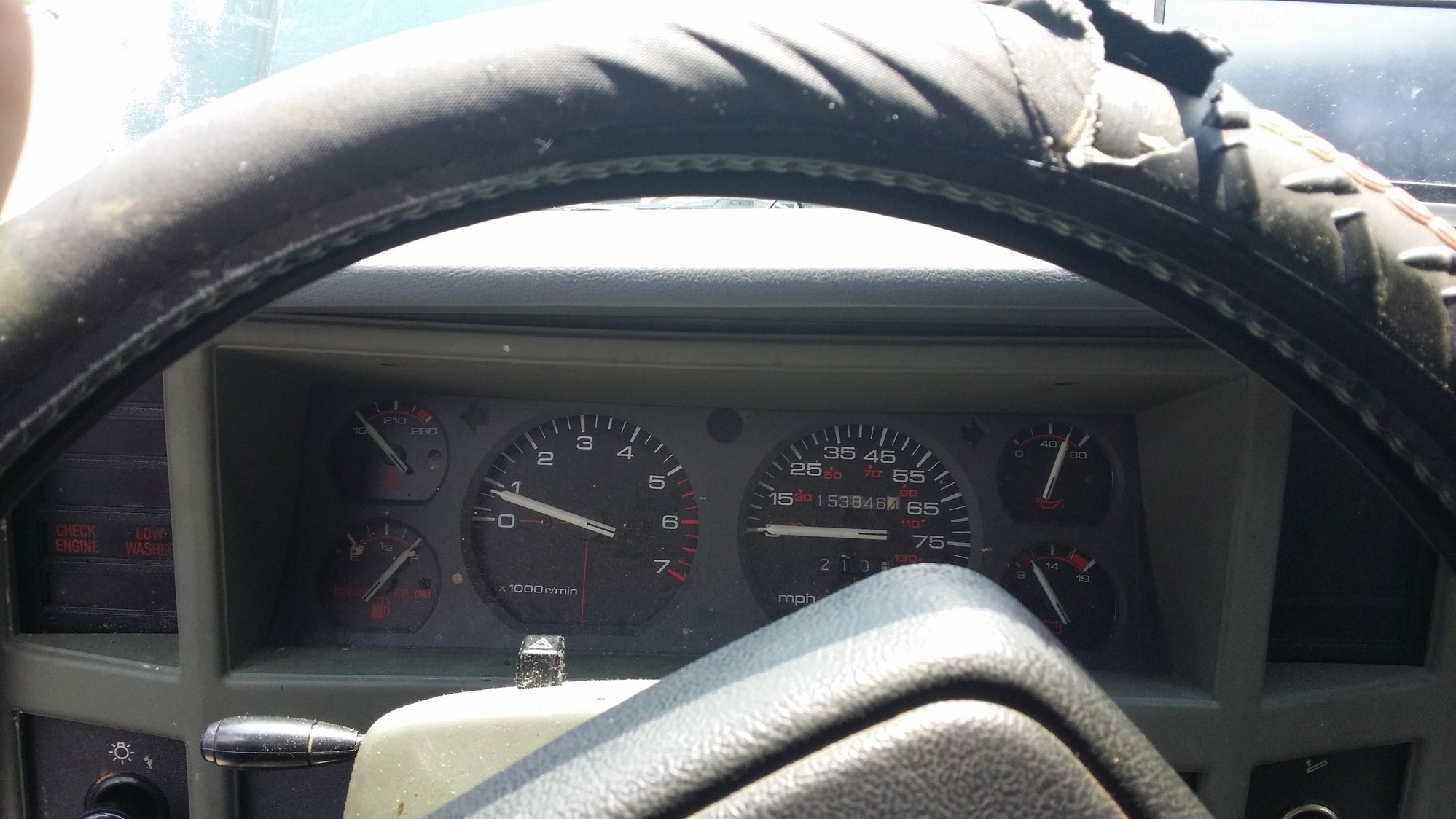

While idling
While idling
Overhead
From drivers side
While idling
While idling
#7
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Battery's are only good for three to five years. Trash that battery and get a regular group 34/700 cranking amps battery.
Remove the alternator and take it to an auto parts store and have it tested. If it's the original alternator it's probably worn out - get another one.
Last edited by CCKen; 08-07-2015 at 04:02 PM.
Trending Topics
#8
CF Veteran
Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Voltage, alternator, water pump issue. (With pics) Please Help.
Battery's last longer than that. my moms 06 caravan still has the factory battery and no problems.
#10
That clanging is disconcerting. Check the codes (there's a sequence of turning the ignition on/off; do a search as I don't recall what the sequence actually is) and find out where the clanging is coming from.
#11
CF Veteran
Join Date: May 2015
Location: San Antonio, TX
Posts: 1,472
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Pulling the codes is not likely going to tell you anything about the clanging noise. Get an automotive stethoscope(has a probe on the end instead of a cup), and find the source of the sound. You can also poor-man it, cut yourself a couple feet of heater hose or similar, cram one end in your ear, and the other end against the suspect components(water pump, alt, etc). You'll know it when you find it!
X2 on the battery as well. Yes, an older battery can do fine, especially in a newer car. But if you start having charging problems, an old battery is going to exacerbate these problems even if it isn't the cause of them. It may still be capable of taking a charge, but it requires more juice to maintain. This can max out the duty cycle of your alternator, and overwork it's regulator, exceed the load for your wiring(which is marginal at best in XJs), etc.
X2 on the battery as well. Yes, an older battery can do fine, especially in a newer car. But if you start having charging problems, an old battery is going to exacerbate these problems even if it isn't the cause of them. It may still be capable of taking a charge, but it requires more juice to maintain. This can max out the duty cycle of your alternator, and overwork it's regulator, exceed the load for your wiring(which is marginal at best in XJs), etc.
