Old 03-03-2011, 08:35 AM   #1
Junior Member

Join Date: Apr 2010
Location: SC
Posts: 87

View a737mech's Photo Album My Photos
1996 Cherokee
Default transmission filter change?

having difficulty removing pan do to a line from pan to upper automatic transmission. any idies on how to remove pan from line ext. 1996 cherokee sport 4x4 thanks
a737mech is offline   Reply With Quote
Old 03-03-2011, 09:37 AM   #2
Seasoned Member

Join Date: Jan 2011
Location: New York
Posts: 294

View SlackJaw's Photo Album My Photos
1996 Cherokee
Default

what line are you refering too? i thought in order to do the transmission pan, you just have to make sure you have the Jeep jacked up high enough (if you don't have a lift) in order for the dip stick to clear?
__________________
-SC

1996 Jeep Cherokee Sport
SlackJaw is offline   Reply With Quote
Old 03-03-2011, 10:17 AM   #3
Member

magator's Avatar

Join Date: Oct 2010
Location: New York
Posts: 128

View magator's Photo Album My Photos
1994 Cherokee
Default

The trani pan is very close to the TC x member. You have to remove the two trani / tc mount bolts and jack it up in order for the pan to clear the x member. If you don't there is a very good chance you will brake one or both of the two rear solenoids with the pan. I learned the hard way but was able to fix them. Good luck. PS. That was just two days ago
magator is offline   Reply With Quote
Old 03-03-2011, 12:06 PM   #4
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 7,441

View djb383's Photo Album My Photos
1998 Cherokee
Default

Do a search for "tubing cutter".
djb383 is offline   Reply With Quote
Old 03-03-2011, 02:19 PM   #5
Junior Member

Join Date: Apr 2010
Location: SC
Posts: 87

View a737mech's Photo Album My Photos
1996 Cherokee
Default

are you saying i am going to have to cutt the tube ?
a737mech is offline   Reply With Quote
Old 03-03-2011, 02:30 PM   #6
Seasoned Member

Join Date: Jan 2011
Location: New York
Posts: 294

View SlackJaw's Photo Album My Photos
1996 Cherokee
Default

Quote:
Originally Posted by a737mech View Post
are you saying i am going to have to cutt the tube ?


http://www.cherokeeforum.com/f2/diff...ick-way-44128/
__________________
-SC

1996 Jeep Cherokee Sport
SlackJaw is offline   Reply With Quote
Old 03-03-2011, 02:38 PM   #7
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 7,441

View djb383's Photo Album My Photos
1998 Cherokee
Default

Quote:
Originally Posted by a737mech View Post
are you saying i am going to have to cutt the tube ?
Nope, don't have to, but it sure makes it a lot easier to get the pan down and will make future pan drops a piece of cake.

Oooooops, my bad.....Slack already posted it for me (duh).

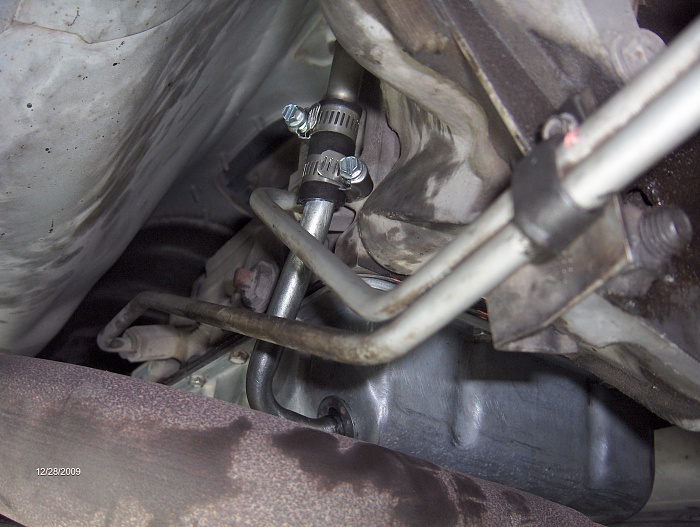

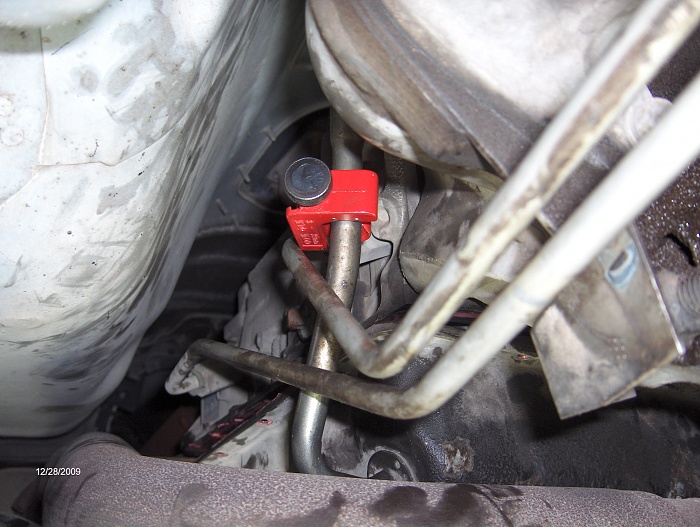

Attached Thumbnails
transmission filter change?-003.jpg   transmission filter change?-005.jpg

Last edited by djb383; 03-03-2011 at 04:46 PM.
djb383 is offline   Reply With Quote
Old 03-03-2011, 03:49 PM   #8
Newbie

Join Date: Jan 2011
Posts: 11

View cookiemech's Photo Album My Photos
Cherokee
Default

Yes, I just did that job on a 99 XJ and after fiddling around for a couple of hours trying to disconnect the dipstick tube at the joint, gave in and used a tubing cutter. Even with the dipstick tube on the bench, I couldn't pull it apart at the factory joint.

Cutting it and using a piece of hose with two clamps is the way to go.
cookiemech is offline   Reply With Quote
Old 03-03-2011, 04:47 PM   #9
Junior Member

Join Date: Apr 2010
Location: SC
Posts: 87

View a737mech's Photo Album My Photos
1996 Cherokee
Default

well thanks for the info but i was able to remove without cutting tube thanks i got it out baby
a737mech is offline   Reply With Quote
Old 03-04-2011, 01:34 PM   #10
Junior Member

Join Date: Apr 2010
Location: SC
Posts: 87

View a737mech's Photo Album My Photos
1996 Cherokee
Default

Thanks i have completed project filter and new oil all is good so fare no leaks
a737mech is offline   Reply With Quote
Old 03-18-2011, 06:41 AM   #11
Member

magator's Avatar

Join Date: Oct 2010
Location: New York
Posts: 128

View magator's Photo Album My Photos
1994 Cherokee
Default

Sorry forget what I said I was talking about my 98 GMC jimmy's trani. I must be losing it
magator is offline   Reply With Quote
Old 03-18-2011, 06:28 PM   #12
Senior Member

Join Date: Jan 2011
Location: N. IL
Posts: 801

View DaddyCat's Photo Album My Photos
2000 Cherokee
Default

Quote:
Originally Posted by magator View Post
Sorry forget what I said I was talking about my 98 GMC jimmy's trani. I must be losing it
you could go back and edit your previous post so people don't get freaked out trying to follow those directions.
__________________
Joe
__________________

Thank you men and women of the U.S. military.
http://www.military.com/benefits/res...ort-our-troops
DaddyCat is offline   Reply With Quote
Old 05-09-2014, 09:43 PM   #13
Newbie

Join Date: May 2014
Posts: 2

View imSOFAKINGrad's Photo Album My Photos
Cherokee
Default transmission shifting problem

edit: nvm
imSOFAKINGrad is offline   Reply With Quote
Old 05-10-2014, 12:09 AM   #14
::Regional Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 23,376

View cruiser54's Photo Album My Photos
1990 Comanche
Default

What did the "filter" look like?
__________________
Cruiser's Mostly Renix Tips can be found in the pink link below:

An index to over 25 helpful write-ups is in Post #1.
http://www.cherokeeforum.com/f51/cruiser54s-mostly-renix-tips-153657/

In Handy Printable pdf format:
https://docs.google.com/file/d/0Bz4d...aEE/edit?pli=1

A link to my Jeep Technical Photos:
http://www.cherokeeforum.com/g/album/1725214


Refresh*Connections*Before*Replacing*Components
cruiser54 is offline   Reply With Quote
Old 05-10-2014, 07:14 AM   #15
Seasoned Member

zr2toxj's Avatar

Join Date: Dec 2008
Location: Leeds, Maine
Posts: 472

View zr2toxj's Photo Album My Photos
1999 Cherokee
Default

You dont need to cut the tube. get a small hose clamp and put it on the lower portion of the tube, then hit it with a hammer and punch to drive it off. I had one on a used trans that was rusted and this worked good. I sprayed some deep creep on it first.
zr2toxj is offline   Reply With Quote
