Transfer case oil slinger question
I just replaced chain on np231 transfer case. I placed the original oil slinger back on the rear output. My question is does the oil slinger turn with the shaft or does it stay stationary? Does the boot turn too?
Thanks
Thanks
03-09-2014, 09:47 PM
#3
Junior Member
Thread Starter
Join Date: Oct 2012
Location: louisiana
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I need to know if i have to press the slinger on or leave it kinda loose on. I know the boot tightens onto the slinger. Just looking for anyone who knows.
03-10-2014, 08:22 AM
#5
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0

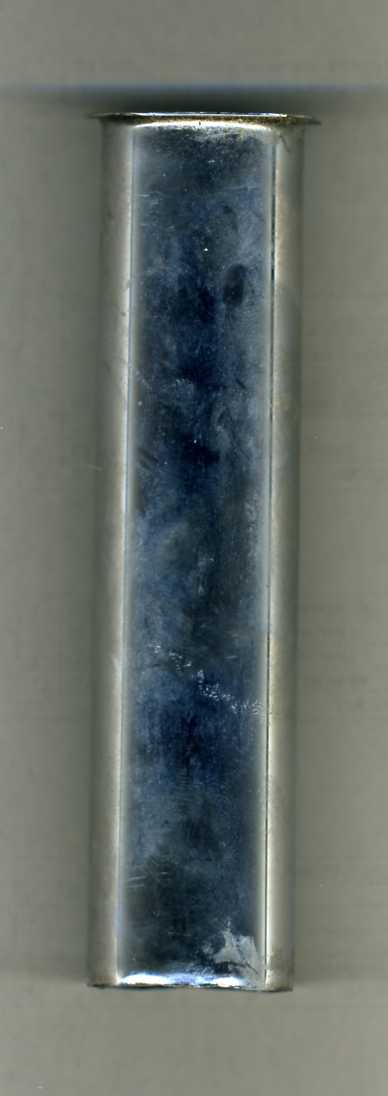

The slinger is tighter than a 14 year old apprentice nun to get on so you'll need to heat it up pretty good to get it to start on the output shaft, then place the ghetto tool over the slinger, flange end toward the slinger, and tap it into place with a plastic mallet , or place a piece of wood over the end and use a hammer to drive it home.
This pic shows how far the slinger goes in to bottom it out. Shown is an OEM slinger. The boot is held on with a cable tie.
Trending Topics
03-10-2014, 01:37 PM
#8
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Yes all of the official literature calls it a slinger so we call it a slinger
Doesn't look like one to me but hey. Curiously the doodad inside the case that moves oil is called a "pump"... looks like a slinger to me. What a wacky world.
You never cease to impress.
Had to Dremel mine off.
Doesn't look like one to me but hey. Curiously the doodad inside the case that moves oil is called a "pump"... looks like a slinger to me. What a wacky world.You never cease to impress.
Had to Dremel mine off.
Last edited by salad; 03-10-2014 at 01:41 PM.
03-10-2014, 02:05 PM
#9
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Yes all of the official literature calls it a slinger so we call it a slinger Doesn't look like one to me but hey. Curiously the doodad inside the case that moves oil is called a "pump"... looks like a slinger to me. What a wacky world.
You never cease to impress.
Had to Dremel mine off.
Doesn't look like one to me but hey. Curiously the doodad inside the case that moves oil is called a "pump"... looks like a slinger to me. What a wacky world.You never cease to impress.
Had to Dremel mine off.
