Timing Chain...Seriously I think it broke
So I decided to let my 97 Upcountry with 194K miles stretch his legs a bit...I left onto a county highway and let him go. Right around 4500 RPM I heard a muffled pop and the car instantly died.
I can crank it and he turns but it doesn't "feel" like I'm getting compression at all. I know it's nearly impossible to have a chain snap but it certainly seems like this is the case. I'll do a compression check today and let you all know.
If it is a timing chain issue...is there a write-up for replacement? Do I have to drop the oil pan?
I can crank it and he turns but it doesn't "feel" like I'm getting compression at all. I know it's nearly impossible to have a chain snap but it certainly seems like this is the case. I'll do a compression check today and let you all know.
If it is a timing chain issue...is there a write-up for replacement? Do I have to drop the oil pan?
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,863
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#6
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,863
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#7
Junior Member
Thread Starter
Join Date: Dec 2012
Location: Monument CO
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
So I checked the rotor and THANK YOU CF that I did! The pop I heard was the rotor self destructing as my distributor shaft bearing was sooo bad that the rotor was flailing around under the cap. The rotor must have smacked the side of the contact point when I was at 4500rpm and bam...Jeep instantly died.
So a new distributor went in and she fired up
So no the timing chain didn't break...
Question though...why did Jeep make it so that the distributor can be installed in one of four positions? Seems like a key slot would rid of any mis-installments?
So a new distributor went in and she fired up
So no the timing chain didn't break...
Question though...why did Jeep make it so that the distributor can be installed in one of four positions? Seems like a key slot would rid of any mis-installments?
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Dec 2012
Location: Monument CO
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
I had to do the ECM flash though cause the under load response was atrocious after the new distributor. Must have been adding a bit of advance with that rotor being all sorts of whacked out before.
#10
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
So I checked the rotor and THANK YOU CF that I did! The pop I heard was the rotor self destructing as my distributor shaft bearing was sooo bad that the rotor was flailing around under the cap. The rotor must have smacked the side of the contact point when I was at 4500rpm and bam...Jeep instantly died.
So a new distributor went in and she fired up
So no the timing chain didn't break...
Question though...why did Jeep make it so that the distributor can be installed in one of four positions? Seems like a key slot would rid of any mis-installments?
So a new distributor went in and she fired up
So no the timing chain didn't break...
Question though...why did Jeep make it so that the distributor can be installed in one of four positions? Seems like a key slot would rid of any mis-installments?
Only two positions. One correct and the other - wrong.
Oh, and, you're welcome.
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,863
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#12
Junior Member
Thread Starter
Join Date: Dec 2012
Location: Monument CO
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
I could have sworn I can rotate the distributor 90 degrees and have it slip into position...maybe not. Anyhow, how long after I reset the ECM should everything normal back out? I drove it last night and it drove fine after being a bit bogged and gear hunting for about 4 min. This morning it started but was at a super low idle. The temp is pretty cold this morning in CO. Does the factory ECM settings have an operating range I should be adhering to until the 50 cycles?
#13
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I could have sworn I can rotate the distributor 90 degrees and have it slip into position...maybe not. Anyhow, how long after I reset the ECM should everything normal back out? I drove it last night and it drove fine after being a bit bogged and gear hunting for about 4 min. This morning it started but was at a super low idle. The temp is pretty cold this morning in CO. Does the factory ECM settings have an operating range I should be adhering to until the 50 cycles?
Generally after resetting the PCM the only thing that takes time for it to relearn is the idle setting (IAC) but that really doesn't take long.
With issues like bogging you may have the distributor out of time.
You can check this by setting the crankshaft damper timing slot at the zero (O) mark on the timing chain cover timing marks. Then remove the distributor cap and see where the rotor is pointing. It should be pointing just past the #1 spark plug wire terminal on the cap. If is pointing 180 * out that's #6 terminal. If so, you'll have to rotate the damper 360* and realign the timing marks again.
If the rotor is pointing just past #1, Remove the rotor and cam sensor, reinstall the rotor, then insert a 3/16" pin punch, or drill bit, down through the alignment hole in the plastic plate in the distributor down through the hole in the base of the distributor. If it won't go through, the distributor is out of time. See pics.

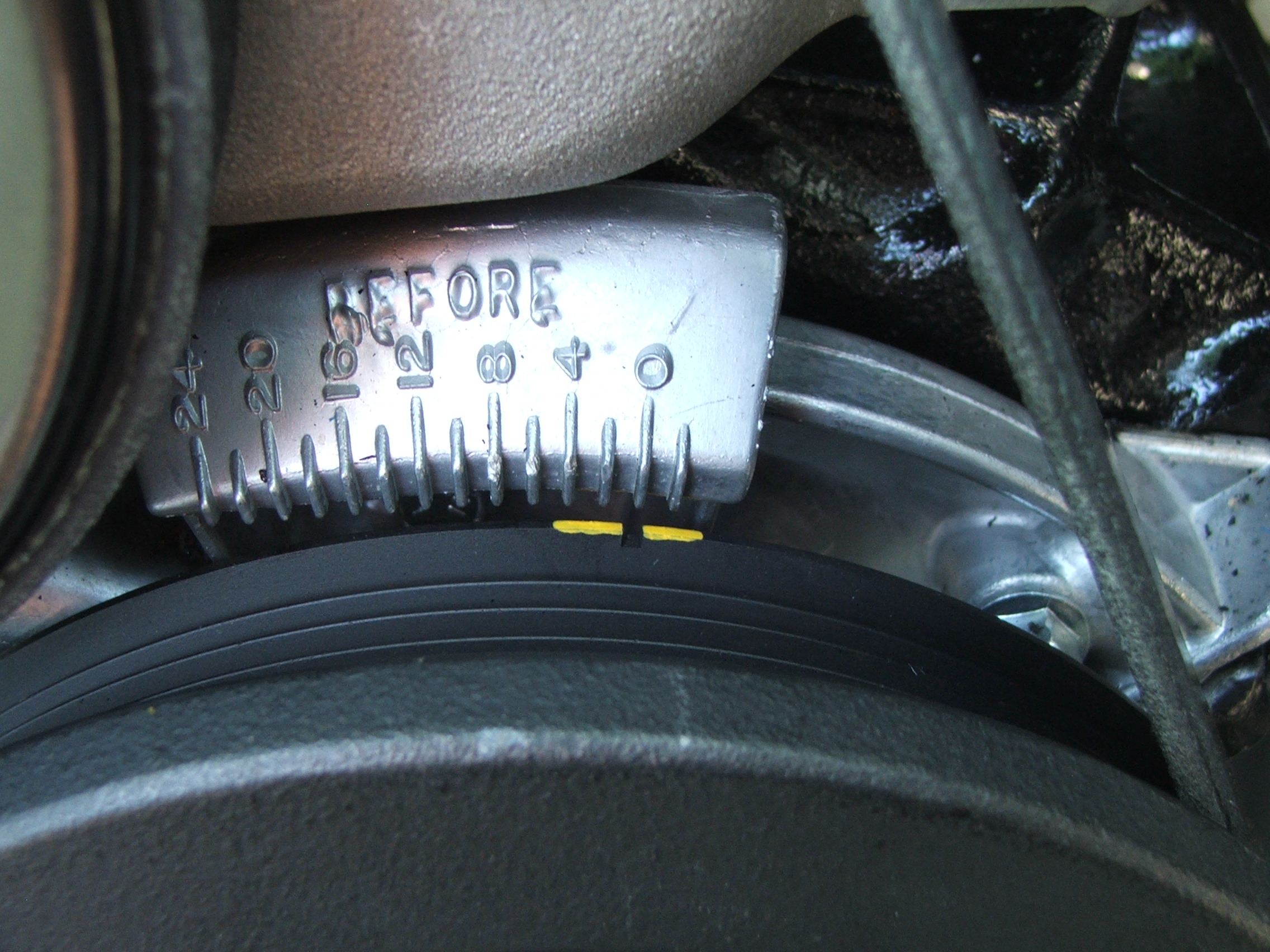

Timing marks:

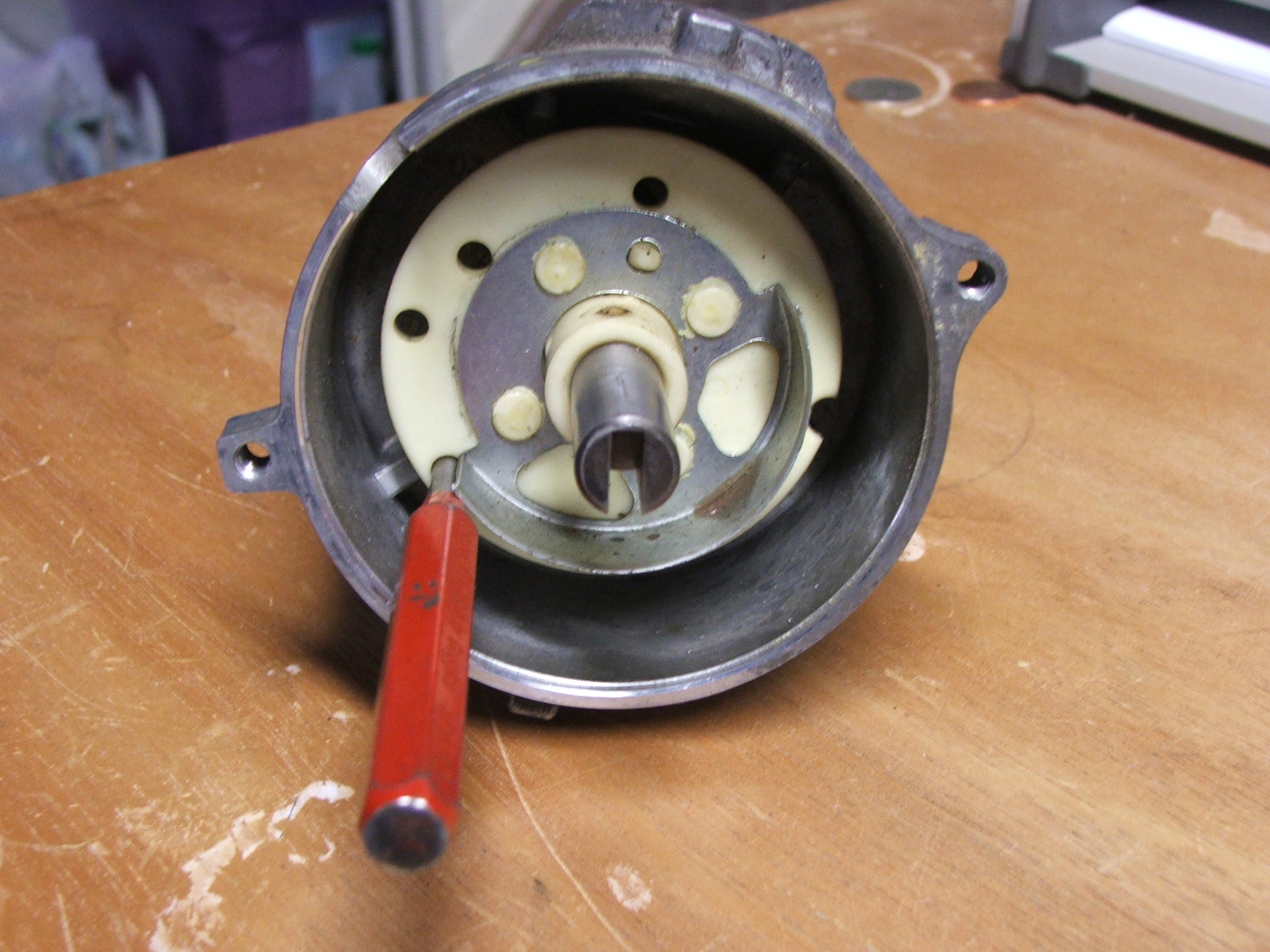

Alignment hole:

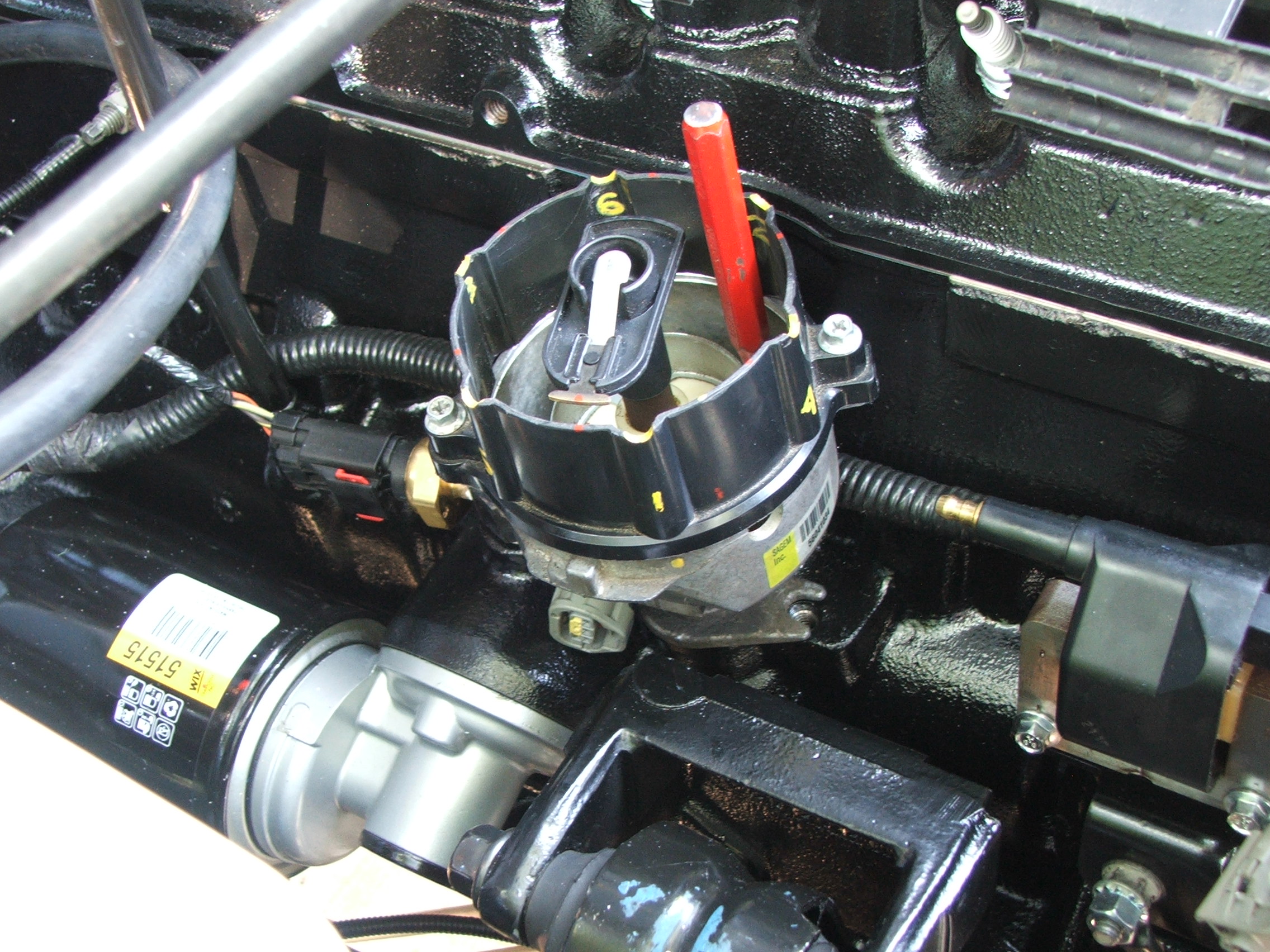

Pin punch shown installed when rotor is just past #1 and timing marks are aligned at zero. Modified cap shown.
#15
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 951 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
So I checked the rotor and THANK YOU CF that I did! The pop I heard was the rotor self destructing as my distributor shaft bearing was sooo bad that the rotor was flailing around under the cap. The rotor must have smacked the side of the contact point when I was at 4500rpm and bam...Jeep instantly died.
So a new distributor went in and she fired up
So a new distributor went in and she fired up
I've had to replace two of them, one on each of my Jeeps. The last time it wiped out my cam sensor.
