Old 09-25-2012, 02:41 PM   #1
CF Veteran


F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,025

View F1Addict's Photo Album My Photos
1989 Cherokee
Default Throttle Cable

I've been trying to address some issues recently... replaced my valve cover gasket, cleaned CCV orifice, replaced spark plugs and wires, new oil cap, hopefully resolved this recent tendency to run hot (but not overheat) issue with a new coolant bottle and cap, and an oil/filter change.

When I pulled the valve cover I unclipped the throttle cable and, while re-installing, accidentally pressed that button on the top which allowed the tensioner to pop out. I tried putting it back in the same position based on the dirt but I'm not sure if I did. She runs perfectly but I'm a little nervous about that throttle adjustment. How critical is it that I get it back to the exact position and is there a procedure for adjusting it properly? Again, it runs perfectly and idles at 550-600 rpm, no stalling, nothing weird at all, just don't want to mess up my TB butterfly or something by having it out of adjustment. Thanks.
__________________
Jeep enthusiast

Road Trip I

Road Trip II
F1Addict is offline   Reply With Quote
Old 09-25-2012, 03:20 PM   #2
kjc
Senior Member


Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 982

View kjc's Photo Album My Photos
1993 Grand Cherokee
Default

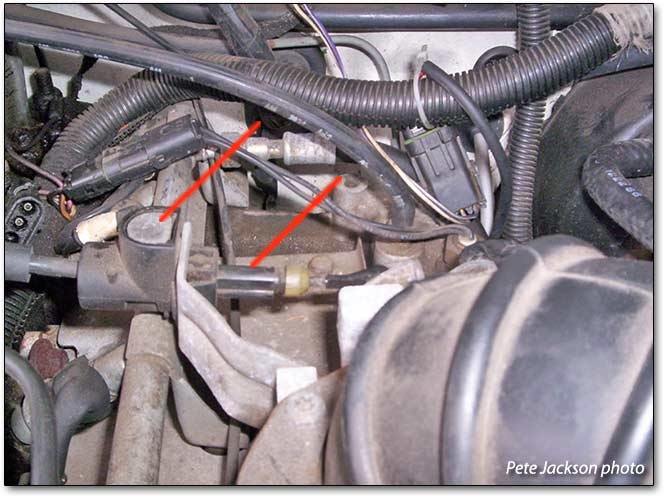

If you're talking about the TV cable (throttle valve) it's easy to adjust. With engine off.. push the D-shaped button and push the cable housing all the way back in (see pic) Release the button and twist your throttle to wide open position. You'll hear it 'ratchet' into position as you do this. That's it. Test drive it to make sure it shifts normally. It shouldn't shift too early or too late.
Attached Thumbnails
Throttle Cable-tv-cable-adj1.jpg
kjc is offline   Reply With Quote
Old 09-25-2012, 03:29 PM   #3
CF Veteran


F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,025

View F1Addict's Photo Album My Photos
1989 Cherokee
Default

Thanks, kjc. That's exactly what I was talking about. Not sure I'm gonna mess with it (based on what you've said) because everything seems to be working normally. Plus, it seems like every time I touch something, something else breaks...
__________________
Jeep enthusiast

Road Trip I

Road Trip II
F1Addict is offline   Reply With Quote
Old 09-25-2012, 06:06 PM   #4
CF Veteran


ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,388

View ZINGGG's Photo Album My Photos
1996 Cherokee
Default

If it shifts just like it used to, then it's in the right spot and you're good to go
__________________
Formerly 1996sportXJ

If needed to replace, UPGRADE!!

'96 XJ 4-door Sport 4.0L, AW4, NP231, HP D30, 8.25
w/ 4" Teraflex lift, 33" BFG K/Os on Black Rock Soft 8s, 4.56 gears (thank you RWKHausSupply), APN header, Precision Auto Injectors, bored throttle body (thank you Thexjfiles), Spectre Intake, 2.5" Magnaflow catback (thank you mudfrog), Optima red top, Kelley's WiP 4 gauge battery cables (thank you 5-90), 10" cubby subwoofer (thank you KFXHellRaiser), 1-ton steering (thank you SeriousOffroad), front Crusader prerunner bumper (thank you JCR Offroad), sliders and rear bumper/tire carrier (thank you Ares Fab), Hyline Hood Vents, Truck Lite LEDs and more
ZINGGG is offline   Reply With Quote
Old 09-25-2012, 06:36 PM   #5
CF Veteran


F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,025

View F1Addict's Photo Album My Photos
1989 Cherokee
Default

Well now I'm intrigued... are you suggesting that I can modify my shift points by moving that cable in and out? 'Cuz I see an XJ Sport Mode option in my future
__________________
Jeep enthusiast

Road Trip I

Road Trip II
F1Addict is offline   Reply With Quote
Old 09-25-2012, 06:40 PM   #6
CF Veteran


sthon's Avatar

Join Date: Mar 2011
Location: California
Posts: 2,554

View sthon's Photo Album My Photos
1992 Cherokee
Default

Quote:
Originally Posted by F1Addict View Post
Well now I'm intrigued... are you suggesting that I can modify my shift points by moving that cable in and out? 'Cuz I see an XJ Sport Mode option in my future
http://www.cherokeeforum.com/f2/free-quick-fix-41821/
sthon is offline   Reply With Quote
Old 09-25-2012, 06:53 PM   #7
kjc
Senior Member


Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 982

View kjc's Photo Album My Photos
1993 Grand Cherokee
Default

Quote:
Originally Posted by F1Addict View Post
Well now I'm intrigued... are you suggesting that I can modify my shift points by moving that cable in and out? 'Cuz I see an XJ Sport Mode option in my future
No, I wasn't suggesting that.. improper adjustment can actually cause damage to your transmission. IF it's too far out of adjustment. A click or two one way or the other shouldn't hurt it, but i'd make it as close to correct as possible.
kjc is offline   Reply With Quote
Old 09-25-2012, 06:53 PM   #8
CF Veteran


F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,025

View F1Addict's Photo Album My Photos
1989 Cherokee
Default

Quote:
Originally Posted by sthon View Post
Okay, well now I have to try. I have to admit, I'm not 100% satisfied with the 2-3, 3-4 shift under light acceleration. It's a little sloppy. No problem when I give it the beans, though. Anyone wanna place bets on what I'll break while adjusting the cable? LOL.
__________________
Jeep enthusiast

Road Trip I

Road Trip II
F1Addict is offline   Reply With Quote
Old 09-25-2012, 07:07 PM   #9
Member

Join Date: Jun 2012
Location: Central Frontenac, ON Canada
Posts: 112

View Sails's Photo Album My Photos
2001 Cherokee
Default

Quote:
Originally Posted by F1Addict View Post
Well now I'm intrigued... are you suggesting that I can modify my shift points by moving that cable in and out? 'Cuz I see an XJ Sport Mode option in my future
I had to disconnect mine to change my plugs, get the coil pack bar off. When I reinstalled it I pushed it too far in and my shifts have become much harder. It definitely has an effect.
__________________
2001 Cherokee Sport, Automatic, Dead Stock 4x4!
Sails is offline   Reply With Quote
Old 09-25-2012, 08:02 PM   #10
::Regional Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 21,579

View cruiser54's Photo Album My Photos
1990 Comanche
Default

Quote:
Originally Posted by F1Addict View Post
Okay, well now I have to try. I have to admit, I'm not 100% satisfied with the 2-3, 3-4 shift under light acceleration. It's a little sloppy. No problem when I give it the beans, though. Anyone wanna place bets on what I'll break while adjusting the cable? LOL.
You running the trans switch in Power or Comfort?
__________________
Cruiser's Mostly Renix Tips can be found in the pink link below:

An index to over 25 helpful write-ups is in Post #1.


http://www.cherokeeforum.com/f51/cruiser54s-mostly-renix-tips-153657/

Refresh*Connections*Before*Replacing*Components
cruiser54 is offline   Reply With Quote
Old 09-25-2012, 10:08 PM   #11
Seasoned Member

playbass's Avatar

Join Date: May 2012
Location: Salt Lake City, UT
Posts: 463

View playbass's Photo Album My Photos
1998 Cherokee
Send a message via AIM to playbass
Default

Quote:
Originally Posted by cruiser54 View Post
You running the trans switch in Power or Comfort?
I was running mine in power a couple days ago, got tired of exploding out of 1st gear in the city all the time. Adjusted it a little looser, somewhere between where I found it and where the tranny thought it should be. Shifting really comfortable now, but enough power when you need it.
playbass is offline   Reply With Quote
Old 09-25-2012, 10:18 PM   #12
::Regional Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 21,579

View cruiser54's Photo Album My Photos
1990 Comanche
Default

Quote:
Originally Posted by playbass View Post
I was running mine in power a couple days ago, got tired of exploding out of 1st gear in the city all the time. Adjusted it a little looser, somewhere between where I found it and where the tranny thought it should be. Shifting really comfortable now, but enough power when you need it.
Huh?
__________________
Cruiser's Mostly Renix Tips can be found in the pink link below:

An index to over 25 helpful write-ups is in Post #1.


http://www.cherokeeforum.com/f51/cruiser54s-mostly-renix-tips-153657/

Refresh*Connections*Before*Replacing*Components
cruiser54 is offline   Reply With Quote
Old 09-26-2012, 11:24 AM   #13
Seasoned Member

playbass's Avatar

Join Date: May 2012
Location: Salt Lake City, UT
Posts: 463

View playbass's Photo Album My Photos
1998 Cherokee
Send a message via AIM to playbass
Default

Quote:
Originally Posted by cruiser54 View Post
Huh?
Just making a joke. I did this throttle adjustment about a week ago and my XJ starting really pushing out of 1st gear, almost squealing tires, so I readjusted it a little closer to what it was previously.
playbass is offline   Reply With Quote
Old 09-26-2012, 11:27 AM   #14
CF Veteran


F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,025

View F1Addict's Photo Album My Photos
1989 Cherokee
Default

Quote:
Originally Posted by cruiser54 View Post
You running the trans switch in Power or Comfort?
I typically leave it in comfort, gas is expensive. In fact, I think I've only flipped that switch once, just to see if it worked. It worked.
__________________
Jeep enthusiast

Road Trip I

Road Trip II
F1Addict is offline   Reply With Quote
Old 09-26-2012, 12:50 PM   #15
CF Veteran


ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,388

View ZINGGG's Photo Album My Photos
1996 Cherokee
Default

Quote:
Originally Posted by F1Addict View Post
I typically leave it in comfort, gas is expensive. In fact, I think I've only flipped that switch once, just to see if it worked. It worked.
It worked, but what broke when you did it?
__________________
Formerly 1996sportXJ

If needed to replace, UPGRADE!!

'96 XJ 4-door Sport 4.0L, AW4, NP231, HP D30, 8.25
w/ 4" Teraflex lift, 33" BFG K/Os on Black Rock Soft 8s, 4.56 gears (thank you RWKHausSupply), APN header, Precision Auto Injectors, bored throttle body (thank you Thexjfiles), Spectre Intake, 2.5" Magnaflow catback (thank you mudfrog), Optima red top, Kelley's WiP 4 gauge battery cables (thank you 5-90), 10" cubby subwoofer (thank you KFXHellRaiser), 1-ton steering (thank you SeriousOffroad), front Crusader prerunner bumper (thank you JCR Offroad), sliders and rear bumper/tire carrier (thank you Ares Fab), Hyline Hood Vents, Truck Lite LEDs and more
ZINGGG is offline   Reply With Quote
