spring falls out of upper perch
#1
Member
Thread Starter
Join Date: Mar 2010
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
spring falls out of upper perch

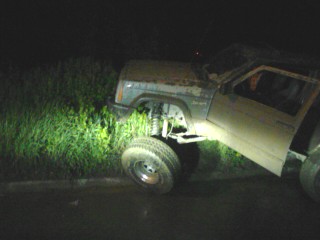

heres the pic the coil spring came loose and the bumb stop held the spring from falling out. should i make tabs or brakets at the top but then will the spring still allow the tire to drop?
#2
CF Veteran
meh, forgettabouttit.
mine used to do that all the time, with short arms. as long as you have coil tabs installed on the axle to hold the coil in, don't worry about it.
mine used to do that all the time, with short arms. as long as you have coil tabs installed on the axle to hold the coil in, don't worry about it.
#4
CF Veteran
now, as long as the bump stop doesn't fall out.
but i've never worried about mine. now i've got 8 inch coils and 36's, so there's no chance of it happening to me anymore.
but i've never worried about mine. now i've got 8 inch coils and 36's, so there's no chance of it happening to me anymore.
#7
CF Veteran
you could do straps, that way the shock doesn't top out and gets damaged.
or look into coil overs. they're for sale on pirate from time to time.
or look into coil overs. they're for sale on pirate from time to time.
Trending Topics
#10
CF Veteran
Join Date: Aug 2008
Location: Hollidaysburg, PA
Posts: 5,603
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
#11
CF Veteran
Join Date: Jun 2009
Location: Michigan
Posts: 2,131
Received 288 Likes
on
238 Posts
Year: 1987 MJ, 1998 XJ, 1973 J2000, 89 waggy
Model: Comanche (MJ)
Engine: 4.0L H.O
lmao i've seen someone use a seat belt for a limiting strap before, the buckle and all, its was crafty, he could byckle and un-buckle his LS but it didn't last long.... but my input, if your worried about it limiting straps are an easy way to go and like stated above the can help protect your shocks from getting damaged
#12
Member
Thread Starter
Join Date: Mar 2010
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
ok well my bump stop keeps the spring from fallin out it did fall out on me the other night in the dark i put it back in thats me in the dark doin it in the pic. i was just doin donuts and went down a hill and it popped on on the ground. i need another 3 or 4 inchs i was thinkin of welding on some tube to the bump stop to make it longer?? but then i wont goin in so far until i hit the bumb stop. i kno the straps are cheap but i dont like to limit my flex.
Last edited by useitorlooseit; 05-19-2010 at 11:13 AM.
#13
CF Veteran
yeah, you could weld on some tube to the bumpstops. but make sure you can still get your coils on and off without having to drop the axle just to do it.
also, make sure your axle doesn't hang off your shock when your shock is fully extended.
also, make sure your axle doesn't hang off your shock when your shock is fully extended.
#14
CF Veteran
Join Date: Aug 2008
Location: Hollidaysburg, PA
Posts: 5,603
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
x2 on the shock^^^
I would weld tube onto the end of the bumpstop.
Limiting straps would limit down travel, and down travel is what you want the most. The tube welded onto the bump stop would limit up travel, but not much. Just make sure you do it right.
Edit: alhough you may need limiting straps so you don't mess up your shock, like previously stated.
I would weld tube onto the end of the bumpstop.
Limiting straps would limit down travel, and down travel is what you want the most. The tube welded onto the bump stop would limit up travel, but not much. Just make sure you do it right.
Edit: alhough you may need limiting straps so you don't mess up your shock, like previously stated.
