sagging leaf springs.

Thread Tools

Search this Thread

Old 09-07-2009, 05:28 PM
  #1
Member
Thread Starter

chadattack's Avatar

Join Date: Aug 2009
Location: Suisun City, CA
Posts: 138
Likes: 0
Received 1 Like on 1 Post
Year: 1993
Model: Cherokee
Engine: 4.0 HO
Default sagging leaf springs.

so I swapped my stock wheels and tires for some 30.05 inchers, and theyre rubbing really bad because my leafe springs are sagging.
my question is; Will a rough country add a leaf, which should add 1.5 to 2 inches bring my leaf springs back up to par. or should i just buy all new leaf springs? i should also mention that i will be investing in a new rough country 4.5inch sus lift next month and need to know if new leaf springs are a must.
thanks for the help.

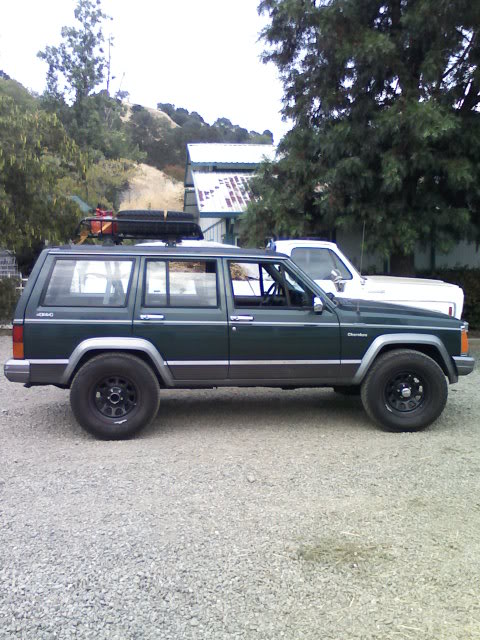

Name:  0828091905.jpg
Views: 3474
Size:  79.1 KB

Last edited by chadattack; 09-07-2009 at 05:57 PM.
Old 09-07-2009, 06:11 PM
  #2
CF Veteran

captainwoot's Avatar

Join Date: Aug 2009
Location: Hanover,Ont, Canada
Posts: 1,047
Likes: 0
Received 3 Likes on 3 Posts
Year: 1991
Model: Cherokee
Engine: 4.o
Default

I would personally replace the leafs, just because i did the add a leaf only to add 2" blocks a month later to clear my 31x10.5x15
Old 09-07-2009, 06:24 PM
  #3
Member
Thread Starter

chadattack's Avatar

Join Date: Aug 2009
Location: Suisun City, CA
Posts: 138
Likes: 0
Received 1 Like on 1 Post
Year: 1993
Model: Cherokee
Engine: 4.0 HO
Default

We're your leafs sagging before you add it?, and how much did the add a leaf raise it?
Old 09-07-2009, 06:30 PM
  #4
CF Veteran

alpine.adrenaline's Avatar

Join Date: Aug 2009
Location: 9000 ft, CO
Posts: 1,126
Received 12 Likes on 8 Posts
Year: 1999 XJ
Model: Cherokee
Engine: I6 4.0L
Default

I recommend going with a new set of leaf springs. You can use an add-a-leaf now but that will just postpone your leaf springs flattening. Later on if they invert they'll cause rubbing again. Try to get the majority of your lift from leaf springs alone (those with a specified lift upgrade); add-a-leafs, blocks, and shackles can cause wear on stock parts which usually leads to replacing entire assemblies. Add-a-leafs bolt up directly into stock position and usually include angled shims to somewhat realign your driveshaft.
Old 09-07-2009, 06:49 PM
  #5
Seasoned Member

jeepxjho's Avatar

Join Date: Aug 2009
Posts: 252
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Grand Cherokee
Engine: 4.0 HO
Default

If your going to do full leafs instead of a AAL i would started spraying them now.

I sprayed my bolts a week before i replaced my leafs and both bolts still broke inside the frame and required them to cut into the frame to get them replaced then weld in new pices of the unibody.
Old 09-07-2009, 06:59 PM
  #6
CF Veteran

alpine.adrenaline's Avatar

Join Date: Aug 2009
Location: 9000 ft, CO
Posts: 1,126
Received 12 Likes on 8 Posts
Year: 1999 XJ
Model: Cherokee
Engine: I6 4.0L
Default

X2. Use a whole can of PB Blaster.
Old 09-07-2009, 08:01 PM
  #7
Member
Thread Starter

chadattack's Avatar

Join Date: Aug 2009
Location: Suisun City, CA
Posts: 138
Likes: 0
Received 1 Like on 1 Post
Year: 1993
Model: Cherokee
Engine: 4.0 HO
Default

Damn, good to know. I think I may go with the aal for now, and when i get the new lift ill upgrade to rear springs, and throw the add a leaf on my s-10. I trully just need an imediate fix and cant risk, being with out a vehicle.
thanks again.
Old 09-21-2009, 08:42 AM
  #8
CF Veteran

95Cherokee's Avatar

Join Date: Feb 2009
Location: Houston Tx.
Posts: 2,203
Likes: 0
Received 3 Likes on 3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Originally Posted by jeepxjho
I sprayed my bolts a week before i replaced my leafs and both bolts still broke inside the frame
Why would you have to remove the upper leaf spring bolts to add new leafs?
Old 09-21-2009, 08:55 AM
  #9
Seasoned Member

jeepxjho's Avatar

Join Date: Aug 2009
Posts: 252
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Grand Cherokee
Engine: 4.0 HO
Default

He was saying he broke both bolts in the frame when he was installing full leaf packs instead of a AAL.

I had the same issue with me i just did a 3" rough country lift with full spring packs and broke both of my bolts in the frame also and i soaked everything almost most 2 weeks prior for everyday and still broke them lol.
Old 09-21-2009, 08:57 AM
  #10
CF Veteran

95Cherokee's Avatar

Join Date: Feb 2009
Location: Houston Tx.
Posts: 2,203
Likes: 0
Received 3 Likes on 3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

I just did'nt understand why you have to take the upper bolts out to put on new leaf springs
Old 09-21-2009, 09:38 AM
  #11
CF Veteran

muddeprived's Avatar

Join Date: Oct 2007
Location: W-PA
Posts: 3,883
Likes: 0
Received 6 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Good luck with that RC AAL. You will hate it. I did and it came off within two weeks. It's SO rough, just like the name of it. Putting that thick of a leaf on will have your stock leaves looking like a "W" as they bend over the new super-thick AAL.

I don't like to recommend blocks but I would recommend them over the RC AAL anyday. It's seriously CRAP. Use a 1" block as a temporary setup until you get the new packs. Blocks are easier to install than AAL's. If you really want an AAL, get the Old Man Emu AAL from jeepinoutfitters or dpg off road. It doesn't break your back and lifts approx 1".

Save for the 4.5" full leaf pack.

Last edited by muddeprived; 09-21-2009 at 09:41 AM.
Old 09-21-2009, 09:44 AM
  #12
Seasoned Member

jeepxjho's Avatar

Join Date: Aug 2009
Posts: 252
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Grand Cherokee
Engine: 4.0 HO
Default

Originally Posted by 95Cherokee
I just did'nt understand why you have to take the upper bolts out to put on new leaf springs
Ahh probally the same as me the leafspring eye bolt to shackle was seized thats what happen to me so i had to taek the whole shackle out to get the leafspring over to the press to get it out.
Old 09-21-2009, 09:45 AM
  #13
Seasoned Member

jeepxjho's Avatar

Join Date: Aug 2009
Posts: 252
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Grand Cherokee
Engine: 4.0 HO
Default

Originally Posted by muddeprived
Good luck with that RC AAL. You will hate it. I did and it came off within two weeks. It's SO rough, just like the name of it. Putting that thick of a leaf on will have your stock leaves looking like a "W" as they bend over the new super-thick AAL.

I don't like to recommend blocks but I would recommend them over the RC AAL anyday. It's seriously CRAP. Use a 1" block as a temporary setup until you get the new packs. Blocks are easier to install than AAL's. If you really want an AAL, get the Old Man Emu AAL from jeepinoutfitters or dpg off road. It doesn't break your back and lifts approx 1".

Save for the 4.5" full leaf pack.
Thats weird i had the rough country AAL before i got the full spring pack and had no issue with it at all and still rode great must just be personal prefrence.
Old 09-21-2009, 09:52 AM
  #14
CF Veteran

muddeprived's Avatar

Join Date: Oct 2007
Location: W-PA
Posts: 3,883
Likes: 0
Received 6 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by jeepxjho
Thats weird i had the rough country AAL before i got the full spring pack and had no issue with it at all and still rode great must just be personal prefrence.
Did you own a front and rear leaf sprung truck before? LOL. That may explain why it doesn't bother you. I couldn't get my gf to drive the jeep cuz of how it rode with that AAL.

I guess it is personal preference.
Old 10-01-2009, 04:49 PM
  #15
Member
Thread Starter

chadattack's Avatar

Join Date: Aug 2009
Location: Suisun City, CA
Posts: 138
Likes: 0
Received 1 Like on 1 Post
Year: 1993
Model: Cherokee
Engine: 4.0 HO
Default

Well I installed em and they actually feel great, and its been a few weeks and I dont see any wierd bending. I am saving up for a whole new pack though. this is just temperary.
