Renix Spark Plug Diagram
Hello all:
Any chance one of you can direct me to the correct diagram for the spark plug wires on an 87 4.0? I keep reading that the diagram in the manual is incorrect, and I cannot find the right one on the forum.
Been searching 20 minutes, but am evidently typing in the right phase.
Thanks in advance!
Jan
Any chance one of you can direct me to the correct diagram for the spark plug wires on an 87 4.0? I keep reading that the diagram in the manual is incorrect, and I cannot find the right one on the forum.
Been searching 20 minutes, but am evidently typing in the right phase.
Thanks in advance!
Jan
12-03-2011, 12:41 PM
#2
Member
Thread Starter
Join Date: Nov 2011
Location: Raleigh, NC
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Wagoneer
Engine: 4.0

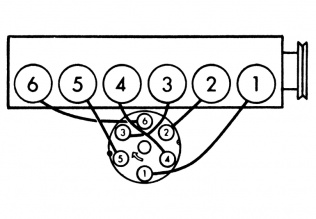

Here is a picture of how the wires are currently connected. I wanted to make sure they were right before I started moving anything else as I have never worked on a distributor.
12-03-2011, 10:13 PM
#5
Senior Member
Join Date: Dec 2010
Location: Linthicum, Md
Posts: 903
Likes: 0
Received 1 Like
on
1 Post
Year: 1987
Model: Cherokee
Engine: 1987 4.0L (242 CID) I6 RENIX FI 242 173 hp (129 kW) @ 4600 rpm, 224 lb•ft (304 N-m) @ 4000RPM
I have a 87 Renix (build date 86)..
coming out of the cap it looks right to me
since I cant see where they end up I cant say if they are hooked up right on that end
coming out of the cap it looks right to me
since I cant see where they end up I cant say if they are hooked up right on that end
