Renix FPR insides revealed

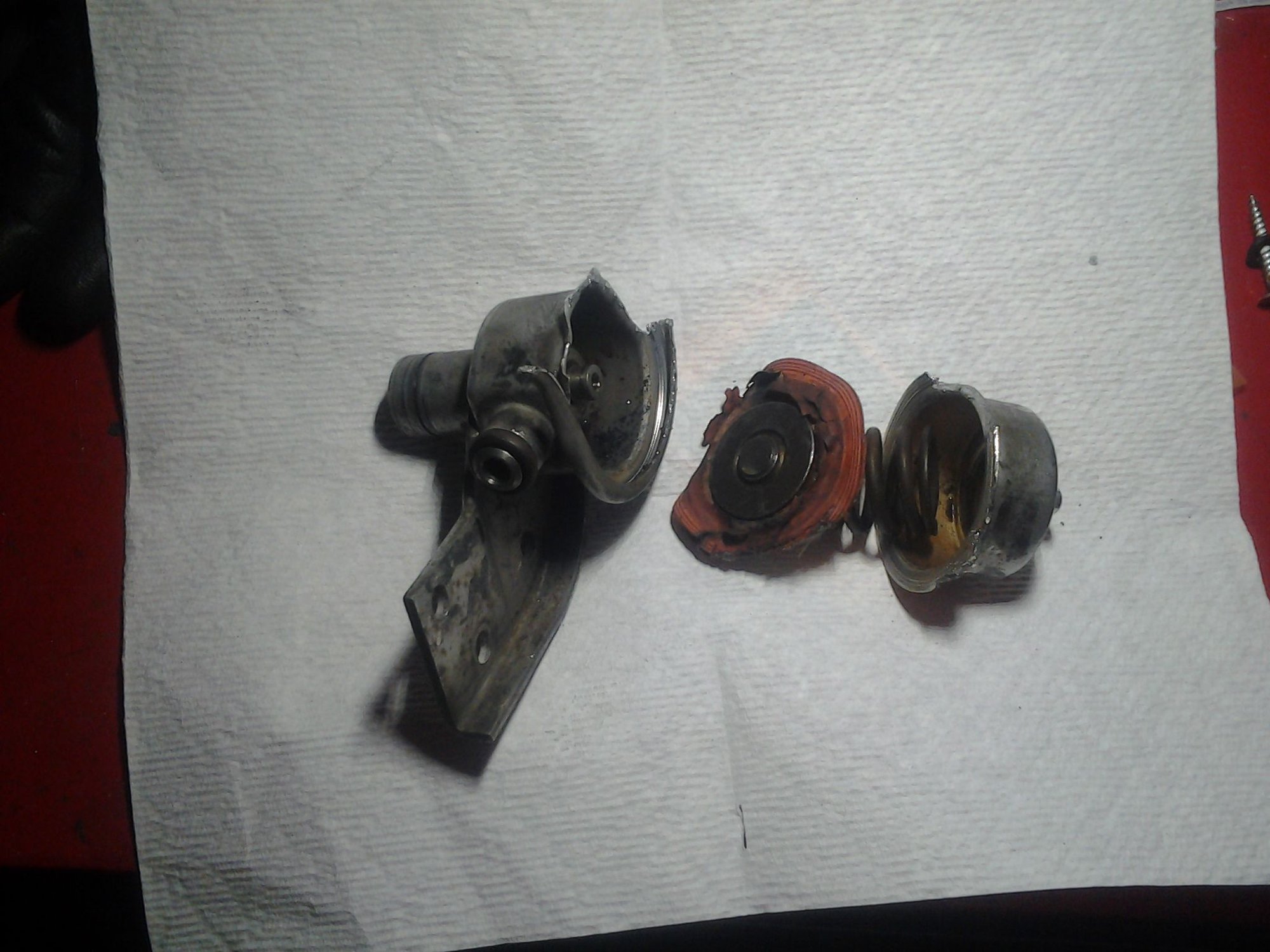

These pics might help if you have wondered how the fuel pressure regulator works.
I had been smelling fuel at the vacuum port side lately and now can see how fuel can get by a compromised diaphram.
