Rear Hatch Stud- Anyone ever run into this problem?
#1
Seasoned Member
Thread Starter
Join Date: Jul 2013
Location: Southern California
Posts: 259
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L
Rear Hatch Stud- Anyone ever run into this problem?
So I replaced my rear hatch gas struts, and all was heaven for a few weeks. My old hatch stud had been beat up from the old gas strut, but I ignored it and left in in place. One day while shutting my hatch, the stud snapped and the gas shock broke some of the plastic moulding. When I went to remove it, it just kept spinning
as if there was another nut on the back of it holding it in place. Problem is, that nut is inaccessible. Has anyone replaced one of these before? I've got the new one in my glove box, just have to remove the old one. Thanks!

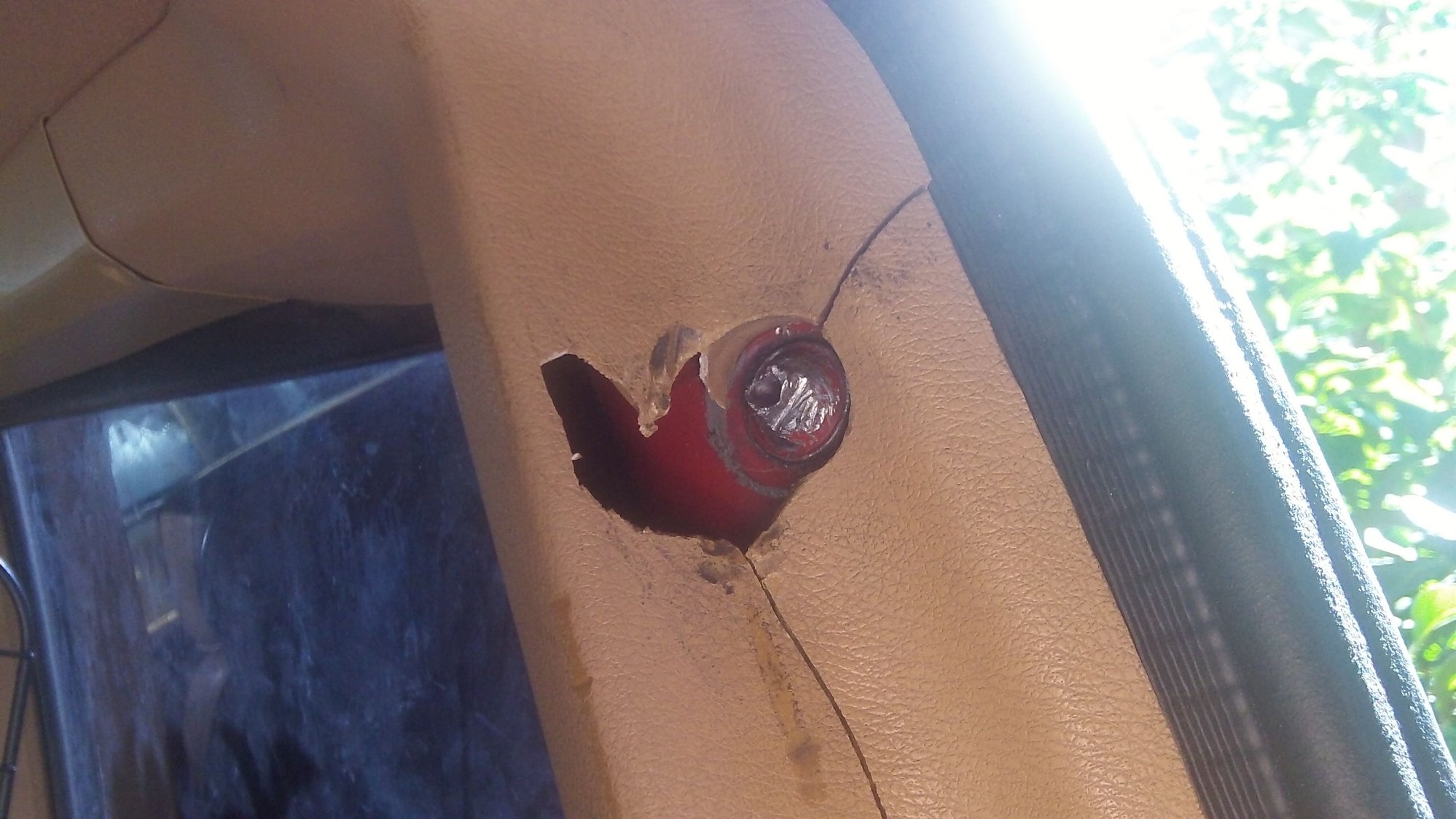

Busted rear hatch stud.
as if there was another nut on the back of it holding it in place. Problem is, that nut is inaccessible. Has anyone replaced one of these before? I've got the new one in my glove box, just have to remove the old one. Thanks!
Busted rear hatch stud.
#2
CF Veteran
Join Date: Sep 2011
Location: new mexico
Posts: 1,874
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Engine: 4.0
The nut it's spot welded to the pillar but over time it breaks loose and just spins. You have to cut a approximately a 1/2x 1 slot the fit the wrench in and with vice grips on the stud and eventually everything comes out. I have to do this with both side on mine. I can get you some pictures in the mornings or I should say when I get up and moving.
#3
Seasoned Member
Thread Starter
Join Date: Jul 2013
Location: Southern California
Posts: 259
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L
The nut it's spot welded to the pillar but over time it breaks loose and just spins. You have to cut a approximately a 1/2x 1 slot the fit the wrench in and with vice grips on the stud and eventually everything comes out. I have to do this with both side on mine. I can get you some pictures in the mornings or I should say when I get up and moving.
#4
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
My son broke his by using new struts he picked up at work that he knew nothing about. I told him not to use them as they were very stiff and free so he did. Broke one stud off and bent the other then the strut hit the glass in the hatch and it broke. All this for some "Free Struts"
Some peoples kids
Some peoples kids
Last edited by Fred/N0AZZ; 07-27-2015 at 10:51 AM.
#5
Seasoned Member
Thread Starter
Join Date: Jul 2013
Location: Southern California
Posts: 259
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L
My son broke his by using new struts he picked up at work that he knew nothing about. I told him not to use them as they were very stiff and free so he did. Broke one stud off and bent the other then the strut hit the glass in the hatch and it broke. All this for some "Free Struts"
Some peoples kids
Some peoples kids
BTW I am using Strongarm struts made specifically for the Jeep Cherokee as an OEM replacement. Is this a similar type you are referring to or was your son's a different case altogether?
#7
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I'm not even gonna try to find it in my photos. It IS possible to make a slot with an angle grinder, through which you can feed a nut in there with a mini needle nosed vice grips. I've done it, and it works.
Also on one Jeep I just have a hole there. My ram just has a little bolt sticking out with a washer on it smaller than the hole. Because it's always under pressure, (unless you lift too fast), that shaft with the washer stays there and works.
Or.. be careful electric welding. The welder should know...I might unplug my Puter and TCU for that, Idk.
Also on one Jeep I just have a hole there. My ram just has a little bolt sticking out with a washer on it smaller than the hole. Because it's always under pressure, (unless you lift too fast), that shaft with the washer stays there and works.
Or.. be careful electric welding. The welder should know...I might unplug my Puter and TCU for that, Idk.
Trending Topics
#8
Seasoned Member
Join Date: Mar 2014
Location: Central Texas
Posts: 498
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
My son broke his by using new struts he picked up at work that he knew nothing about. I told him not to use them as they were very stiff and free so he did. Broke one stud off and bent the other then the strut hit the glass in the hatch and it broke. All this for some "Free Struts"
Some peoples kids
Some peoples kids
Yup, stuff like this is almost always engineered "just enough", and when you swap in stronger pieces you'll discover the weak points quickly.
#11
Seasoned Member
Thread Starter
Join Date: Jul 2013
Location: Southern California
Posts: 259
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L

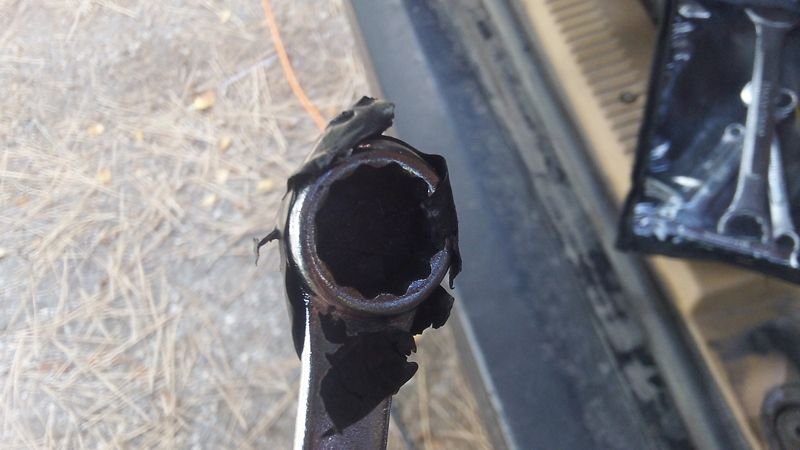

So I finally got around to taking care of the stud, as well as a few other things this week. I took advice and cut a small rectangular hole so I could access the nut behind the stud. I used a 5/8 wrench to hold the nut in place (I think it may actually be a 15mm, but I didn't have one on hand and 3/8 worked well). I taped the open side of the wrench so the nut would not fall and I could keep it easily in place. The rest is academic. Thanks for all the help and hope this helps someone else.
