Old 08-07-2012, 03:34 PM   #1
Newbie

Join Date: Aug 2012
Posts: 3

View cheechako77's Photo Album My Photos
Cherokee
Question Outside Air Intake

I have a 2001 Cherokee Sport with which I am having a problem. Which is, that even though all the heat and A/C systems are working fine, my front window still fogs up when it gets cool outside. Have tried running the defrost with both warm and cold air, with and without running the fan (and yes it is blowing plenty of air on the windshield) and while the cold air helps a bit, it makes for some uncomfortable driving conditions particularly for the wife. Thus I am sure that somewhere along the line the outside air vent has become clogged, detached, etc. Or at least that;s my best guess. Has anyone else ever had this problem, and if so what's the solution? To include, will I really have to take the entire dash off to get to the problem? Thanks very much for any help you can pass along.
cheechako77 is offline   Reply With Quote
Old 08-07-2012, 03:47 PM   #2
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34° 15' 35.67", -82° 21' 12.04"
Posts: 13,446

View Lowrange2's Photo Album My Photos
1993 Cherokee
Default

I don't understand what you think the problem is... If there's plenty air blowing on the windshield then what makes you think the issue is with the HVAC system?

Click the image to open in full size.
__________________
2014 Cherokee of the Month Calendars FOR SALE!
Click here for info:http://www.cherokeeforum.com/f54/201...orders-184427/

"I don’t have pet peeves — I have major psychotic ****ing hatreds!" - G.Carlin
Lowrange2 is offline   Reply With Quote
Old 08-07-2012, 03:56 PM   #3
CF Veteran


austinjoe13's Avatar

Join Date: Nov 2011
Location: Grand Rapids, MN
Posts: 2,202

View austinjoe13's Photo Album My Photos
1990 Cherokee
Default

Is the fog on the outside maybe? lol
__________________
Emergency Medical Responder
CLEAN 1990 XJ Laredo: Rice Hungry
Project Cleanix

Clean on the inside MUD ON THE OUTSIDE!!
austinjoe13 is offline   Reply With Quote
Old 08-07-2012, 04:02 PM   #4
Member


ColoradoCorey's Avatar

Join Date: Jun 2012
Location: Colorado Springs Colorado
Posts: 200

View ColoradoCorey's Photo Album My Photos
96 Cherokee
Default

When using your defroster, is your ac pump kicking in? Im not sure exactly how it works but there is a dryer of sorts that takes the moisture out of the air. I would check that first.
ColoradoCorey is offline   Reply With Quote
Old 08-07-2012, 04:04 PM   #5
CF Veteran


austinjoe13's Avatar

Join Date: Nov 2011
Location: Grand Rapids, MN
Posts: 2,202

View austinjoe13's Photo Album My Photos
1990 Cherokee
Default

Try the heat defroster. That always does it for me!
__________________
Emergency Medical Responder
CLEAN 1990 XJ Laredo: Rice Hungry
Project Cleanix

Clean on the inside MUD ON THE OUTSIDE!!
austinjoe13 is offline   Reply With Quote
Old 08-07-2012, 04:43 PM   #6
Herp Derp Jerp


salad's Avatar

Join Date: Nov 2011
Location: Kingston, ON
Posts: 11,561

View salad's Photo Album My Photos
1999 Cherokee
Send a message via MSN to salad
Default

Defrost without the fan? Unless you installed a switch to bypass that the fan is on as soon as you select a mode on the center ****

Also I've had this happen on super humid days. Sunday it rained pretty heavy here - had to run the defog up front to clear the condensation from my breath. Trouble is since the AC compressor engaged it cooled off the glass which caused condensation on the outside - had to keep the wipers going lol.

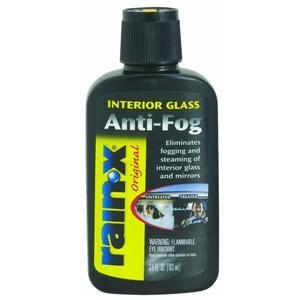

In the winter I used that Rain-X stuff that lowrange2 posted. Very happy with it, but don't try cleaning afterwards lol
__________________
But our trip was different. It was to be a classic affirmation of everything right and true in the national character. A gross physical salute to the fantastic possibilities of life in this country. But only for those with true grit.

And we are chock full of that, man!

A little writeup on engine oil for your Jeep
salad is online now   Reply With Quote
Old 08-08-2012, 01:41 PM   #7
Newbie

Join Date: Aug 2012
Posts: 3

View cheechako77's Photo Album My Photos
Cherokee
Default Outside Air Intake

Thanks to everyone for replying to my initial post, but not sure anything fits the bill so to speak. The moisture forms on the inside of the window, and turning on the defrost with the heat on doesn't solve the problem. In fact it gets worse. Turning the heat completely off and running the defrost fan while at the same time rolling down the windows helps some, but makes it uncomfortable to drive, especially for my wife. Is the A/C pump kicking on? Don't think so but I will check.

Again, my thought is that what is happening is that somehow the outside air flow that balances out the humidity in the vehicle has been cut off. Say this because I used to have a Ford Taurus which had a cabin filter that filtered the outside air, and about once a year I had to replace it because it would become dirty and cut the air flow off.

Again, thanks for the replies.
cheechako77 is offline   Reply With Quote
Old 08-08-2012, 02:46 PM   #8
Herp Derp Jerp


salad's Avatar

Join Date: Nov 2011
Location: Kingston, ON
Posts: 11,561

View salad's Photo Album My Photos
1999 Cherokee
Send a message via MSN to salad
Default

If your AC works, then yes. The spec (at least for newer XJs) is to engage the compressor when defrost is selected and the temp is over freezing.

Unfortunately no cabin air filter in these beasts
__________________
But our trip was different. It was to be a classic affirmation of everything right and true in the national character. A gross physical salute to the fantastic possibilities of life in this country. But only for those with true grit.

And we are chock full of that, man!

A little writeup on engine oil for your Jeep
salad is online now   Reply With Quote
Old 08-08-2012, 04:32 PM   #9
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 7,075

View djb383's Photo Album My Photos
1998 Cherokee
Default

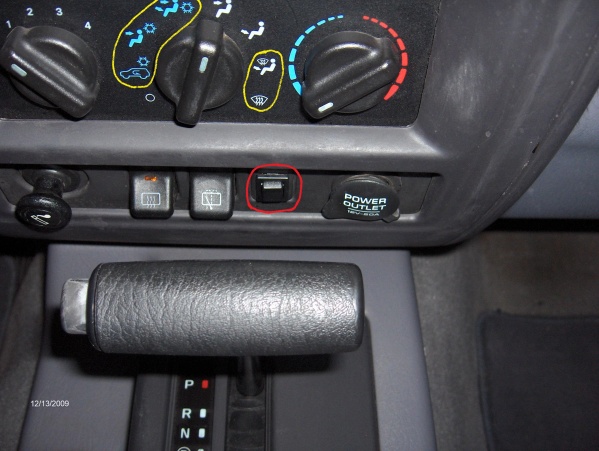

Try selecting one or the other "white" vent selector positions that are not circled in yellow and adjusting the temp selector toward the "red" portion. The 2 "white" non-circled positions are the only 2 positions that do not engage the a/c compressor. All of the vent selector positions circled in yellow engage the a/c compressor regardless of where the temp selector is set.
Attached Thumbnails
Outside Air Intake-002-copy.jpg
__________________
Man Law - hoods should be raised at least once a week....have a look.

Last edited by djb383; 08-08-2012 at 04:34 PM.
djb383 is offline   Reply With Quote
Old 08-08-2012, 04:48 PM   #10
Senior Member

bruni86xj's Avatar

Join Date: Nov 2011
Location: Rockford illinois
Posts: 772

View bruni86xj's Photo Album My Photos
1998 Cherokee
Default

Crack a window n call it a day
__________________
,=======o0000o
//__|__|__\_____\,_____
|_/--\'_|___|_/--\_[]IIII[]

_( O ) )=) )__( O ) )===) )_____
bruni86xj is offline   Reply With Quote
Old 08-08-2012, 07:26 PM   #11
Herp Derp Jerp


salad's Avatar

Join Date: Nov 2011
Location: Kingston, ON
Posts: 11,561

View salad's Photo Album My Photos
1999 Cherokee
Send a message via MSN to salad
Default

djb383, is that button highlighted in a red circle for bypassing the compressor? I've been fancying installing one so I can run all those options without wasting even more gas lol
__________________
But our trip was different. It was to be a classic affirmation of everything right and true in the national character. A gross physical salute to the fantastic possibilities of life in this country. But only for those with true grit.

And we are chock full of that, man!

A little writeup on engine oil for your Jeep
salad is online now   Reply With Quote
Old 08-08-2012, 08:20 PM   #12
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 7,075

View djb383's Photo Album My Photos
1998 Cherokee
Default

Quote:
Originally Posted by salad View Post
djb383, is that button highlighted in a red circle for bypassing the compressor? I've been fancying installing one so I can run all those options without wasting even more gas lol
Negative on bypassing the compressor. That pic is from one of my very 1st posts here asking if that switch (red circle) was factory or not. Our XJ is a plain Jane SE model and that switch (and door/hatch lock servos) were installed by the PO so that the 4 doors and rear hatch could be locked/unlocked with that dash switch. Far from remote keyless entry but at the same time, handy as a pocket on a shirt for a 5 door vehicle.
__________________
Man Law - hoods should be raised at least once a week....have a look.
djb383 is offline   Reply With Quote
Old 08-09-2012, 12:39 PM   #13
Newbie

Join Date: Aug 2012
Posts: 3

View cheechako77's Photo Album My Photos
Cherokee
Default Thanks

DJ, Salad...thanks for the additional info. Unfortunately I have just tried setting the heater to the non defrost settings, which is another reason I feel its not getting any outside air. Not sure about running the A/C but will give it a try. But dang, hate to cut the mileage even more. And, lol, not sure who said to just open a window...but even that doesn't work!!! I guess I'll either keep trying a combination of things, or give in and pull the dash to see if the venting system is clogged, colapsed, or whatever the situation might be. Have a good weekend guys.
cheechako77 is offline   Reply With Quote
Old 08-09-2012, 01:03 PM   #14
Member


ColoradoCorey's Avatar

Join Date: Jun 2012
Location: Colorado Springs Colorado
Posts: 200

View ColoradoCorey's Photo Album My Photos
96 Cherokee
Default

if it really is condensation then opening the window would clear the windshield over time. Are you sure its condensation and not a bad heater core blowing antifreeze on the WS?
ColoradoCorey is offline   Reply With Quote
Old 08-09-2012, 01:31 PM   #15
Senior Member


macgyver35's Avatar

Join Date: Feb 2012
Location: Arlington, Texas
Posts: 634

View macgyver35's Photo Album My Photos
1998 Cherokee
Default

I would suspect either a failing heater core blowing water vapor through the system, or a clogged condensation drain. Do you ever get in your Jeep and smell a maple syrup smell? If so, you probably have a failing heater core. Not good.

To the OP, the way an automotive defroster works is, in part, by dehumidifying the air, not just blowing it around. In addition the airflow over the glass, either hot or cold, the primary way the system deals with the moisture is to have the air pass over the AC evaporator coils first. This is why on most vehicles, the AC compressor is designed to kick on in the defrost settings. This allows the coils to get cold, and the moisture in the air passing over the coils sticks to the coils and freezes, thus dehumidifying the air. When the compressor cycles off and the coils warm up, the condensed ice melts to water and drips into the bottom of the chamber and is routed out through the condensate drain that goes through the firewall. If you raise the hood and look down from the passenger side, you can see the small black plastic drain tube sticking out of the bottom of the firewall, down below the dryer/accumulator.

The other reason that the compressor is designed to kick on is that in some situations during the cold/cooler times of the year, the AC system may not be needed for months on end. Sitting this long without use can cause seals to dry up and/or harden, which could lead to system failure or leaks. Having the compressor kick on even periodically during the winter months (when you are likely to use a defroster) helps keeps everything in the system lubed up and functional.

I would run the defroster or AC on a humid day for 10 or 15 minutes and make sure you see water coming our of the condensate drain. Have the system set on a non-recirculate setting, and also some mid temp setting, not full cold, so that you can be sure the compressor is occasionally cycling off and allowing the ice to melt. If you never see any water draining, you probably have a clogged drain, thus the water never goes away. You can shove a screwdriver in the drain to make sure it open, You won't hurt anything.
__________________
The difference between stupidity and genius is that genius has its limits. - Einstein

Last edited by macgyver35; 08-09-2012 at 01:33 PM.
macgyver35 is offline   Reply With Quote
