No spark!!!

Reply



Thread Tools Search this Thread
Old 04-12-2011, 10:30 PM   #1
Member
Thread Starter

Join Date: Mar 2010
Location: chicagoish
Posts: 244

View XJmanXJ's Photo Album My Photos
Default No spark!!!

so bought a 99 Cherokee 4.o a couple months ago it was sitting in a barn for approximately 4 years its in great shape but i cant get it start its showing about 12 volts from the coil but its not sparking at the plugs i picked up a new coil, rotor, wire, plugs and a cap and still same thing wont start every now and then when i spray starter fluid into the intake it will fire real quick but it wont start i was thinking the cps but when that went out on my 97 zj it wouldnt even fire i already checked all the fuses and there all fine does anybody have any other ideas?
XJmanXJ is offline   Reply With Quote
Old 04-12-2011, 11:03 PM   #2
CF Veteran

Bustedback's Avatar

Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,368

View Bustedback's Photo Album My Photos
Default

CPS and pickup coil should fix it for you.
Bustedback is offline   Reply With Quote
Old 04-12-2011, 11:15 PM   #3
Member
Thread Starter

Join Date: Mar 2010
Location: chicagoish
Posts: 244

View XJmanXJ's Photo Album My Photos
Default

alright ill try that is there any way to test the cps? volt ohm or anything?
XJmanXJ is offline   Reply With Quote
Old 04-13-2011, 07:09 AM   #4
CF Veteran

Join Date: Nov 2010
Location: In the middle of Minnesota!
Posts: 5,145

View tjwalker's Photo Album My Photos
Default

1. Test your crank sensor. Test your cam sensor. Both are suspects here.

2. Also test your fuel pressure. You need to have approx. 49 psi at the fuel rail for this engine to fire. Gotta use a fuel pressure gauge to rule this in or out.
tjwalker is offline   Reply With Quote
Old 04-13-2011, 07:13 AM   #5
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 46,423

View freegdr's Photo Album My Photos
Default

gasoline after four years aint doing any good either its just adding to the problem
freegdr is offline   Reply With Quote
Old 04-13-2011, 07:14 AM   #6
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 46,423

View freegdr's Photo Album My Photos
Default

Quote:
Originally Posted by XJmanXJ View Post
so bought a 99 Cherokee 4.o a couple months ago it was sitting in a barn for approximately 4 years its in great shape but i cant get it start its showing about 12 volts from the coil but its not sparking at the plugs i picked up a new coil, rotor, wire, plugs and a cap and still same thing wont start every now and then when i spray starter fluid into the intake it will fire real quick but it wont start i was thinking the cps but when that went out on my 97 zj it wouldnt even fire i already checked all the fuses and there all fine does anybody have any other ideas?
if its fireing real quick fuel issue would be first concearn
freegdr is offline   Reply With Quote
Old 04-13-2011, 06:44 PM   #7
CF Veteran

Join Date: Nov 2010
Location: In the middle of Minnesota!
Posts: 5,145

View tjwalker's Photo Album My Photos
Default

Quote:
Originally Posted by freegdr View Post
gasoline after four years aint doing any good either its just adding to the problem
I agree. Siphon every ounce of the old fuel out before continuing, and fill with fresh fuel.

Bad fuel will contaminate your entire fuel system including your fuel injectors.
tjwalker is offline   Reply With Quote
Old 04-14-2011, 08:36 PM   #8
Member
Thread Starter

Join Date: Mar 2010
Location: chicagoish
Posts: 244

View XJmanXJ's Photo Album My Photos
Default

i agree with the whole fuel thing but that doesnt explain my spark issue
XJmanXJ is offline   Reply With Quote
Old 04-14-2011, 11:27 PM   #9
Member

Join Date: Mar 2011
Location: Jordan Mn.
Posts: 215

View iggnant-1-XJ's Photo Album My Photos
Default

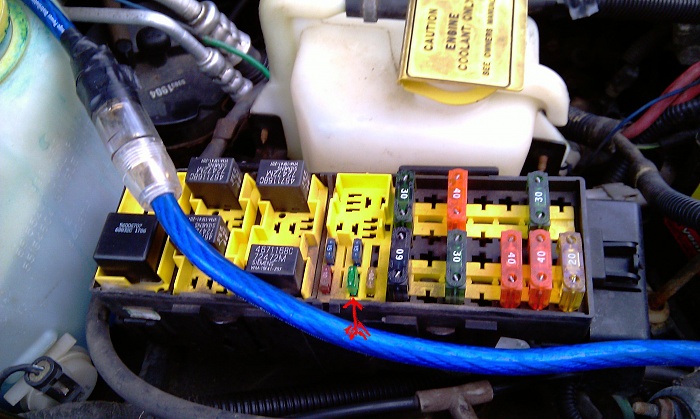

Check this fuse.
Attached Thumbnails
No spark!!!-imag0042.jpg
iggnant-1-XJ is offline   Reply With Quote
Old 04-15-2011, 07:25 AM   #10
CF Veteran

Join Date: Nov 2010
Location: In the middle of Minnesota!
Posts: 5,145

View tjwalker's Photo Album My Photos
Default

You must have some spark or it wouldn't even try to fire.

Next step is to check QUALITY of spark.

Pull a plug, keep it attached to the plug wire, place the plug electrode near a good engine ground, have a buddy crank the engine while you watch. You are looking for a strong, blue, snapping spark. Yellow/orange/white indicates a weak spark, which may not be strong enough to start the engine.

Report back what you find. Verifying quality spark is the FIRST thing I do for a no-start.
tjwalker is offline   Reply With Quote
Old 04-17-2011, 11:12 PM   #11
Member
Thread Starter

Join Date: Mar 2010
Location: chicagoish
Posts: 244

View XJmanXJ's Photo Album My Photos
Default

i don't see any spark it seems like it doesn't always spark and for the fuse that's not my fuse box layout and i don't have any small 30 amps i already checked all the fuses under the hood any in the pass compartment i should check?
XJmanXJ is offline   Reply With Quote
Old 04-18-2011, 12:57 AM   #12
Member

JrRifleCoach's Avatar

Join Date: Aug 2008
Posts: 231

View JrRifleCoach's Photo Album My Photos
Default

"when i spray starter fluid into the intake it will fire real quick "

Ya got spark, this proves it.
Missing fuel.

Drain that tank and purge the fuel line at the fuel rail.
Then reconnect the fuel line and attempt to start.
JrRifleCoach is offline   Reply With Quote
