no fuel power and noe fuel injectors pulse
05-29-2012, 10:59 PM
#16
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I thought so, thanks! (wasn't sure where it got it's power for the starter solenoid). So the key powers the coil in the relay, the NSS grounds that, then power then goes threw from #30 to 87. ...?
Or do you happen to know...does the NSS signal the ECU to ground it, or can ether of them ground it? (in a Renix Jeep)
Funny to find it's the second one back, I saw a diagram that had it at #3.
Or do you happen to know...does the NSS signal the ECU to ground it, or can ether of them ground it? (in a Renix Jeep)
Funny to find it's the second one back, I saw a diagram that had it at #3.
Last edited by DFlintstone; 05-29-2012 at 11:17 PM.
05-30-2012, 06:21 AM
#17
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
ECU grounds it on # 85.
NSS only affects ignition power to the system.
NSS only affects ignition power to the system.
05-30-2012, 11:48 AM
#18
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Ow CRAP! I'm sorry Josh, for confusing things..I got off on the starter relay, (which is grounded by the NSS, and never the ECU)
Mostly just added confusion.
The ECU, and I believe only the ECU grounds the fuel pump relay. (unless you do it).
Mostly just added confusion. The ECU, and I believe only the ECU grounds the fuel pump relay. (unless you do it).
05-30-2012, 10:04 PM
#20
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Neutral Safety Switch, mounted on the passenger side of the automatic transmission.
05-31-2012, 08:37 AM
#22
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
05-31-2012, 08:40 AM
#23
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Re-read Post # 15. Start tracing back from where you found low voltage til you find where it's getting lost. Don't be afraid to open up the harness to trace it. It's easy to put back together with electrical tape after you fix the problem.
05-31-2012, 09:53 PM
#24
Member
Thread Starter
Join Date: May 2012
Location: Covington Ha
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Ok so I have traced wires and traced wires. I think I may have a bad computer cause all my wires are good as far as I can tell.
My next ? Is could I convert my motor to carberater. Is there any intake that would bolt up to my head for a carb.
I have heard of other poeple doing it with diffrent motors
I know I would have to have a new fuel pump or fuel regulator to get down to 7 psi
My next ? Is could I convert my motor to carberater. Is there any intake that would bolt up to my head for a carb.
I have heard of other poeple doing it with diffrent motors
I know I would have to have a new fuel pump or fuel regulator to get down to 7 psi
06-01-2012, 01:09 AM
#26
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

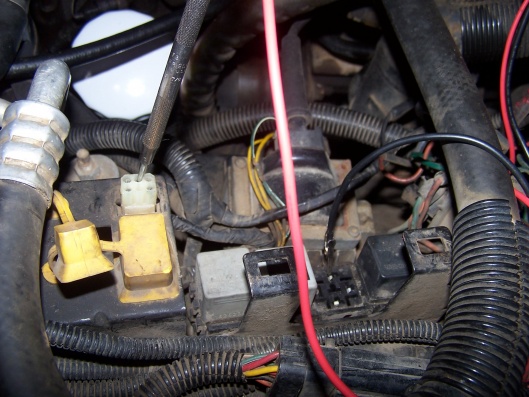

Was looking. It seems to be a red wire to the #5 spot on the diagnostic connector. OK, went and looked, that's the middle spot of the one with 6, on the engine side. (and my #30, nearest the engine is hot with 12.7V as well)
Last edited by DFlintstone; 06-01-2012 at 01:12 AM.
06-01-2012, 06:16 AM
#27
Member
Thread Starter
Join Date: May 2012
Location: Covington Ha
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
I have trace all the wires to to proper locations u should see my engin bay there are wires everywhere. I even got a wiring diagram amd dummed all the points that should have power I am getting no where and need my jeep
06-01-2012, 12:07 PM
#28
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

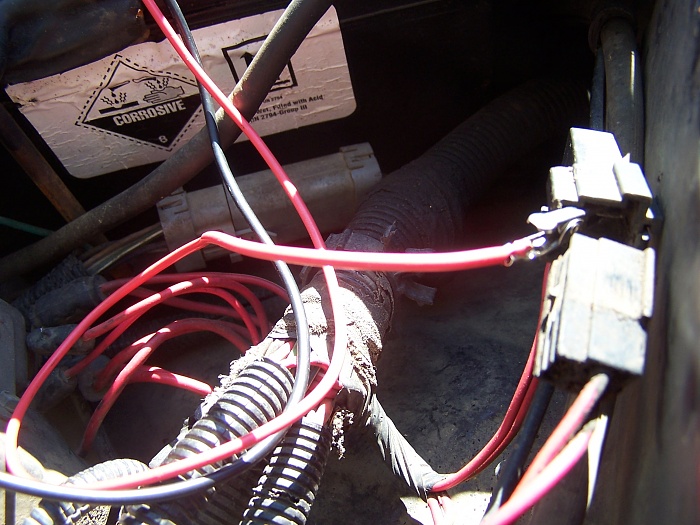

I can see how that would be a pain. Mine's sort of a mess. I just looked some more, mine has a two wire plug right there, high on the passenger inner fender. The top of the two, red w/white stripe is that wire I think. Looks like that might be where the fuse link attaches to the wire to the relay, (and stuff). I can't be sure without getting farther into it. Do you have that plug? If so is it good? Do you have power on that top red/white stripe wire?
06-01-2012, 08:28 PM
#30
Member
Thread Starter
Join Date: May 2012
Location: Covington Ha
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Ok so I have traced and replaced a bunch of wires in the past 2 days. And I heard the jeep run today for the first time in 2 months.
The only problem I am having a fuel injector prim problem once it starts they run fine do u have any idea what would cause this
The only problem I am having a fuel injector prim problem once it starts they run fine do u have any idea what would cause this
