newbie needs help
hey all. Purchased a lovely XJ a few months back, now its starting to give me problems
I got codes:
P0135
PO141
P0155
P0165
It says all 4 of my O2 sensors heater circuits are bad, i checked my fuse, it was blown. replaced it and then that one blew. Getting TERRIBLE gas mileage and also idles very rough.
Any help or guidance would be greatly appreciated.
I got codes:
P0135
PO141
P0155
P0165
It says all 4 of my O2 sensors heater circuits are bad, i checked my fuse, it was blown. replaced it and then that one blew. Getting TERRIBLE gas mileage and also idles very rough.
Any help or guidance would be greatly appreciated.
#3
Newbie
Thread Starter
Join Date: Dec 2014
Location: NJ
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
#4
Seasoned Member
Join Date: Aug 2014
Location: Lehigh Valley PA
Posts: 486
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 renix
I'd still be checking all of the wiring if I were you. I mean all the way to the fusebox. Not just the visible wire runs underneath the Jeep. Can't really think of a reason all 4 would be doing that except for an open or short in the wiring somewhere. The fuse is blowing because there's something wrong with wiring, I can pretty much garuntee that. Really get in there behind the fuse box, get some wiring diagrams maybe. Shoot down the wires with a DMM, etc. It's gotta be wiring (or the wrong fuse size, but I doubt you'd be making a silly mistake like that)
#6
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0

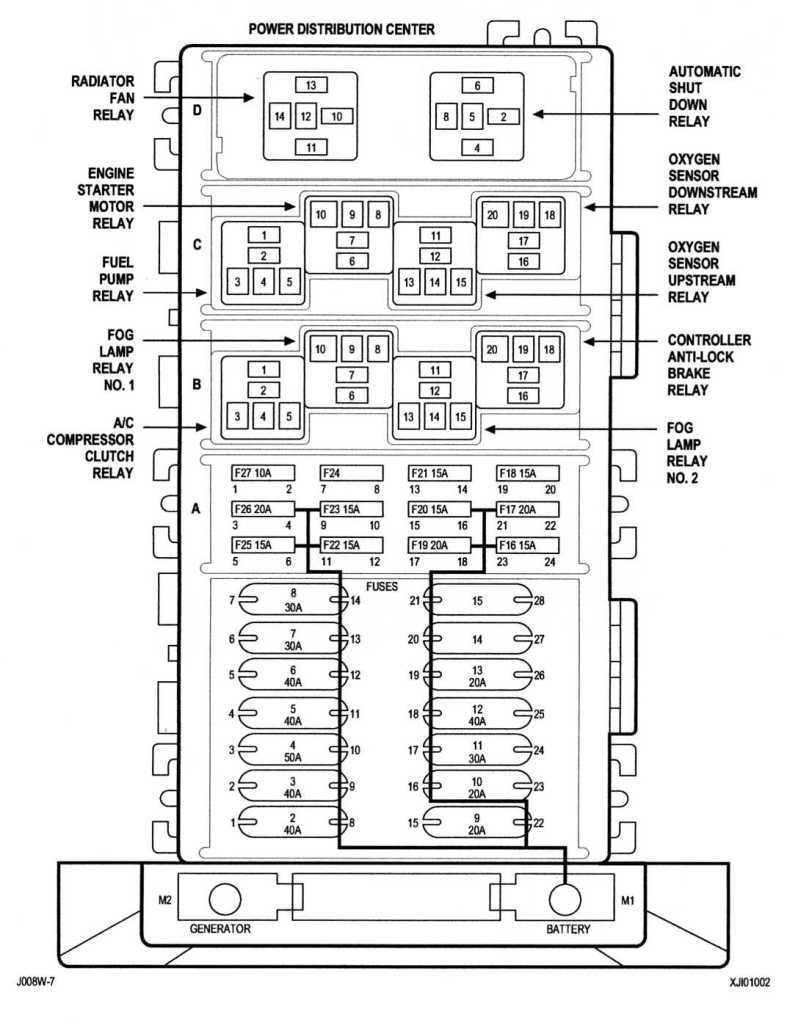

The one fuse (F17 20A) feeds all four O2S' through two relays (see PDC pic).
See if you can isolate which O2S or O2S' circuit(s) are blowing the fuse by removing the Upstream and Downstream relays one at a time, start the engine and see if the fuse blows. If it does, the circuit for the installed relay may be shorted to ground.
If the fuse blows with both relays removed. The short is between the fuse and relays. Power from the fuse goes to the Downstream relay then tees off at this relay and goes to the Upstream relay.
After leaving the relay(s), power goes through connector C107, which is located at the transmission oil dipstick tube (see pic). The wiring could be chafed at this connector or the connetor is contaminated in some way to short out the power wire(s). Both of the Downstream O2S' power wires from the relay are Violet/Orange tracer, and the wires for both of the Upstram O2S' are Dark Green.

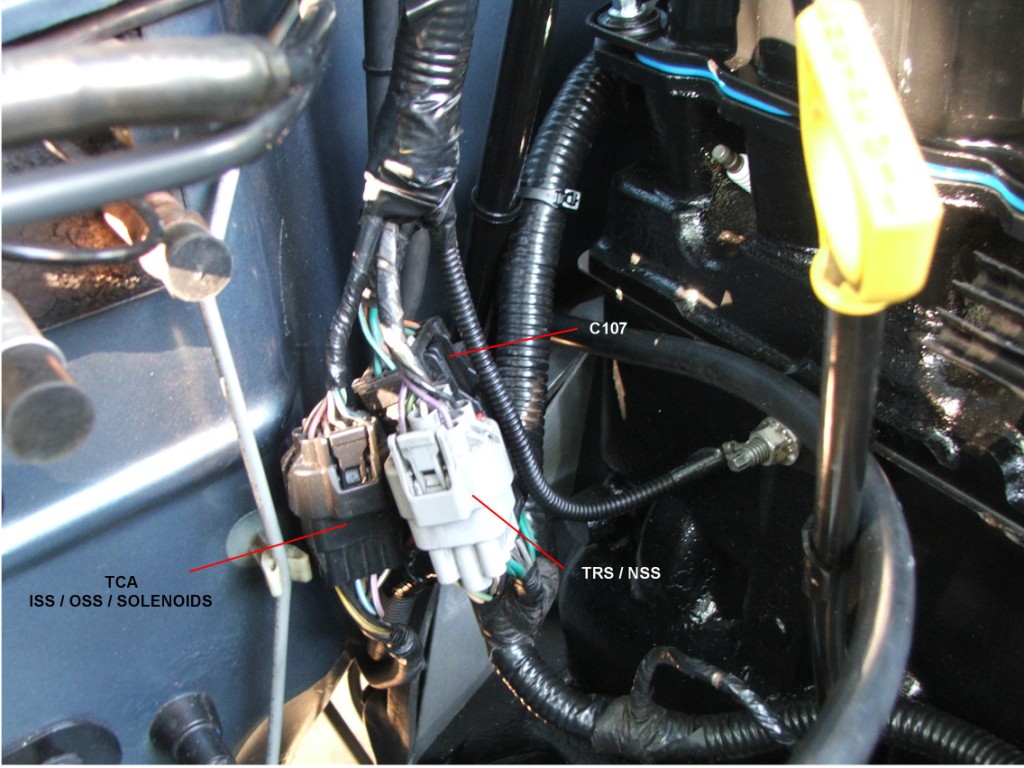

C107 location:

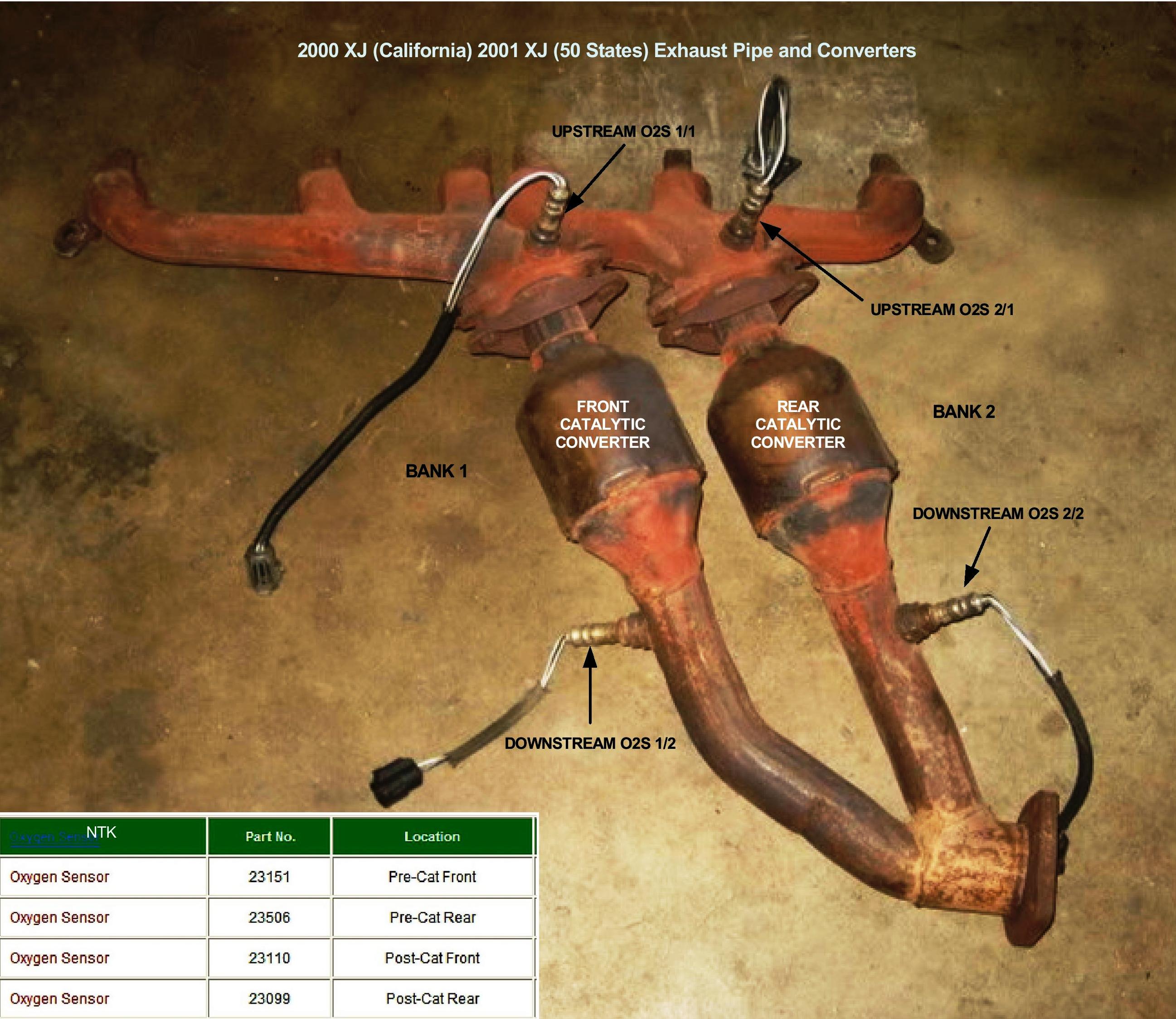

Oxygen Sensors locations:
.
See if you can isolate which O2S or O2S' circuit(s) are blowing the fuse by removing the Upstream and Downstream relays one at a time, start the engine and see if the fuse blows. If it does, the circuit for the installed relay may be shorted to ground.
If the fuse blows with both relays removed. The short is between the fuse and relays. Power from the fuse goes to the Downstream relay then tees off at this relay and goes to the Upstream relay.
After leaving the relay(s), power goes through connector C107, which is located at the transmission oil dipstick tube (see pic). The wiring could be chafed at this connector or the connetor is contaminated in some way to short out the power wire(s). Both of the Downstream O2S' power wires from the relay are Violet/Orange tracer, and the wires for both of the Upstram O2S' are Dark Green.
C107 location:
Oxygen Sensors locations:
.
#7
Seasoned Member
Join Date: Aug 2014
Location: Lehigh Valley PA
Posts: 486
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 renix
See I can always rely on you to come and put my rudimentary troubleshooting advice to shame with technical expertise
Trending Topics
#9
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
And...buy a FSM. $7.95.
#10
Newbie
Thread Starter
Join Date: Dec 2014
Location: NJ
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
The one fuse (F17 20A) feeds all four O2S' through two relays (see PDC pic).
See if you can isolate which O2S or O2S' circuit(s) are blowing the fuse by removing the Upstream and Downstream relays one at a time, start the engine and see if the fuse blows. If it does, the circuit for the installed relay may be shorted to ground.
If the fuse blows with both relays removed. The short is between the fuse and relays. Power from the fuse goes to the Downstream relay then tees off at this relay and goes to the Upstream relay.
After leaving the relay(s), power goes through connector C107, which is located at the transmission oil dipstick tube (see pic). The wiring could be chafed at this connector or the connetor is contaminated in some way to short out the power wire(s). Both of the Downstream O2S' power wires from the relay are Violet/Orange tracer, and the wires for both of the Upstram O2S' are Dark Green.
C107 location:
Oxygen Sensors locations:
.
See if you can isolate which O2S or O2S' circuit(s) are blowing the fuse by removing the Upstream and Downstream relays one at a time, start the engine and see if the fuse blows. If it does, the circuit for the installed relay may be shorted to ground.
If the fuse blows with both relays removed. The short is between the fuse and relays. Power from the fuse goes to the Downstream relay then tees off at this relay and goes to the Upstream relay.
After leaving the relay(s), power goes through connector C107, which is located at the transmission oil dipstick tube (see pic). The wiring could be chafed at this connector or the connetor is contaminated in some way to short out the power wire(s). Both of the Downstream O2S' power wires from the relay are Violet/Orange tracer, and the wires for both of the Upstram O2S' are Dark Green.
C107 location:
Oxygen Sensors locations:
.
AMAZING INFORMATION. Thank you, i really appreciate it. I just got my wisdom teeth out so im going to see how i feel tomorrow. I didnt know that the o2 sensors had relays, i did know that it had a fuse. Plan was to disconnect all the 02 sensors and put a fuse in and plug in sensors 1 by one, and once it blows hopefully that is a the problem. I traced all my wiring and found nothing damaged. Hoping its not a complicated fix.
#11
Seasoned Member
Join Date: Aug 2014
Location: Lehigh Valley PA
Posts: 486
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 renix
There's no shame in rudimentary troubleshooting. It would be nice if the peeps with issues would just use some common sense and do some looking, wiggling, etc., and searched their issue, before crying they have changed every sensor known to man on their Heeps and it hasn't fixed it and they can't figure out what's wrong.
And...buy a FSM. $7.95.
And...buy a FSM. $7.95.
I feel your pain. Got mine taken out in the Air Force. Unfortunately a few weeks later I started having an agonizing shooting pain in my jaw. Turns out there was a huge bone fragment they had to scrape out of there again. Not. Fun.
#12
Newbie
Thread Starter
Join Date: Dec 2014
Location: NJ
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
Damn, off topic but 1 of my bottoms they couldn't remove. The roots are around my nerve. If it was removed and they hit that nerve i would loose feeling in my lower lip for the rest of my life. I got 3 out today. Doing pretty well. How do you miss a bone fragment, sheesh. Glad you are good.
#13
Seasoned Member
Join Date: Aug 2014
Location: Lehigh Valley PA
Posts: 486
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 renix
Not only did they miss a bone fragment, no **** I went home, popped the vic's, fell asleep, woke up - went to the sink to clean out my mouth and found another bone fragment myself that just came right out and fell into the sink. Not even making this up. After that everything healed up just fine.
Feel better man let us know how everything goes.
Feel better man let us know how everything goes.
#14
Newbie
Thread Starter
Join Date: Dec 2014
Location: NJ
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
So good news i believe. I replaced the relays just because they are cheap and to know that they are good.
i unplugged both 02 upstream 02 sensors and replaced the fuse, started it up. Fuse didnt blow.
I plugged in bank 2 sensor 1 and started it back up, didnt blow.
I then plugged in the bank 1 sensor 1 and it poped right away. Thinking this is the fault.
Also i noticed that the plug wasnt "snug". I held it and my dad started the car and the fuse was ok, but then i just plugged it in normally and didnt put pressure on the plug and the fuse blew right away.
So im thinking i have a bad 02 sensor and connector on my Bank 1 sensor 1 02 sensor.
i unplugged both 02 upstream 02 sensors and replaced the fuse, started it up. Fuse didnt blow.
I plugged in bank 2 sensor 1 and started it back up, didnt blow.
I then plugged in the bank 1 sensor 1 and it poped right away. Thinking this is the fault.
Also i noticed that the plug wasnt "snug". I held it and my dad started the car and the fuse was ok, but then i just plugged it in normally and didnt put pressure on the plug and the fuse blew right away.
So im thinking i have a bad 02 sensor and connector on my Bank 1 sensor 1 02 sensor.
