(HELP ASAP) whats compatable between a 90 a 99

kermit5327 · 09-21-2009, 03:06 PM

what parts could i use on my 90 cherokee limited from a 99 cherokee limited. im wondering things like wheels motor t case brake system tranny interior and what ever else from enything to everything

'98XJ4life · 09-21-2009, 03:22 PM

It depends on difference in differentials and the overall style of the Cherokee. if it's a country, or limited, or classic, or sport. The frame, engine, and tranny will fit but they made some a lot of changes to the body and interior between 90 and 99 so I wouldn't bet on getting much cosmetic stuff from a 99. If it was me tryin to part out a 99 XJ for a 90XJ I wouldn't bother. There are probably too many small differences you wouldn't notice until you tried to sway parts. Good Luck.

winston427 · 09-21-2009, 03:32 PM

Quote:

Originally Posted by '98XJ4life

It depends on difference in differentials and the overall style of the Cherokee. if it's a country, or limited, or classic, or sport. The frame, engine, and tranny will fit but they made some a lot of changes to the body and interior between 90 and 99 so I wouldn't bet on getting much cosmetic stuff from a 99. If it was me tryin to part out a 99 XJ for a 90XJ I wouldn't bother. There are probably too many small differences you wouldn't notice until you tried to sway parts. Good Luck.

You can't say that the frame will swap over because there is no "frame". The XJ is a unibody vehicle.

The trim levels, ie. country, limited, classic, sport, only affect the options such as power windows, doors, seats, and so forth.

The parts that are interchangeable: the entire front clip (as long as you use the 99 fenders with the header panel to keep the front body lines correct, the entire suspension and steering system, both front and rear axles, windshield, wheels, and engine block.

The heads are different as the 90 is a Renix and the 99 is a H.O.
The doors have different hinges and striker plates.
The rear hatch on the 90 id fiberglass, the 97-01s are steel and have different hinges and mounting.
The front seats have different bases and tracks.

kermit5327 · 09-21-2009, 03:34 PM

would it be worth 150 bucks because thats how much id be paying for it???
the hole front end is smashed its try to get pics up if i could

winston427 · 09-21-2009, 03:42 PM

I would snatch that up in a heartbeat. You can use whatever will fit your 90, part the rest out and still make a profit. If it has the 8.25 rear axle it would be a very good upgrade for you and it is a direct bolt in swap.

kermit5327 · 09-21-2009, 04:50 PM

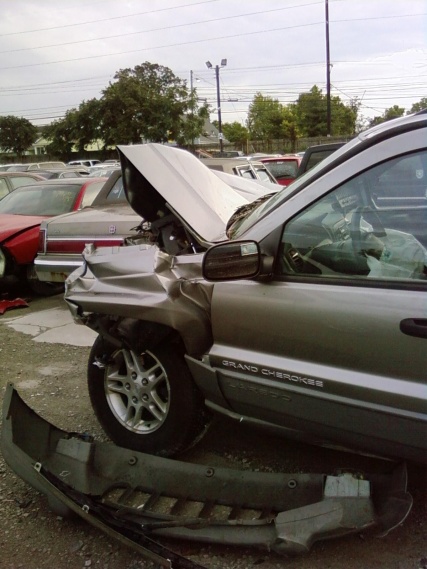

here are the pics and sorry its a grand cherokee idk if that makes any difference??? let me know what that changes

winston427 · 09-21-2009, 04:56 PM

It's pretty much poop on swapping parts from a ZJ to a XJ. Basically the engine block is all I know of that will interchange. The rear axle on the ZJ is coil spring and the XJ is leaf spring. Body is of course completely different as is the interior. You might still be able to salvage enough parts for resell to make a small profit, but not sure it would be worth the effort with the shape that one is in.

jeepxjho · 09-21-2009, 04:57 PM

Yes being a grand cherokee makes a big difference there 2 different vehicles and that also reduces alot of the stuff you can use since no body parts will fit and also the rear asle use's coil springs instead of the rear leaf springs.

If it has a 4.0 instead of the v8 then i would grap it you can still use the engine to swap over to a HO or just use other parts from it along with the transfercase if it's the same as what you have.

Also you might be able to use the rear axle to do a rear coil swap over but not sure whats involed in it but being that its not a xj that does limit alot more options.

kermit5327 · 09-21-2009, 04:59 PM

could i use the brake booster, master cylinder, and brakes by chance

kermit5327 · 09-21-2009, 05:04 PM

here are some more pics.

winston427 · 09-21-2009, 05:09 PM

You could do a rear disc brake conversion using parts from it.

kermit5327 · 09-21-2009, 05:14 PM

how hard would it be to do a rear coil swap??? i cant really find any info on it does any one know

winston427 · 09-21-2009, 05:17 PM

Quote:

Originally Posted by kermit5327

how hard would it be to do a rear coil swap??? i cant really find any info on it does any one know

There would be a lot of modification involved and it would only be beneficial if it was a trail only vehicle to gain more flex in the rear. I can't see the need to swap to rear coils on a street vehicle or one that only sees occasional trail use.

kermit5327 · 09-21-2009, 05:37 PM

damn so for 150 bucks it wouldnt be worth it

kermit5327 · 09-21-2009, 05:39 PM

i mean i have a second DD to drive while mods take place. ive had my jeep for a year now and only drove it maybe 3 month out of the time ive had it. so i think i could go a little longer.

09-21-2009, 03:06 PM	#1
kermit5327 Member Join Date: Jan 2009 Location: Erlanger, Ky Posts: 217 My Photos 1990 Cherokee Year: 1990 Model: Cherokee Engine: 4.0L Inline 6 Transmission: Idk Transfer Case: Idk Front Axle: Idk Rear Axle: Idk Lift Specifications: Stock	(HELP ASAP) whats compatable between a 90 a 99 what parts could i use on my 90 cherokee limited from a 99 cherokee limited. im wondering things like wheels motor t case brake system tranny interior and what ever else from enything to everything __________________ Aint it so true http://i79.photobucket.com/albums/j1...image023-1.jpg Catching some air http://i79.photobucket.com/albums/j1...epCher_1RR.jpg This is a damn good looking rig http://i79.photobucket.com/albums/j1...JeeoXJ_1RR.jpg

09-21-2009, 03:34 PM	#4
kermit5327 Member Join Date: Jan 2009 Location: Erlanger, Ky Posts: 217 My Photos 1990 Cherokee Year: 1990 Model: Cherokee Engine: 4.0L Inline 6 Transmission: Idk Transfer Case: Idk Front Axle: Idk Rear Axle: Idk Lift Specifications: Stock	would it be worth 150 bucks because thats how much id be paying for it??? the hole front end is smashed its try to get pics up if i could __________________ Aint it so true http://i79.photobucket.com/albums/j1...image023-1.jpg Catching some air http://i79.photobucket.com/albums/j1...epCher_1RR.jpg This is a damn good looking rig http://i79.photobucket.com/albums/j1...JeeoXJ_1RR.jpg

09-21-2009, 03:42 PM	#5
winston427 Junkyard pillager Join Date: Feb 2009 Location: Lebanon, TN Posts: 5,350 My Photos 1991 Laredo Cherokee Year: 1991 Laredo Model: Cherokee Engine: 4.0 Transmission: AW4 Transfer Case: NP231 Front Axle: Dana 30 3.55 soon to be 4.56 Rear Axle: 8.25 3.55, got a D44 waiting for a regear to be installed Tires: 33x12.5x15 Dunlop Mud Rovers on 15x10 black steelies Lift Specifications: 6.5 inch Misc Accessories: hours of profanity, Le Baron hood vents, ZJ tie rod, ZJ pitman arm, CSF 3 row radiator	I would snatch that up in a heartbeat. You can use whatever will fit your 90, part the rest out and still make a profit. If it has the 8.25 rear axle it would be a very good upgrade for you and it is a direct bolt in swap. __________________ Why is it called common sense if it's not very common? 89 XJ 4.0, AW4, D30, D35 91 XJ 4.0, AW4, D30, 8.25 01 XJ 4.0, AW4, D30, 8.25 89 Wee J

09-21-2009, 04:50 PM	#6
kermit5327 Member Join Date: Jan 2009 Location: Erlanger, Ky Posts: 217 My Photos 1990 Cherokee Year: 1990 Model: Cherokee Engine: 4.0L Inline 6 Transmission: Idk Transfer Case: Idk Front Axle: Idk Rear Axle: Idk Lift Specifications: Stock	here are the pics and sorry its a grand cherokee idk if that makes any difference??? let me know what that changes Attached Thumbnails __________________ Aint it so true http://i79.photobucket.com/albums/j1...image023-1.jpg Catching some air http://i79.photobucket.com/albums/j1...epCher_1RR.jpg This is a damn good looking rig http://i79.photobucket.com/albums/j1...JeeoXJ_1RR.jpg

09-21-2009, 04:56 PM	#7
winston427 Junkyard pillager Join Date: Feb 2009 Location: Lebanon, TN Posts: 5,350 My Photos 1991 Laredo Cherokee Year: 1991 Laredo Model: Cherokee Engine: 4.0 Transmission: AW4 Transfer Case: NP231 Front Axle: Dana 30 3.55 soon to be 4.56 Rear Axle: 8.25 3.55, got a D44 waiting for a regear to be installed Tires: 33x12.5x15 Dunlop Mud Rovers on 15x10 black steelies Lift Specifications: 6.5 inch Misc Accessories: hours of profanity, Le Baron hood vents, ZJ tie rod, ZJ pitman arm, CSF 3 row radiator	It's pretty much poop on swapping parts from a ZJ to a XJ. Basically the engine block is all I know of that will interchange. The rear axle on the ZJ is coil spring and the XJ is leaf spring. Body is of course completely different as is the interior. You might still be able to salvage enough parts for resell to make a small profit, but not sure it would be worth the effort with the shape that one is in. __________________ Why is it called common sense if it's not very common? 89 XJ 4.0, AW4, D30, D35 91 XJ 4.0, AW4, D30, 8.25 01 XJ 4.0, AW4, D30, 8.25 89 Wee J

09-21-2009, 03:22 PM	#2
'98XJ4life Newbie Join Date: Aug 2009 Posts: 23 My Photos 1998 Cherokee Year: 1998 Model: Cherokee Engine: 4.0L Transmission: 4 speed auto	It depends on difference in differentials and the overall style of the Cherokee. if it's a country, or limited, or classic, or sport. The frame, engine, and tranny will fit but they made some a lot of changes to the body and interior between 90 and 99 so I wouldn't bet on getting much cosmetic stuff from a 99. If it was me tryin to part out a 99 XJ for a 90XJ I wouldn't bother. There are probably too many small differences you wouldn't notice until you tried to sway parts. Good Luck.

09-21-2009, 04:57 PM	#8
jeepxjho Member Join Date: Aug 2009 Posts: 249 My Photos 2000 Grand Cherokee Year: 2000 Model: Grand Cherokee Engine: 4.0 HO Transmission: 5spd auto Front Axle: D30 Rear Axle: D35 Tires: 245/70R16 Lift Specifications: stock for now	Yes being a grand cherokee makes a big difference there 2 different vehicles and that also reduces alot of the stuff you can use since no body parts will fit and also the rear asle use's coil springs instead of the rear leaf springs. If it has a 4.0 instead of the v8 then i would grap it you can still use the engine to swap over to a HO or just use other parts from it along with the transfercase if it's the same as what you have. Also you might be able to use the rear axle to do a rear coil swap over but not sure whats involed in it but being that its not a xj that does limit alot more options. __________________ 2000 WJ laredo

09-21-2009, 04:59 PM	#9
kermit5327 Member Join Date: Jan 2009 Location: Erlanger, Ky Posts: 217 My Photos 1990 Cherokee Year: 1990 Model: Cherokee Engine: 4.0L Inline 6 Transmission: Idk Transfer Case: Idk Front Axle: Idk Rear Axle: Idk Lift Specifications: Stock	could i use the brake booster, master cylinder, and brakes by chance __________________ Aint it so true http://i79.photobucket.com/albums/j1...image023-1.jpg Catching some air http://i79.photobucket.com/albums/j1...epCher_1RR.jpg This is a damn good looking rig http://i79.photobucket.com/albums/j1...JeeoXJ_1RR.jpg

09-21-2009, 05:04 PM	#10
kermit5327 Member Join Date: Jan 2009 Location: Erlanger, Ky Posts: 217 My Photos 1990 Cherokee Year: 1990 Model: Cherokee Engine: 4.0L Inline 6 Transmission: Idk Transfer Case: Idk Front Axle: Idk Rear Axle: Idk Lift Specifications: Stock	here are some more pics. Attached Thumbnails __________________ Aint it so true http://i79.photobucket.com/albums/j1...image023-1.jpg Catching some air http://i79.photobucket.com/albums/j1...epCher_1RR.jpg This is a damn good looking rig http://i79.photobucket.com/albums/j1...JeeoXJ_1RR.jpg

09-21-2009, 05:09 PM	#11
winston427 Junkyard pillager Join Date: Feb 2009 Location: Lebanon, TN Posts: 5,350 My Photos 1991 Laredo Cherokee Year: 1991 Laredo Model: Cherokee Engine: 4.0 Transmission: AW4 Transfer Case: NP231 Front Axle: Dana 30 3.55 soon to be 4.56 Rear Axle: 8.25 3.55, got a D44 waiting for a regear to be installed Tires: 33x12.5x15 Dunlop Mud Rovers on 15x10 black steelies Lift Specifications: 6.5 inch Misc Accessories: hours of profanity, Le Baron hood vents, ZJ tie rod, ZJ pitman arm, CSF 3 row radiator	You could do a rear disc brake conversion using parts from it. __________________ Why is it called common sense if it's not very common? 89 XJ 4.0, AW4, D30, D35 91 XJ 4.0, AW4, D30, 8.25 01 XJ 4.0, AW4, D30, 8.25 89 Wee J

09-21-2009, 05:14 PM	#12
kermit5327 Member Join Date: Jan 2009 Location: Erlanger, Ky Posts: 217 My Photos 1990 Cherokee Year: 1990 Model: Cherokee Engine: 4.0L Inline 6 Transmission: Idk Transfer Case: Idk Front Axle: Idk Rear Axle: Idk Lift Specifications: Stock	how hard would it be to do a rear coil swap??? i cant really find any info on it does any one know __________________ Aint it so true http://i79.photobucket.com/albums/j1...image023-1.jpg Catching some air http://i79.photobucket.com/albums/j1...epCher_1RR.jpg This is a damn good looking rig http://i79.photobucket.com/albums/j1...JeeoXJ_1RR.jpg

09-21-2009, 05:37 PM	#14
kermit5327 Member Join Date: Jan 2009 Location: Erlanger, Ky Posts: 217 My Photos 1990 Cherokee Year: 1990 Model: Cherokee Engine: 4.0L Inline 6 Transmission: Idk Transfer Case: Idk Front Axle: Idk Rear Axle: Idk Lift Specifications: Stock	damn so for 150 bucks it wouldnt be worth it __________________ Aint it so true http://i79.photobucket.com/albums/j1...image023-1.jpg Catching some air http://i79.photobucket.com/albums/j1...epCher_1RR.jpg This is a damn good looking rig http://i79.photobucket.com/albums/j1...JeeoXJ_1RR.jpg

09-21-2009, 05:39 PM	#15
kermit5327 Member Join Date: Jan 2009 Location: Erlanger, Ky Posts: 217 My Photos 1990 Cherokee Year: 1990 Model: Cherokee Engine: 4.0L Inline 6 Transmission: Idk Transfer Case: Idk Front Axle: Idk Rear Axle: Idk Lift Specifications: Stock	i mean i have a second DD to drive while mods take place. ive had my jeep for a year now and only drove it maybe 3 month out of the time ive had it. so i think i could go a little longer. __________________ Aint it so true http://i79.photobucket.com/albums/j1...image023-1.jpg Catching some air http://i79.photobucket.com/albums/j1...epCher_1RR.jpg This is a damn good looking rig http://i79.photobucket.com/albums/j1...JeeoXJ_1RR.jpg
