Gauges went out
03-09-2017, 08:55 PM
#1
Newbie
Thread Starter
Join Date: Mar 2017
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Gauges went out
2001 Cherokee Sport
Just put in a 98? Grand Cherokee 4.0
I was driving to the car wash to pressure washer oil off the block. On the way, it threw two codes, 02 sensor high voltage and cylinder 2 misfire (don't think it's related to this issue but I figured I'd include it).
Anyway, while pressure washing I thought I took enough care to avoid plugs and electrical systems but apparently not, because when I went to start it back up, I had no gauges at all. I took the plugs out of the ECM and blew them out with compressed air and put dielectric grease. Nothing. I checked all the fuses, nothing. I ran the instrument diagnostic and all the lights work, but no gauges.
Where did I screw it?
Just put in a 98? Grand Cherokee 4.0
I was driving to the car wash to pressure washer oil off the block. On the way, it threw two codes, 02 sensor high voltage and cylinder 2 misfire (don't think it's related to this issue but I figured I'd include it).
Anyway, while pressure washing I thought I took enough care to avoid plugs and electrical systems but apparently not, because when I went to start it back up, I had no gauges at all. I took the plugs out of the ECM and blew them out with compressed air and put dielectric grease. Nothing. I checked all the fuses, nothing. I ran the instrument diagnostic and all the lights work, but no gauges.
Where did I screw it?
03-10-2017, 08:12 AM
#2
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
2001 Cherokee Sport
Just put in a 98? Grand Cherokee 4.0
I was driving to the car wash to pressure washer oil off the block. On the way, it threw two codes, 02 sensor high voltage and cylinder 2 misfire (don't think it's related to this issue but I figured I'd include it).
Anyway, while pressure washing I thought I took enough care to avoid plugs and electrical systems but apparently not, because when I went to start it back up, I had no gauges at all. I took the plugs out of the ECM and blew them out with compressed air and put dielectric grease. Nothing. I checked all the fuses, nothing. I ran the instrument diagnostic and all the lights work, but no gauges.
Where did I screw it?
Just put in a 98? Grand Cherokee 4.0
I was driving to the car wash to pressure washer oil off the block. On the way, it threw two codes, 02 sensor high voltage and cylinder 2 misfire (don't think it's related to this issue but I figured I'd include it).
Anyway, while pressure washing I thought I took enough care to avoid plugs and electrical systems but apparently not, because when I went to start it back up, I had no gauges at all. I took the plugs out of the ECM and blew them out with compressed air and put dielectric grease. Nothing. I checked all the fuses, nothing. I ran the instrument diagnostic and all the lights work, but no gauges.
Where did I screw it?
I know you said you checked all fuses, but...

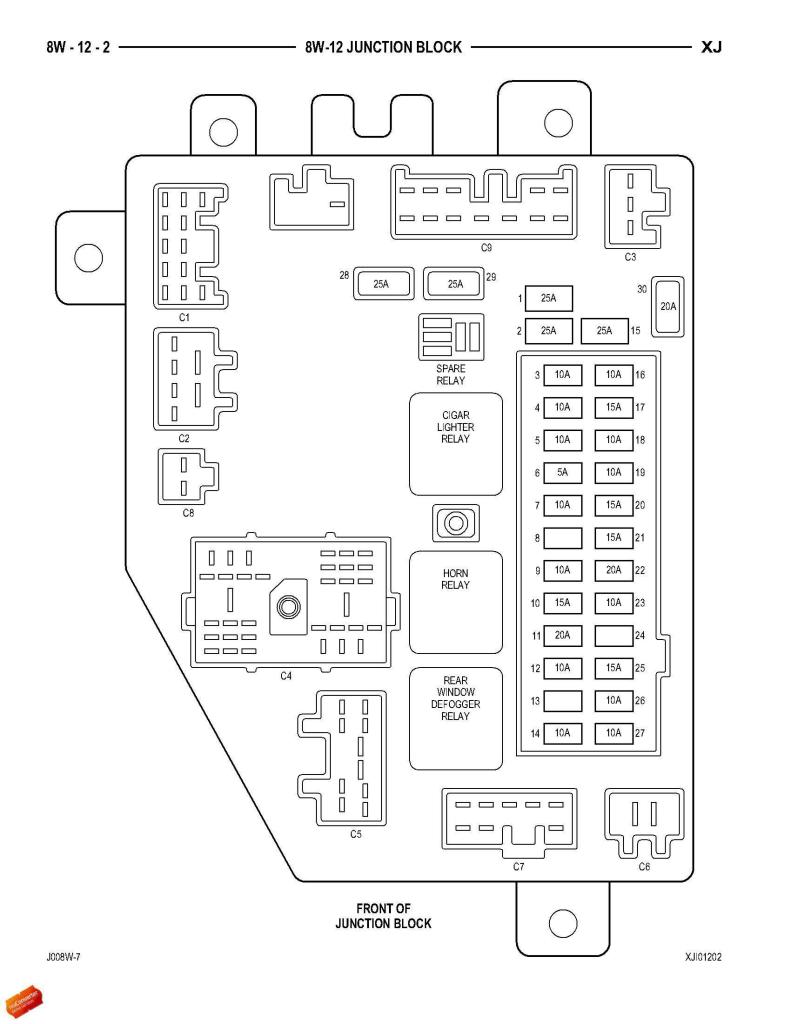

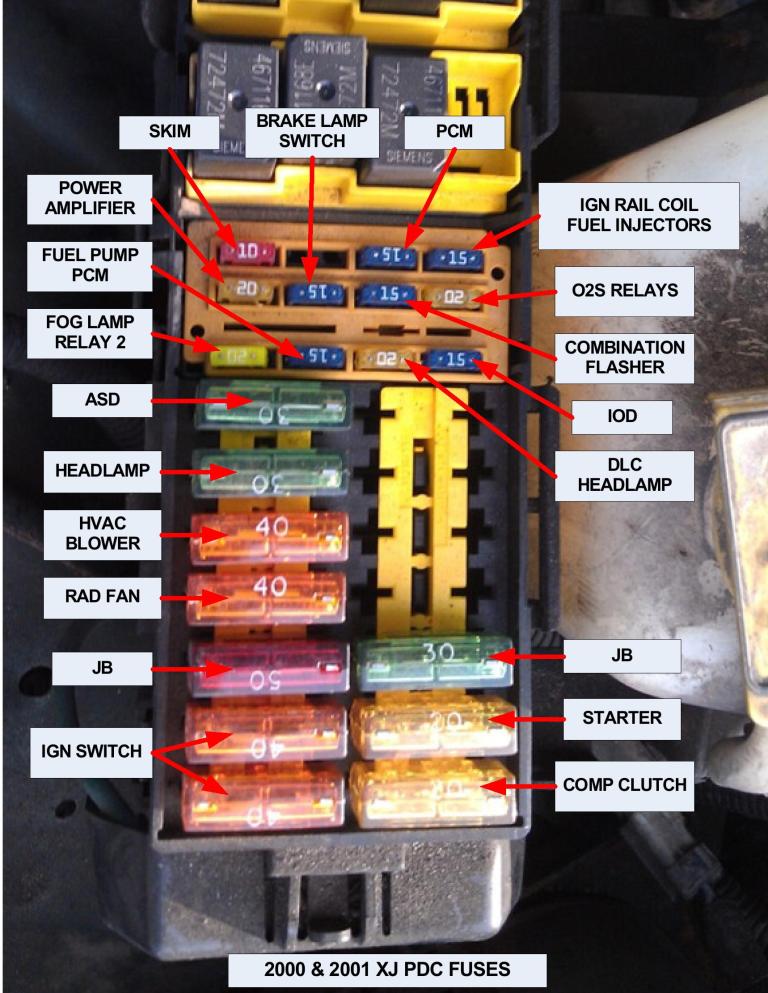

Check the IOD fuse in the PDC and fuse #9 in the JB. Both fuses feed the instrument cluster but #9 in the JB is the main power fuse to the instrument cluster. If the gauges don't cycle doing the instrument cluster actuator test, there's no power going to the cluster. Most lamps on the cluster are direct wired.
.
