Old 03-18-2012, 02:59 PM   #1
Seasoned Member

TABonifacio's Avatar

Join Date: Nov 2011
Location: West Warwick, RI
Posts: 287

View TABonifacio's Photo Album My Photos
Cherokee
Default Fuel Filter Change

Hey Guys!

So I'm changing the fuel filter this coming Friday! Yay! But I need a detailed description because, unfortunetely when we had it shipped, all personal items and books had to be taken out for liability purposes. There was a Hayne's Repair Manual inside it but when it got here it was gone. . . So, if anyone is replacing a fuel filter any time soon, take picture's for me!! 1996sportXJ told me that there is a cap to depressurize everything before I start to take everything off. So if someone could send me a picture of were that cap is, i'd appreciate it. I looked, but everything is just covered in grease and I can't find S***! But I'll wrap the fuel filter and fuel filter hoses with ceran wrap and just blast everything off with water. But yeah, I should have it running by Friday, if nothing else goes wrong!!
__________________
1995 Jeep Cherokee SE
2-Door / 2-Wheel Drive
AX-15 /
Sixteen-Year Old Jeep Nut!


Rest in Peace, Brian.


WARNING: Be careful who you wave at, XJ's tend to be very passive aggressive & they will put you in your place if it feels it is necessary.

My Jeep squeezes all the money out of me...If it's not a mechanical repair, it's a add-on for it.
TABonifacio is offline   Reply With Quote
Old 03-18-2012, 03:10 PM   #2
Member

bajaxj's Avatar

Join Date: Dec 2009
Location: Fontana, CA.
Posts: 240

View bajaxj's Photo Album My Photos
1990/2001 Cherokee
Default

Quote:
Originally Posted by TABonifacio View Post
Hey Guys!

So I'm changing the fuel filter this coming Friday! Yay! But I need a detailed description because, unfortunetely when we had it shipped, all personal items and books had to be taken out for liability purposes. There was a Hayne's Repair Manual inside it but when it got here it was gone. . . So, if anyone is replacing a fuel filter any time soon, take picture's for me!! 1996sportXJ told me that there is a cap to depressurize everything before I start to take everything off. So if someone could send me a picture of were that cap is, i'd appreciate it. I looked, but everything is just covered in grease and I can't find S***! But I'll wrap the fuel filter and fuel filter hoses with ceran wrap and just blast everything off with water. But yeah, I should have it running by Friday, if nothing else goes wrong!!
I dont have any pictures right now but its easy to find. Pop your hood open, look at the fuel rail and youll see a Shrader valve with a cap on it. Take the cap off, put a rag under it then push in the valve with a key, screw driver or anything you have available to release the fuel pressure. After you do that changing the filter is pretty straight forward. You just remove the clamp holding the filter, the two hose clamps and put it back together(at least thats the way it goes for my 90 XJ). Hope that helps
__________________
1990 XJ Laredo/2001 sport
4.5 Rubicon Express/stock
32" Bfgoorich Mud Terrains
on 15X8 stock canyon wheels
roof rack,hi lift jack
and lots of mud


Last edited by bajaxj; 03-18-2012 at 06:11 PM.
bajaxj is offline   Reply With Quote
Old 03-18-2012, 03:23 PM   #3
Senior Member

jhampton's Avatar

Join Date: Nov 2011
Location: shelley, idaho
Posts: 616

View jhampton's Photo Album My Photos
1988 Cherokee
Default

X2 for my 88
__________________

88 pioneer " the Mistress"
________()()()()
//_| \ \____\___
l_--\__\__l----
[]llllll[]
_(0))_____(0))-0-(0)

"If it ain't broke, IT AIN'T MINE!!!"
"keep the shinny up and the greezzy side down"

Snake River Offroaders http://www.snakeriveroffroaders.com/
https://www.facebook.com/SnakeRiverOffroaders
jhampton is offline   Reply With Quote
Old 03-18-2012, 03:24 PM   #4
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,389

View ZINGGG's Photo Album My Photos
1996 Cherokee
Default

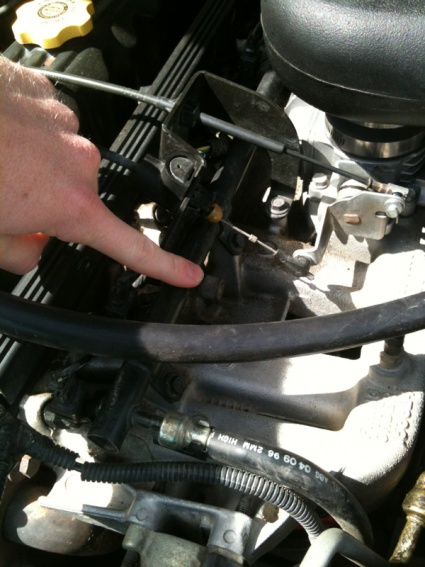

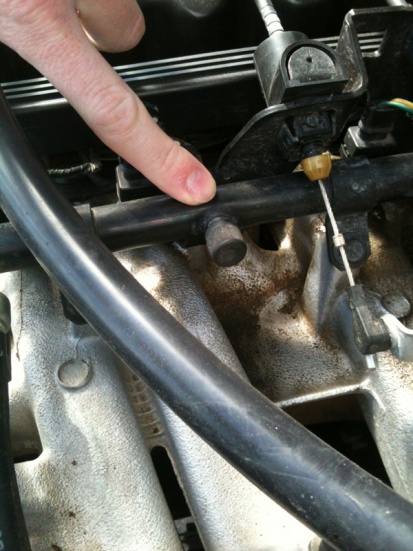

Here you go buddy!

And in that second picture (of where i took a picture of my factory service manual), it's the spot labeled "Fuel Pressure Test Port"
Attached Thumbnails
Fuel Filter Change-image-711774275.jpg   Fuel Filter Change-image-2325233561.jpg   Fuel Filter Change-image-1929558309.jpg
__________________
Formerly 1996sportXJ

If needed to replace, UPGRADE!!

'96 XJ 4-door Sport 4.0L, AW4, NP231, HP D30, 8.25
w/ 4" Teraflex lift, 33" BFG K/Os on Black Rock Soft 8s, 4.56 gears (thank you RWKHausSupply), APN header, Precision Auto Injectors, bored throttle body (thank you Thexjfiles), Spectre Intake, 2.5" Magnaflow catback (thank you mudfrog), Optima red top, Kelley's WiP 4 gauge battery cables (thank you 5-90), 10" cubby subwoofer (thank you KFXHellRaiser), 1-ton steering (thank you SeriousOffroad), front Crusader prerunner bumper (thank you JCR Offroad), sliders and rear bumper/tire carrier (thank you Ares Fab), Hyline Hood Vents, Truck Lite LEDs and more

Last edited by ZINGGG; 03-18-2012 at 03:26 PM.
ZINGGG is offline   Reply With Quote
Old 03-18-2012, 04:19 PM   #5
Seasoned Member

TABonifacio's Avatar

Join Date: Nov 2011
Location: West Warwick, RI
Posts: 287

View TABonifacio's Photo Album My Photos
Cherokee
Default

Thanks guys so much!! It really helped me! Should I wait to release the pressure until I have the fuel filter in hand, or just release it now? Which would be best? Probably the first one right? LOL! Thanks 1996sportXJ for the pictures!! Without them, I would have NEVER found it!!
__________________
1995 Jeep Cherokee SE
2-Door / 2-Wheel Drive
AX-15 /
Sixteen-Year Old Jeep Nut!


Rest in Peace, Brian.


WARNING: Be careful who you wave at, XJ's tend to be very passive aggressive & they will put you in your place if it feels it is necessary.

My Jeep squeezes all the money out of me...If it's not a mechanical repair, it's a add-on for it.
TABonifacio is offline   Reply With Quote
Old 03-18-2012, 04:26 PM   #6
Member

bajaxj's Avatar

Join Date: Dec 2009
Location: Fontana, CA.
Posts: 240

View bajaxj's Photo Album My Photos
1990/2001 Cherokee
Default

Quote:
Originally Posted by TABonifacio View Post
Thanks guys so much!! It really helped me! Should I wait to release the pressure until I have the fuel filter in hand, or just release it now? Which would be best? Probably the first one right? LOL! Thanks 1996sportXJ for the pictures!! Without them, I would have NEVER found it!!
Release the pressure first, then go under your XJ with all the tools needed and proceed to remove the filter. Be carefully when you remove the filter so you don't get any fuel on yourself(for some weird reason I once was sprayed with fuel when removing the filter).
__________________
1990 XJ Laredo/2001 sport
4.5 Rubicon Express/stock
32" Bfgoorich Mud Terrains
on 15X8 stock canyon wheels
roof rack,hi lift jack
and lots of mud

bajaxj is offline   Reply With Quote
Old 03-18-2012, 04:27 PM   #7
Seasoned Member

TABonifacio's Avatar

Join Date: Nov 2011
Location: West Warwick, RI
Posts: 287

View TABonifacio's Photo Album My Photos
Cherokee
Default

Wow what an idiot I was! It was staring me in the damn face while I was topping off the Coolant. Oyyyyyy veyyyy, yep thats me for ya! Flighty as the day is friggin' long!! XD
__________________
1995 Jeep Cherokee SE
2-Door / 2-Wheel Drive
AX-15 /
Sixteen-Year Old Jeep Nut!


Rest in Peace, Brian.


WARNING: Be careful who you wave at, XJ's tend to be very passive aggressive & they will put you in your place if it feels it is necessary.

My Jeep squeezes all the money out of me...If it's not a mechanical repair, it's a add-on for it.
TABonifacio is offline   Reply With Quote
Old 03-18-2012, 05:23 PM   #8
CF Veteran

F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,051

View F1Addict's Photo Album My Photos
1989 Cherokee
Default

1996sportXJ shows you the pressure test/bleed valve (Shrader, not Schroeder... Schroeder is the piano player in Peanuts cartoons). If the engine hasn't been running and with a hole in your fuel line I seriously doubt there's any pressure in the system but it's a good idea to bleed it anyway.

As far as the fuel filter goes, it's the most basic of mechanics...

Click the image to open in full size.

Start by removing the filter mounting bracket bolt and remove the retaining arm. This will allow you to drop the filter down.

Click the image to open in full size.

Next, use Vise-grip pliers or some sort of clamp to pinch the supply (NOT THE RETURN) fuel line that goes from the pump to the filter. This will minimize the fuel loss from the tank when you start pulling hoses. at this point, you can begin replacing all fuel lines, including the stubby little one between the filter and hard line leading to the front of your Jeep.

Click the image to open in full size.

After you've replaced the filter and all rubber lines, the last step is to disconnect the old (pinched) line from the fuel pump and connect your new line. The quicker you make this exchange the better.

Keep in mind, the photos are of an '89, not a '95 so you may need to adjust the procedure if yours looks different.
__________________
Jeep enthusiast

Road Trip I

Road Trip II
F1Addict is offline   Reply With Quote
Old 03-18-2012, 05:27 PM   #9
CF Veteran

F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,051

View F1Addict's Photo Album My Photos
1989 Cherokee
Default

Oh, and make sure you install your filter with the flow arrow pointed towards the front of your Jeep.
__________________
Jeep enthusiast

Road Trip I

Road Trip II
F1Addict is offline   Reply With Quote
Old 03-18-2012, 05:55 PM   #10
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,389

View ZINGGG's Photo Album My Photos
1996 Cherokee
Default

Couldn't have said it better. There's your step by step (even with pictures!) good luck on your first ever automotive repair
__________________
Formerly 1996sportXJ

If needed to replace, UPGRADE!!

'96 XJ 4-door Sport 4.0L, AW4, NP231, HP D30, 8.25
w/ 4" Teraflex lift, 33" BFG K/Os on Black Rock Soft 8s, 4.56 gears (thank you RWKHausSupply), APN header, Precision Auto Injectors, bored throttle body (thank you Thexjfiles), Spectre Intake, 2.5" Magnaflow catback (thank you mudfrog), Optima red top, Kelley's WiP 4 gauge battery cables (thank you 5-90), 10" cubby subwoofer (thank you KFXHellRaiser), 1-ton steering (thank you SeriousOffroad), front Crusader prerunner bumper (thank you JCR Offroad), sliders and rear bumper/tire carrier (thank you Ares Fab), Hyline Hood Vents, Truck Lite LEDs and more
ZINGGG is offline   Reply With Quote
Old 03-18-2012, 06:03 PM   #11
Member

944.0's Avatar

Join Date: Jan 2012
Location: Camdenton, Mo
Posts: 230

View 944.0's Photo Album My Photos
94 Cherokee
Default

I would get new hose clamps. Mine just came with spring clamps.
944.0 is offline   Reply With Quote
Old 03-18-2012, 06:10 PM   #12
CF Veteran

Join Date: Oct 2008
Location: Hell, CA
Posts: 1,883

View Metmknice's Photo Album My Photos
1989 Cherokee
Default

In that last pic, easiest thing to do to get most of the fuel out. Is disconnect that connector to the left (in the pic, but pass side) of the fuel filter. And then crank the engine and let it run til it does. The pressure will be gone. Then R/R the filter.
__________________
A bus station is where a bus stops. A train station is where a train stops. On my desk, I have a work station...

Some people are like Slinkies...Not really good for anything but they bring a smile to your face when pushed down the stairs.
Metmknice is offline   Reply With Quote
Old 03-18-2012, 06:17 PM   #13
Member

bajaxj's Avatar

Join Date: Dec 2009
Location: Fontana, CA.
Posts: 240

View bajaxj's Photo Album My Photos
1990/2001 Cherokee
Default

Quote:
Originally Posted by F1Addict View Post
(Shrader, not Schroeder... Schroeder is the piano player in Peanuts cartoons)

Yeah stupid auto correct on my ipad. Thanks for pointing that out. I already changed it to be politically correct.
__________________
1990 XJ Laredo/2001 sport
4.5 Rubicon Express/stock
32" Bfgoorich Mud Terrains
on 15X8 stock canyon wheels
roof rack,hi lift jack
and lots of mud

bajaxj is offline   Reply With Quote
Old 03-18-2012, 08:03 PM   #14
Seasoned Member

TABonifacio's Avatar

Join Date: Nov 2011
Location: West Warwick, RI
Posts: 287

View TABonifacio's Photo Album My Photos
Cherokee
Default

Thanks for my step-by-step!! I'll start my work Friday, get the new filter and hoses, buy the new battery, and all that crap and I'll post a video on Youtube with it running...I hope you guys stay tuned to see the video of it!!
__________________
1995 Jeep Cherokee SE
2-Door / 2-Wheel Drive
AX-15 /
Sixteen-Year Old Jeep Nut!


Rest in Peace, Brian.


WARNING: Be careful who you wave at, XJ's tend to be very passive aggressive & they will put you in your place if it feels it is necessary.

My Jeep squeezes all the money out of me...If it's not a mechanical repair, it's a add-on for it.
TABonifacio is offline   Reply With Quote
Old 03-18-2012, 09:19 PM   #15
CF Veteran

fishtaconc's Avatar

Join Date: Mar 2009
Location: Watha,NC
Posts: 1,208

View fishtaconc's Photo Album My Photos
Jeepless at the moment
Default

Quote:
Originally Posted by TABonifacio View Post
Thanks for my step-by-step!! I'll start my work Friday, get the new filter and hoses, buy the new battery, and all that crap and I'll post a video on Youtube with it running...I hope you guys stay tuned to see the video of it!!
Don't forget to clean/replace all the grounds when changing your battery.
fishtaconc is offline   Reply With Quote
