Frame rail rust - is this fixable?
#1
CF Veteran
Thread Starter
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Frame rail rust - is this fixable?

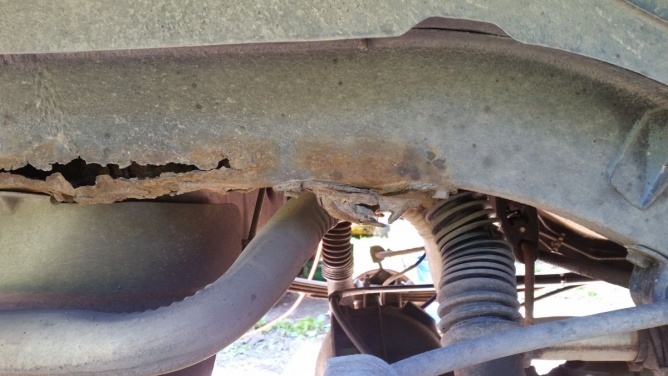

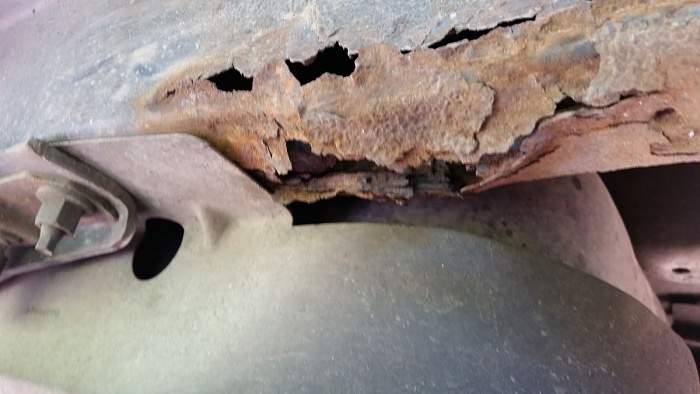

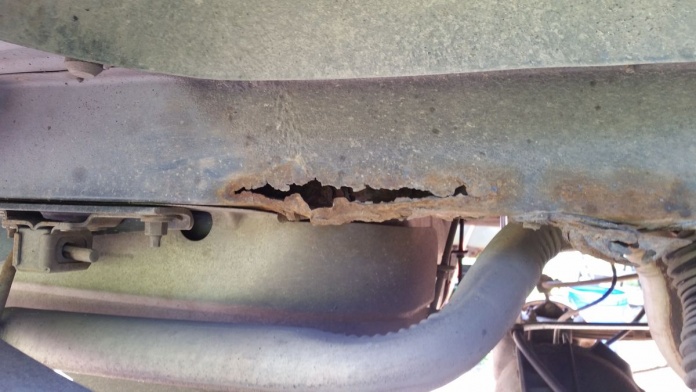

Nasty. This is on one side only. Is this repairable? Or do I scrap the Jeep?
#2
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Anything is repairable but is it worth the effort? From what you can see and what you can't would be a real issue for me anyway, looks like a parts XJ to me and scrap what's left.
#4
Senior Member
Join Date: Nov 2012
Location: Harrisburg, Pennsylvania
Posts: 918
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO
What does the rest of the frame (and body) look like? If it is just that one section it shouldn't be too difficult to repair, but if the rest of the frame is in the same condition it is probably more work than it is worth (like Fred/N0AZZ said it is possible that the frame is rusting from the inside out and there is more damage you can't see).
#5
CF Veteran
Thread Starter
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
As far as I can tell, this is The Bad Spot. There's a bit starting where the bump stop fits against the other rail, but it's just starting there. Easily fixable. The trailer hitch is shot, and it's coming off. It's scary to think what I've been towing with that. I'll post pictures later.
I have a bit of rust on the driver side rocker panel, but I've seen much worse get fixed.
Everything else looks good.
Another problem that just came up is that I can't get the front leaf spring bolt out. Even with my 250 pound son pushing on a breaker bar with his foot, it will not budge. We got the back one off after a struggle, but that front one has us beaten. For now.
I was going to replace the leaf springs, but I'll have to settle for helper springs for now.
I have a bit of rust on the driver side rocker panel, but I've seen much worse get fixed.
Everything else looks good.
Another problem that just came up is that I can't get the front leaf spring bolt out. Even with my 250 pound son pushing on a breaker bar with his foot, it will not budge. We got the back one off after a struggle, but that front one has us beaten. For now.
I was going to replace the leaf springs, but I'll have to settle for helper springs for now.
The following users liked this post:
ijeeep (01-27-2021)
#6
CF Veteran
Thread Starter
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0

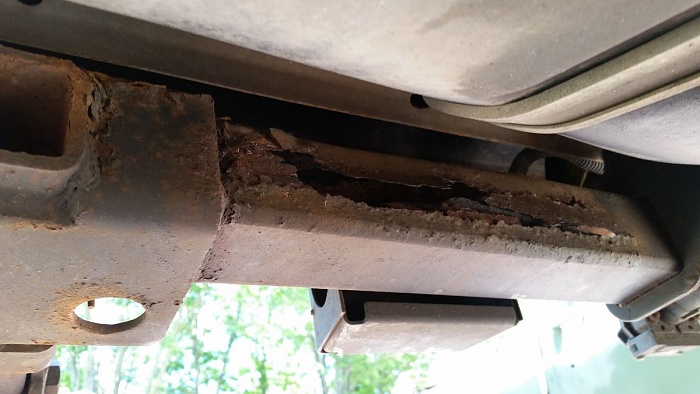

Well, I think it's time to take this tow hitch off and send it to the scrapper. This is the backside, from underneath the jeep, looking toward the back.
Whatcha tink? Salvageable?
Whatcha tink? Salvageable?
Last edited by BlueRidgeMark; 05-22-2015 at 06:22 PM.
#7
CF Veteran
Thread Starter
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0

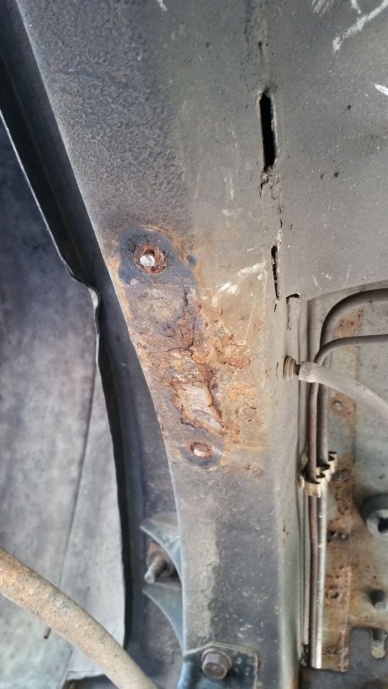

Here's the only other rust on the frame or other structural member.
Time to order some new bump stops. I found a thread earlier today where a member was getting flunked for safety inspection because his bump stops were shot. That was in Maryland, next door. I'm hoping the frame rust and bump stops don't shoot me down.
Anyway, any other input on the frame rust? Think it's doable? I can weld, and was planning on buying a welder anyway...
Or fuggetaboudit?
Time to order some new bump stops. I found a thread earlier today where a member was getting flunked for safety inspection because his bump stops were shot. That was in Maryland, next door. I'm hoping the frame rust and bump stops don't shoot me down.
Anyway, any other input on the frame rust? Think it's doable? I can weld, and was planning on buying a welder anyway...
Or fuggetaboudit?
Trending Topics
#10
CF Veteran
Thread Starter
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
I have too many projects already! I just want reliable vehicle, and I do NOT want to dump money into a pit.
Maybe it's time to buy an econobox for the commute, and work on this on the side. My # 2 son wants it for his anyway....
Maybe it's time to buy an econobox for the commute, and work on this on the side. My # 2 son wants it for his anyway....
The following users liked this post:
ijeeep (01-27-2021)
#12
Newbie
Join Date: May 2015
Location: Princeton, TX
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
If it were me I'd box the frame 6 inches or so in front and behind where the rust stops, this is of course provided that the frame is not rusting from the inside out in other locations. Worst case scenario you can use it as a mud toy or trail toy.
Chris
Chris
#13
CF Veteran
i would try to fix it. what do you got to loose? any repair will be better than what you have now.
do as mentioned, weld a patch in that goes about 6 inches to each side of the hole.
use a flap disc and clean it up, weld patch, coat with rubberized undercoat.
do as mentioned, weld a patch in that goes about 6 inches to each side of the hole.
use a flap disc and clean it up, weld patch, coat with rubberized undercoat.
#14
Newbie
Join Date: Apr 2015
Location: Ohio
Posts: 5
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
Just repaired the same exact spot on mine, they don't make these things anymore. In my opinion, a good running Cherokee is not disposable.
I cut out a big chunk of 16gauge and made a U-shape, cut out the damage. Welded in a chunk of angle iron in the void then covered the whole thing with the U- channel and welded it in. Probably a good idea to drop the tank. (Obviously)
I cut out a big chunk of 16gauge and made a U-shape, cut out the damage. Welded in a chunk of angle iron in the void then covered the whole thing with the U- channel and welded it in. Probably a good idea to drop the tank. (Obviously)
The following users liked this post:
ijeeep (01-27-2021)
#15
Senior Member
Join Date: Apr 2015
Location: Connecticut
Posts: 734
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
If you can weld and this is the only spot it seems worth fixing. If you have to pay the definitely not. I'm rehabbing a 96 right now and I'm pretty sure the PO was Jacques Cousteau based on the amount of rust. It's all in the pans and I'm learning to weld so it's worth it to me.
