Default Courtesy/Interior Light relay location on 96 XJ Sport?

I am trying to locate the courtesy/interior light relay on my 96 Sport. It is not in the relay block under the steering column, nor in the power dist center over the right front wheel. I looked behind both front interior kick panels and nothing there (relays were there in AMC days). Can't here a click when operating door button switches. Real mystery. This model has no body control box like later Grand Cheros.

Searched all over the usual forums and found nothing that helped.

Stumped. Any help is appreciated.

Thanks.
HappyTrails is offline   Reply With Quote
Old 09-16-2013, 05:26 PM   #2
CF Veteran


Driver X's Avatar

Join Date: Nov 2011
Location: Las Vegas, NV
Posts: 1,187

View Driver X's Photo Album My Photos
1996 Cherokee
Default

My '96 doesn't have a relay, but I do have a fuse under the dash.
__________________
Four Door Mafia

Round 2 parts page
Driver X is offline   Reply With Quote
Old 09-16-2013, 05:46 PM   #3
CF Veteran


freegdr's Avatar

Join Date: Mar 2010
Location: Taking slum lord to court soon ....
Posts: 31,071

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

Quote:
Originally Posted by Driver X View Post
My '96 doesn't have a relay, but I do have a fuse under the dash.
x2 courtesy/dome ...
__________________
its all in your altitude,horn broke watch for fingerWhen asking for help here and not listening to test procedures why ask.
freegdr is offline   Reply With Quote
Old 09-17-2013, 12:21 AM   #4
CF Veteran

Join Date: Apr 2012
Location: Wisconsin
Posts: 4,456

View Radi's Photo Album My Photos
Cherokee
Default

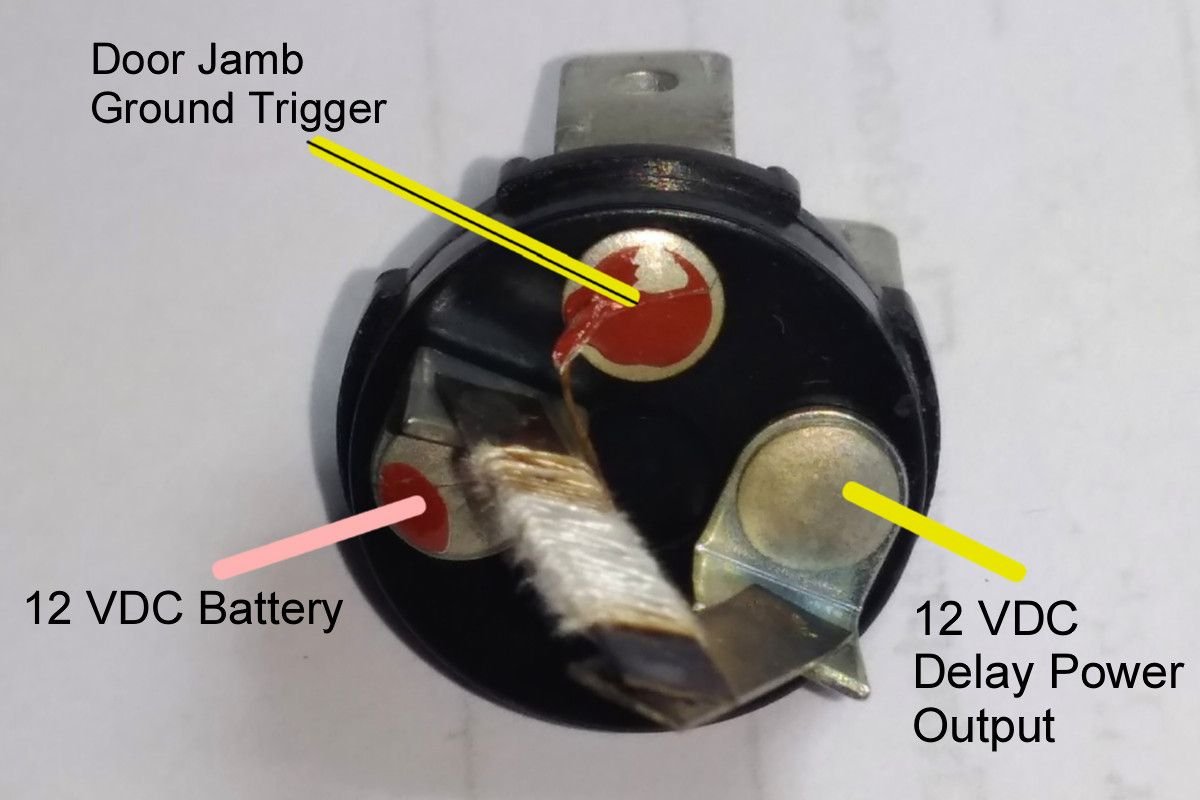

No relays, no BCM. Ground for the lights runs directly through the pin switches.
Radi is offline   Reply With Quote
Old 09-17-2013, 08:39 AM   #5
Member

HappyTrails's Avatar

Join Date: Jul 2013
Location: Groveland, CA
Posts: 151

View HappyTrails's Photo Album My Photos
1996 Sport Two Door Cherokee
Default Ground through pin switches

OK, thanks for the info. The schematics in the book I have do not show anything for interior lighting. It does seem odd that each switch is tasked with grounding the whole load of lighting.

I am trying to get the cargo dome switch to operate the interior lighting with the side doors closed. Issue must be something else.

Interior lights go on and off fine with side door and headlamp switch rotation. But the cargo dome switch seems to do nothing.

Still Stumpt.
HappyTrails is offline   Reply With Quote
Old 09-17-2013, 10:44 AM   #6
CF Veteran


Driver X's Avatar

Join Date: Nov 2011
Location: Las Vegas, NV
Posts: 1,187

View Driver X's Photo Album My Photos
1996 Cherokee
Default

Check the rear dome light switch too? Or possibly the rear hatch switch. Mine was rusted and caused an inop in dome lights.
__________________
Four Door Mafia

Round 2 parts page
Driver X is offline   Reply With Quote
Old 09-17-2013, 09:23 PM   #7
CF Veteran

Join Date: Apr 2012
Location: Wisconsin
Posts: 4,456

View Radi's Photo Album My Photos
Cherokee
Default

Quote:
Originally Posted by HappyTrails View Post
Interior lights go on and off fine with side door and headlamp switch rotation. But the cargo dome switch seems to do nothing.

Still Stumpt.
My '96 is the same way. I think the button back there is bad, but not worth the time or $$ to change it.
Radi is offline   Reply With Quote
Old 09-24-2013, 01:20 AM   #8
Member

HappyTrails's Avatar

Join Date: Jul 2013
Location: Groveland, CA
Posts: 151

View HappyTrails's Photo Album My Photos
1996 Sport Two Door Cherokee
Default Cargo Dome Light Problem Solved

Cargo dome light switch did nothing. Turns out it is in series with the liftgate latch switch, which is grounds the interior lighting circuit. Liftgate switch was not functioning at all and leaving the light circuit open.

Fixed the bent part. All works fine now. Thanks for the help.

I would suggest anyone having issues with lights staying on check this item out. The interior panel on the liftgate needs to be removed. (Be prepared to use screws to reinstall, since removal seems to destroy the plastic nail holders.)
