Old 03-02-2012, 09:31 AM   #1
Senior Member

zebvance's Avatar

Join Date: Feb 2012
Location: college station
Posts: 927

View zebvance's Photo Album My Photos
1988 Comanche
Default Ccv/PVC and valve cover replacement?

I have a 1988 mj 4x4 4.0 and I'm getting a good bit of oil in the air box. From what I have researched the cause of it is either worn rings or ccv/PVC? I don't think it would be worn rings. Is doesn't really seem to burn any oil of through the exhaust. Also the engine only has 103,000. Anyway, the valve cover gasket is also leaking a tad bit so would like to go ahead and replace that also. I have been searching around for a good write up on doing this but have yet to come across a good one. What I would like to know is if I wanted to replace the ccv system entirely instead of just the PVC valve what does that al intell? How hard is it? What all parts will I need, and how much will it cost. Sorry if that's alot to ask in one post guys. Hope I can get some help with this.
zebvance is offline   Reply With Quote
Old 03-02-2012, 10:31 AM   #2
kjc
Senior Member

Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 984

View kjc's Photo Album My Photos
1993 Grand Cherokee
Default

what's an mj?
kjc is offline   Reply With Quote
Old 03-02-2012, 10:33 AM   #3
CF Veteran

xj_maniac_newb's Avatar

Join Date: Sep 2009
Location: Summerville, Ga
Posts: 6,283

View xj_maniac_newb's Photo Album My Photos
1995 Cherokee
Default

Quote:
Originally Posted by kjc View Post
what's an mj?
MJ=Comanche
XJ=Cherokee
ZJ=Grand Cherokee
WJ=Grand Cherokee
__________________
Member Number: 9477
Wanna know your member number? Too bad!
"I'm gone. And remember.. if the phone doesn't ring, it's me" ~Paseur
Quote:
Originally Posted by odgreen89on35s View Post
Bastard... You divided by zero didn't you? Lol
Quote:
Originally Posted by dukie564 View Post
i'm guessing you steer clear of speed bumps lol, or your spine is made of titanium and wolverine tears
xj_maniac_newb is offline   Reply With Quote
Old 03-02-2012, 10:38 AM   #4
Seasoned Member

BODCherokee's Avatar

Join Date: Dec 2011
Location: Springfield, MA
Posts: 372

View BODCherokee's Photo Album My Photos
1993 Cherokee
Default

Quote:
Originally Posted by kjc View Post
what's an mj?
seriously?

The front PCV valve is just a beather for crank case gases that get recirculated into the air box. You can remove the hose connecting it to the air box, cap the connector on the box and then buy one of those tiny cold air intakes and pop that on the front PCV valve. They only cost $10 at autozone. Be careful with the PCV valve when putting the filter on, they can be pretty brittle. The size isnt quite right so you'll have to twist and push.
BODCherokee is offline   Reply With Quote
Old 03-02-2012, 10:40 AM   #5
Senior Member

zebvance's Avatar

Join Date: Feb 2012
Location: college station
Posts: 927

View zebvance's Photo Album My Photos
1988 Comanche
Default

Quote:
Originally Posted by xj_maniac_newb View Post
MJ=Comanche
XJ=Cherokee
ZJ=Grand Cherokee
WJ=Grand Cherokee
Thanks. Sorry I guess I should have said Comanche. The Comanche is basically identical mechanically and almost cosmetically as a xj except with the back half cut of and a truck bed put on a hybrid frame.
zebvance is offline   Reply With Quote
Old 03-02-2012, 10:44 AM   #6
Senior Member

zebvance's Avatar

Join Date: Feb 2012
Location: college station
Posts: 927

View zebvance's Photo Album My Photos
1988 Comanche
Default

Quote:
Originally Posted by BODCherokee View Post
seriously?

The front PCV valve is just a beather for crank case gases that get recirculated into the air box. You can remove the hose connecting it to the air box, cap the connector on the box and then buy one of those tiny cold air intakes and pop that on the front PCV valve. They only cost $10 at autozone. Be careful with the PCV valve when putting the filter on, they can be pretty brittle. The size isnt quite right so you'll have to twist and push.
I guess from what I read what causes the clog in the system and creates the blow by is some
Part of the ccv system that's on the back of the valve cover. I'm just trying to get more detail on it. Apperntly the old 4.0s don't have a pcv it is replaced by a ccv system. I'm trying to get more info if any of this is correct?
zebvance is offline   Reply With Quote
Old 03-02-2012, 02:36 PM   #7
Senior Member

zebvance's Avatar

Join Date: Feb 2012
Location: college station
Posts: 927

View zebvance's Photo Album My Photos
1988 Comanche
Default

Bump
zebvance is offline   Reply With Quote
Old 03-02-2012, 03:11 PM   #8
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 31,694

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

pull the rear line off and spray carb cleaner into the tube to clean it out watch for back spray in the eyes,the front tube should not be unhooked from the throttle body suction this removes crank case pressure when vacuum is not present such as accelration and high way speed excessive crank case pressure can cause gasket leakage and excessive blow by
__________________
its all in your altitude,horn broke watch for finger
When asking for help here and not listening to test procedures, why ask?
freegdr is offline   Reply With Quote
Old 03-02-2012, 03:16 PM   #9
CF Veteran

jakbob's Avatar

Join Date: Dec 2011
Location: Pasadena, MD
Posts: 4,002

View jakbob's Photo Album My Photos
1987 Wagoneer
Default

front tube is actually an "intake" for the valve cover. rear tube connects to the manifold. air flows like this in the renix system...

airbox - hose - front of valve cover - back of valve cover - intake

you should have a tiny bit of suction on the front hose with the engine running.
__________________
1987 Jeep Wagoneer Limited a.k.a. *******' Wagon

^yes, it is in fact a link to my build thread. go ahead, you know you want to...


MD RENIX MAFIA MEMBER #1

Quote:
Originally Posted by cruiser54

You made me open up a service manual!!!
jakbob is offline   Reply With Quote
Old 03-02-2012, 03:24 PM   #10
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 31,694

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

Quote:
Originally Posted by jakbob View Post
front tube is actually an "intake" for the valve cover. rear tube connects to the manifold. air flows like this in the renix system...

airbox - hose - front of valve cover - back of valve cover - intake

you should have a tiny bit of suction on the front hose with the engine running.
correct until you touch the throttle then it draws thru front hose thru air box via throttle body
__________________
its all in your altitude,horn broke watch for finger
When asking for help here and not listening to test procedures, why ask?
freegdr is offline   Reply With Quote
Old 03-02-2012, 03:31 PM   #11
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,389

View ZINGGG's Photo Album My Photos
1996 Cherokee
Default

Here is what you're looking for:

http://www.jeepforum.com/forum/f310/...ite-up-733669/
__________________
Formerly 1996sportXJ

If needed to replace, UPGRADE!!

'96 XJ 4-door Sport 4.0L, AW4, NP231, HP D30, 8.25
w/ 4" Teraflex lift, 33" BFG K/Os on Black Rock Soft 8s, 4.56 gears (thank you RWKHausSupply), APN header, Precision Auto Injectors, bored throttle body (thank you Thexjfiles), Spectre Intake, 2.5" Magnaflow catback (thank you mudfrog), Optima red top, Kelley's WiP 4 gauge battery cables (thank you 5-90), 10" cubby subwoofer (thank you KFXHellRaiser), 1-ton steering (thank you SeriousOffroad), front Crusader prerunner bumper (thank you JCR Offroad), sliders and rear bumper/tire carrier (thank you Ares Fab), Hyline Hood Vents, Truck Lite LEDs and more
ZINGGG is offline   Reply With Quote
Old 03-02-2012, 04:11 PM   #12
CF Veteran

jakbob's Avatar

Join Date: Dec 2011
Location: Pasadena, MD
Posts: 4,002

View jakbob's Photo Album My Photos
1987 Wagoneer
Default

Quote:
Originally Posted by freegdr View Post
correct until you touch the throttle then it draws thru front hose thru air box via throttle body
i dont think so... the vacuum increases as you increase the throttle. the vacuum in the manifold would still be greater than any vacuum located at that point on top of the filter, so it would still flow the same direction.
__________________
1987 Jeep Wagoneer Limited a.k.a. *******' Wagon

^yes, it is in fact a link to my build thread. go ahead, you know you want to...


MD RENIX MAFIA MEMBER #1

Quote:
Originally Posted by cruiser54

You made me open up a service manual!!!

Last edited by jakbob; 03-02-2012 at 04:13 PM. Reason: didnt want to sound like a douche.
jakbob is offline   Reply With Quote
Old 03-02-2012, 04:19 PM   #13
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 31,694

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

Quote:
Originally Posted by jakbob View Post
i dont think so... the vacuum increases as you increase the throttle. the vacuum in the manifold would still be greater than any vacuum located at that point on top of the filter, so it would still flow the same direction.
watch the gauge trhe second he throttles the motor more air is drawn in thru intake manifold than thru vacuum ports
__________________
its all in your altitude,horn broke watch for finger
When asking for help here and not listening to test procedures, why ask?
freegdr is offline   Reply With Quote
Old 03-02-2012, 04:22 PM   #14
CF Veteran

jakbob's Avatar

Join Date: Dec 2011
Location: Pasadena, MD
Posts: 4,002

View jakbob's Photo Album My Photos
1987 Wagoneer
Default

Quote:
Originally Posted by freegdr View Post
watch the gauge trhe second he throttles the motor more air is drawn in thru intake manifold than thru vacuum ports1985 Mustang GT vacuum gauge test - YouTube
youtube is blocked at my work :/
__________________
1987 Jeep Wagoneer Limited a.k.a. *******' Wagon

^yes, it is in fact a link to my build thread. go ahead, you know you want to...


MD RENIX MAFIA MEMBER #1

Quote:
Originally Posted by cruiser54

You made me open up a service manual!!!
jakbob is offline   Reply With Quote
Old 03-02-2012, 04:33 PM   #15
CF Veteran

jakbob's Avatar

Join Date: Dec 2011
Location: Pasadena, MD
Posts: 4,002

View jakbob's Photo Album My Photos
1987 Wagoneer
Default

Quote:
Originally Posted by freegdr View Post
watch the gauge trhe second he throttles the motor more air is drawn in thru intake manifold than thru vacuum ports1985 Mustang GT vacuum gauge test - YouTube
i got enough cell reception to watch... dont tell my boss...

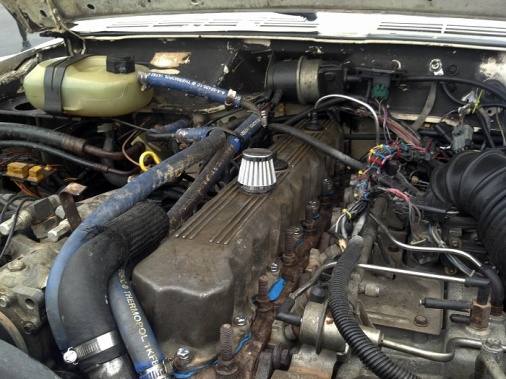

right, but there is still vacuum. if there wasnt vacuum, why doesnt a vacuum leak whistle? and why isnt this filter (my pic) not covered in oil?

mind you, im not trying to come off as a dick. im trying to understand something my reasoning says is wrong (but if i am wrong, consider myself "learned" lol)
Attached Thumbnails
Ccv/PVC and valve cover replacement?-2012-02-24_08-25-18_953.jpg
__________________
1987 Jeep Wagoneer Limited a.k.a. *******' Wagon

^yes, it is in fact a link to my build thread. go ahead, you know you want to...


MD RENIX MAFIA MEMBER #1

Quote:
Originally Posted by cruiser54

You made me open up a service manual!!!
jakbob is offline   Reply With Quote
